Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove the front fascia lower close out panel. Refer to CLOSE OUT PANEL - FRONT BUMPER FASCIA LOWER in Bumpers.
Release the brake caliper cooling duct from the front fascia and position the duct aside.

Fig 1: Releasing Brake Caliper Cooling Duct From Front Fascia
Courtesy of GENERAL MOTORS CORP.

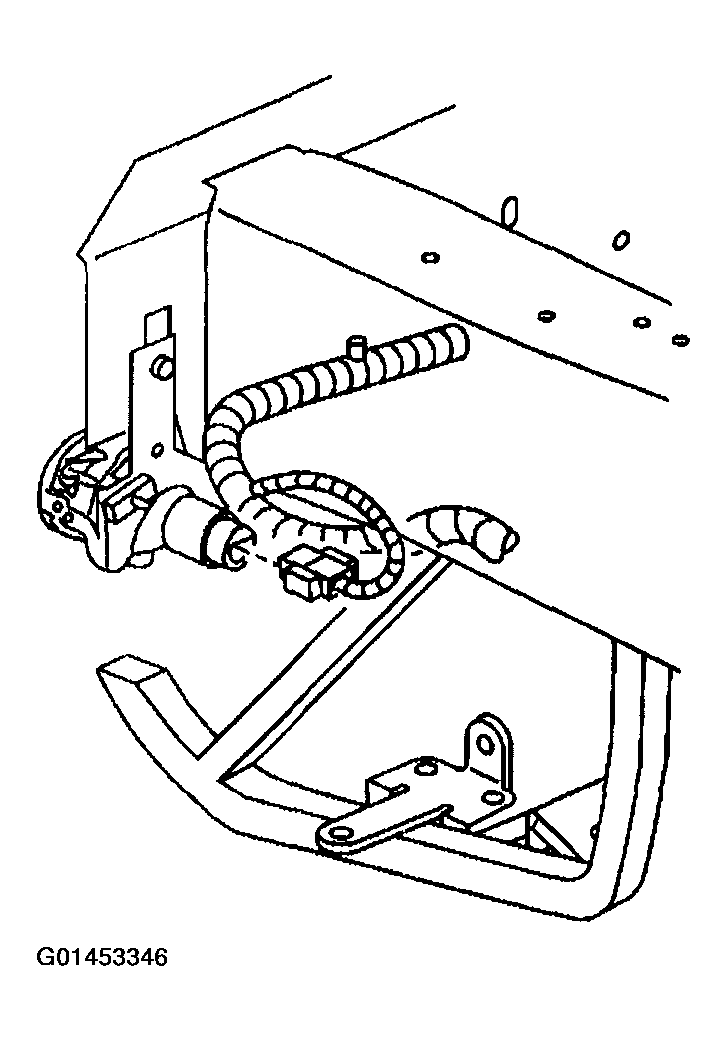

Disconnect the front fog lamp electrical connector from the fog lamp bulb/socket.

Fig 2: Disconnecting Front Fog Lamp Electrical Connector
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to HALOGEN BULB CAUTION in Cautions and Notices.

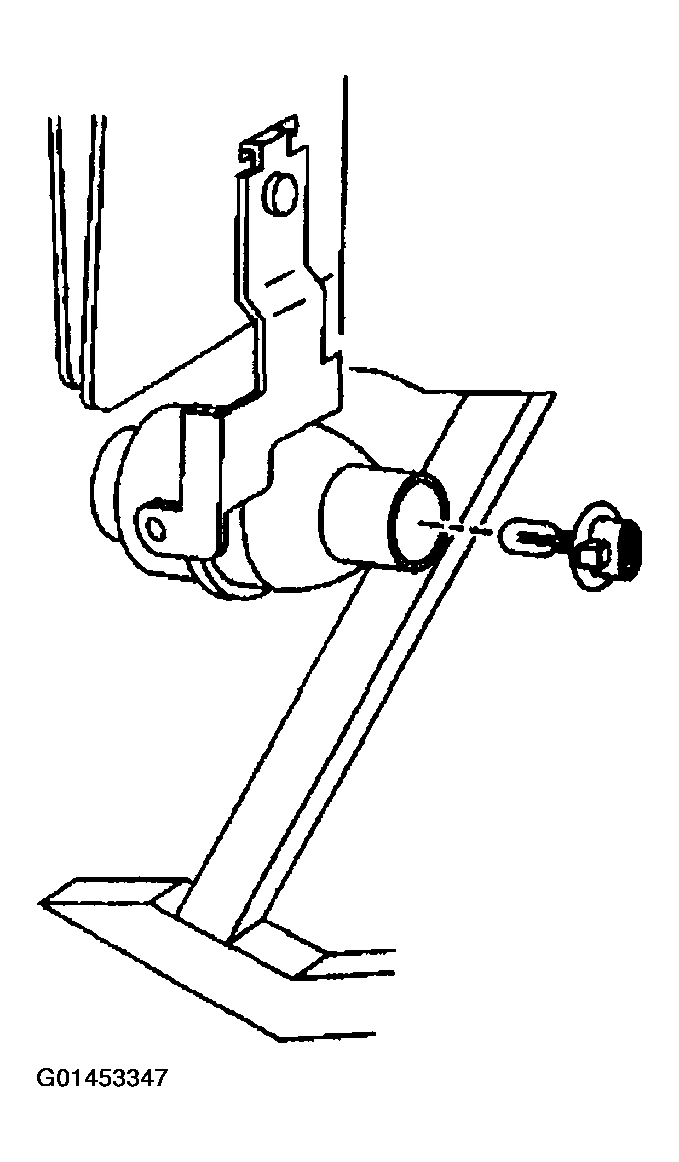

Remove the fog lamp bulb/socket from the fog lamp.
Rotate the fog lamp bulb/socket counterclockwise to release it from fog lamp.

Fig 3: Removing Fog Lamp Bulb/Socket From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
