Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Position the rear fog lamp assembly to the rear fascia.
Install the bezel to the lamp.
Insert the bezel into the slot on the lamp, then pivot the bezel onto the stud.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the rear fog lamp bezel retaining nut.
Tighten

Tighten the rear fog lamp bezel retaining nut to 2 N.m (18 lb in).

Fig 1: Rear Fog Lamp Bezel Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Install the socket to the lamp.
Install the tail/turn signal lamp. Refer to TAIL/TURN SIGNAL LAMP REPLACEMENT (EUROPE, JAPAN) .

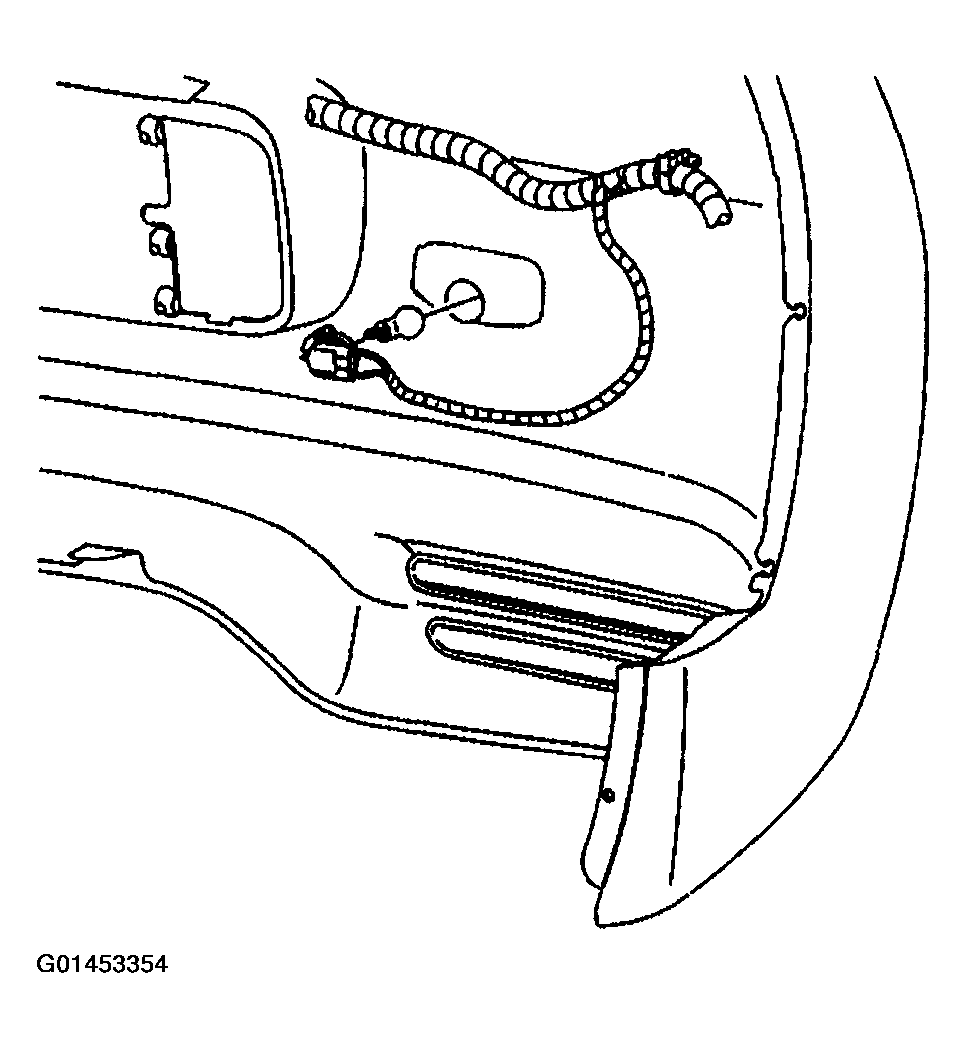

Fig 2: Installing Socket To Lamp
Courtesy of GENERAL MOTORS CORP.
