Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) passenger compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) in Instrument Panel, Gauges and Console.
  2. Depress the tabs on the sides of the IP compartment lamp switch.
  3. Carefully push the switch and lamp unit out of the opening and remove.

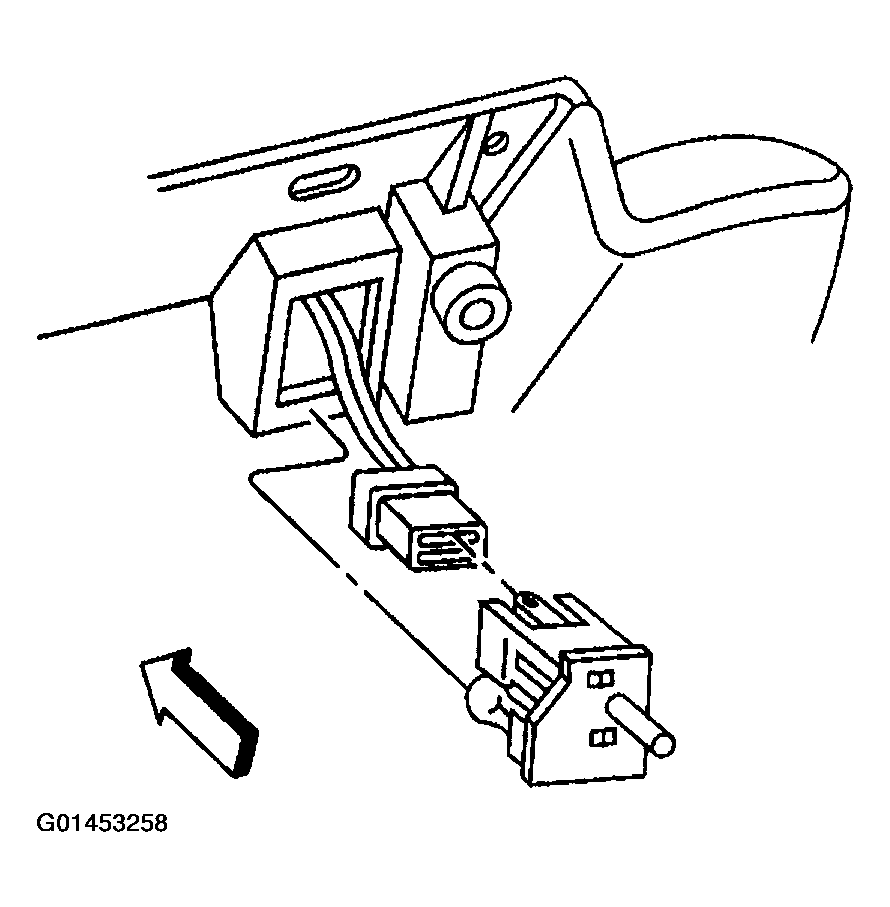

    Fig 1: Pushing Switch & Lamp Unit Out Of Opening To Remove
    G01453258Courtesy of GENERAL MOTORS CORP.
