Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the sidemarker lamp socket.
Install the socket to the sidemarker lamp assembly. Rotate the socket clockwise to engage the locking tabs.
Install the tail lamp. Refer to TAIL LAMP REPLACEMENT .

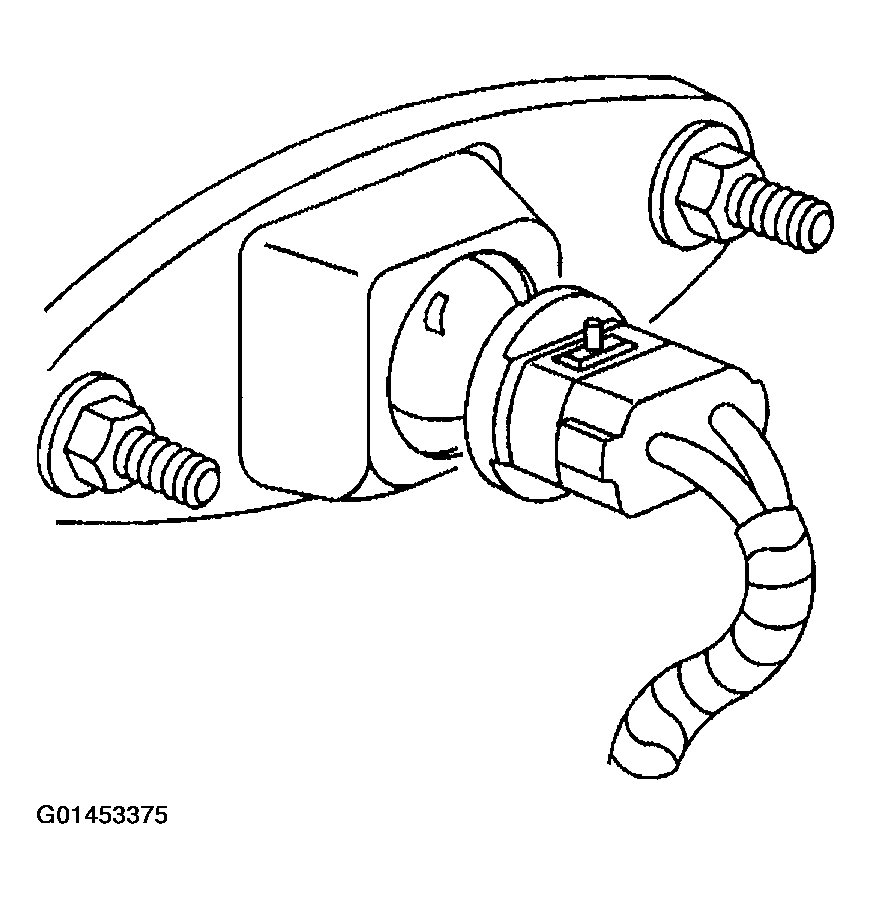

Fig 1: Installing Socket To Sidemarker Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
