Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lamp lens from the mirror housing.

    Pry carefully with a small, flat-bladed screwdriver (at the rear edge (1) of the lens, furthest from the windshield).

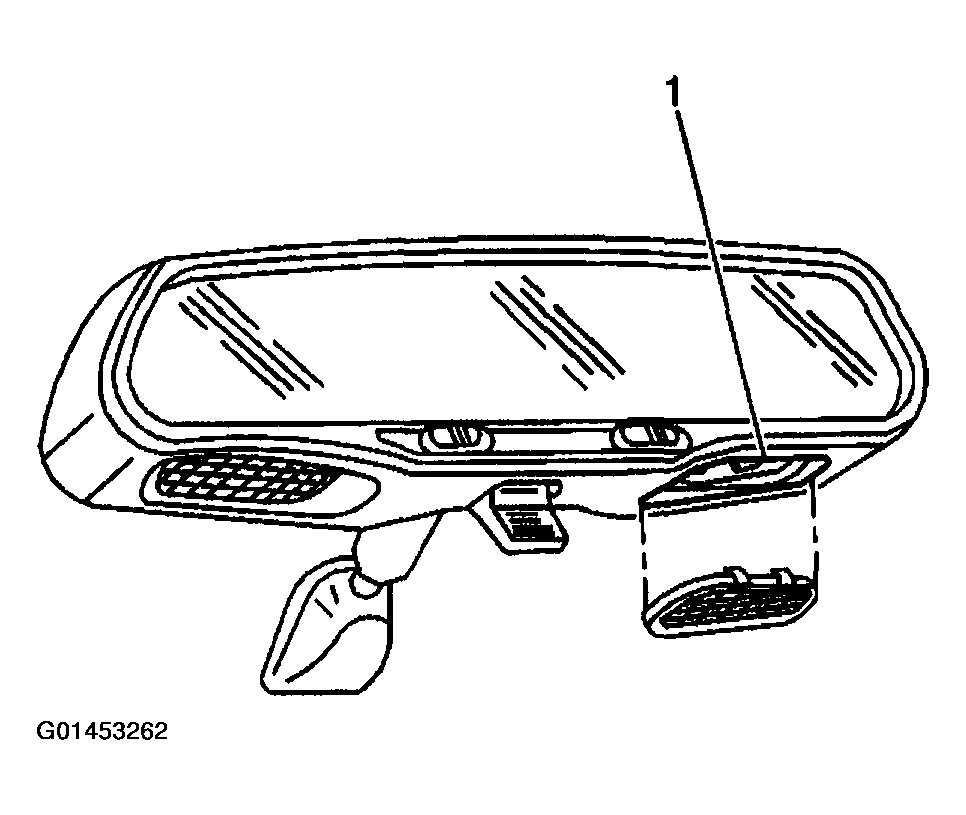

    Fig 1: Removing Lamp Lens From Mirror Housing
    G01453262Courtesy of GENERAL MOTORS CORP.
  2. Remove the bulb from the socket.
    Fig 2: Removing Bulb From Socket
    G01453263Courtesy of GENERAL MOTORS CORP.
