Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the sunshade and raise the mirror/lamp cover (the door).
  2. Insert a small flat-bladed screwdriver at the lower edge of the vanity mirror lamp lens then gently pry down to release the lens.

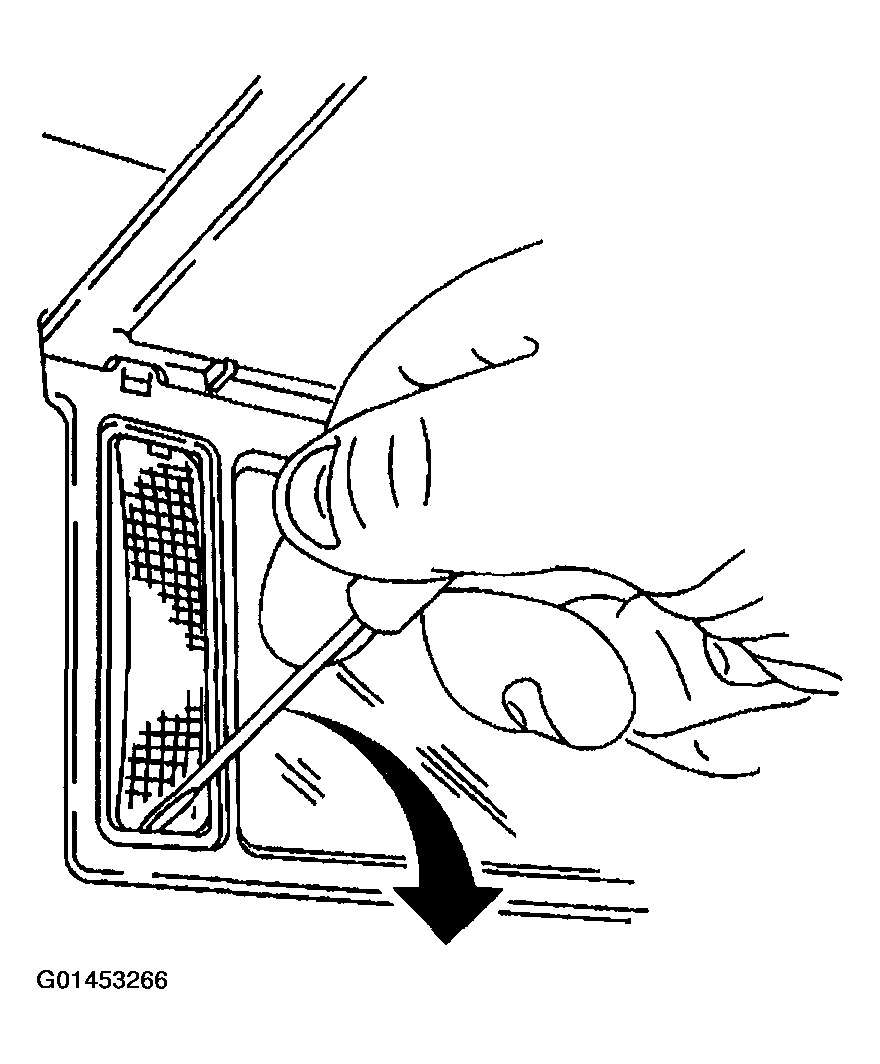

    Fig 1: Inserting Small Flat-Bladed Screwdriver To Releasing Lens
    G01453266Courtesy of GENERAL MOTORS CORP.
  3. Remove the vanity mirror lamp lens from the sunshade.

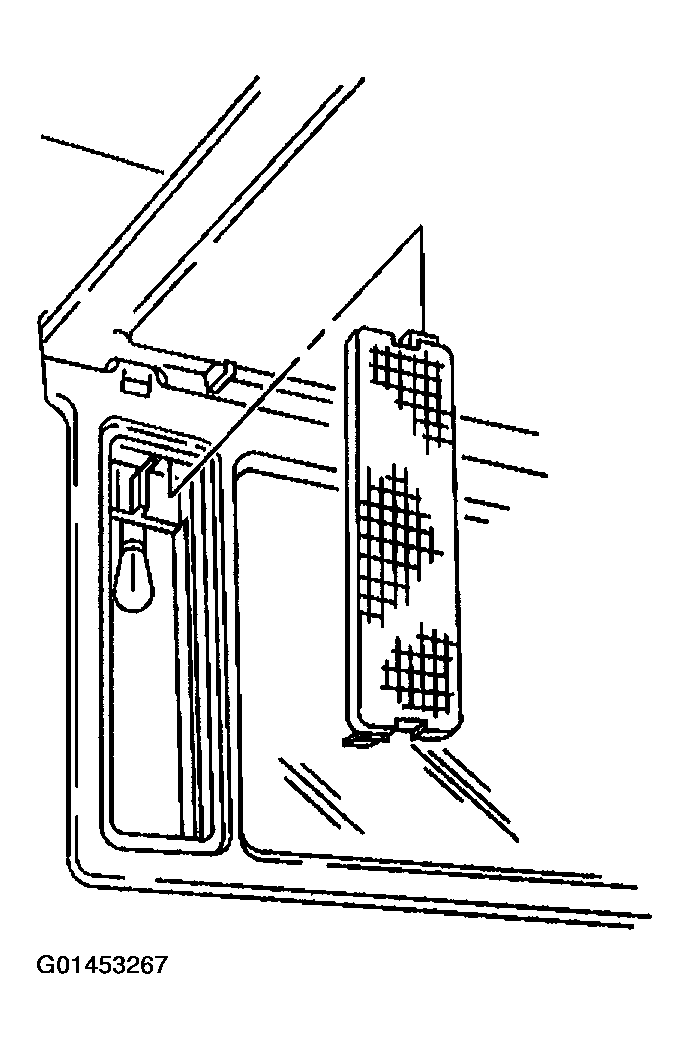

    Fig 2: Removing Vanity Mirror Lamp Lens From Sunshade
    G01453267Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the socket.

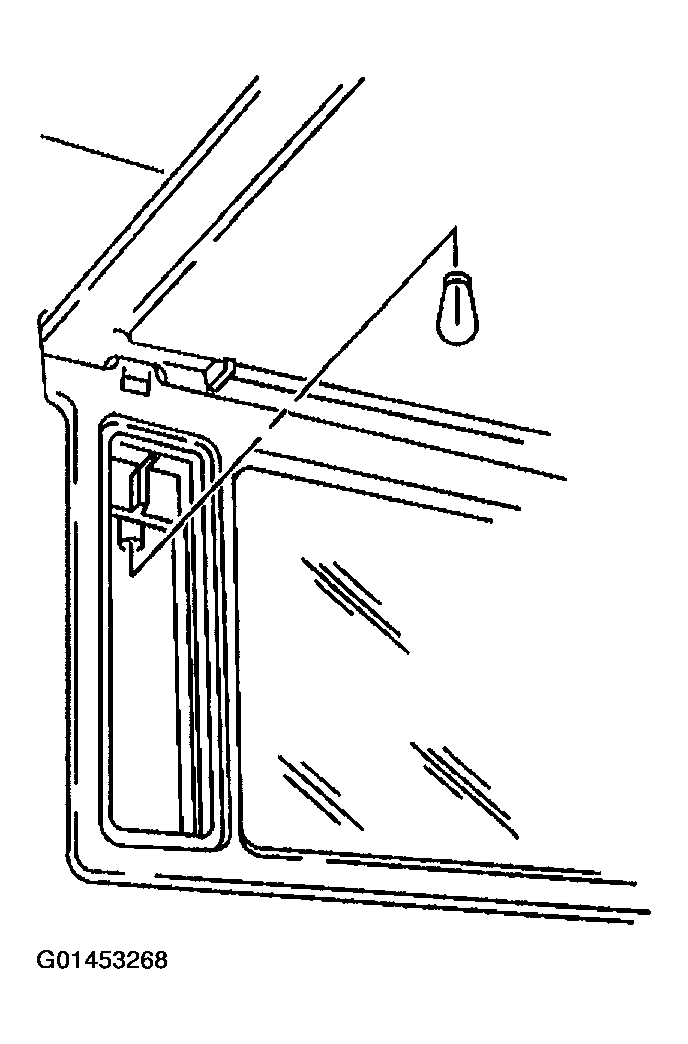

    Fig 3: Removing Bulb From Socket
    G01453268Courtesy of GENERAL MOTORS CORP.
