Removal Procedure
WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the washer solvent container to gain access to the washer hose pump side. Refer to WASHER SOLVENT CONTAINER REPLACEMENT .
- Disconnect the washer hose from the washer pump.

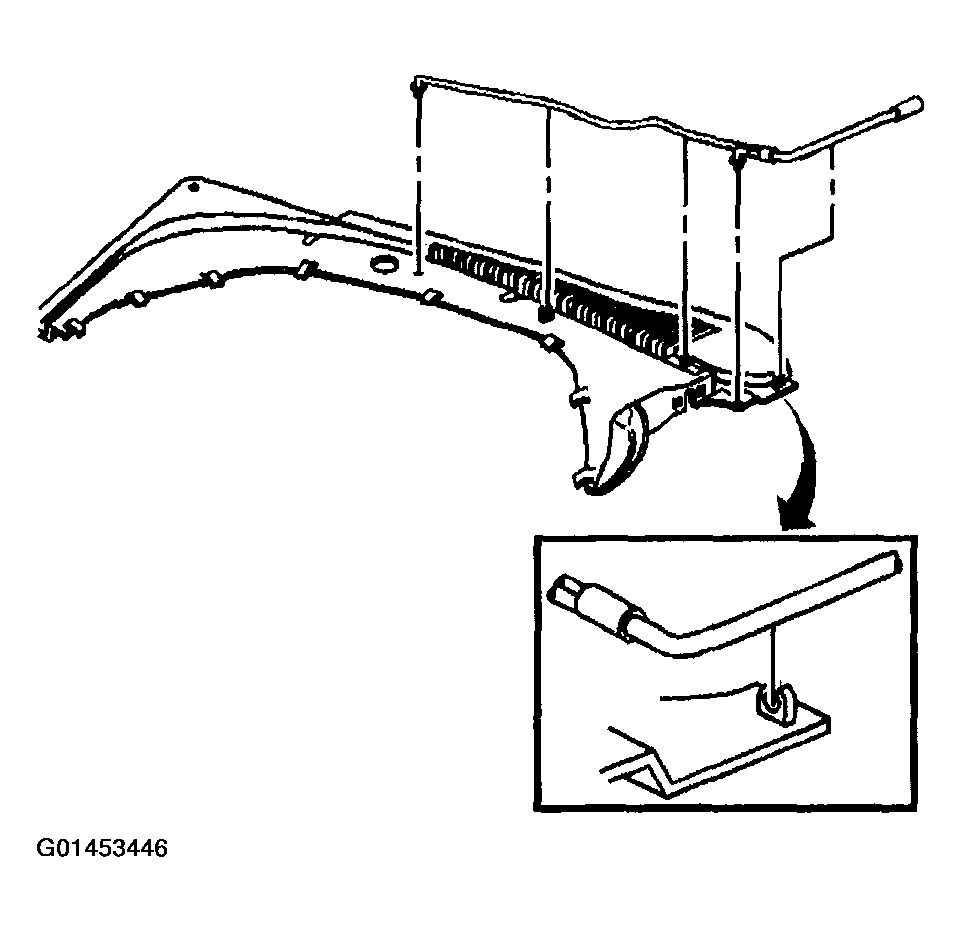

- Remove the air inlet grille panel to gain access to the washer hose. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
- Disconnect the washer hose from the bottom of the air inlet grille panel.
- Remove the washer hose from the vehicle.
