Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Install the wiper motor crank arm onto the wiper motor.
Position the park latch 4 - 5 mm (0.16 - 0.20 in) from the park tab.

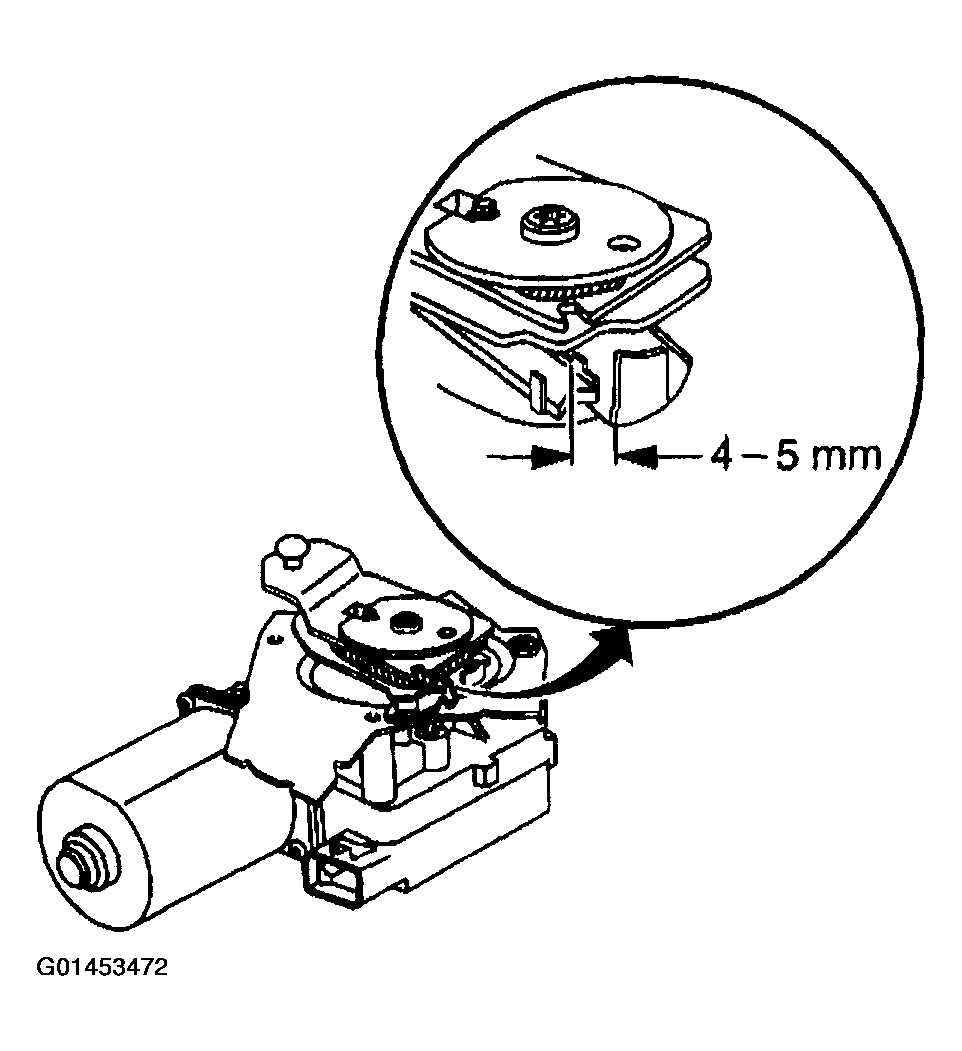

Fig 1: Positioning Park Latch 4-5 MM From Park Tab
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the wiper motor crank arm screw.
Tighten Tighten the screw to 15 N.m (11 lb ft).

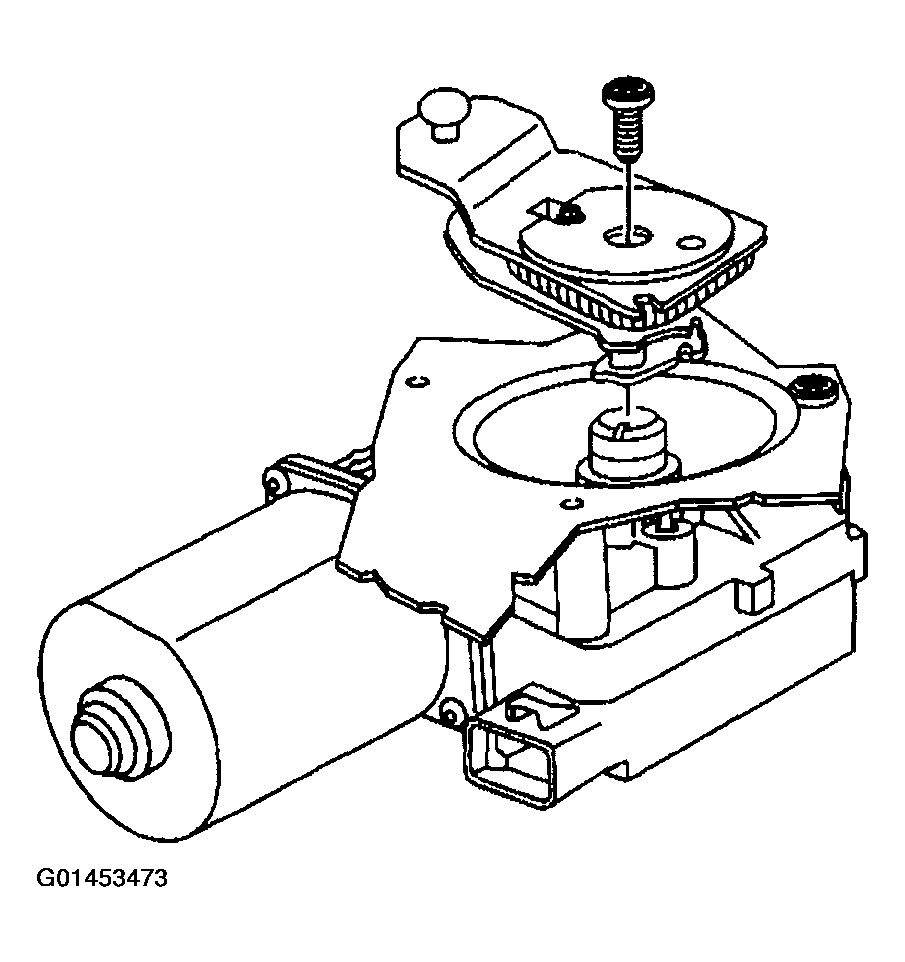

Fig 2: Wiper Motor Crank Arm Screw
Courtesy of GENERAL MOTORS CORP.
Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
Inspect the wipers for proper operation.

Fig 3: Connecting Wiper Transmission To Wiper Motor Crank Arm Using Wiper Linkage Installer
Courtesy of GENERAL MOTORS CORP.
