Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

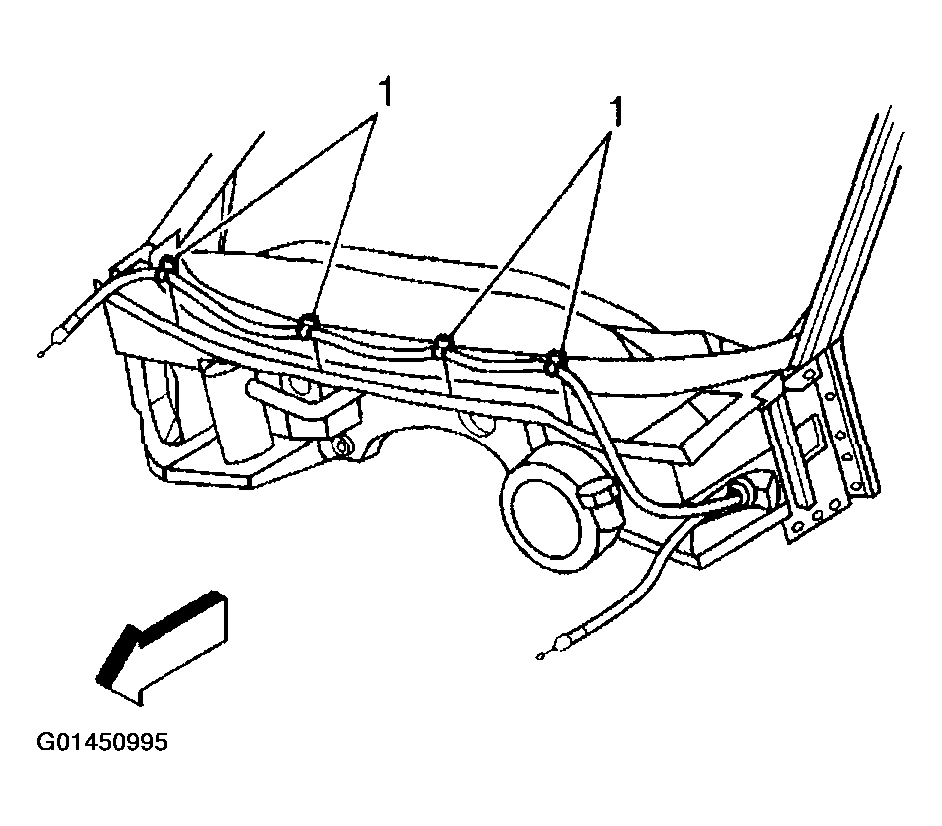

Route the cables through the opening in the dash panel, past the retainers (1) on the plenum panel, to the latches.

Fig 1: Release Cable
Courtesy of GENERAL MOTORS CORP.

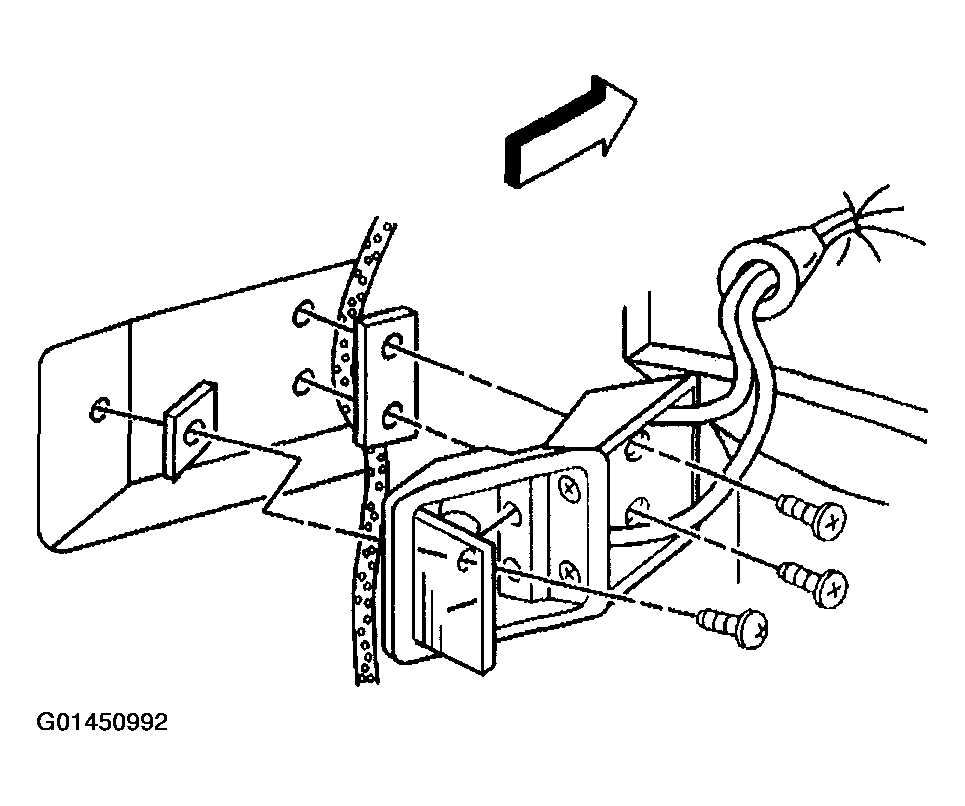

Position the latch handle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws which mount the hood release handle.
Tighten

Tighten the screws to 2 N.m (18 lb in).

Fig 2: Hood Release Handle
Courtesy of GENERAL MOTORS CORP.
Install the cable grommet through the slits in the carpet insulator and into the dash panel.

Fig 3: Cable Grommet
Courtesy of GENERAL MOTORS CORP.

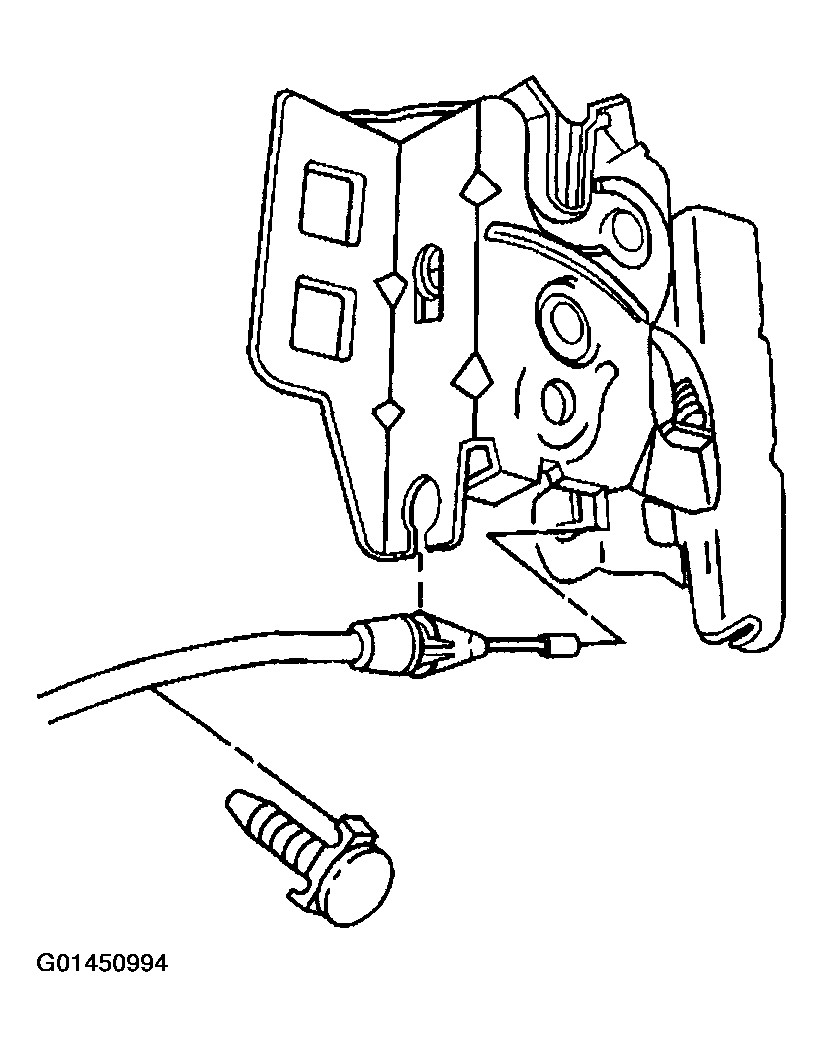

Connect the cables to the latches.
Install the hood latches. Refer to HOOD LATCH REPLACEMENT - LEFT and to HOOD LATCH REPLACEMENT - RIGHT .

Fig 4: Hood Latches
Courtesy of GENERAL MOTORS CORP.
Install the cable to the retainers (1).
Verify the operation of the latches.

Fig 5: Installing Cable To Retainers
Courtesy of GENERAL MOTORS CORP.
