Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When removing body panels, apply tape to corners of panel and adjacent surfaces to help prevent paint damage.

Disconnect the under hood light electrical wire connector located on the passenger side front of the lower radiator support.

Fig 1: Disconnecting Under Hood Light Electrical Wire Connector
Courtesy of GENERAL MOTORS CORP.
Mark the location of the hinges on the frame rails using a grease pencil.
With the aid of a helper, support the hood assembly.
Remove the struts from the upper ball studs.
Pry outward on the retaining clip and pull the strut from the ball stud.

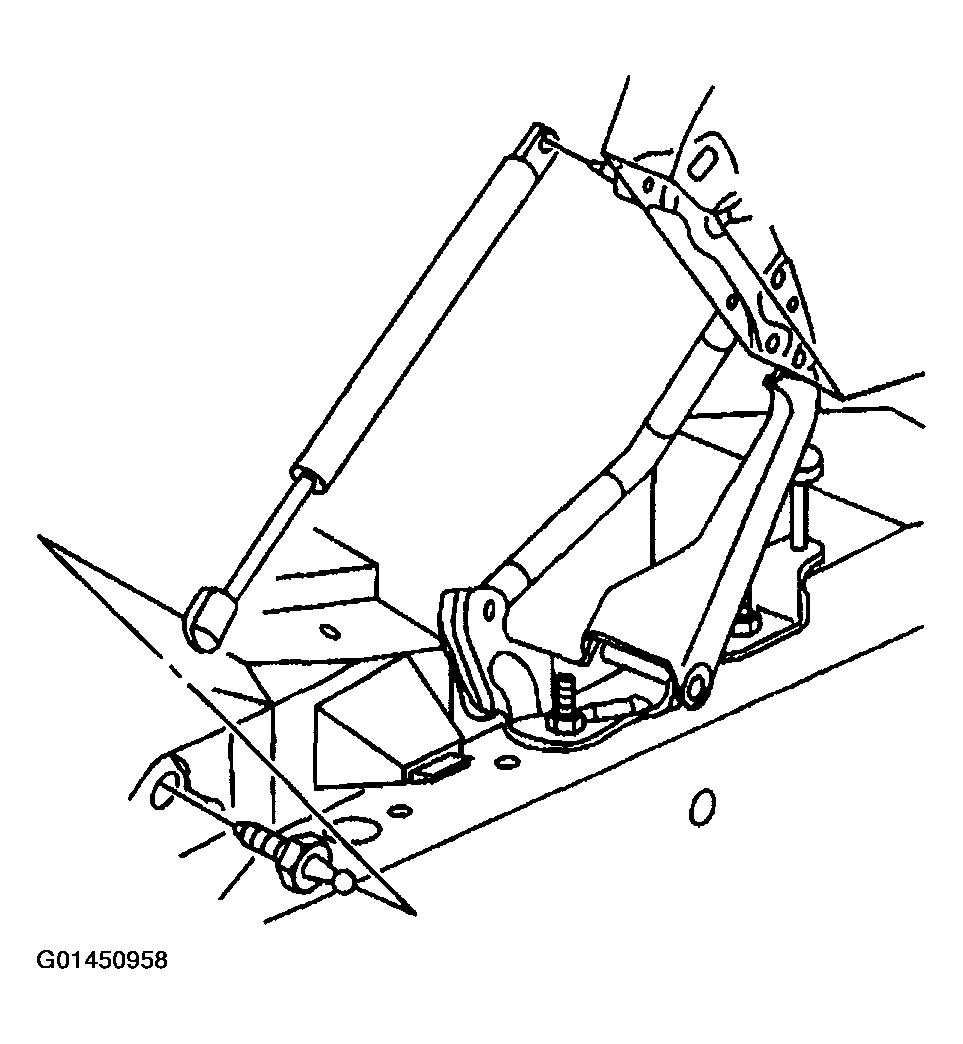

Fig 2: Removing Struts From Upper Ball Studs
Courtesy of GENERAL MOTORS CORP.
Remove the nuts attaching the hinge to the frame rail.

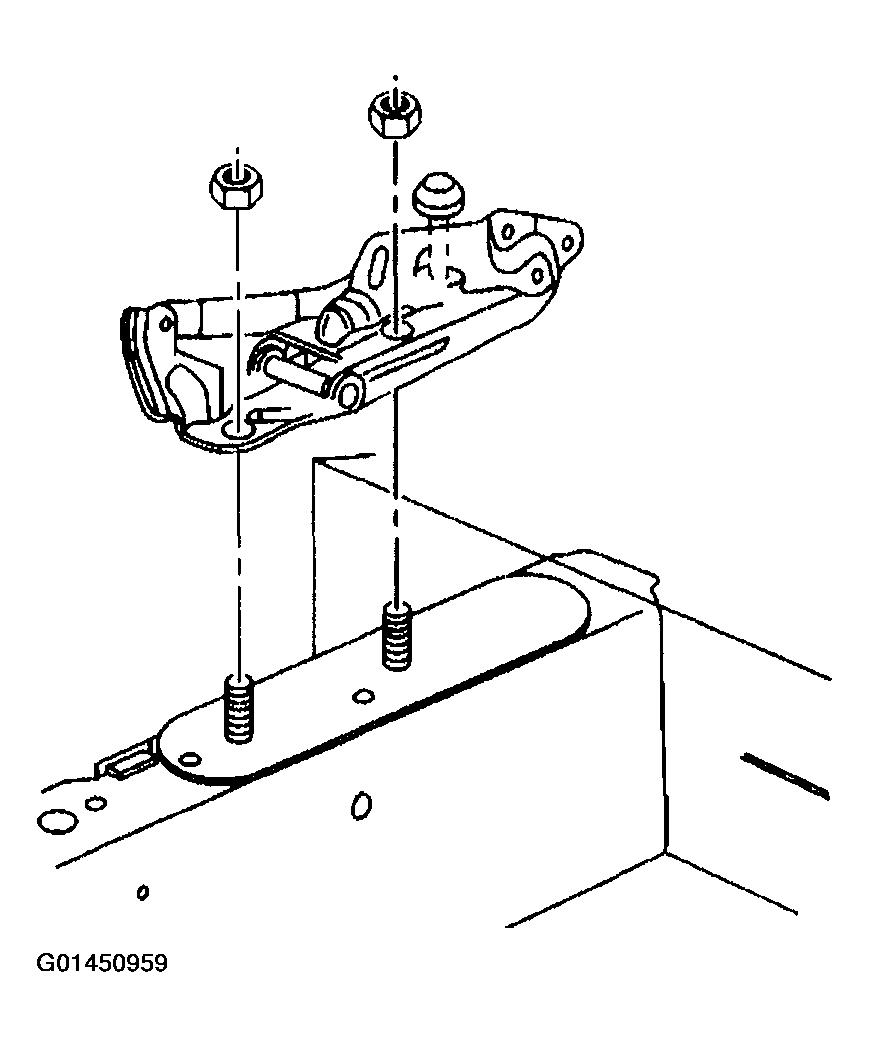

Fig 3: Removing Nuts Attaching Hinge To Frame Rail
Courtesy of GENERAL MOTORS CORP.
Remove the hood.
Transfer parts as necessary.

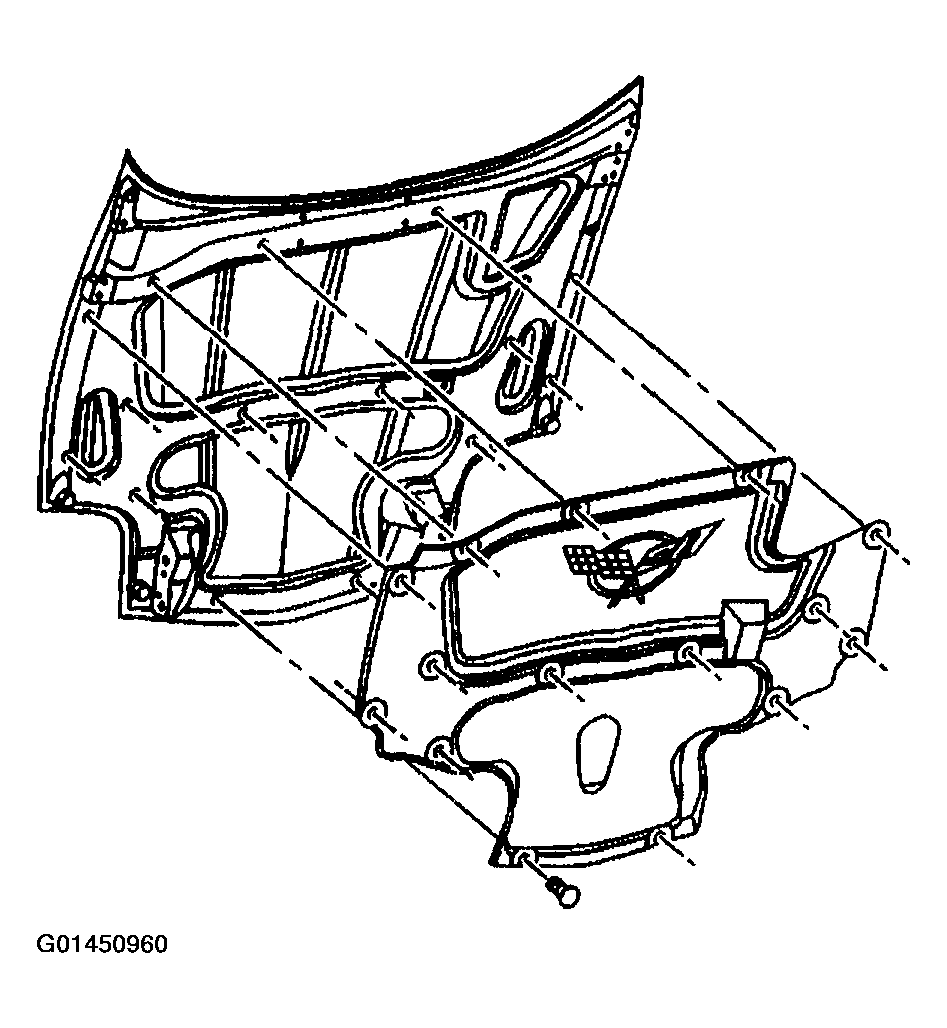

Fig 4: Hood
Courtesy of GENERAL MOTORS CORP.
