Section 119 (Engine Controls - Self-Diagnostics - 3.0L)
›
Connector Identification
Connector Identification
WARNING:
This page is about a different car, the 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

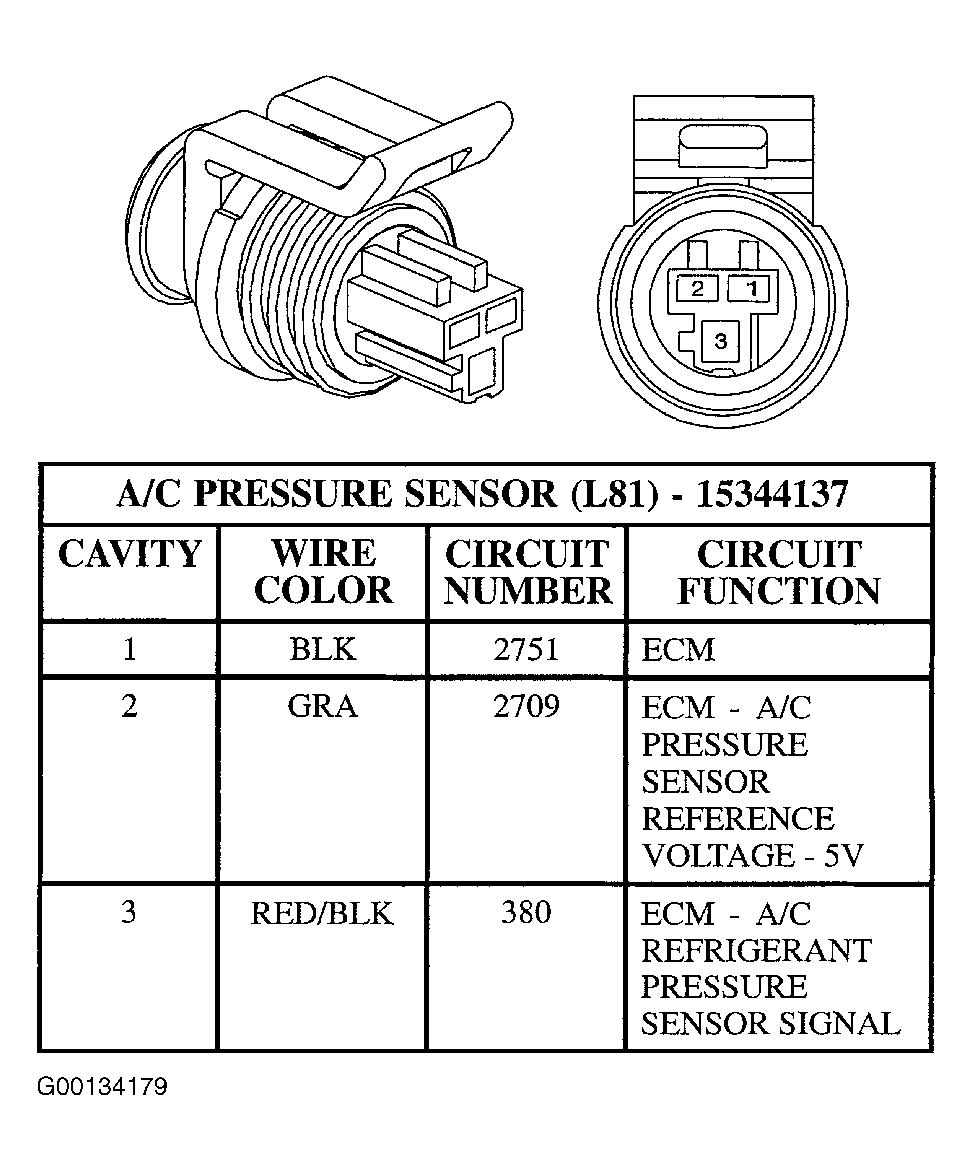

Fig 1: Identifying A/C Pressure Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Accelerator Pedal Position Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Brake Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.

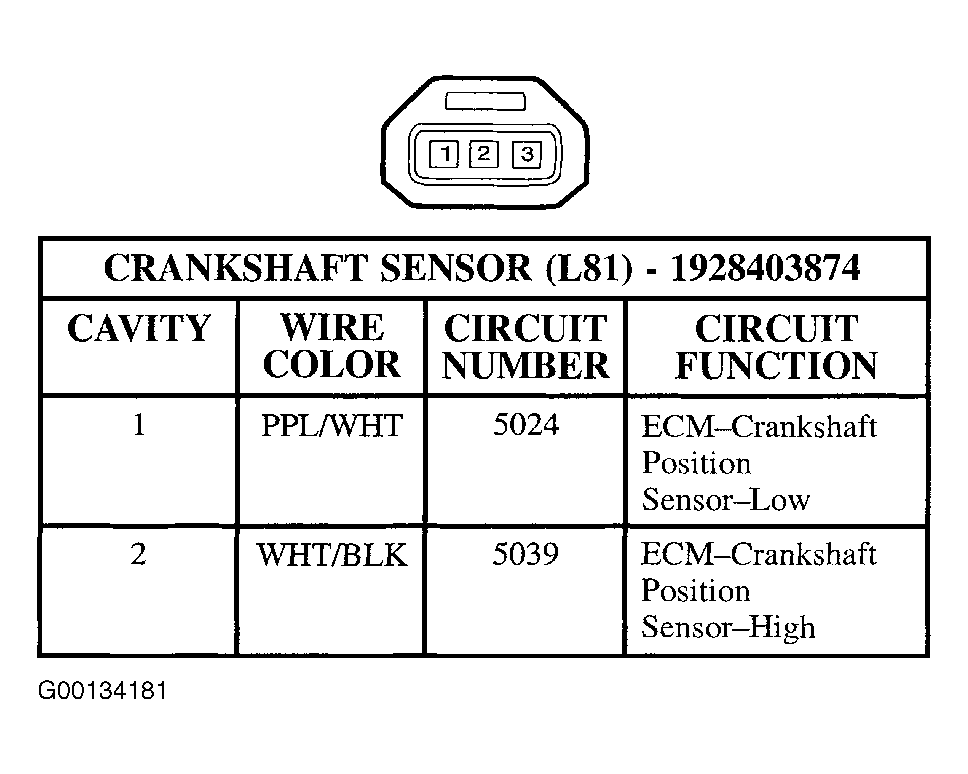

Fig 4: Identifying CKP Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

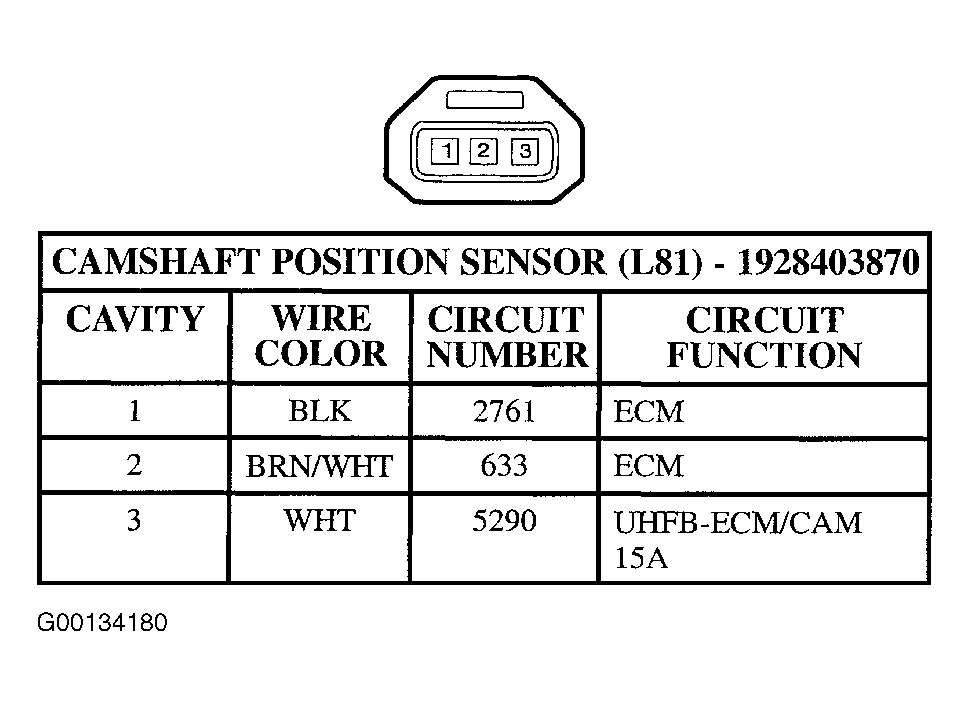

Fig 5: Identifying CMP Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Cruise Brake Switch Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying DLC Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying EBTCM Connector terminals (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Identifying EBTCM Connector terminals (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying ECM Connector J1 Terminals (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Identifying ECM Connector J1 Terminals (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying ECM Connector J1 Terminals (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Identifying ECM Connector J1 Terminals (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Identifying ECM Connector J2 Terminals (1 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Identifying ECM Connector J2 Terminals (2 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying ECM Connector J2 Terminals (3 Of 4)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying ECM Connector J2 Terminals (4 Of 4)
Courtesy of GENERAL MOTORS CORP.

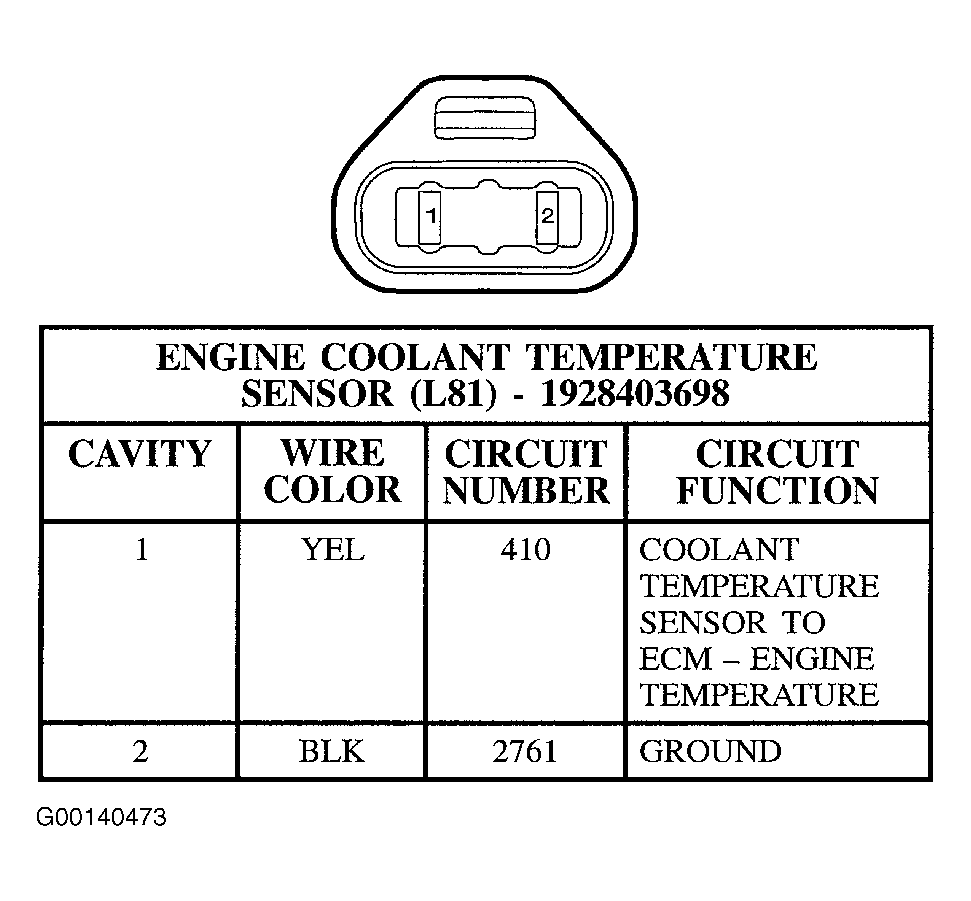

Fig 18: Identifying ECT Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

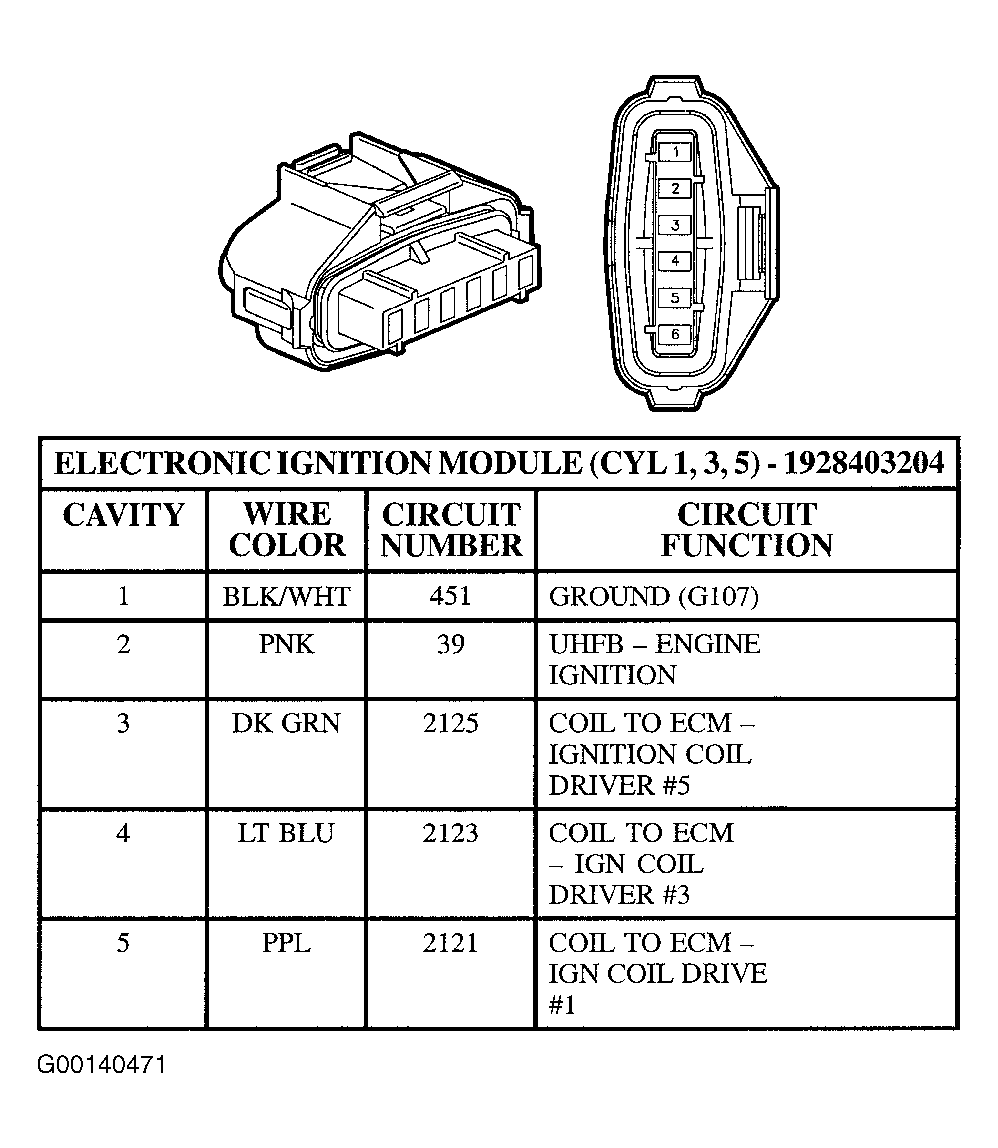

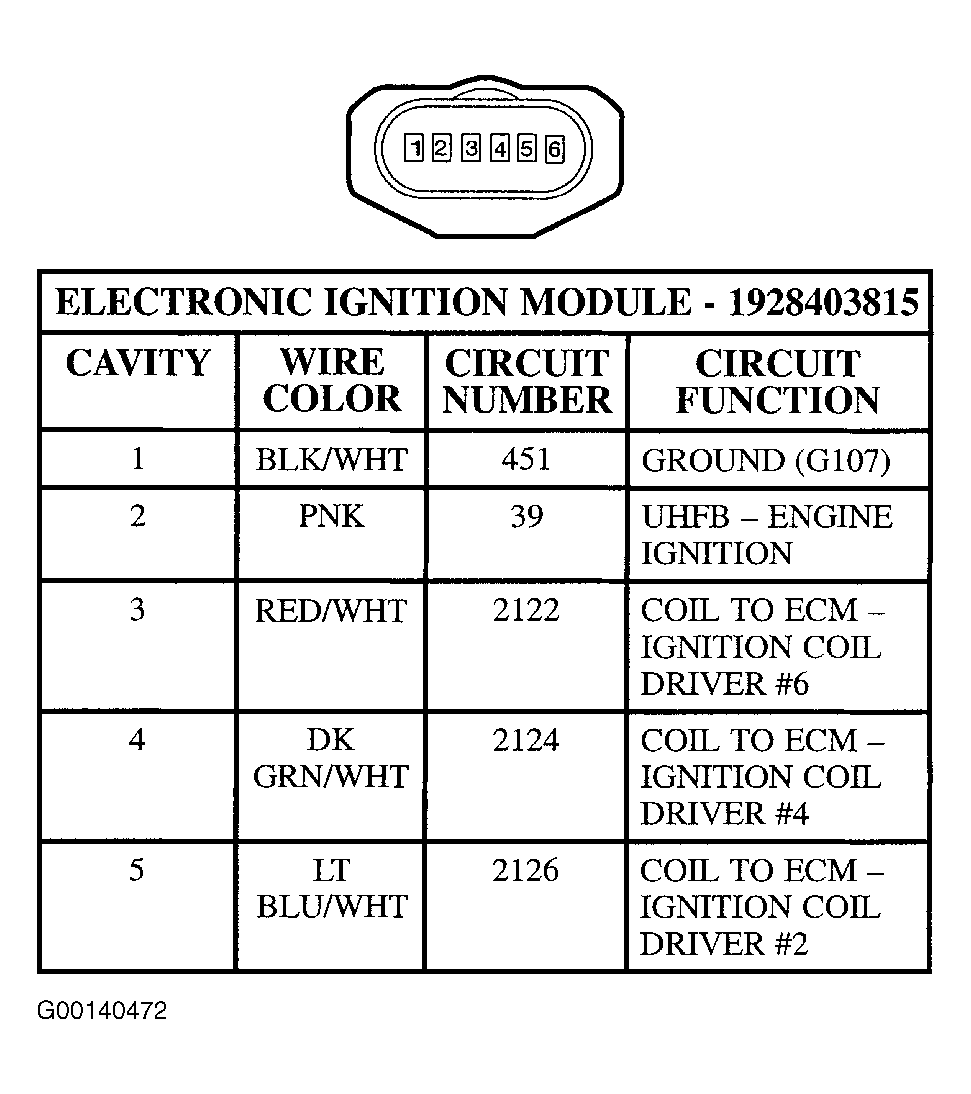

Fig 19: Identifying Electronic Ignition Module (Cyl. 1, 3 & 5) Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Electronic Ignition Module (Cyl. 2, 4 & 6) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

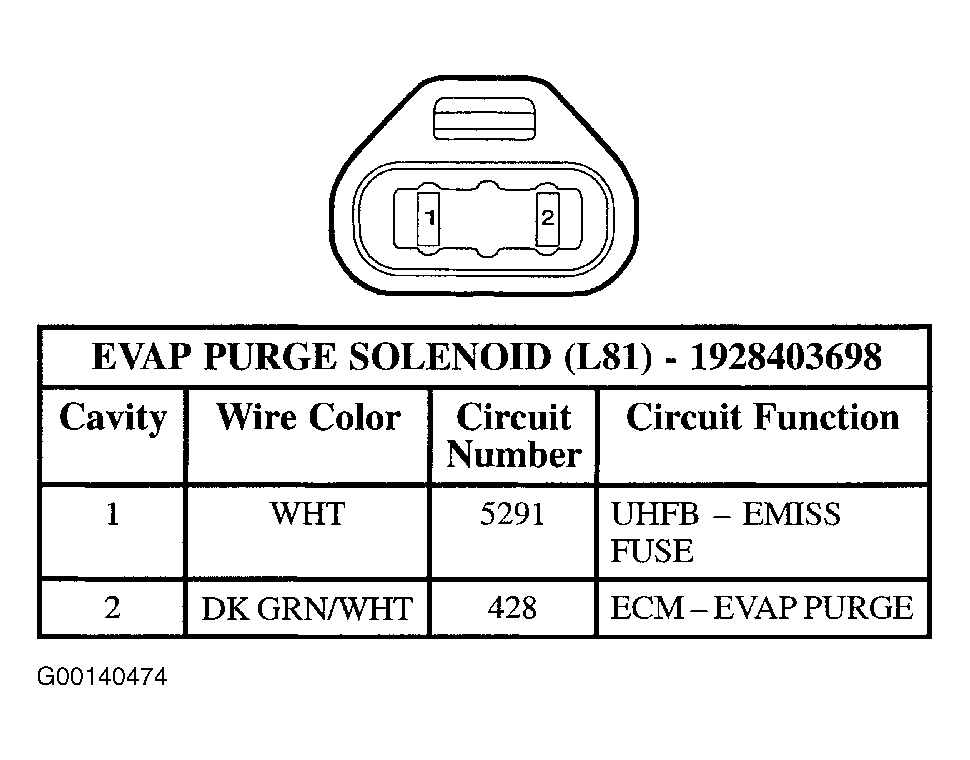

Fig 21: Identifying EVAP Purge Solenoid Connector Terminals
Courtesy of GENERAL MOTORS CORP.

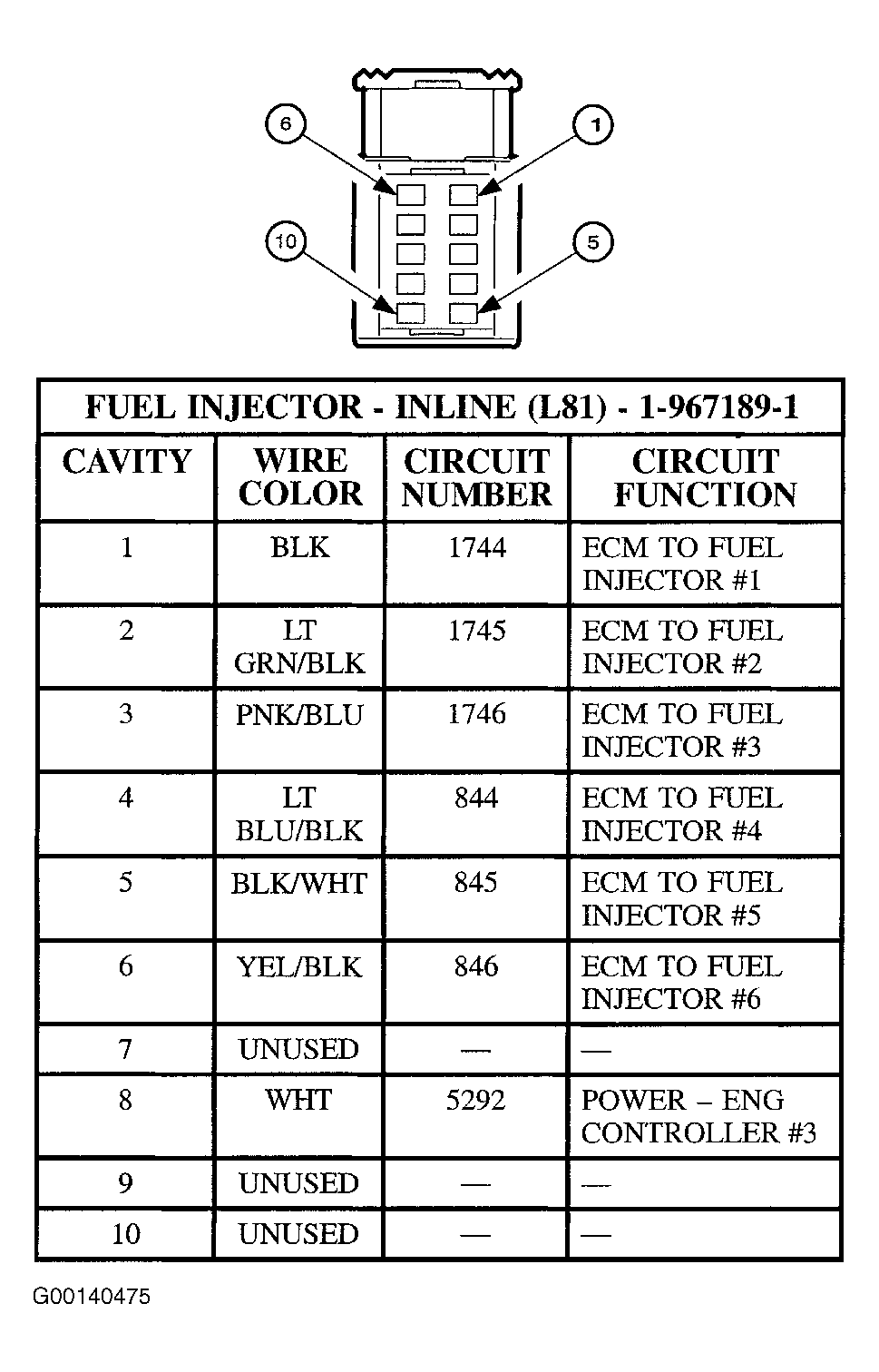

Fig 22: Identifying Fuel Injector In-Line Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Fuel Pump Assembly Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying Fuel Tank In-Line Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying FTP Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying Generator Connector Terminals
Courtesy of GENERAL MOTORS CORP.

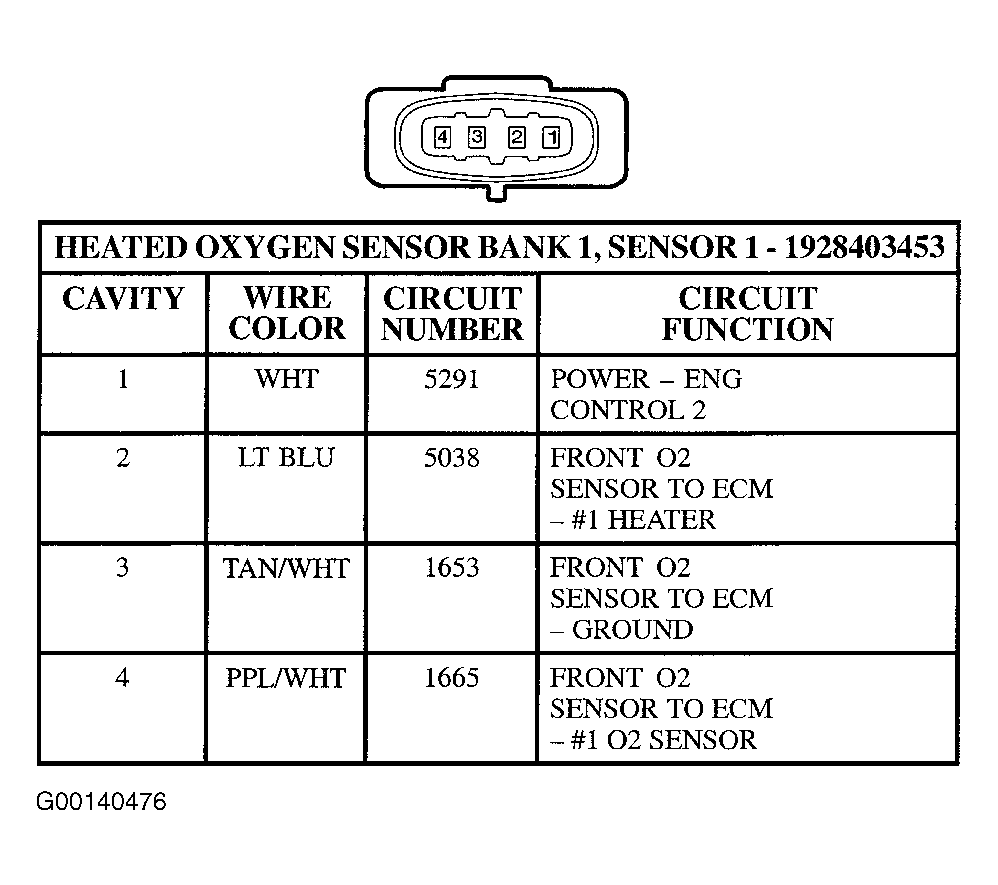

Fig 27: Identifying HO2S Bank 1 Sensor 1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

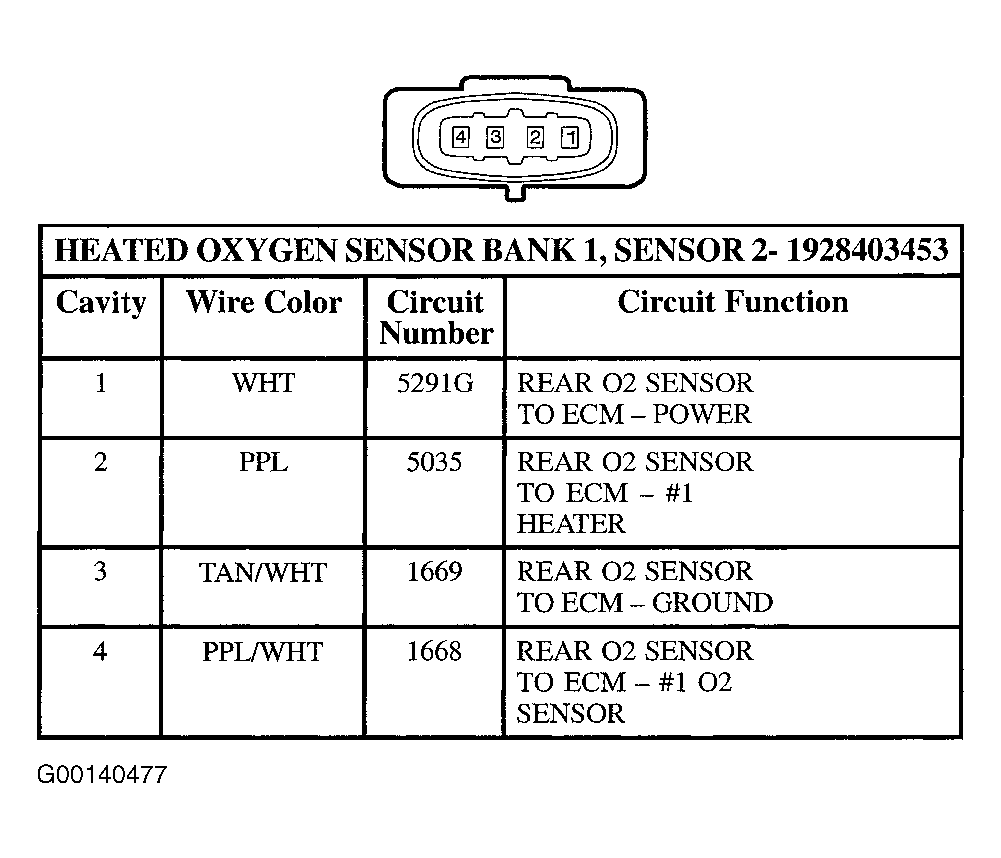

Fig 28: Identifying HO2S Bank 1 Sensor 2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

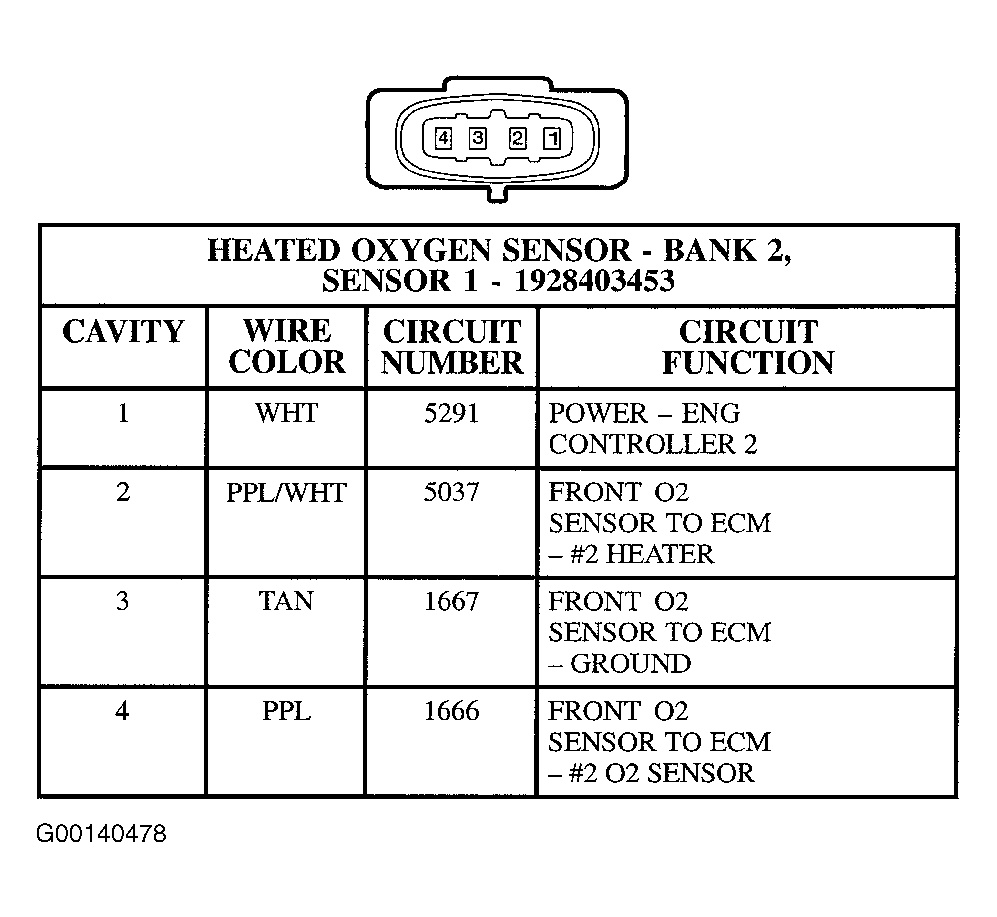

Fig 29: Identifying HO2S Bank 2 Sensor 1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

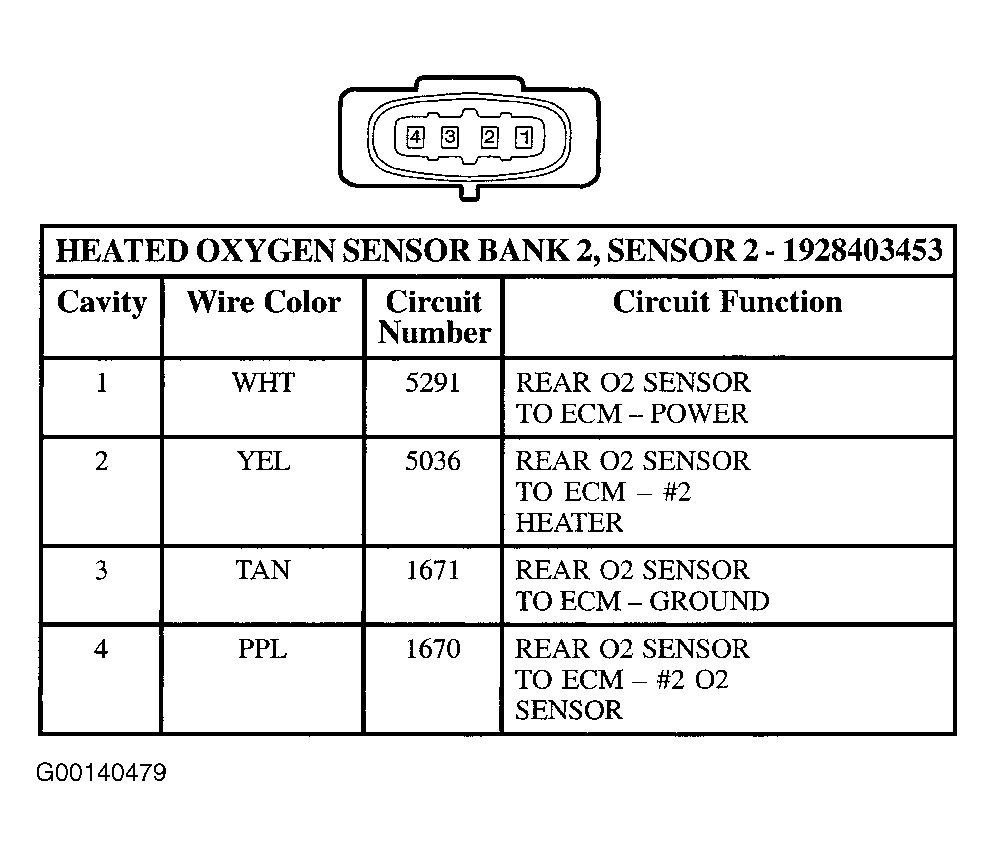

Fig 30: Identifying HO2S Bank 2 Sensor 2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

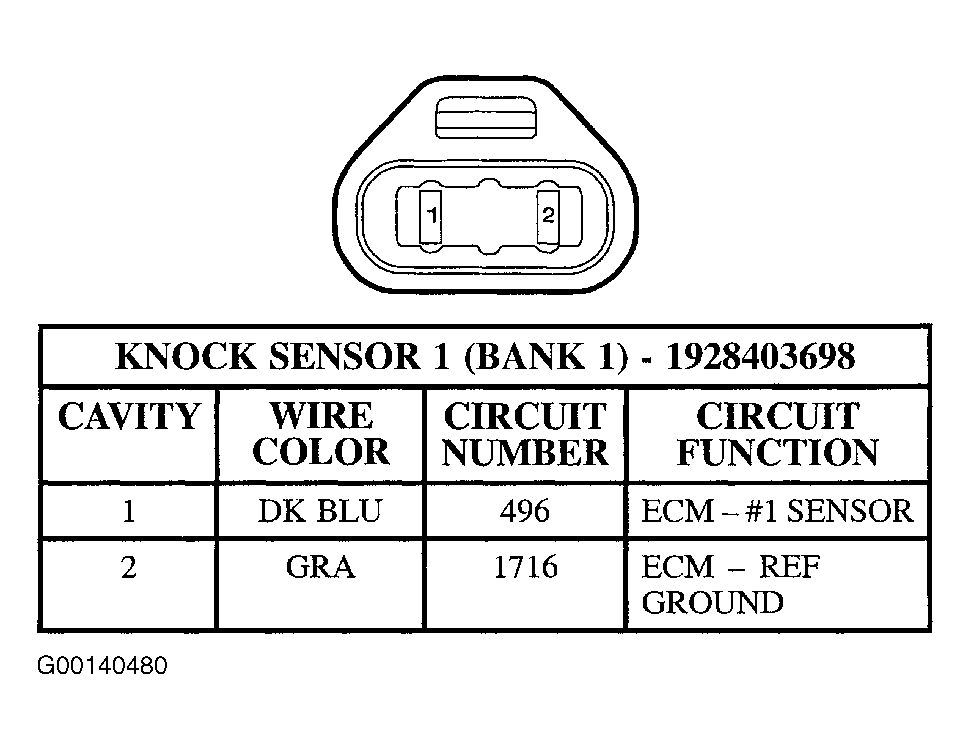

Fig 31: Identifying Knock Sensor 1 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

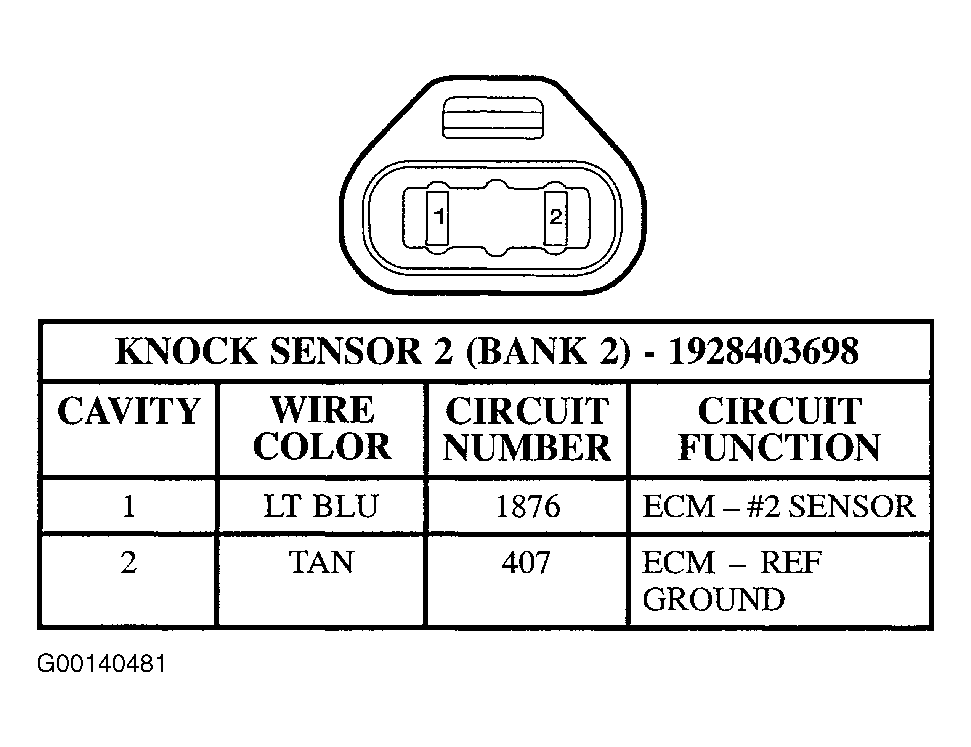

Fig 32: Identifying Knock Sensor 2 Connector Terminals
Courtesy of GENERAL MOTORS CORP.

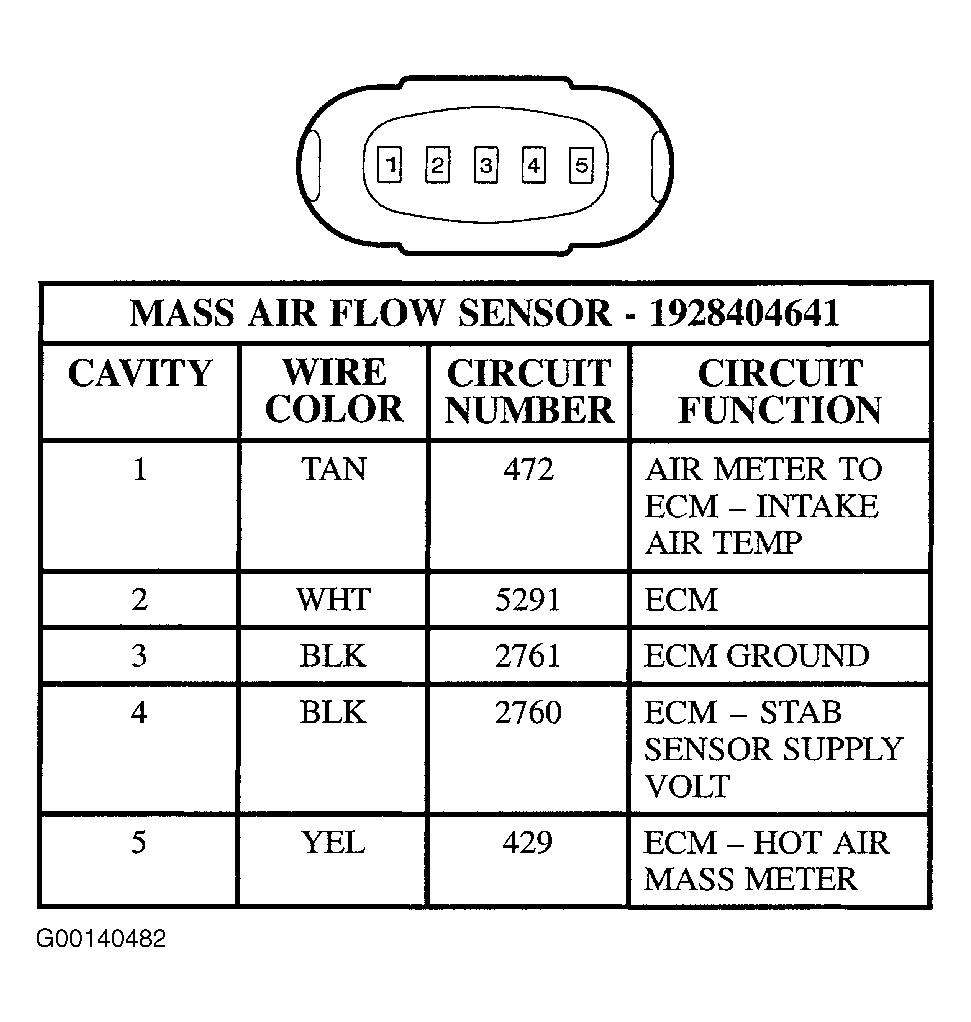

Fig 33: Identifying MAF Sensor Connector Terminals
Courtesy of GENERAL MOTORS CORP.

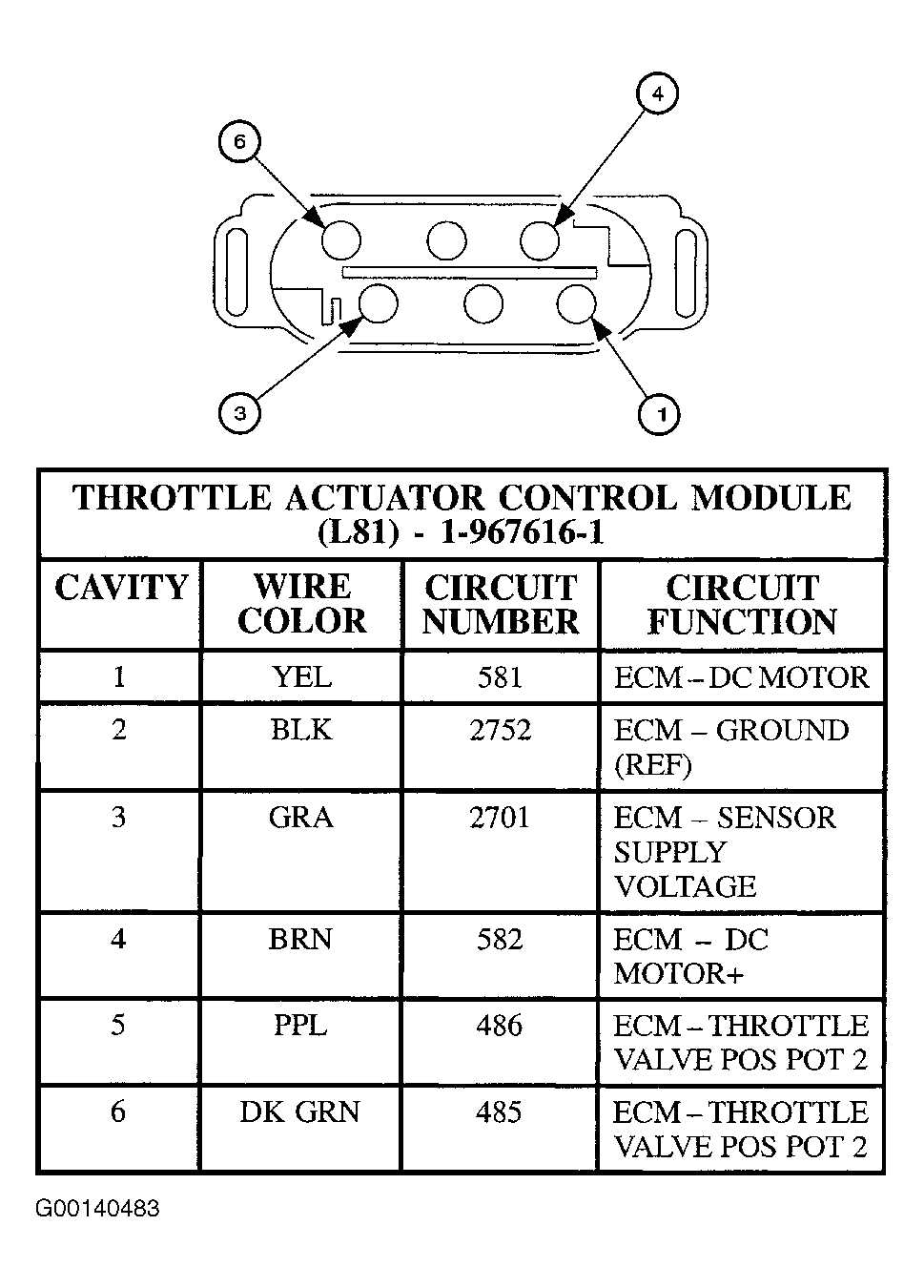

Fig 34: Identifying Throttle Actuator Control Module Connector Terminals
Courtesy of GENERAL MOTORS CORP.
