ABS Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

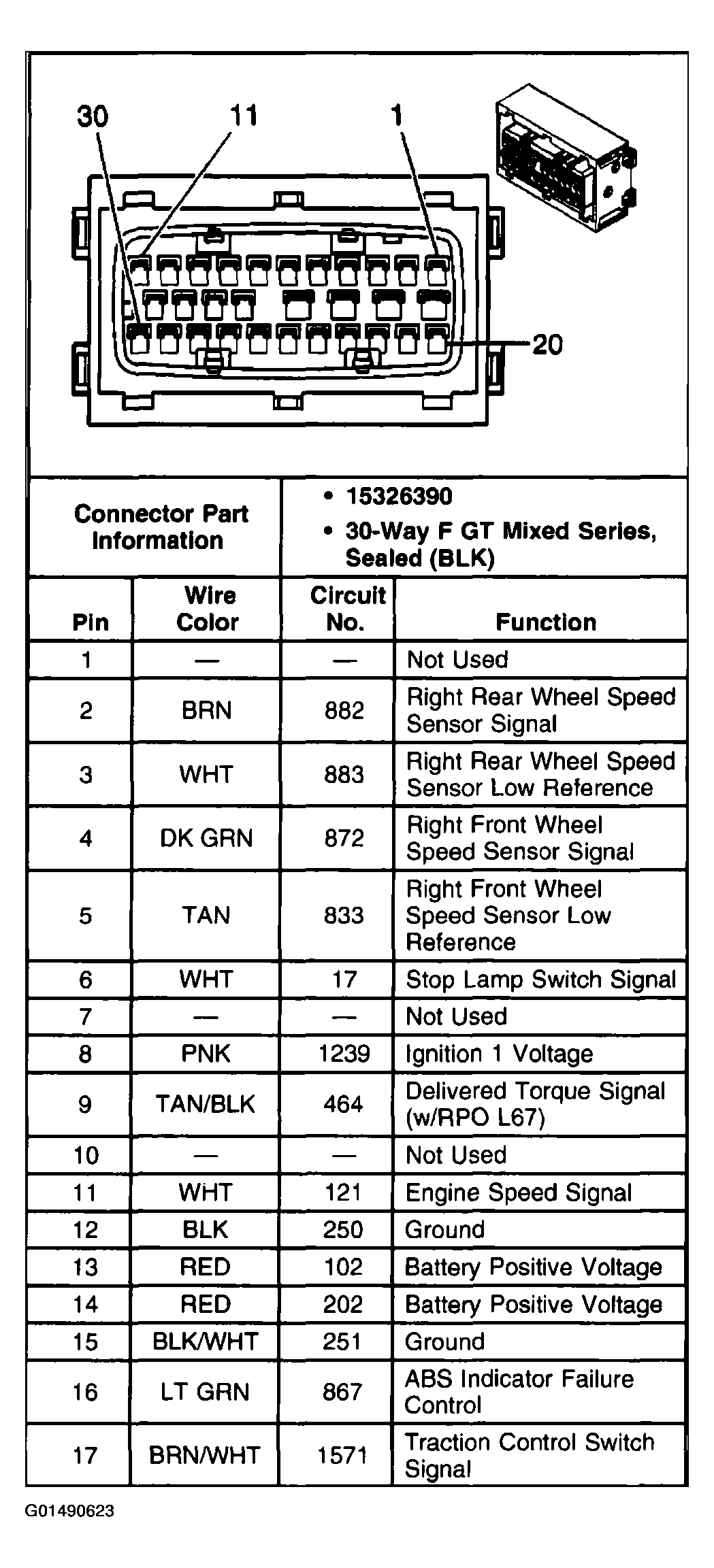

Fig 1: Electronic Brake Control Module (EBCM) C1 (1 - 17)

G01490623

Courtesy of GENERAL MOTORS CORP.

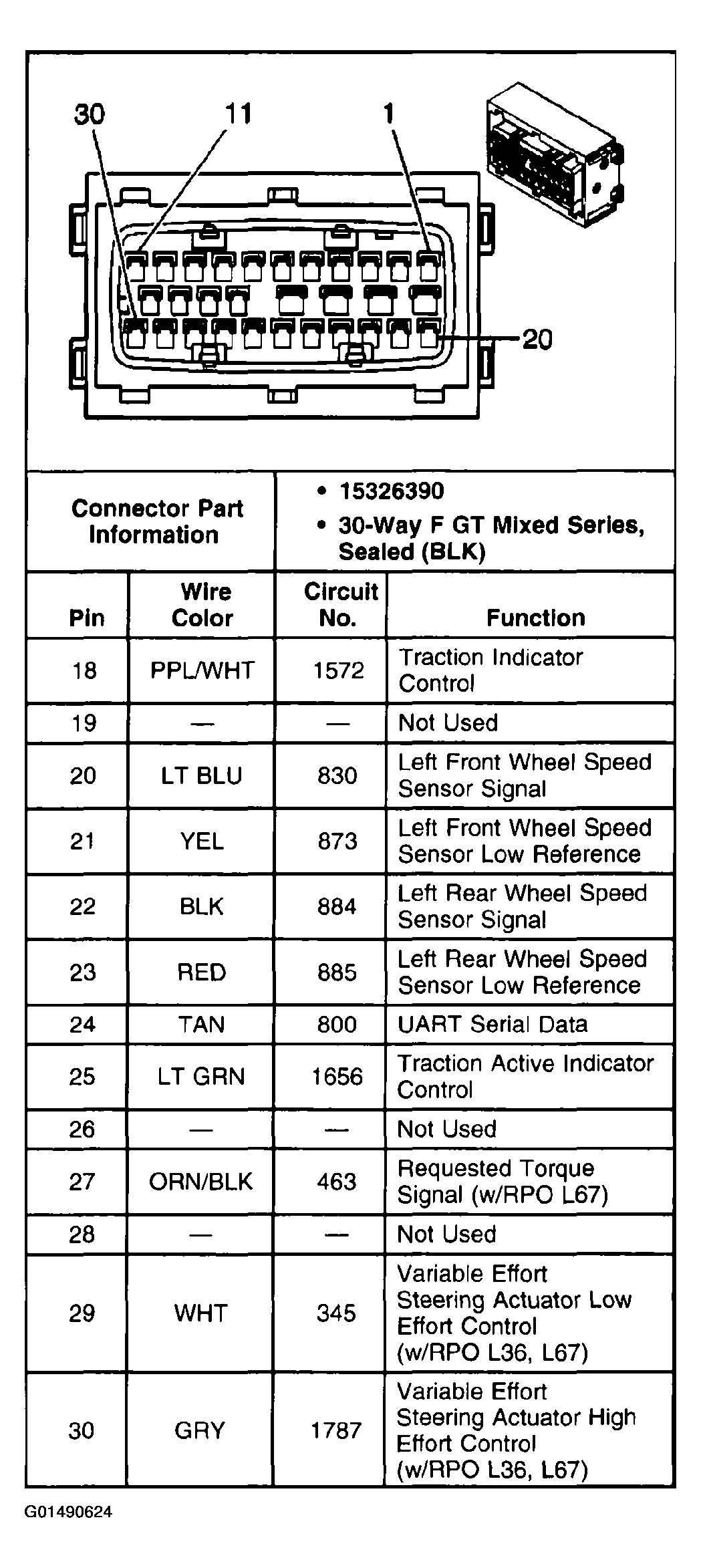

Fig 2: Electronic Brake Control Module (EBCM) C1 (18 - 30)

G01490624

Courtesy of GENERAL MOTORS CORP.

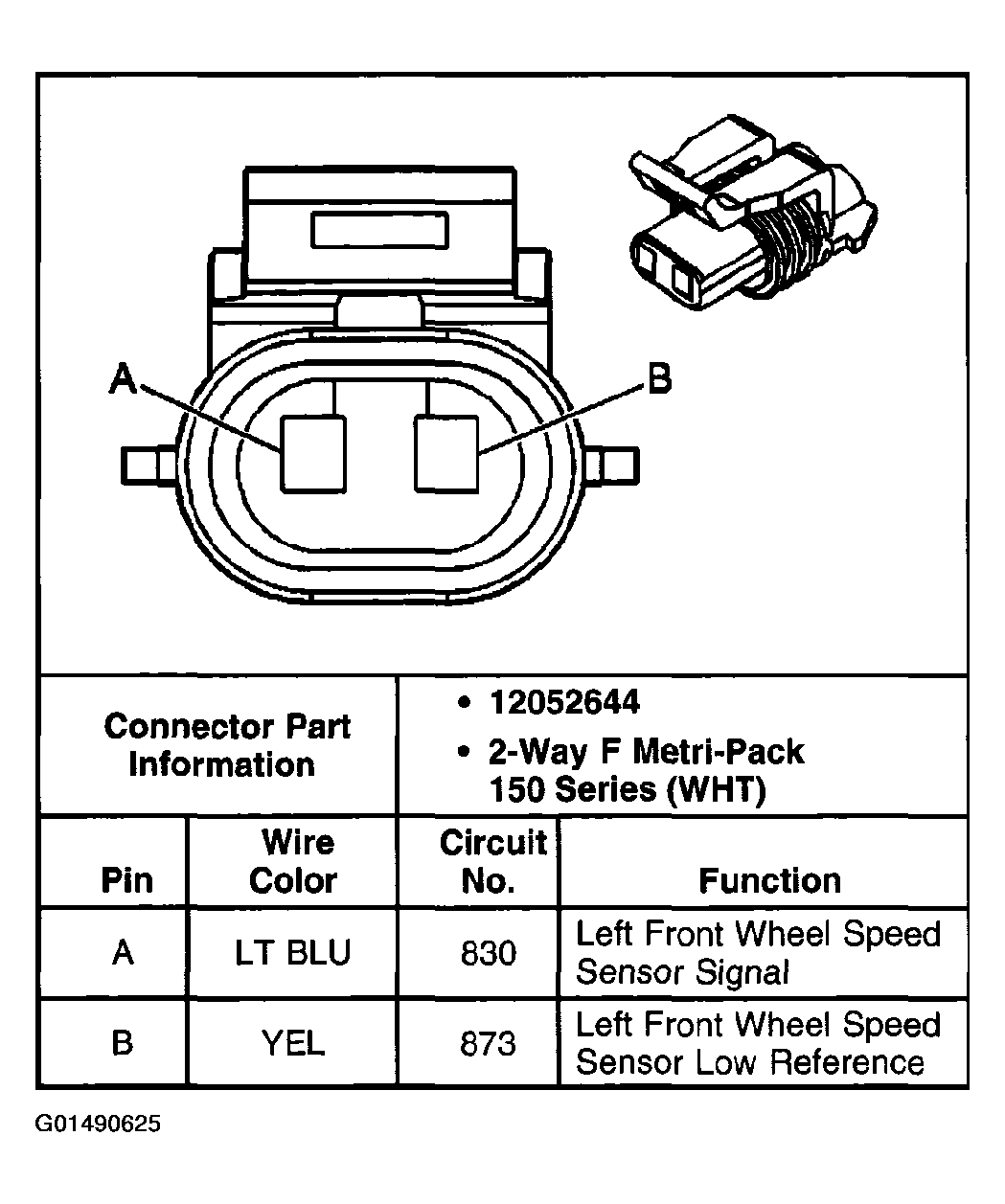

Fig 3: Wheel Speed Sensor (WSS) - LF

G01490625

Courtesy of GENERAL MOTORS CORP.

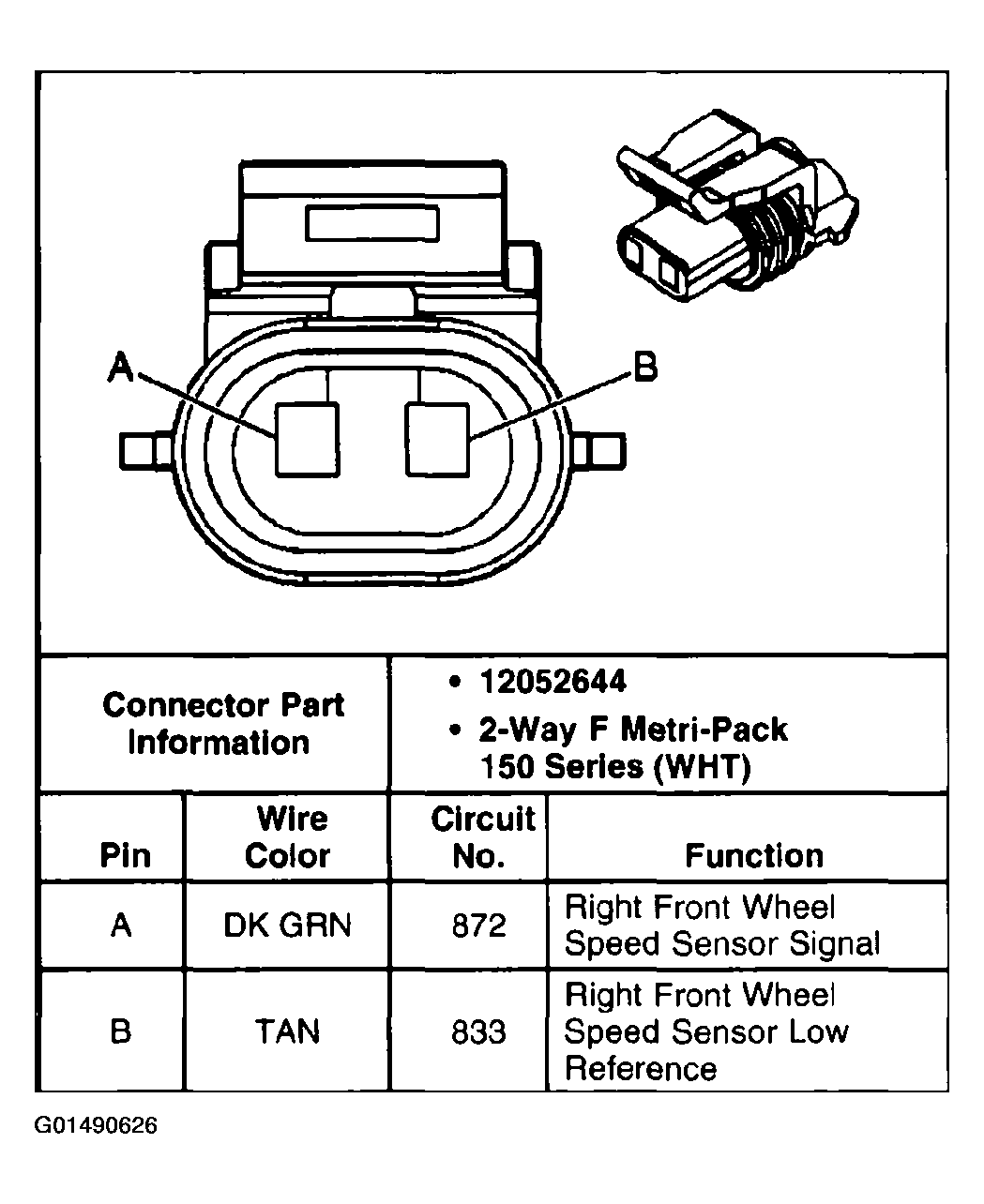

Fig 4: Wheel Speed Sensor (WSS) - RF

G01490626

Courtesy of GENERAL MOTORS CORP.

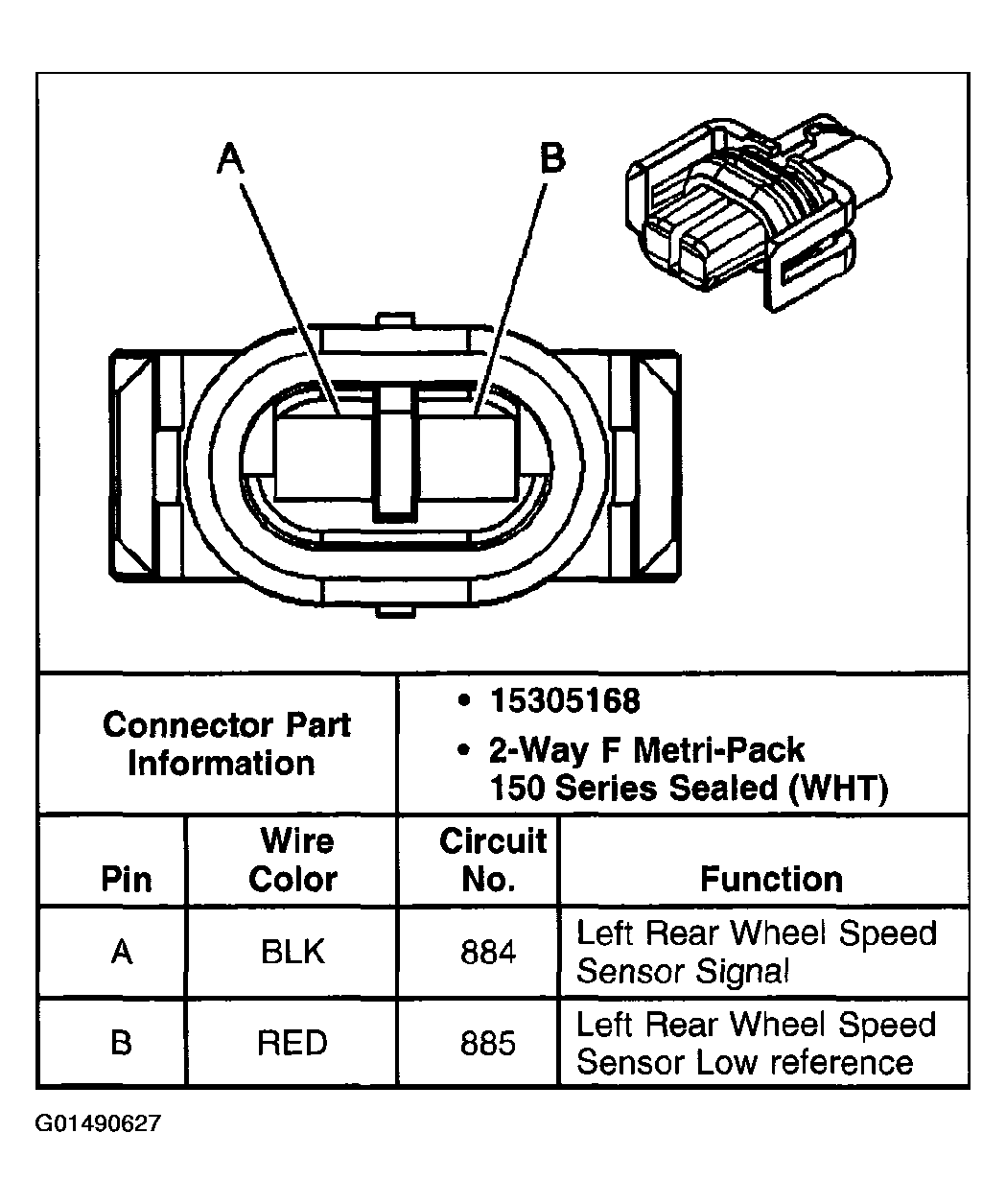

Fig 5: Wheel Speed Sensor (WSS) - LR

G01490627

Courtesy of GENERAL MOTORS CORP.

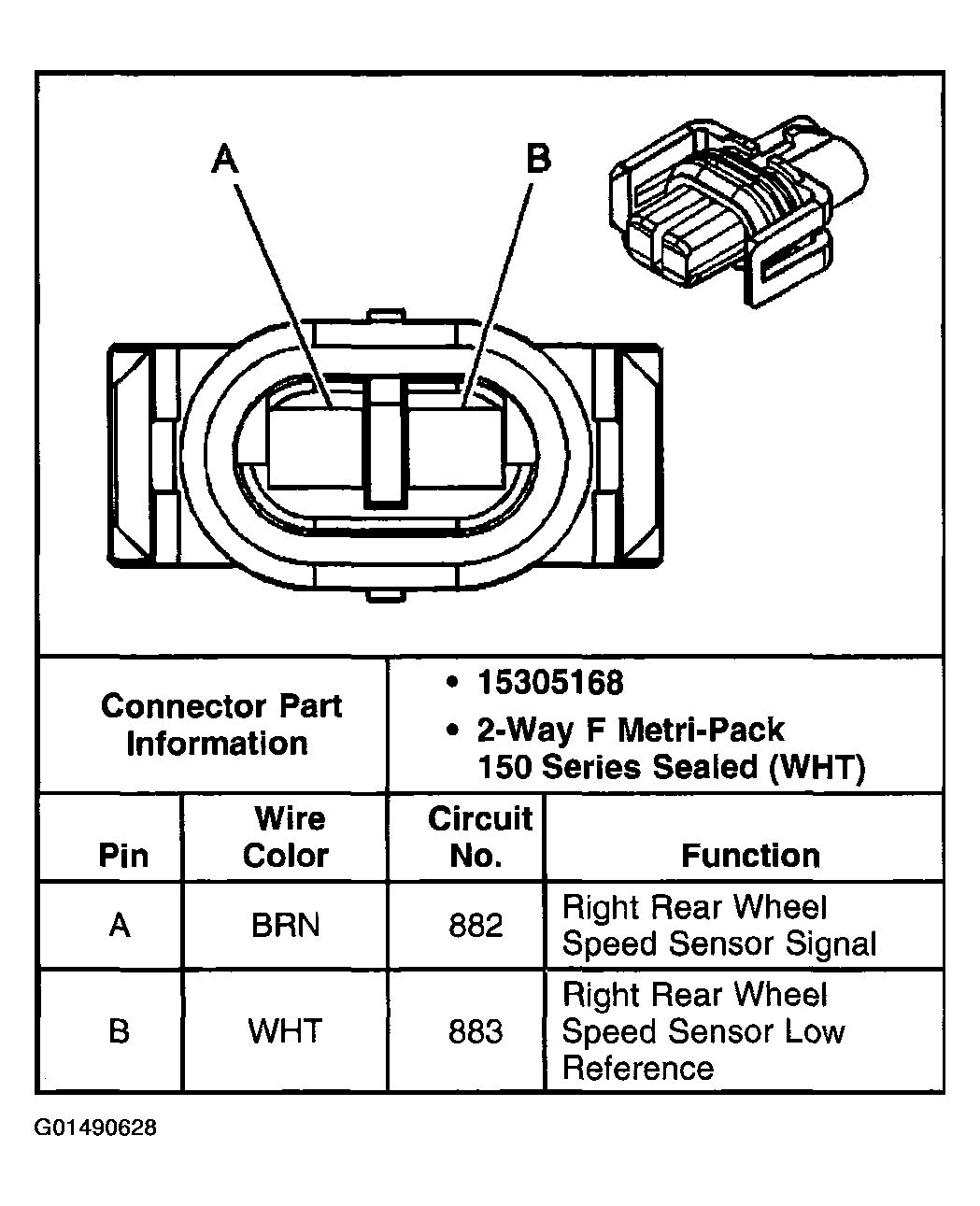

Fig 6: Wheel Speed Sensor (WSS) - RR

G01490628

Courtesy of GENERAL MOTORS CORP.
