Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Install the hub and bearing assembly (2) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT - FRONT .

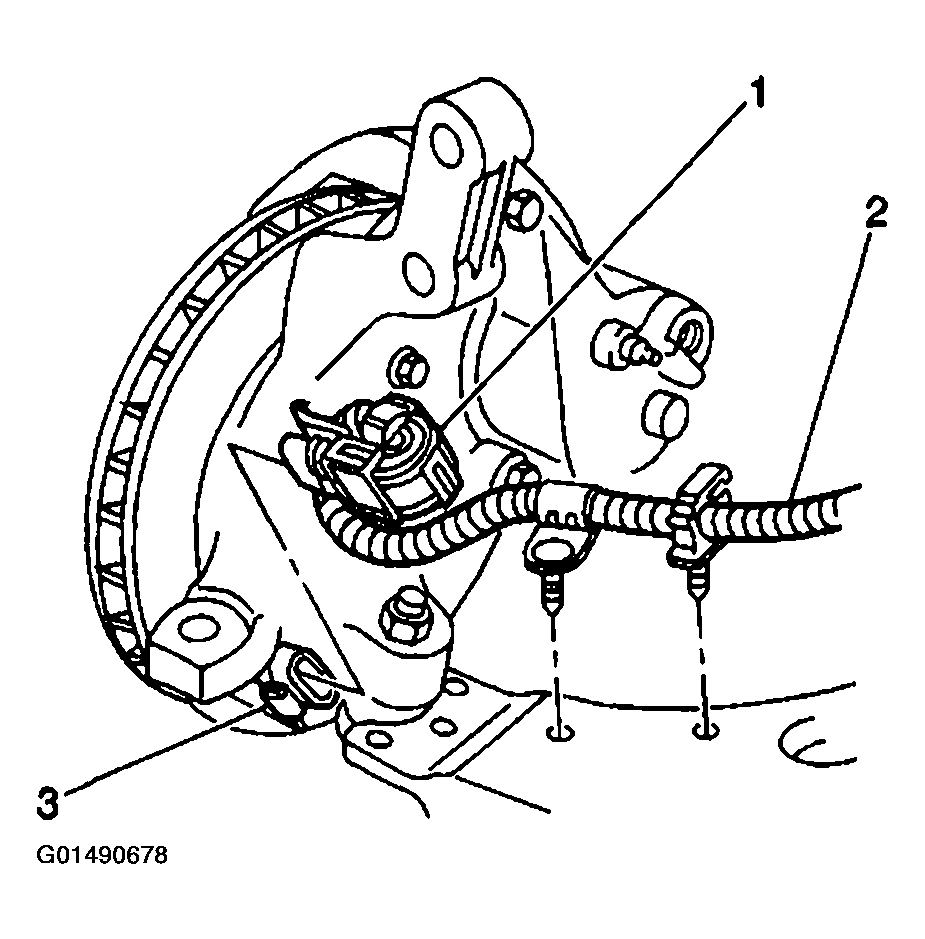

- Install the front wheel speed sensor jumper harness electrical connector (1).
- Install the wheel and tire assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
- Lower the vehicle.
- Turn the ignition switch to the ON position with the engine off.
- Perform the Diagnostic System Check - ABS .
