Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the IP compartment lamp switch.
  2. Align the lamp switch to the switch opening in the IP compartment support panel, then press the switch into place to secure the retaining tabs.
  3. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)  in  Instrument Panel, Gages and Console.

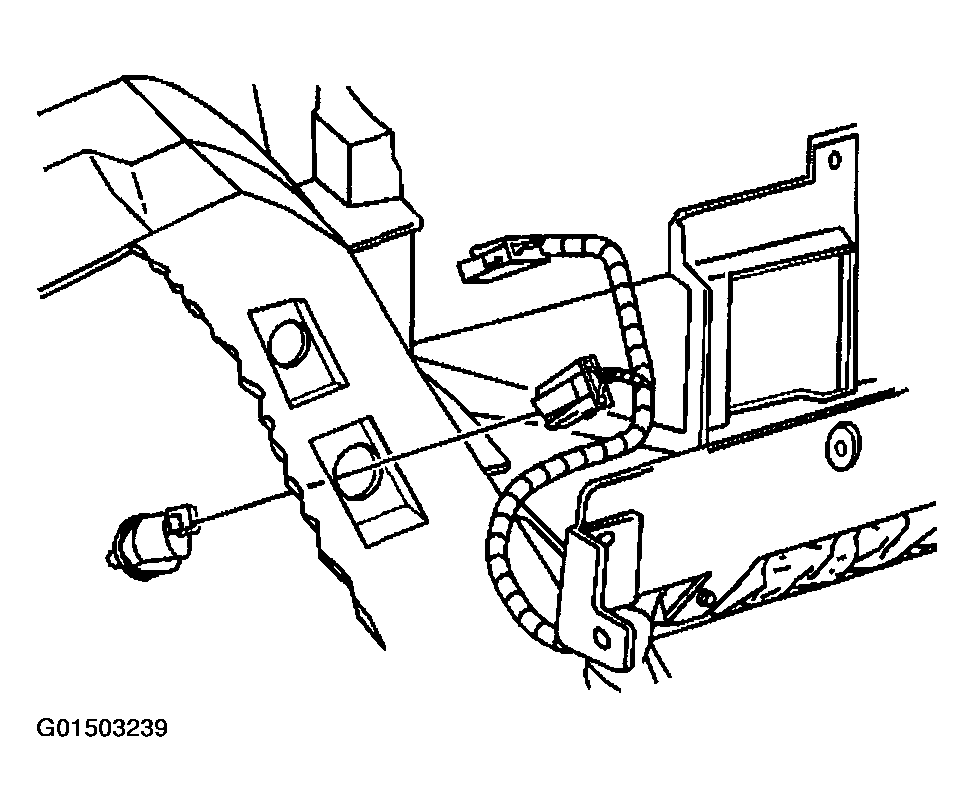

    Fig 1: Connecting Electrical Connector To Instrument Panel Compartment Lamp Switch
    G01503239Courtesy of GENERAL MOTORS CORP.
