Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
- Turn the ignition ON.
- Turn the wiper switch to DELAY.
- Turn the ignition OFF when the wiper arms are paused at the bottom of the wipe pattern.
- Disconnect the washer hose from the wiper arm.

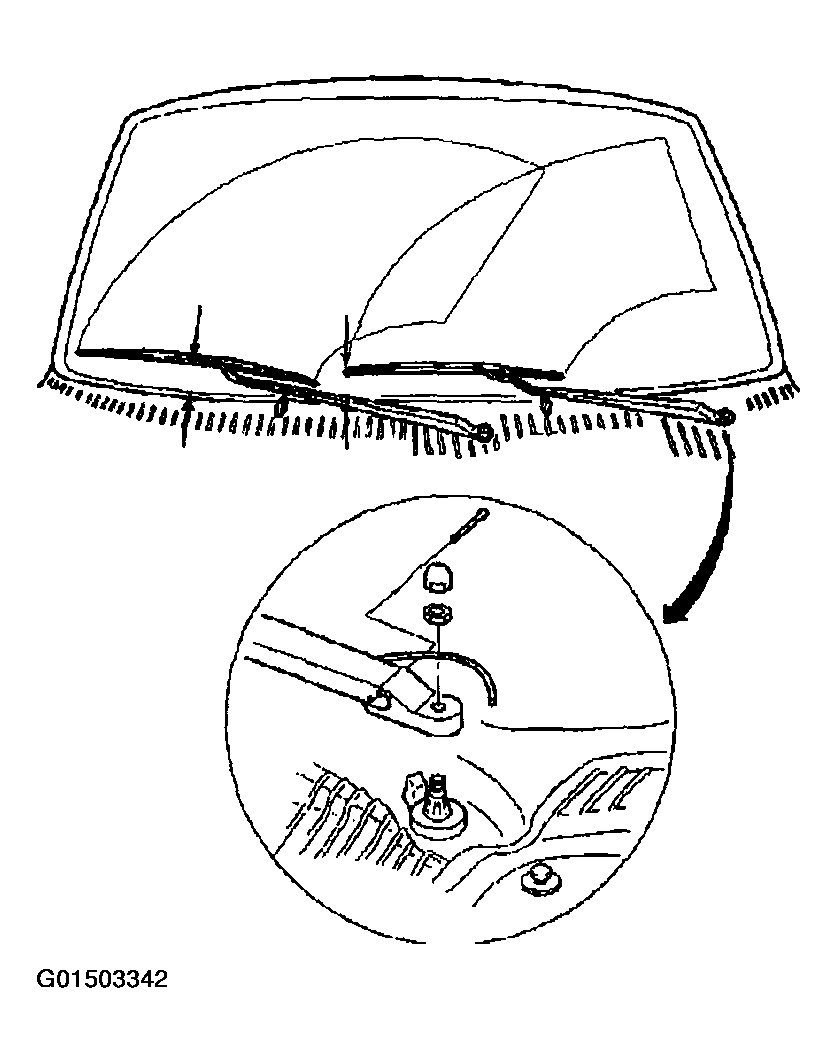

- Remove the wiper arm nut cover.
- Remove the wiper arm nut.
- Using the J 39822 , remove the wiper arm from the wiper transmission.
