Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim panel. Refer to TRIM PANEL REPLACEMENT - IP Cluster .
  2. Unsnap the driver information center (DIC) from the instrument panel (IP) (1).

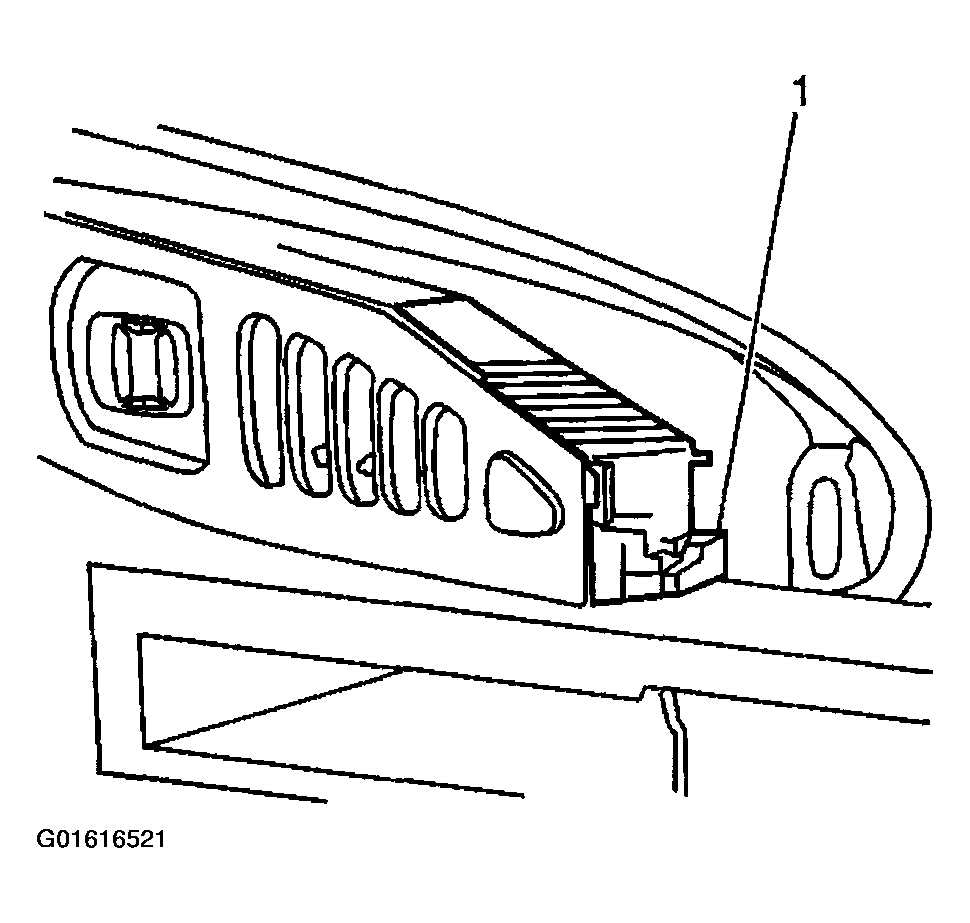

    Fig 1: DIC
    G01616521Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the DIC electrical connectors.
  4. Remove the DIC.

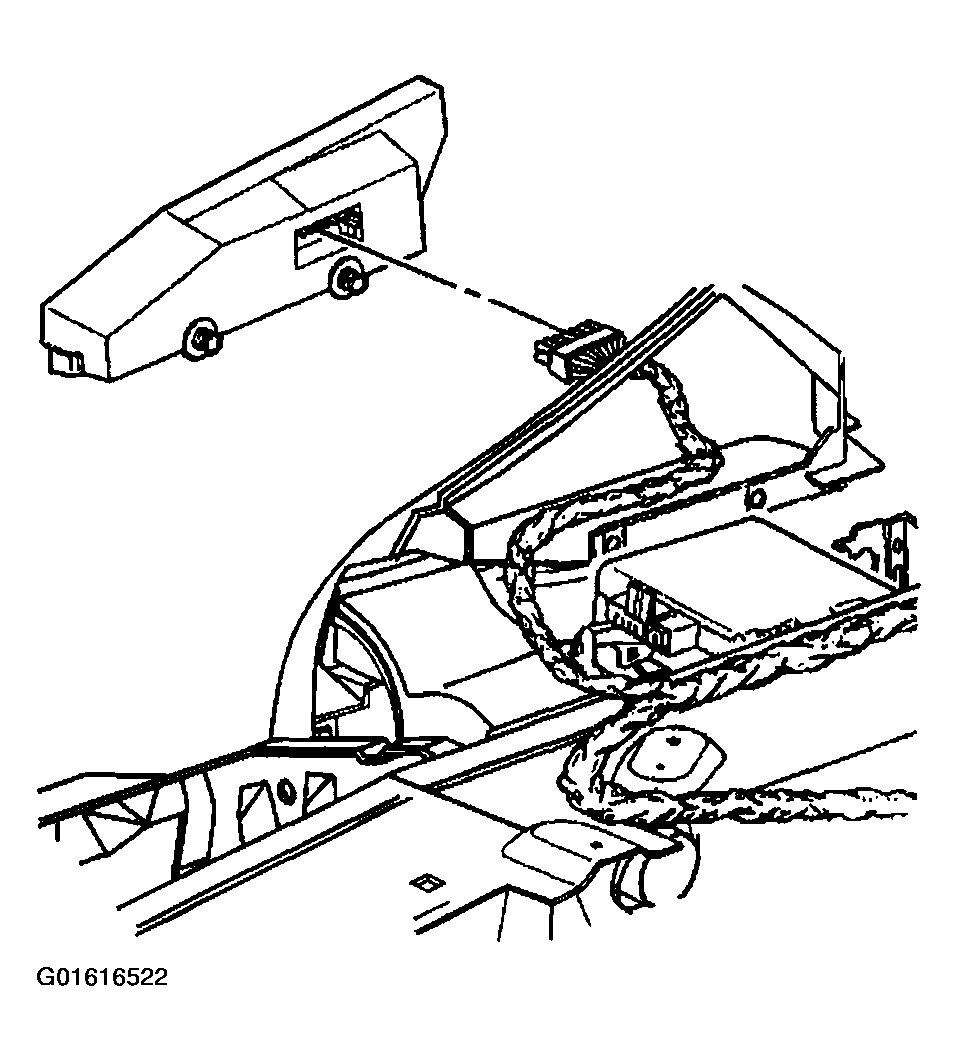

    Fig 2: Removing DIC Electrical Connectors
    G01616522Courtesy of GENERAL MOTORS CORP.
