Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the IPC HUD.
  2. Install the HUD.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the HUD bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  4. Install the IP upper trim panel. Refer to TRIM PANEL REPLACEMENT - Instrument Panel (IP) Upper .

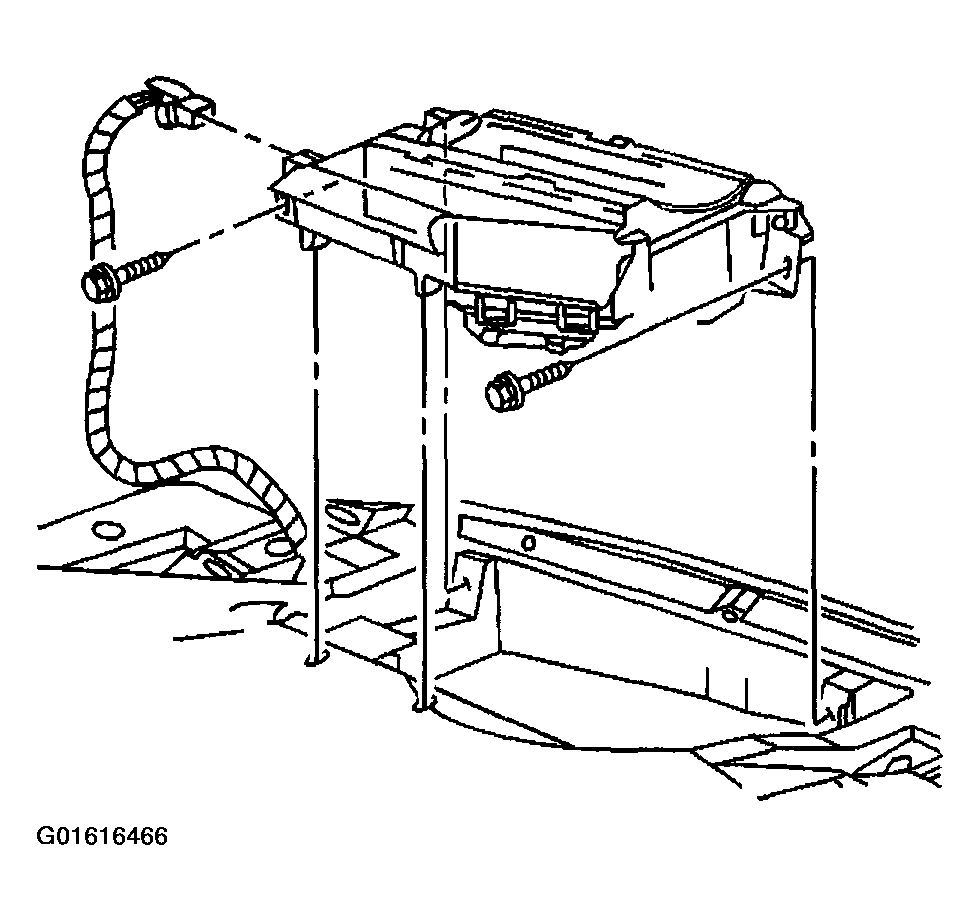

    Fig 1: HUD
    G01616466Courtesy of GENERAL MOTORS CORP.
