Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Disengage the speaker retainer. Lift the speaker upward slightly. Remove the speaker tabs from the openings in the rear window panel.
  3. Remove the up level rear speaker bolts, if equipped.
  4. Disengage the up level rear speaker tab from the rear window panel. Remove the up level rear speaker, if equipped.
  5. Disconnect the electrical connector(s) from the rear speaker(s).
  6. Remove the rear speaker(s).

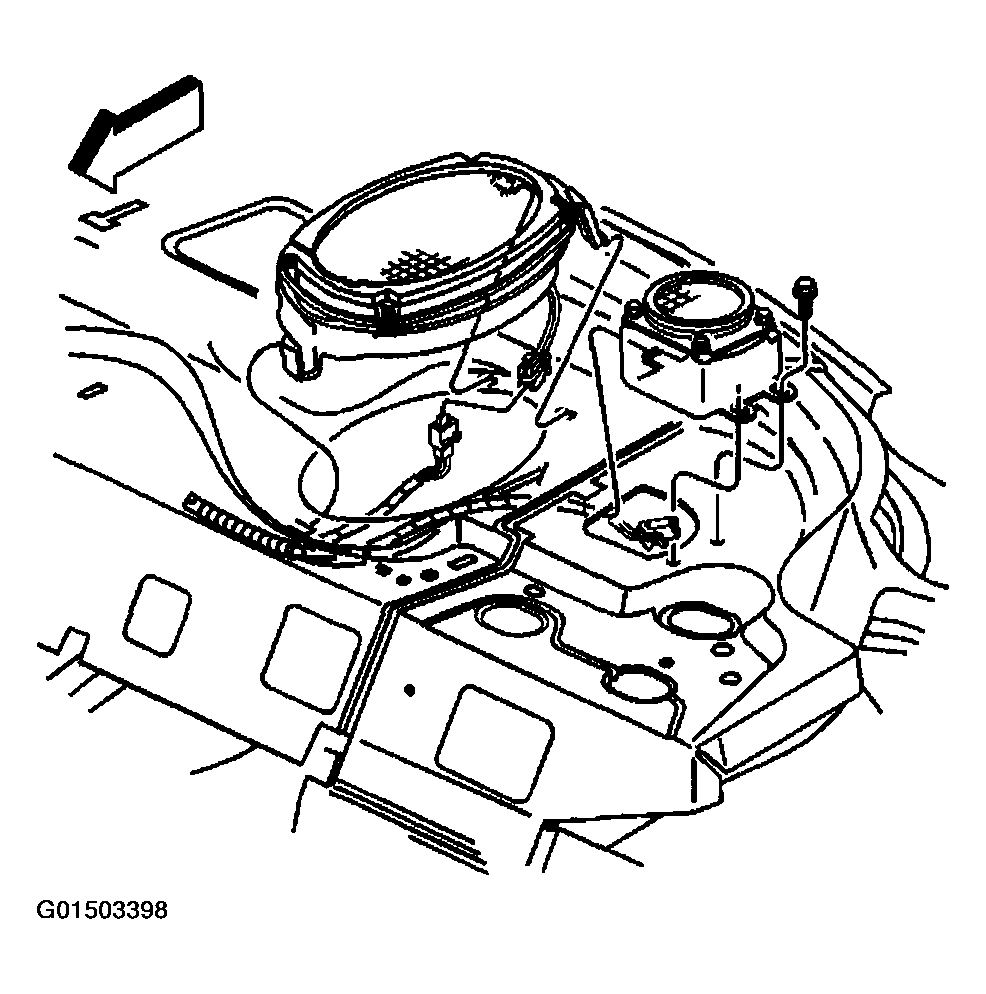

    Fig 1: Removing Rear Speakers
    G01503398Courtesy of GENERAL MOTORS CORP.
