Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DIC electrical connectors.

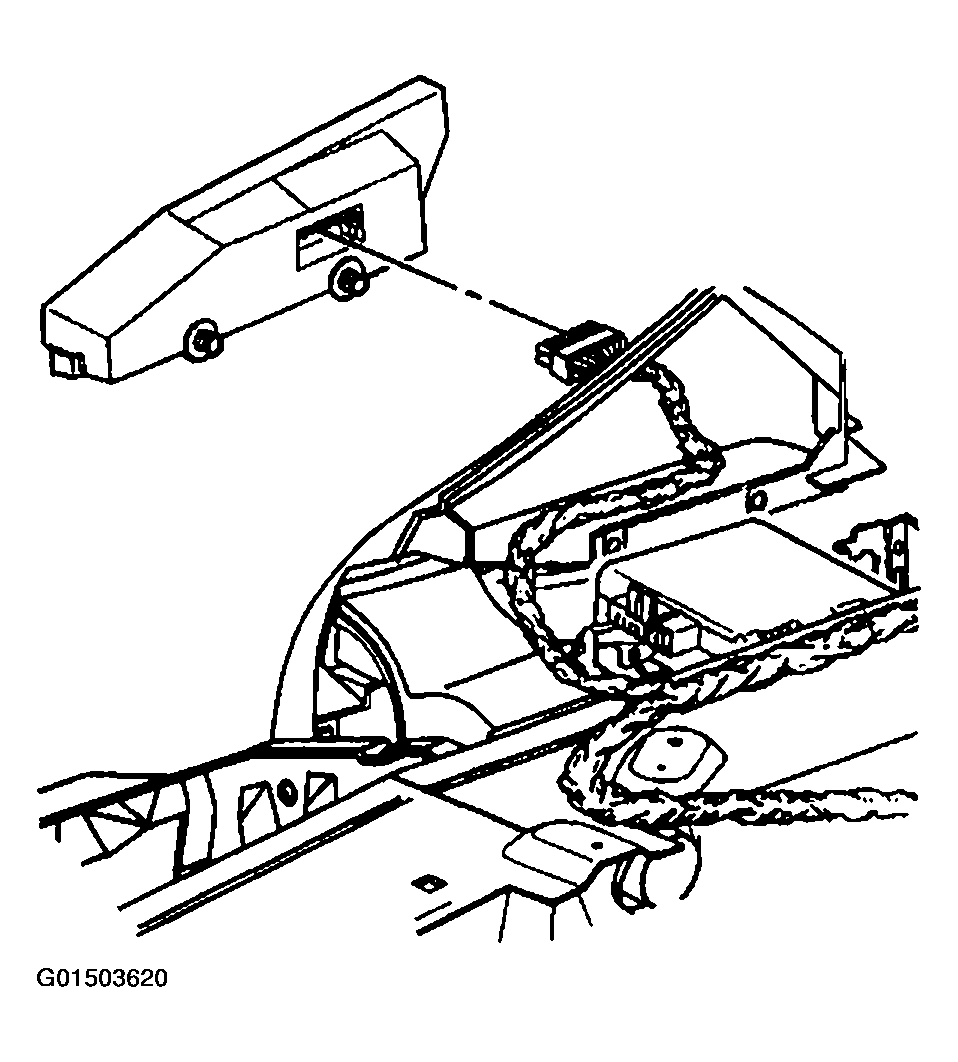

Fig 1: Connecting Driver Information Center Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
Snap the DIC (1) into the IP.
Install the IPC trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .

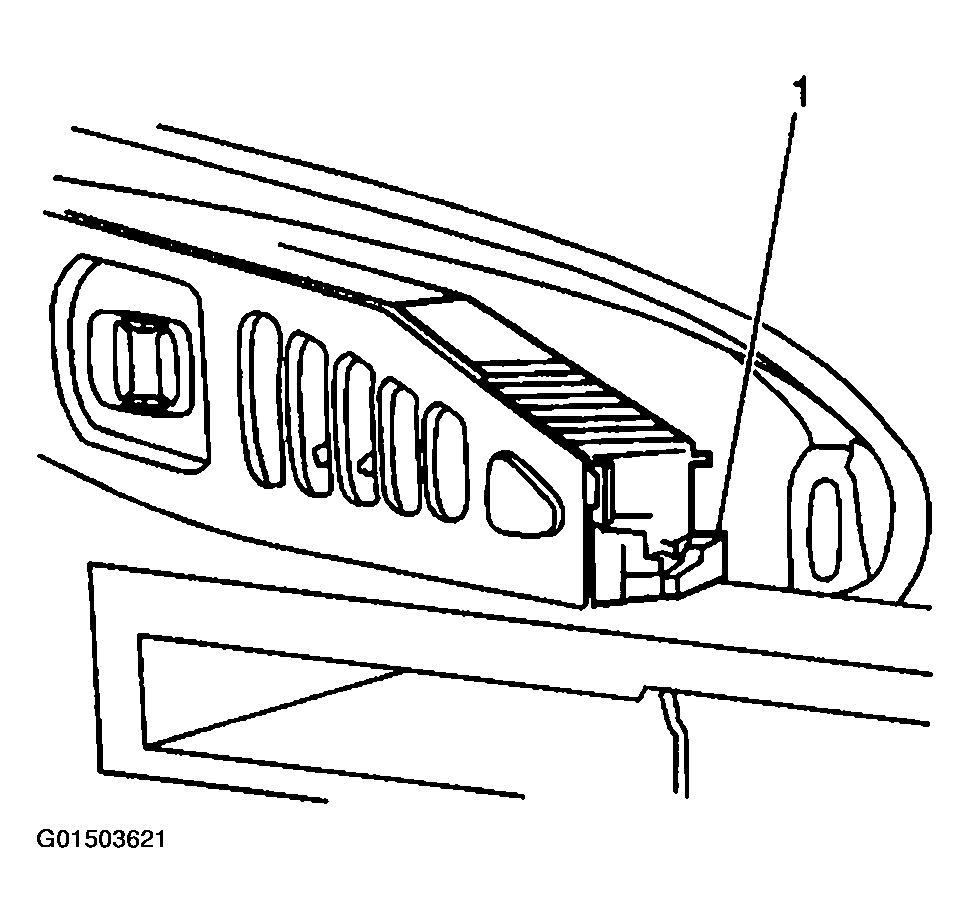

Fig 2: Snapping Driver Information Center Into Instrument Panel
Courtesy of GENERAL MOTORS CORP.
