Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster (IPC) trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  .
  2. Unsnap the driver information center (DIC) from the instrument panel (IP) (1).

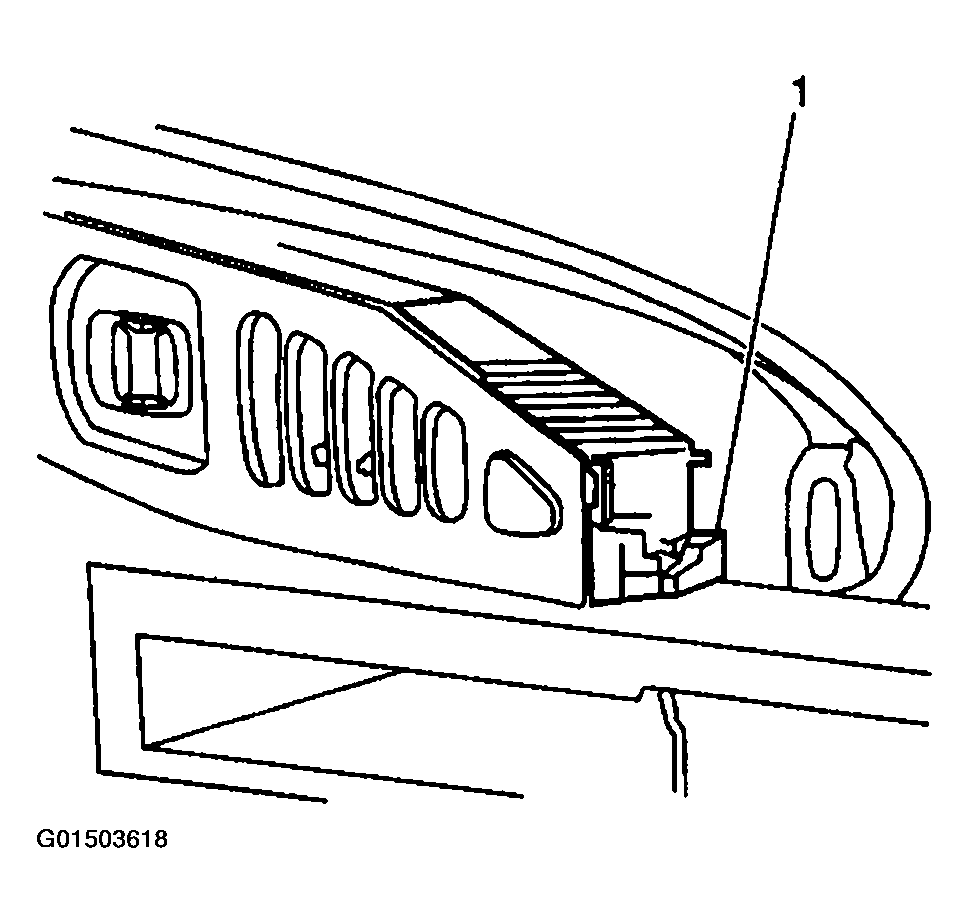

    Fig 1: Unsnapping Driver Information Center From Instrument Panel
    G01503618Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the DIC electrical connectors.
  4. Remove the DIC.

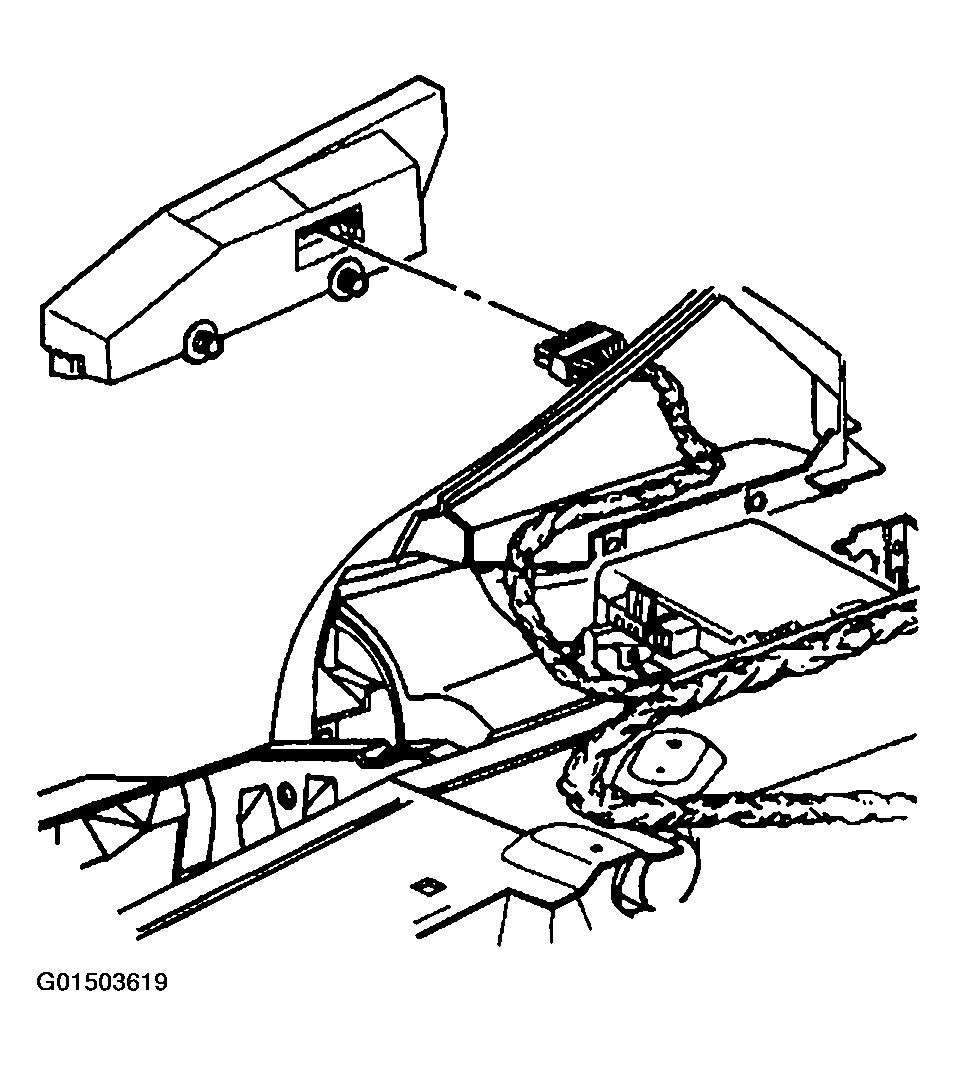

    Fig 2: Disconnecting Driver Information Center Electrical Connectors
    G01503619Courtesy of GENERAL MOTORS CORP.
