Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the IPC HUD.
  2. Install the HUD.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the HUD bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  4. Install the IP upper trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER

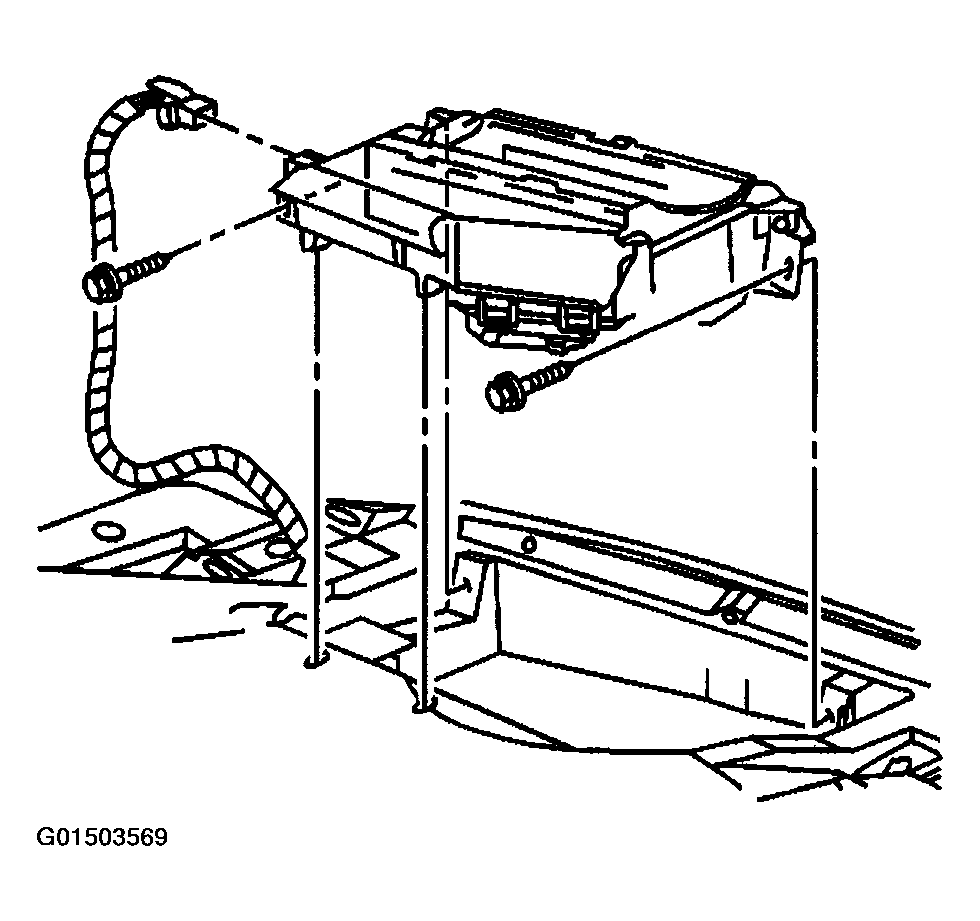

    Fig 1: Installing Head Up Display Module
    G01503569Courtesy of GENERAL MOTORS CORP.
