Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) upper trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER
  2. Remove the instrument panel cluster (IPC) head up display (HUD) bolts.
  3. Disconnect the electrical connector from the HUD.
  4. Remove the HUD.

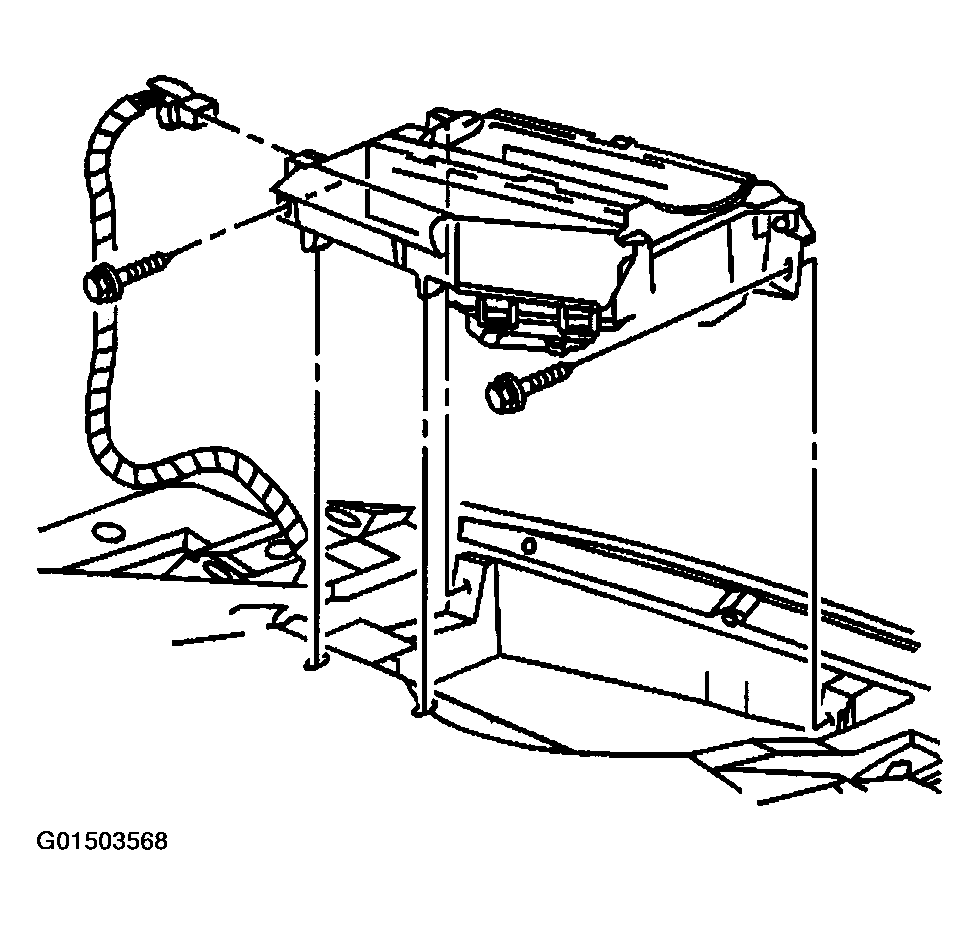

    Fig 1: Removing Head Up Display Module
    G01503568Courtesy of GENERAL MOTORS CORP.
