Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the theft deterrent control module (2) onto the ignition lock cylinder case assembly (1).
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION in Cautions and Notices.
  2. Connect the connector to the theft deterrent control module.
  3. If necessary, connect the connector to the ignition lock cylinder case.
  4. Install the lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT in Steering Wheel and Column.
  5. Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT in Steering Wheel and Column.
  6. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.
  7. Program the theft deterrent control module. Refer to PROGRAMMING THEFT DETERRENT SYSTEM COMPONENTS  .

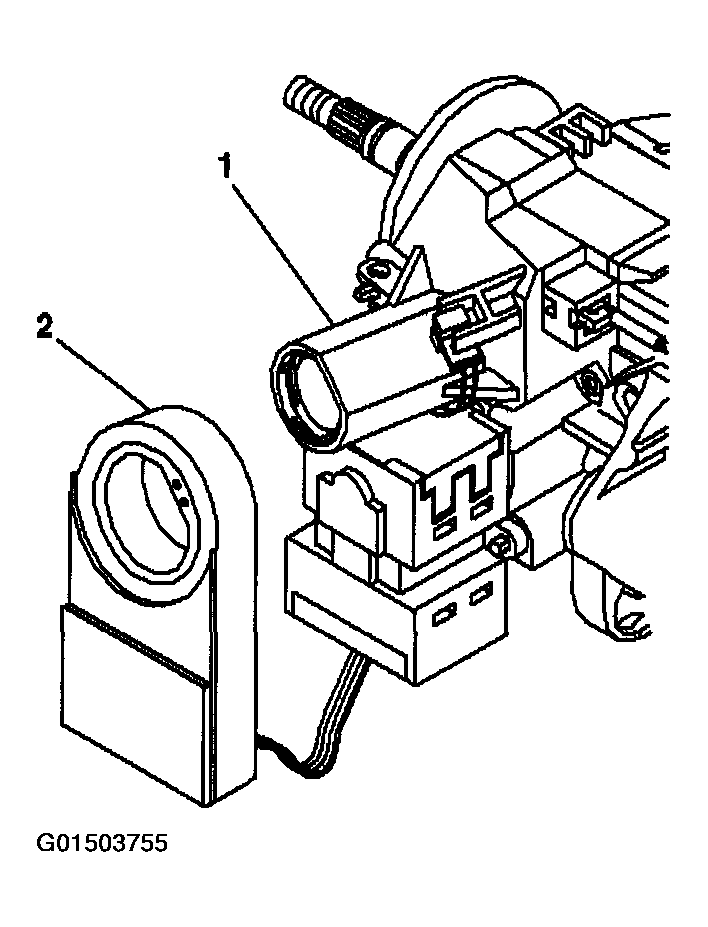

    Fig 1: Installing Theft Deterrent Control Module Onto Ignition Lock Cylinder Case Assembly
    G01503755Courtesy of GENERAL MOTORS CORP.
