Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Position the child seat tether brackets to the slot in the rear shelf.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the screws to the child seat tether brackets.
Tighten

Tighten the screws to the child seat tether brackets to 20 N.m (15 lb ft).
Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.

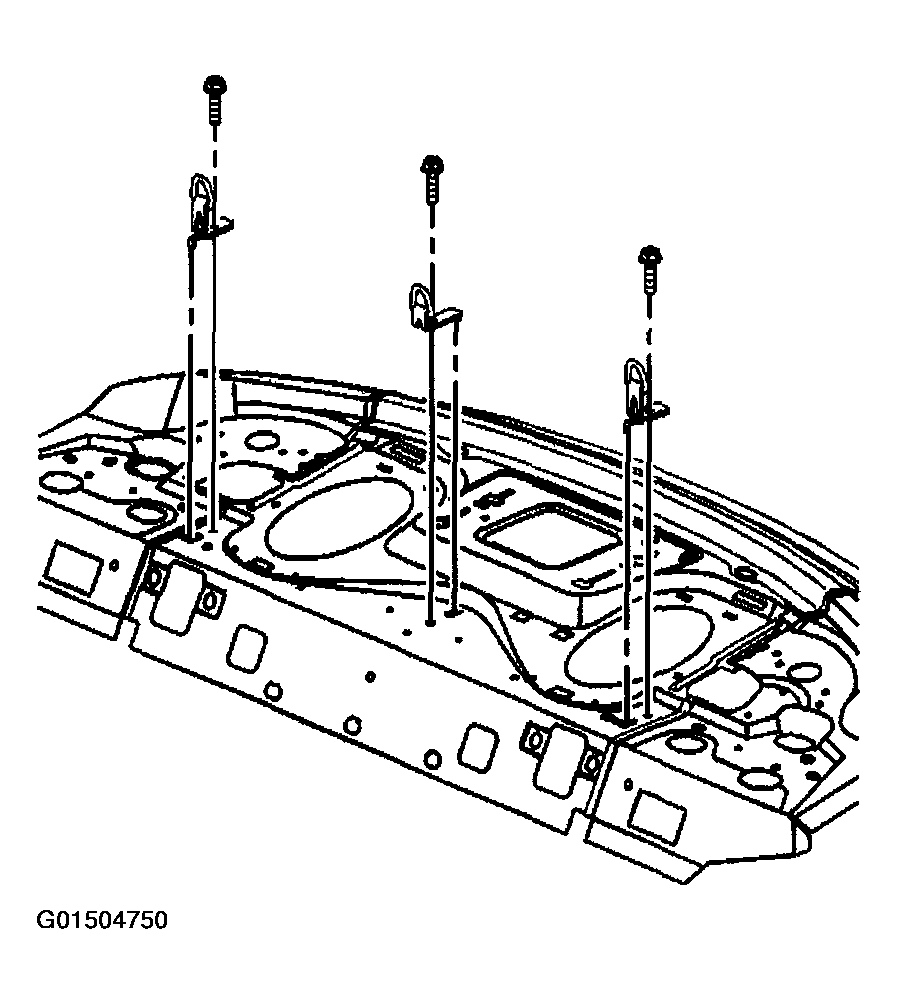

Fig 1: Installation Procedure Child Restraint Tether Anchor
Courtesy of GENERAL MOTORS CORP.
