Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument accessory panel trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK) .
Remove the radio screws.

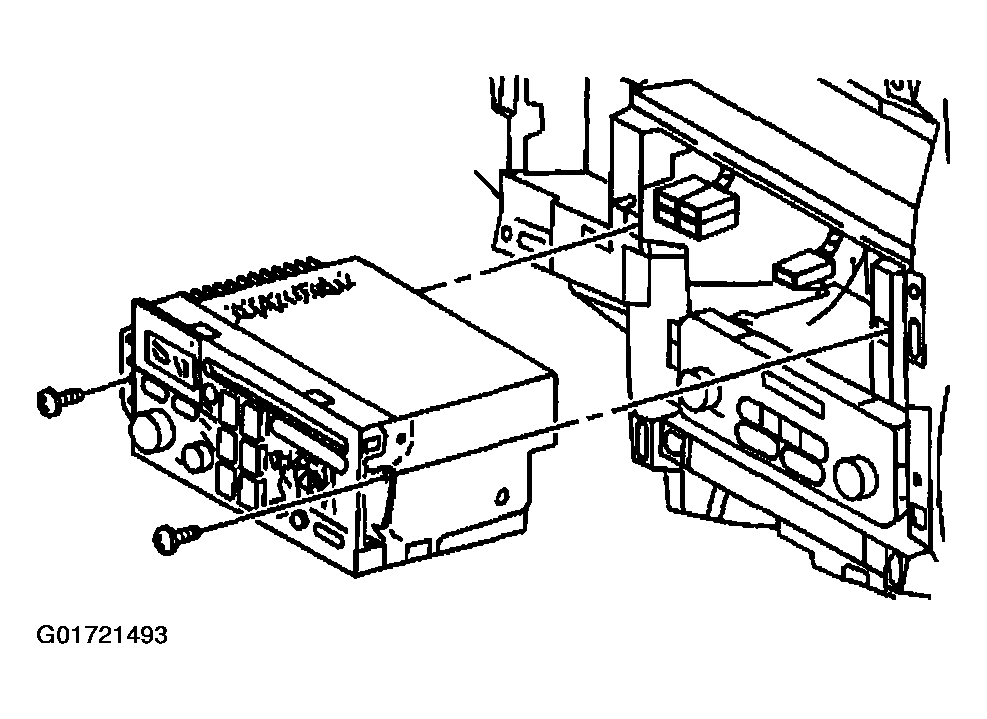

Fig 1: Removing Radio Screws
Courtesy of GENERAL MOTORS CORP.
Pull the radio away from the instrument panel (IP).
Disconnect the electrical/audio electrical connectors from the radio.
Disconnect the coaxial cable connector from the radio.
Remove the radio.

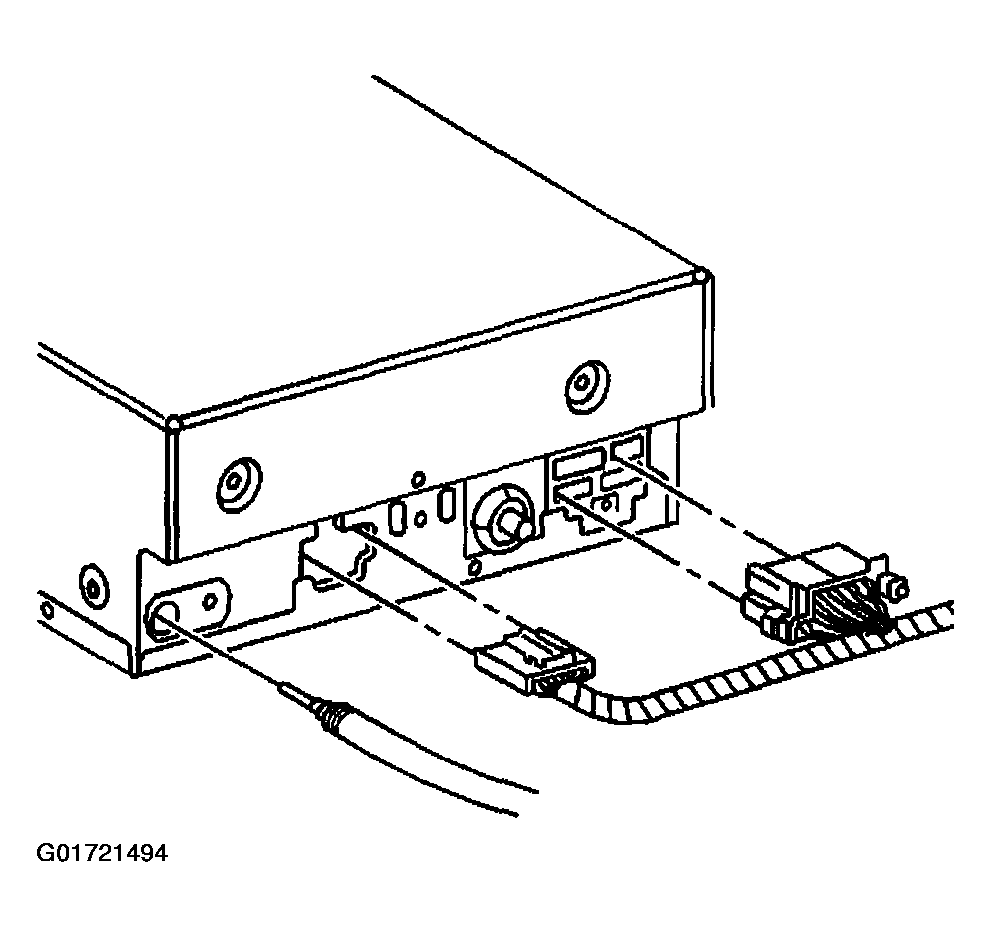

Fig 2: Disconnecting Electrical & Cable Connectors
Courtesy of GENERAL MOTORS CORP.
