Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the rear radio speaker.
Install the rear radio speaker.
NOTE: Refer to FASTENER NOTICE .
Install the speaker screws.
Tighten

Tighten the screws to 3 N.m (28 lb in).
Install the rear quarter trim. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .

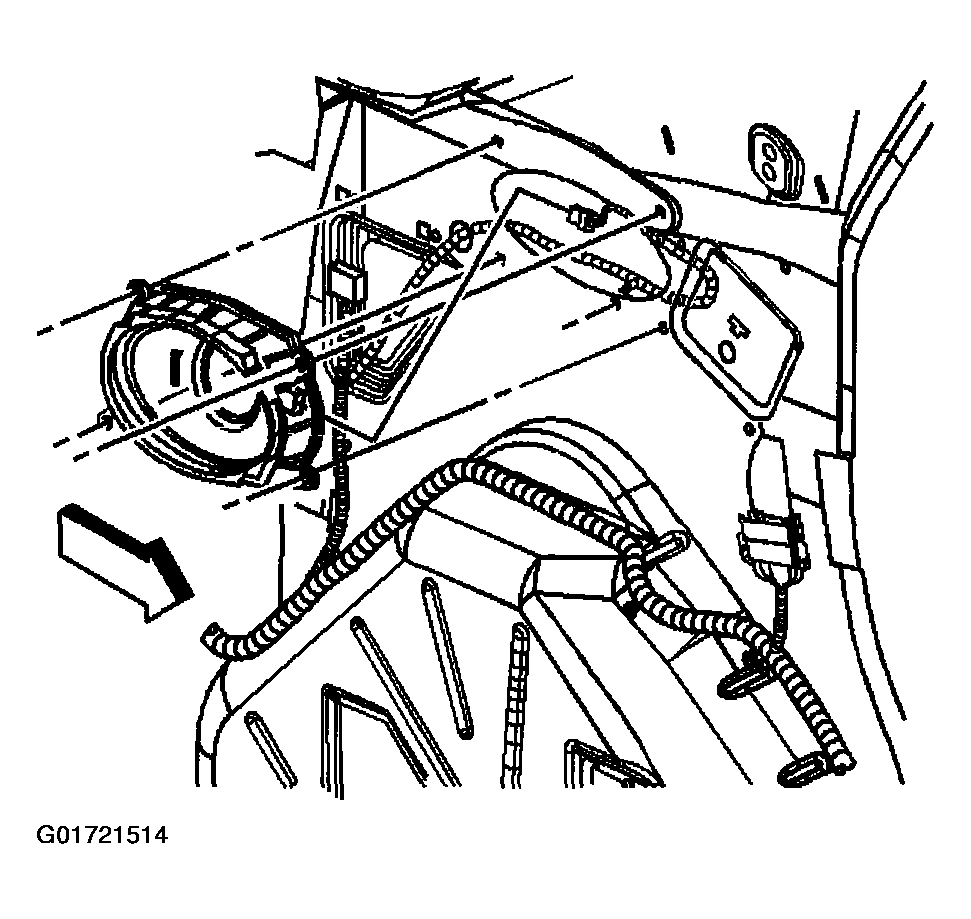

Fig 1: Installing Rear Speaker (Aztek)
Courtesy of GENERAL MOTORS CORP.
