Hood Adjustment

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. The hood hinges are bolted to the fender and to the hood.
  2. Make fore and aft adjustments by elongating the hood-side hinge holes.
  3. Make vertical adjustment at the front by adjusting the hood bumpers up or down.

    Specification

    • Gap tolerances are 2-6 mm (0.08-0.22 in).
    • Flush tolerances are 0-2 mm (0-0.08 in).

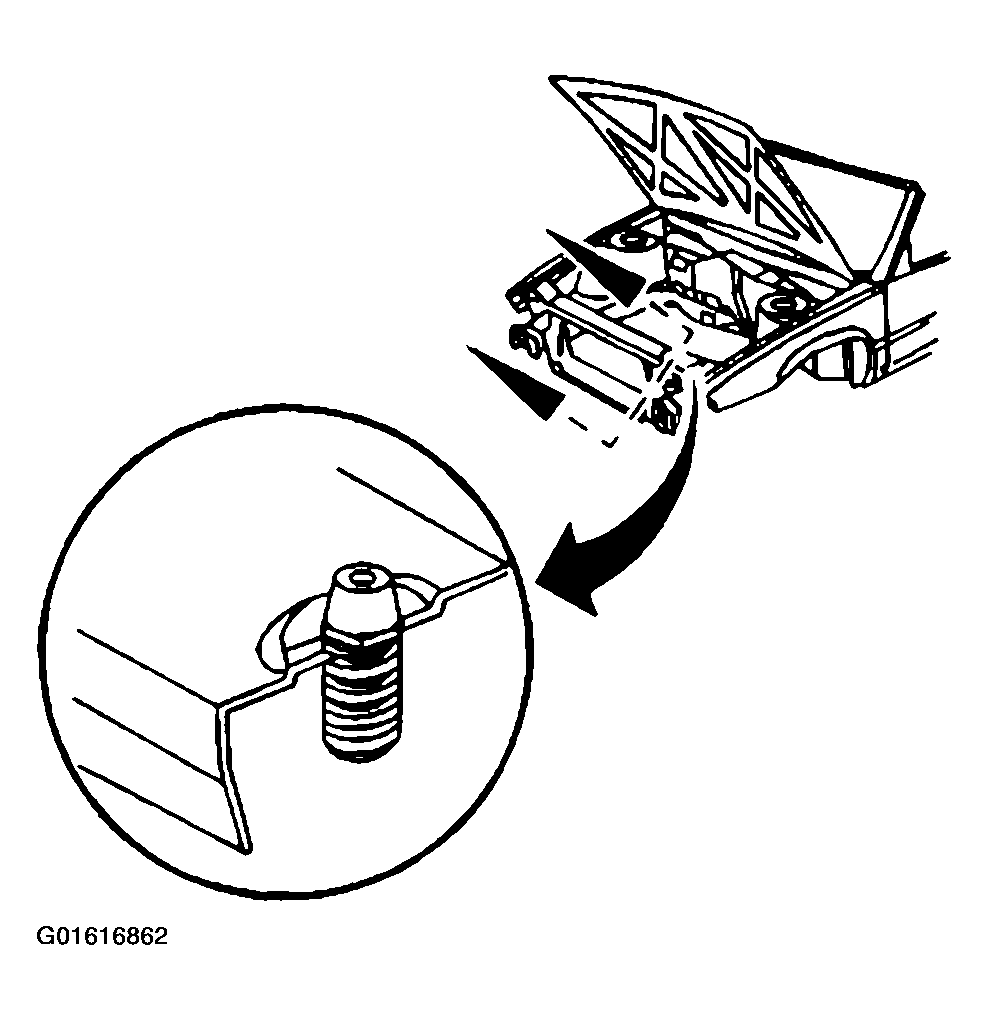

    Fig 1: Making Fore & Aft Adjustments
    G01616862Courtesy of GENERAL MOTORS CORP.
  4. Open the hood.
  5. Loosen the hinge to hood bolts. Refer to Hood Replacement .
  6. Adjust the hood to the fender position.
  7. Close the hood.
  8. Check the hood alignment.
  9. Open the hood.
  10. Adjust the hood as needed.
    NOTE: Refer to FASTENER NOTICE .
  11. Install the hood-to-hinge bolts with an assistant.

    Tighten

    Tighten the upper hood hinge bolts to 27 N.m (20 lb ft).

  12. Adjust the hood bumpers.
  13. Close the hood.

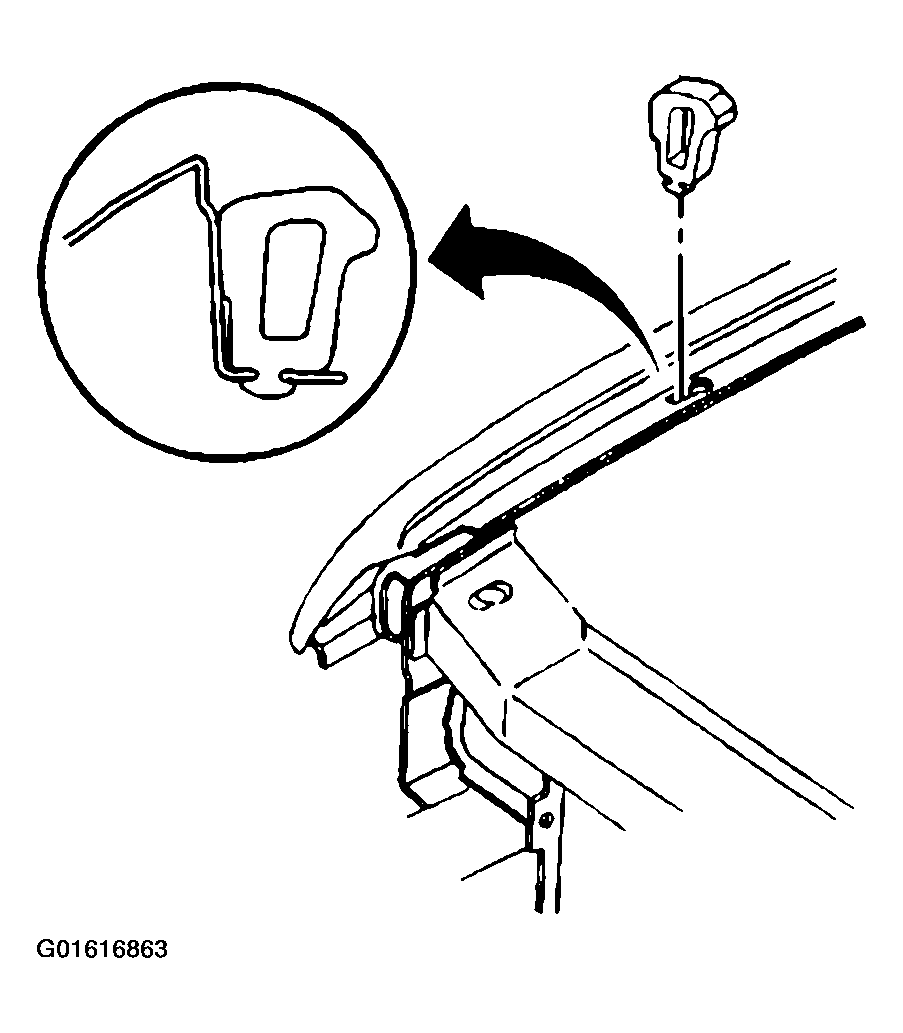

    Fig 2: Adjusting Hood Alignment
    G01616863Courtesy of GENERAL MOTORS CORP.
