Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hinge to the fender.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the hood hinge to fender bolts.

    Tighten

    Tighten the hood hinge to fender bolts to 6 N.m (53 lb in).

  3. Install the hood. Refer to Hood Replacement .
  4. Install the hood assist rod. Refer to Assist Rod Replacement - Hood .
  5. Install the hood rear side seal. Refer to Seal Replacement - Hood Rear Side .
  6. Adjust the hood, as required. Refer to Hood Adjustment .

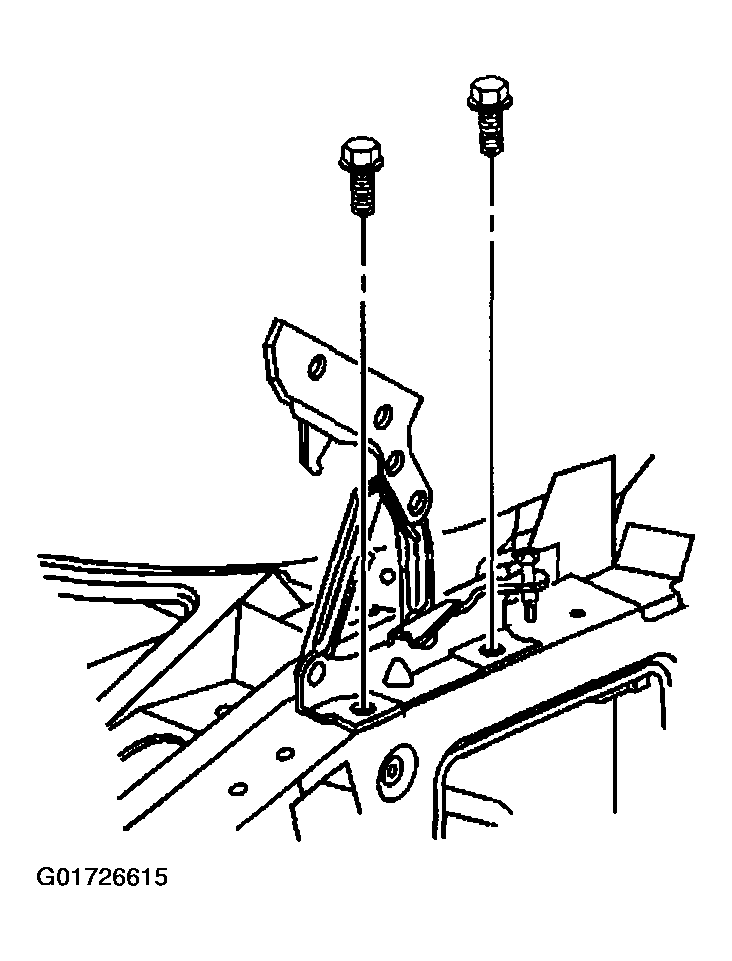

    Fig 1: Installing Hood Hinge And Bolts
    G01726615Courtesy of GENERAL MOTORS CORP.
