Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood release cable to the hood release handle.

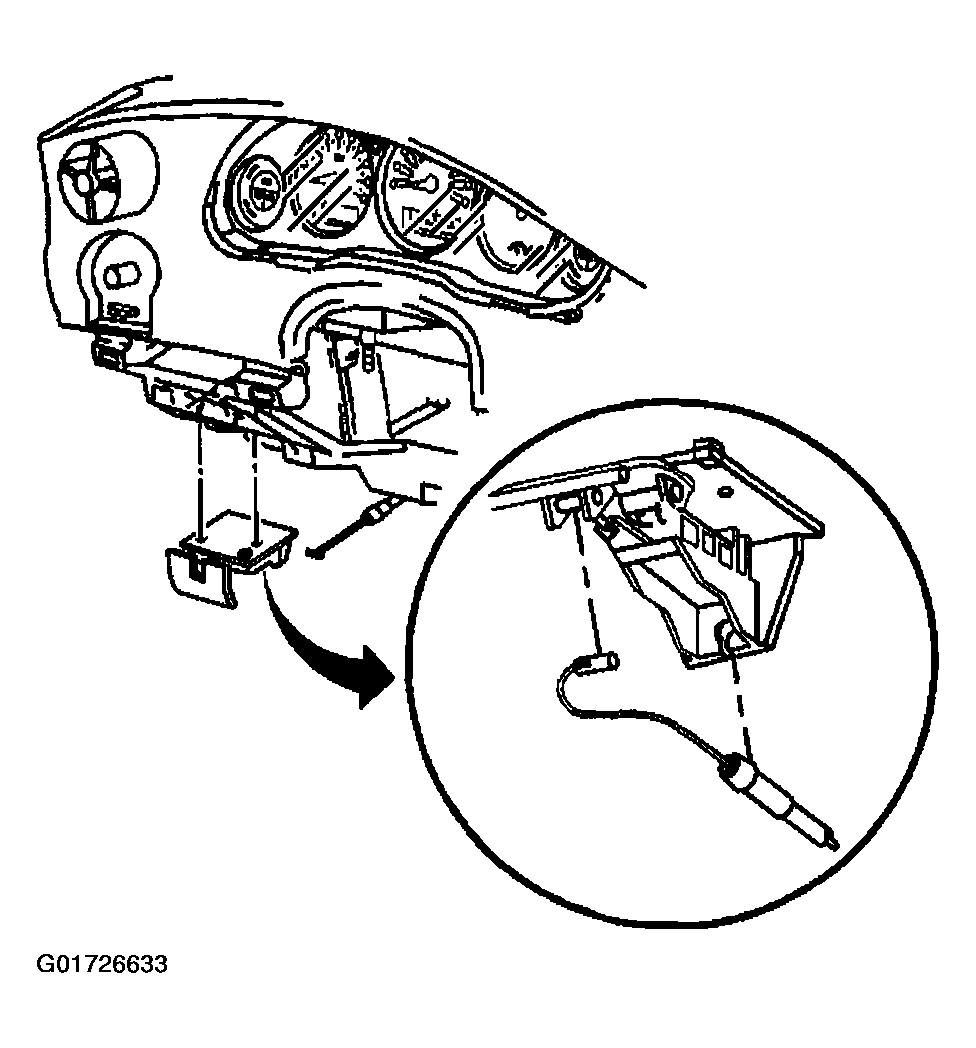

    Fig 1: Installing Hood Release Cable
    G01726633Courtesy of GENERAL MOTORS CORP.
  2. Install the hood release handle to the instrument panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to hood release handle base.

    Tighten

    Tighten the hood release handle base bolts to 2 N.m (18 lb in).

  4. Install the knee bolster panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE .
  5. Install the left IP Insulator Panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE .

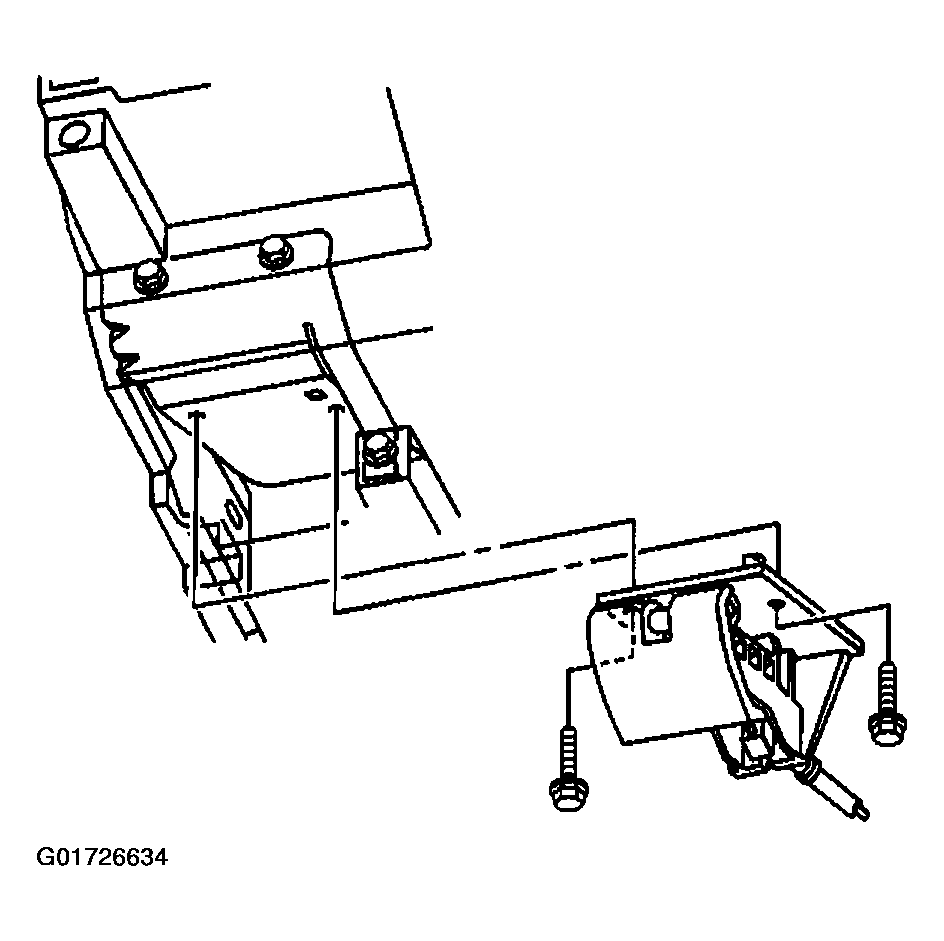

    Fig 2: Installing Bolts To Hood Release Handle Base
    G01726634Courtesy of GENERAL MOTORS CORP.
