Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers holding the engine splash to the lower flange of the engine compartment side rail using J 38778  .
  2. Remove the engine splash shield from the lower flange of the engine compartment side rail.

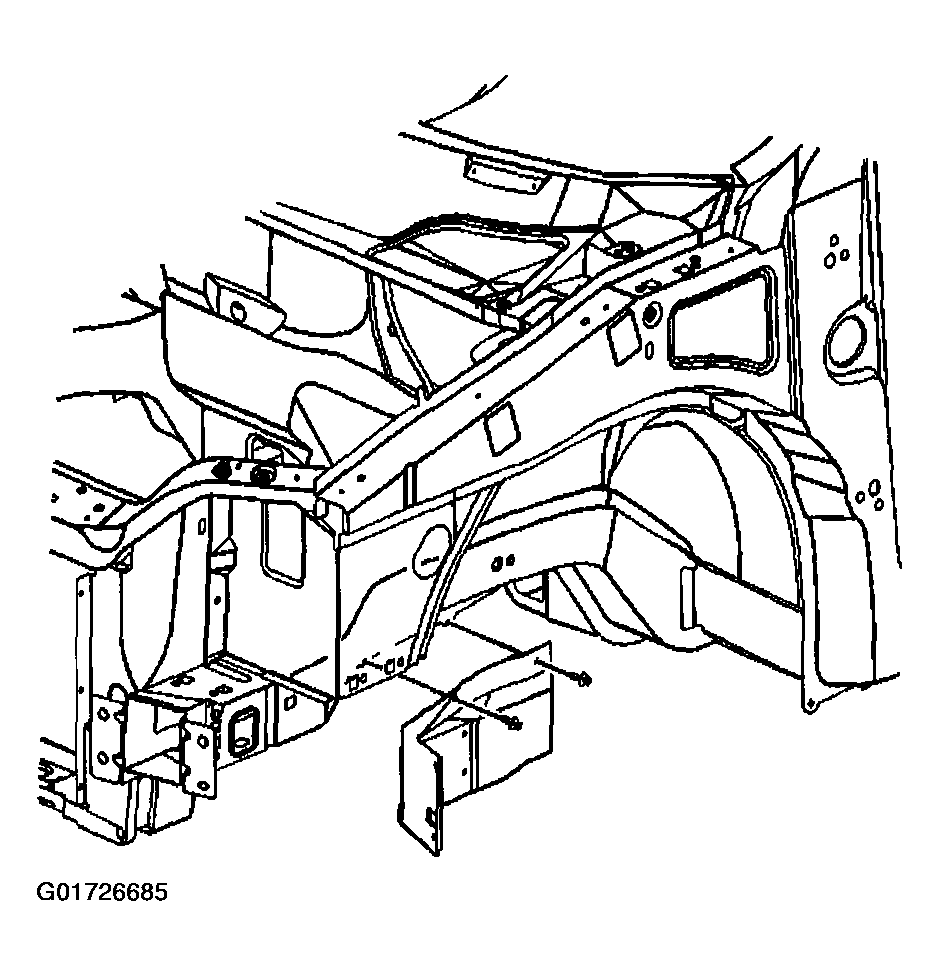

    Fig 1: Removing Engine Splash Shield And Push-In Retainers
    G01726685Courtesy of GENERAL MOTORS CORP.
