Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the endgate trim panel. Refer to Trim Panel Replacement - End Gate .
  2. Remove the endgate water deflector. Refer to Water Deflector Replacement - End Gate .
  3. Remove the endgate handle. Refer to Handle Replacement - End Gate .
  4. Remove the endgate bellcrank. Refer to Bellcrank Replacement - End Gate .
  5. Remove the endgate latches. Refer to Latch Replacement - End Gate .
  6. Remove the liftgate latches. Refer to Latch Replacement - Lift Gate (Aztek)  or Latch Replacement - Lift Gate (Rendezvous) .
  7. Remove the endgate lock cylinder. Refer to Lock Cylinder Replacement - End Gate .
  8. Remove the endgate weatherstrip. Refer to Weatherstrip Replacement - End Gate .
  9. Remove the endgate hinge bolts.

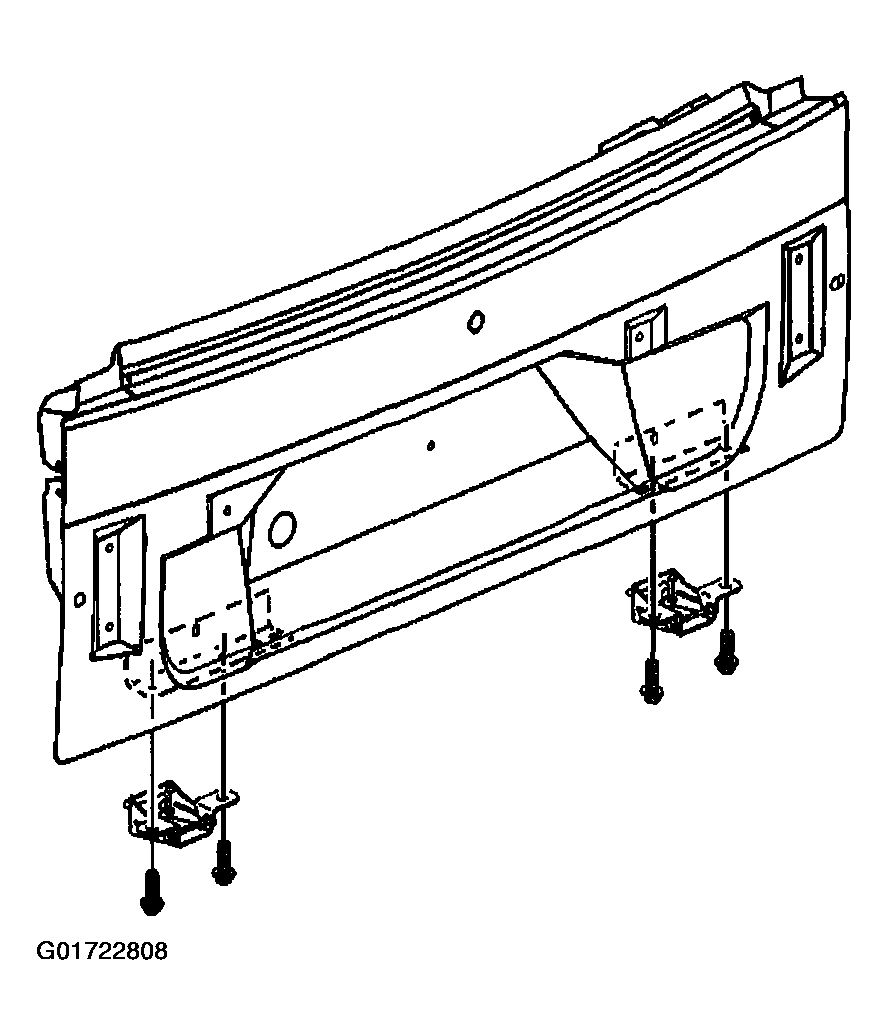

    Fig 1: Removing Endgate Hinges & Bolts
    G01722808Courtesy of GENERAL MOTORS CORP.
  10. Remove the endgate from the vehicle, with an assistant.
  11. Remove the endgate wiring harness.
  12. Remove the endgate rear panel molding. Refer to MOLDING REPLACEMENT - REAR PANEL .

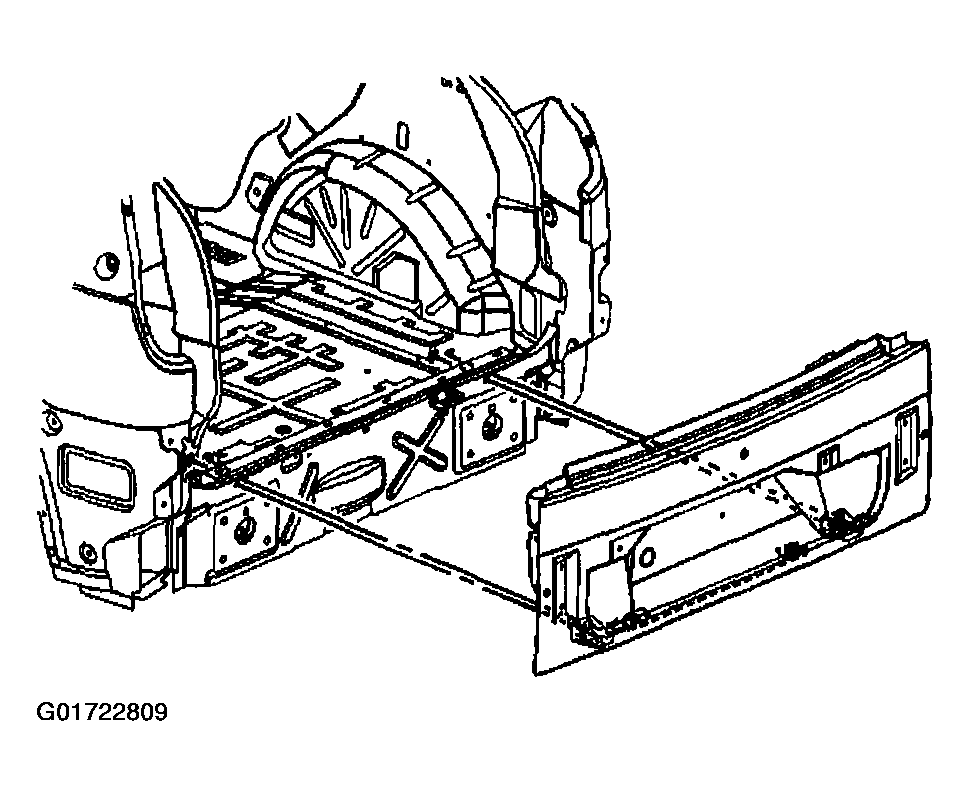

    Fig 2: Removing Endgate
    G01722809Courtesy of GENERAL MOTORS CORP.
