Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lower liftgate trim panel to the liftgate pinch-weld flange and the liftgate strikers.
  2. Install the lower liftgate trim panel to the liftgate pinch-weld flange, pressing down on the liftgate trim panel until fully seated.
  3. Install the right and left sides of the lower liftgate trim panel, pressing in the push-in retainers until fully seated.

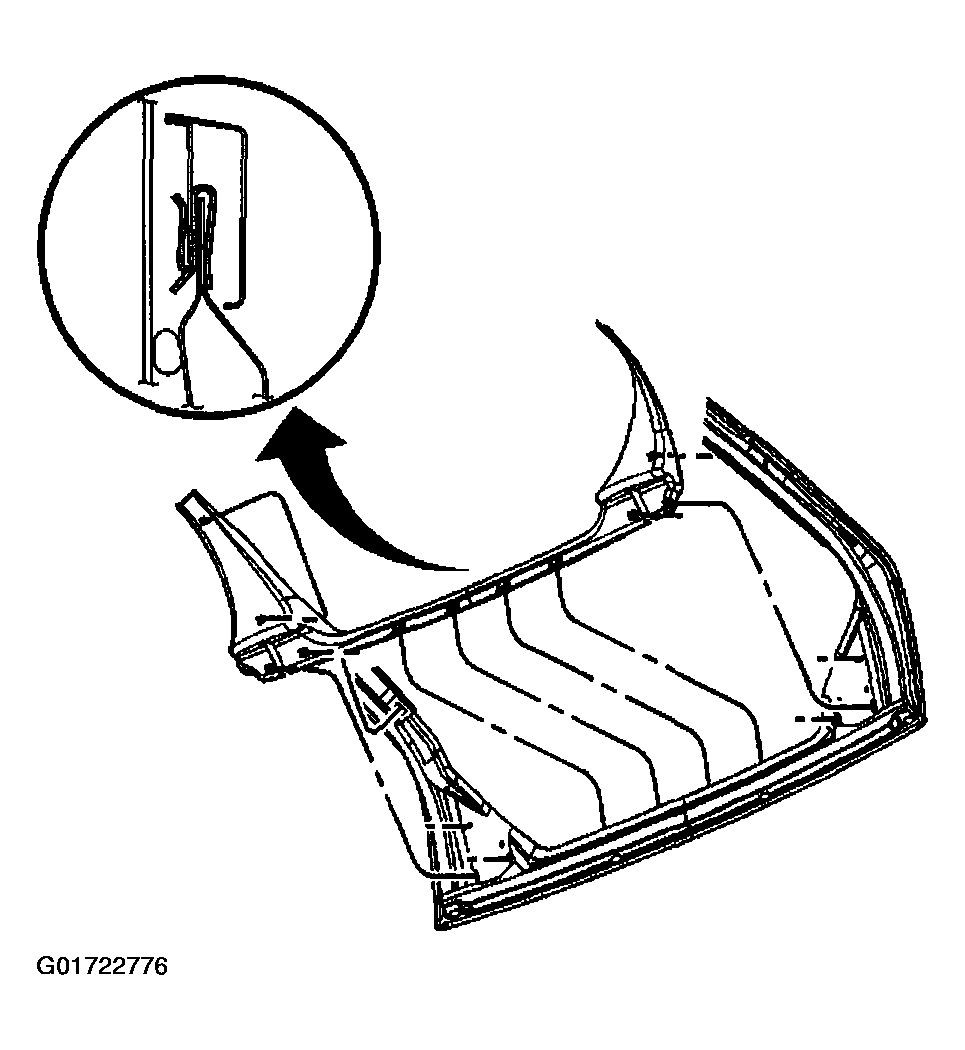

    Fig 1: Installing Lower Liftgate Trim Panel (Aztek)
    G01722776Courtesy of GENERAL MOTORS CORP.
  4. Position the upper liftgate trim panel to the liftgate pinch-weld flange.
  5. Install the upper liftgate trim panel to the liftgate pinch-weld flange, pressing down on the upper liftgate trim panel until fully seated.
  6. Position the defogger harness to the cut out in the upper liftgate trim panel.
  7. Install the right and left sides of the upper liftgate trim panel, pressing in the push-in retainers until fully seated.
  8. Close the liftgate.

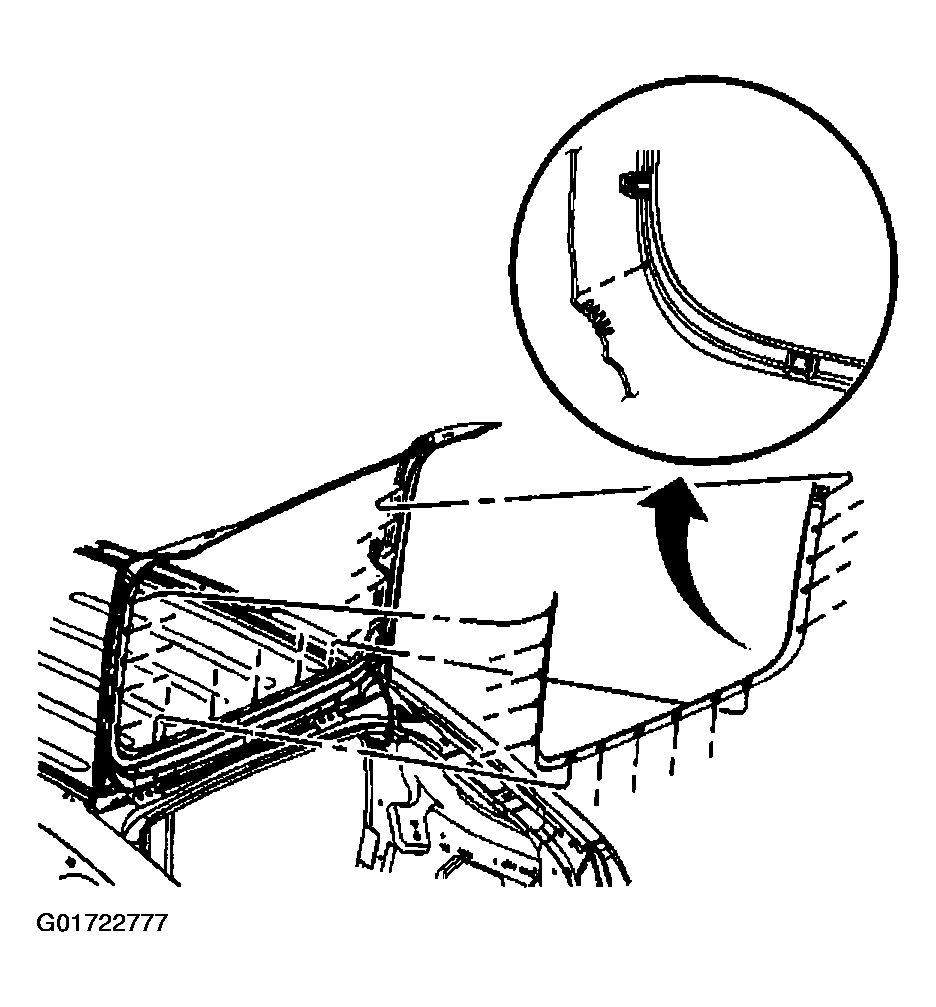

    Fig 2: Installing Upper Liftgate Trim Panel (Aztek)
    G01722777Courtesy of GENERAL MOTORS CORP.
