Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector to the headlamp switch.

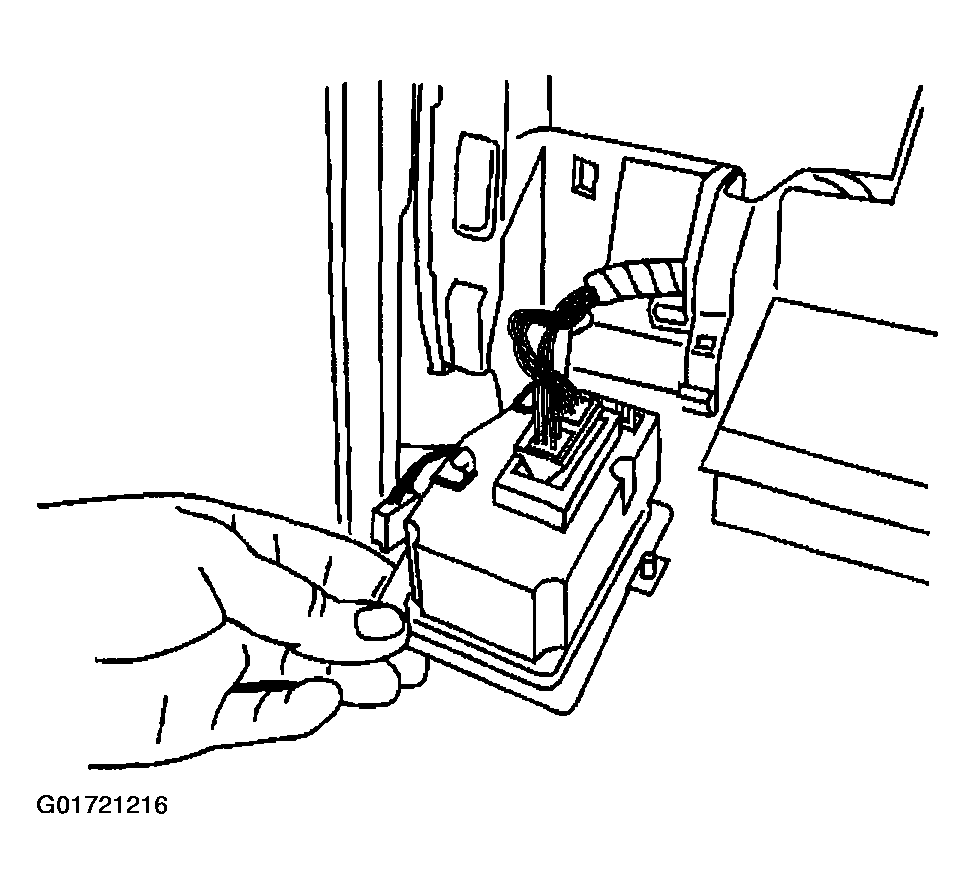

Fig 1: Installing Headlamp Switch
Courtesy of GENERAL MOTORS CORP.
Position the headlamp switch to the retainers in the I/P carrier.
Install the headlamp switch to the I/P carrier. Press the switch into place until fully seated.
Install the I/P I cluster trim plate bezel. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .

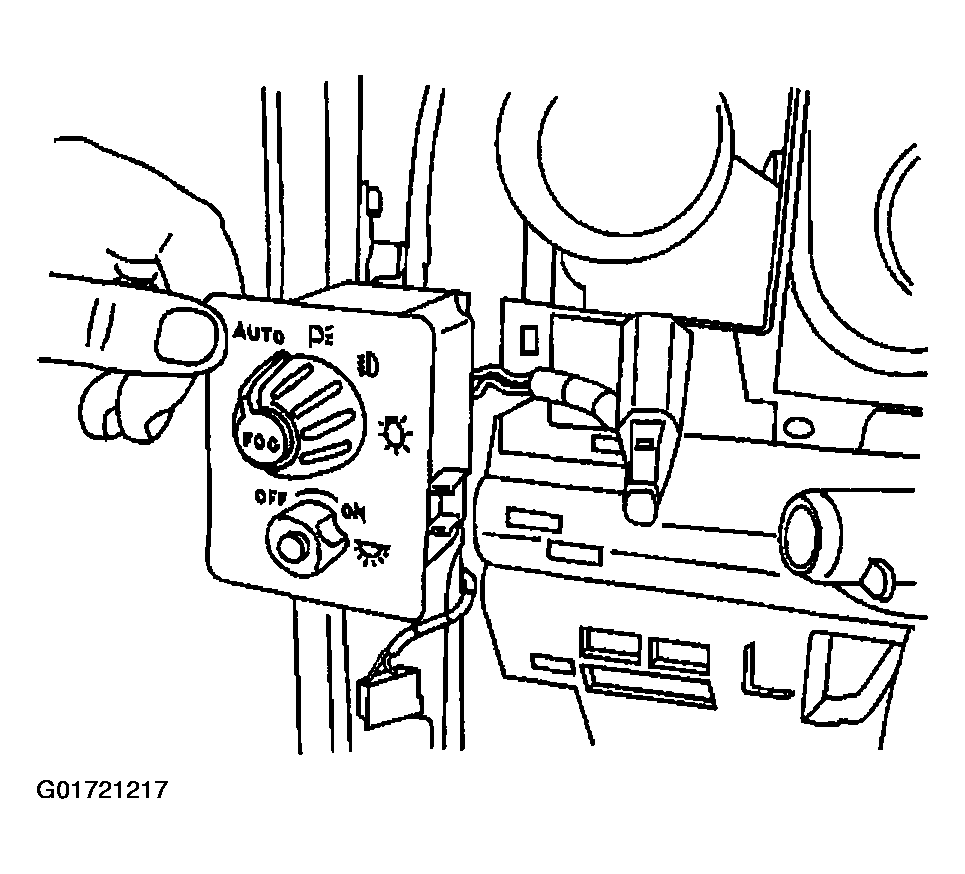

Fig 2: Positioning Headlamp Switch To Retainers In I/P Carrier
Courtesy of GENERAL MOTORS CORP.
