Disassembled Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

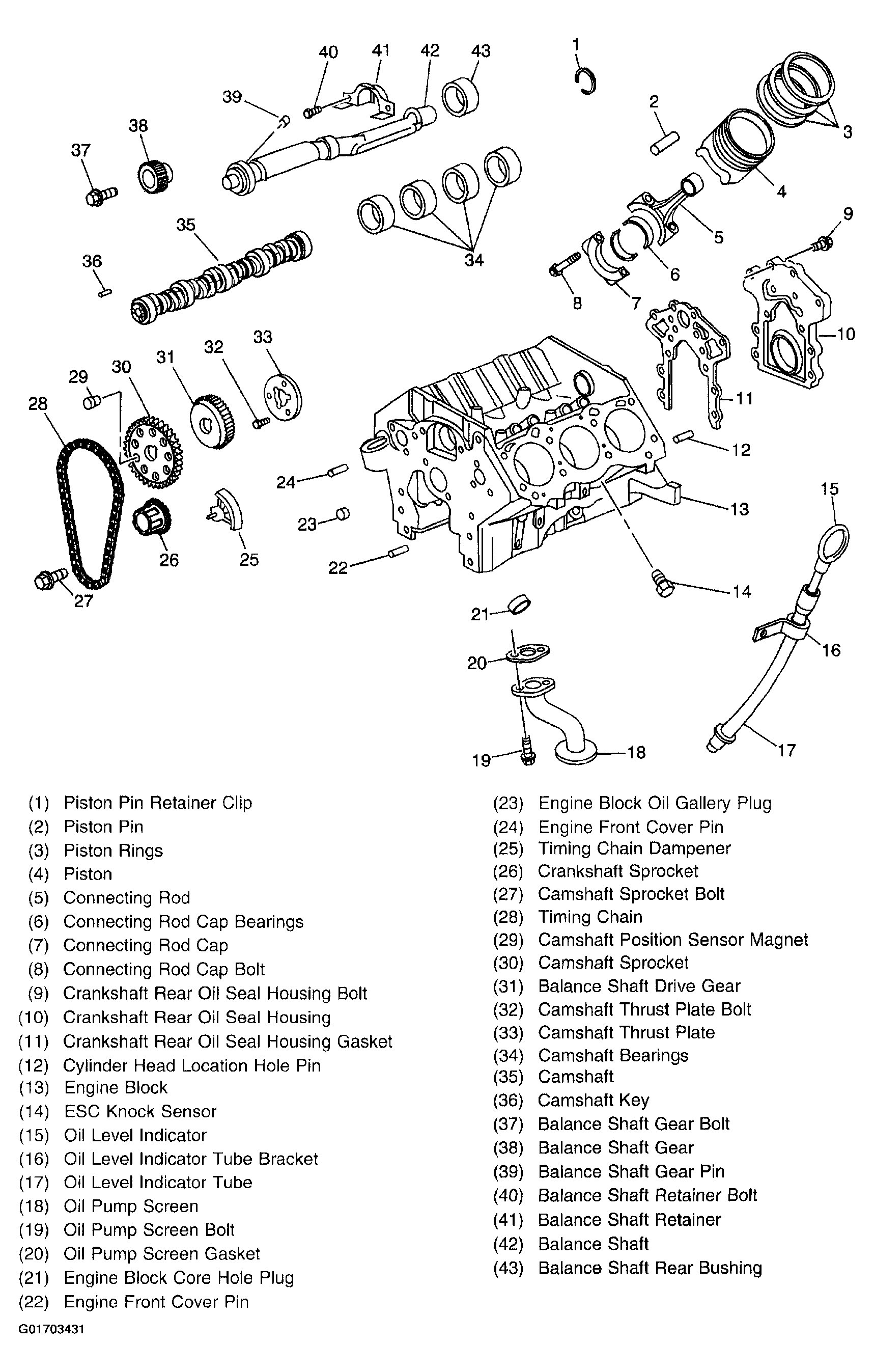

Fig 1: Engine Block & Components

Courtesy of GENERAL MOTORS CORP.

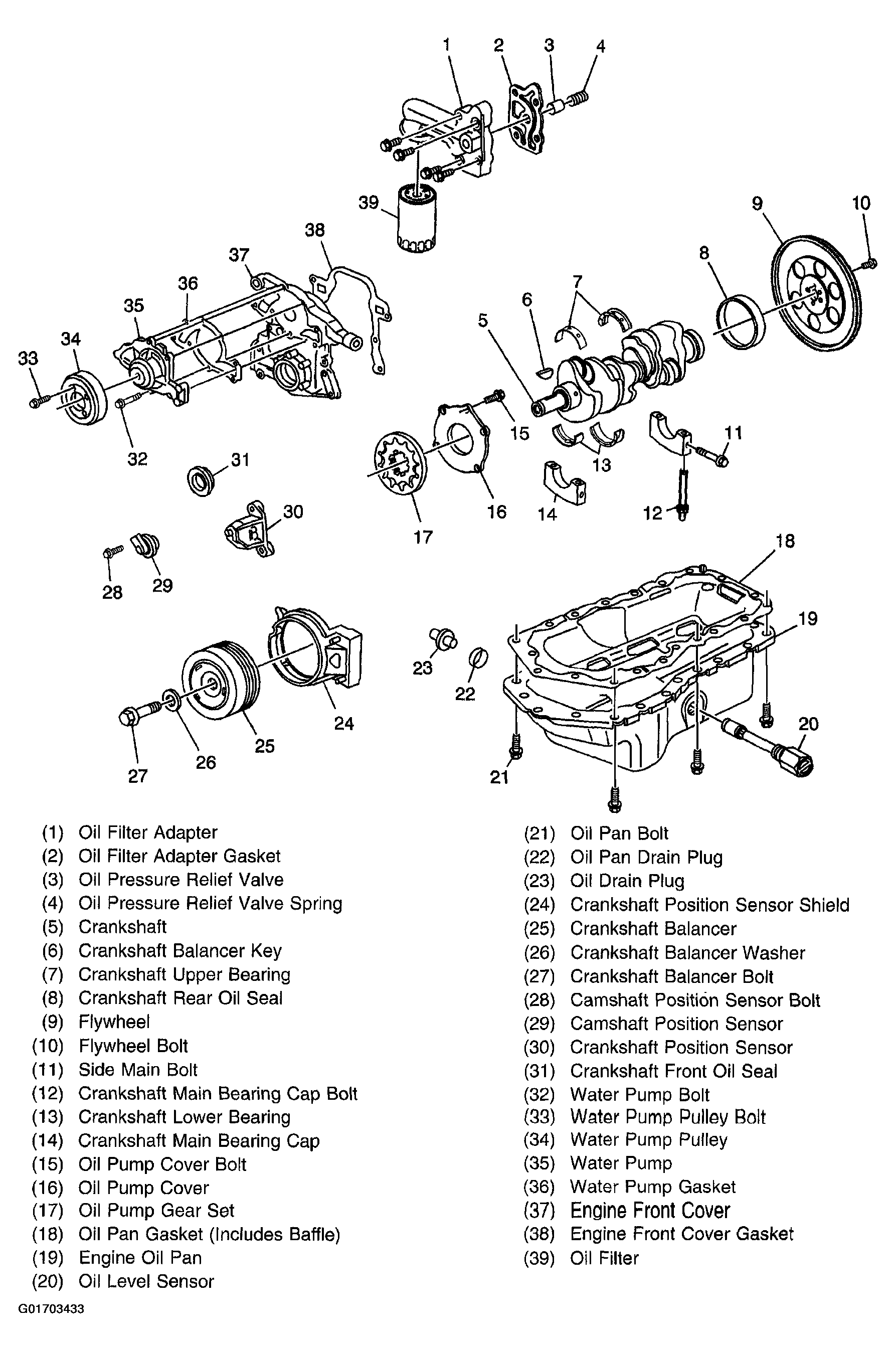

Fig 2: Crankshaft & Components

Courtesy of GENERAL MOTORS CORP.

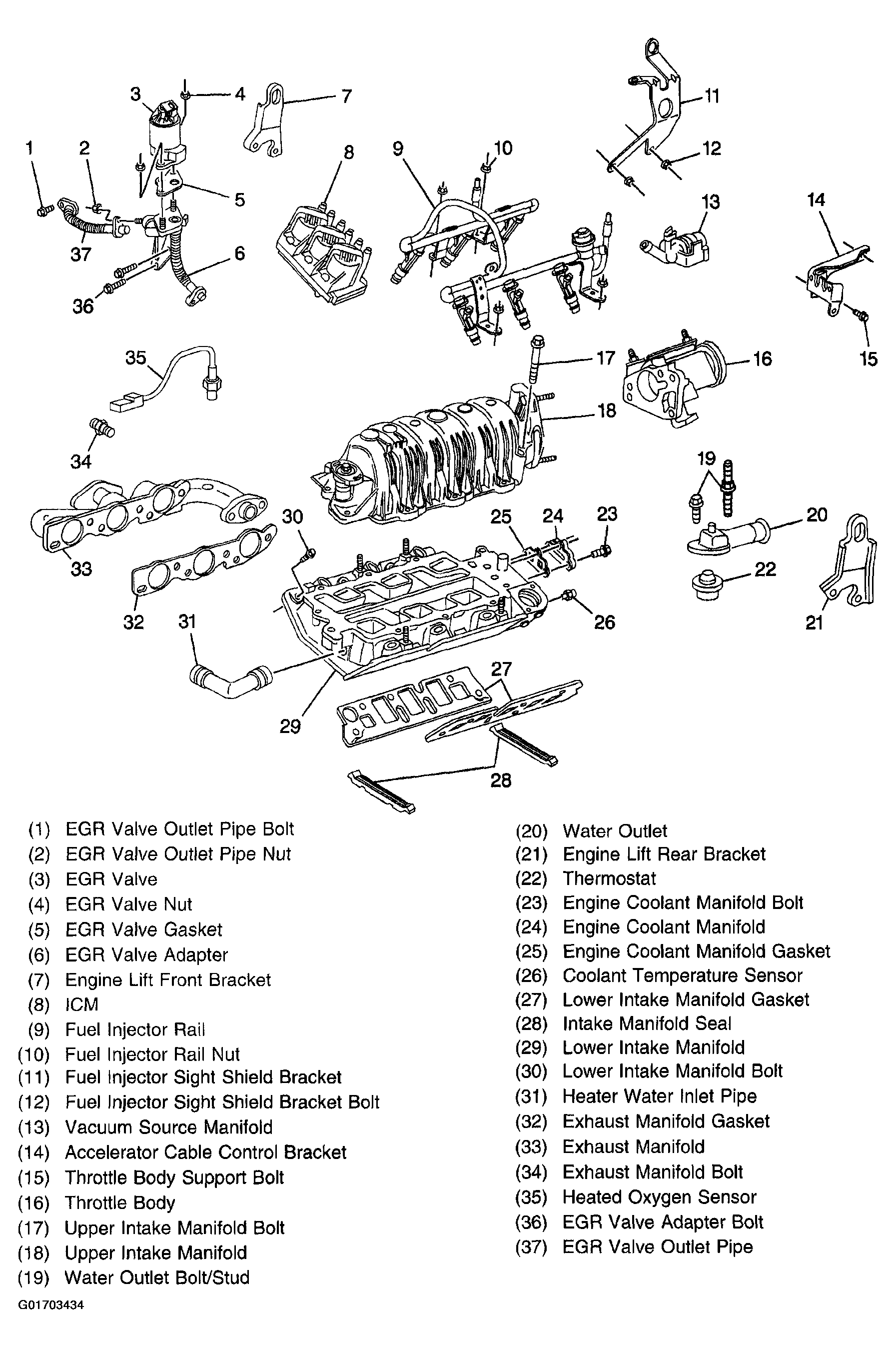

Fig 3: Intake Manifold & Components

Courtesy of GENERAL MOTORS CORP.

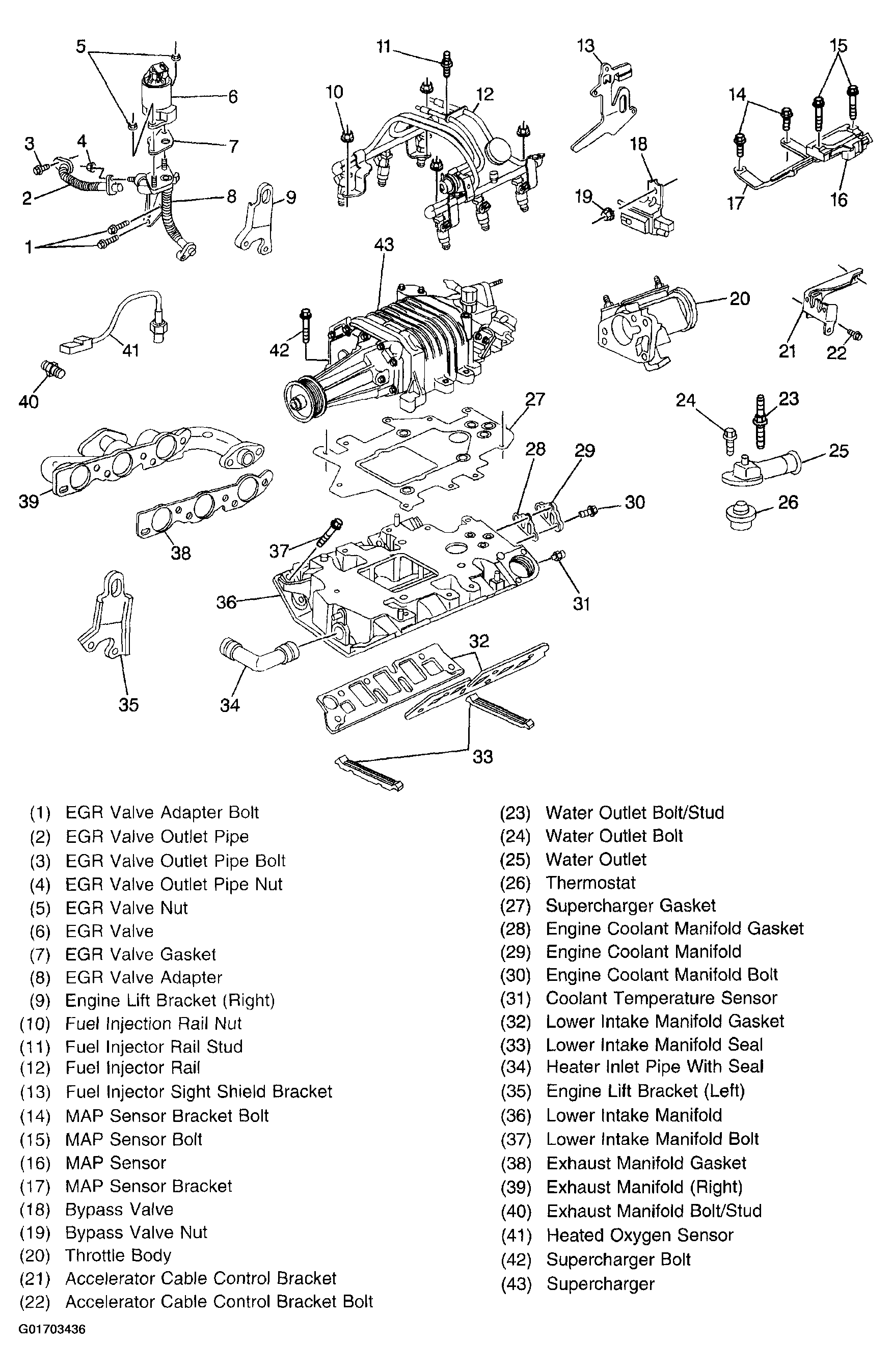

Fig 4: Supercharger & Components (L67)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Cylinder Head & Components (L36)

Courtesy of GENERAL MOTORS CORP.

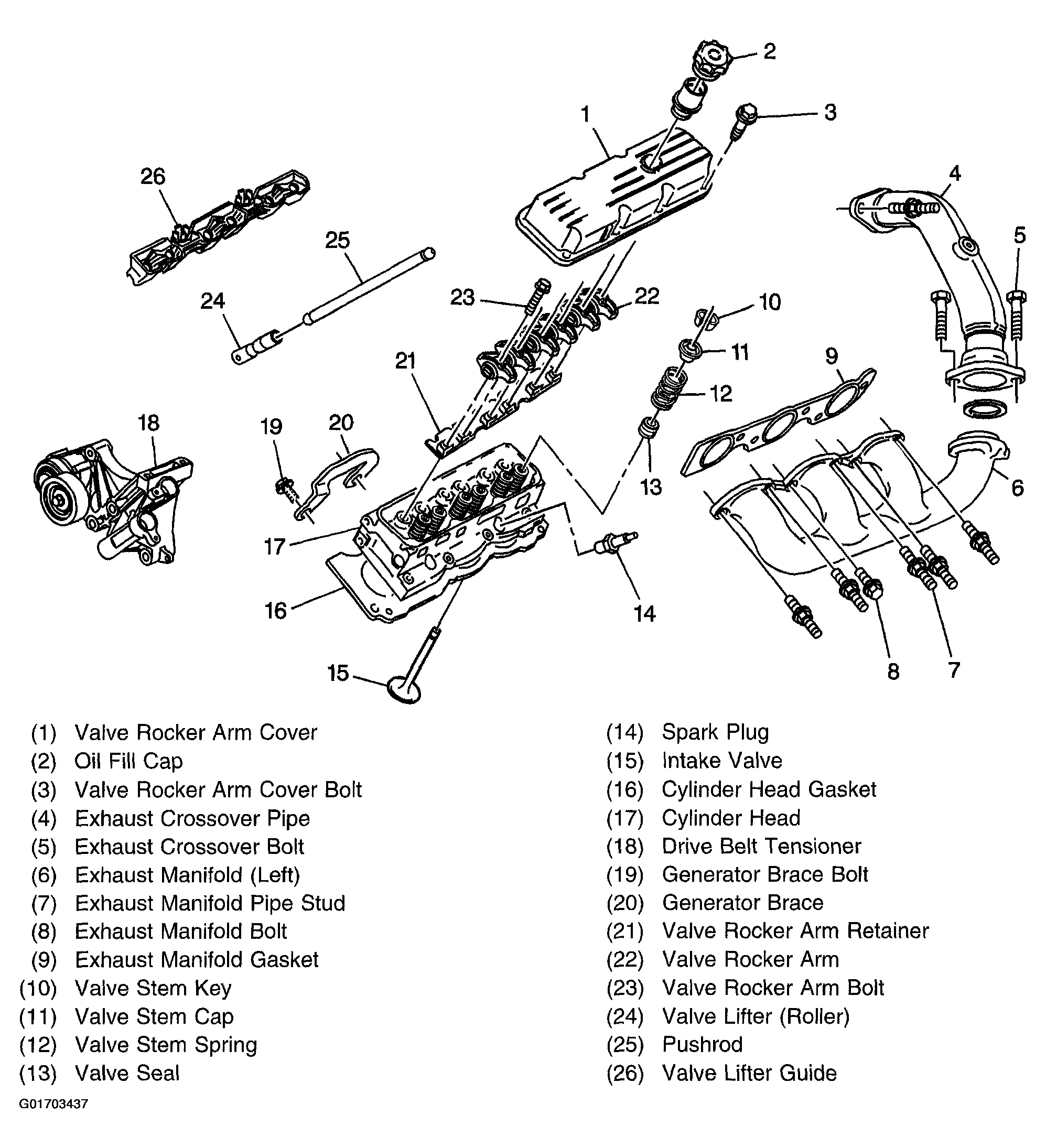

Fig 6: Cylinder Head & Components (L67)

Courtesy of GENERAL MOTORS CORP.
