Engine Block Plug Installation

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE .

Install the threaded oil gallery plugs.
Tighten

Tighten the oil gallery plugs to 30 N.m (22 lb ft)

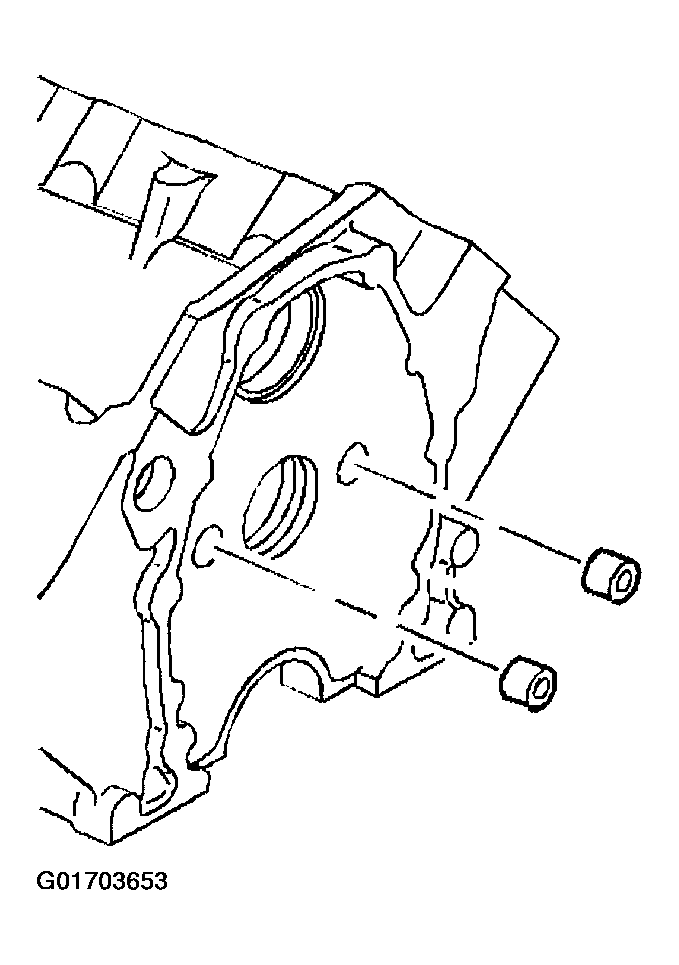

Fig 1: Oil Gallery Plugs
Courtesy of GENERAL MOTORS CORP.
Install the remaining oil gallery plugs using.
GM P/N United States 12346004,

GM P/N Canada 10953480 or the equivalent.

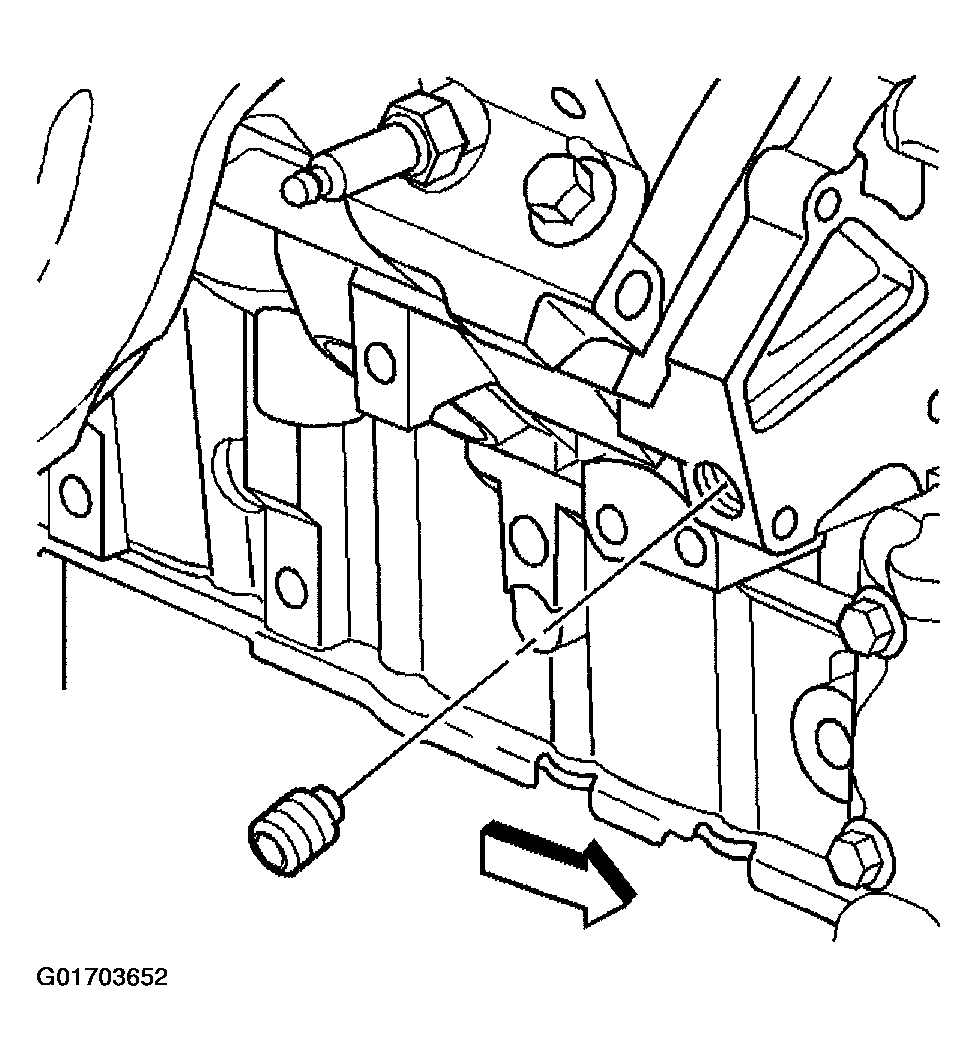

Fig 2: Remaining Oil Gallery Plugs
Courtesy of GENERAL MOTORS CORP.
