HVAC Connector End Views

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

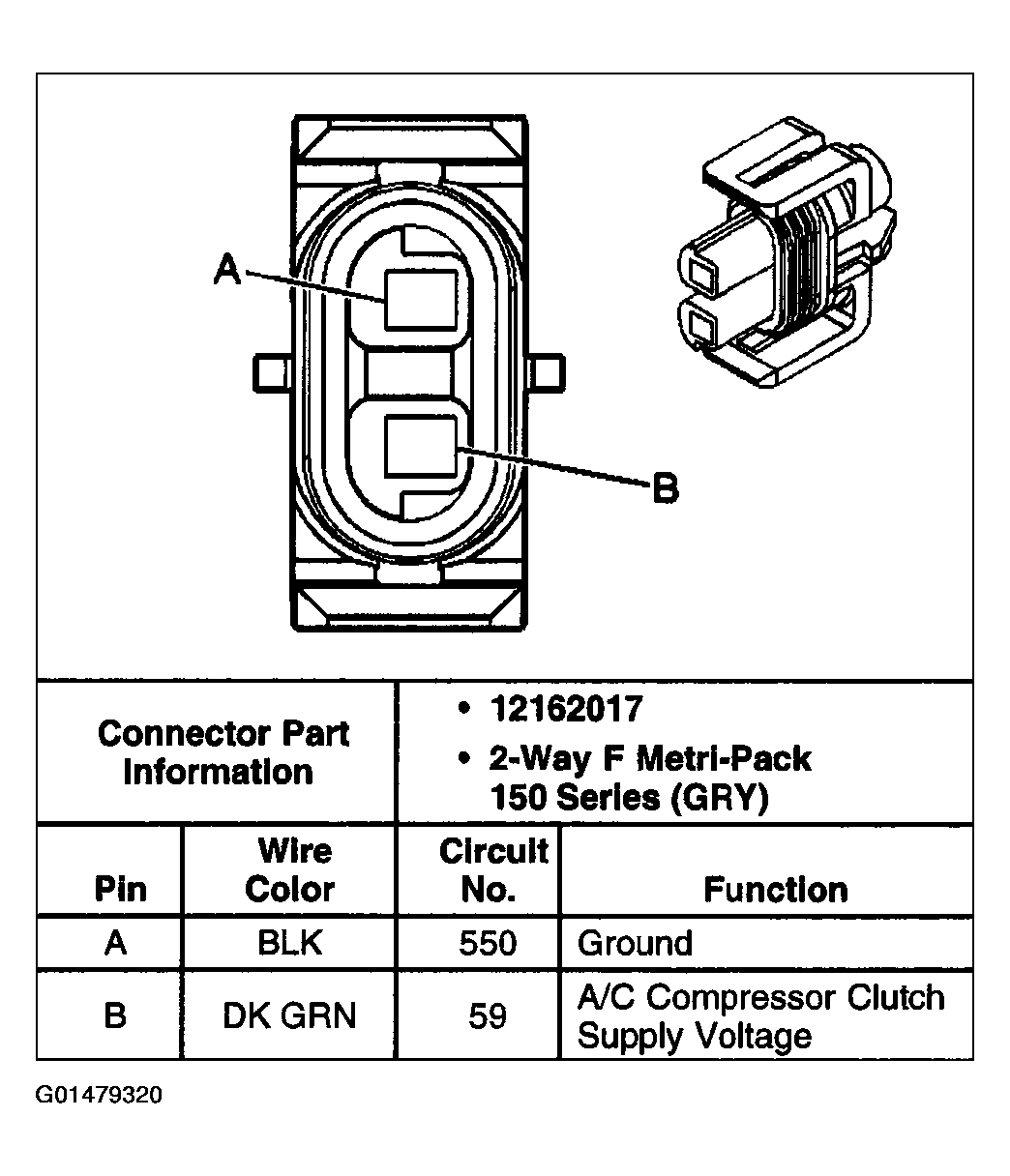

Fig 1: A/C Compressor Clutch

G01479320

Courtesy of GENERAL MOTORS CORP.

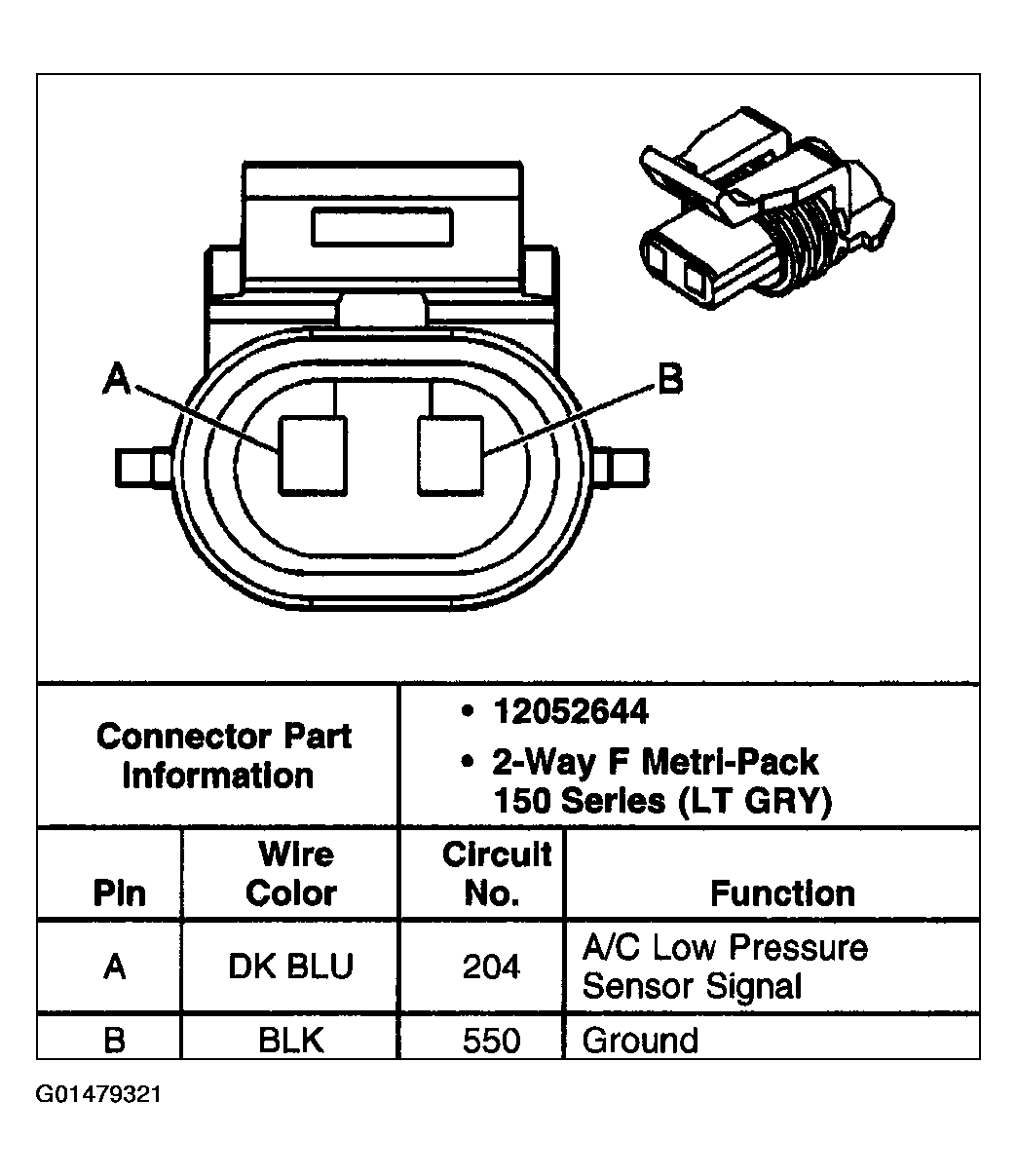

Fig 2: A/C Low Pressure Switch

G01479321

Courtesy of GENERAL MOTORS CORP.

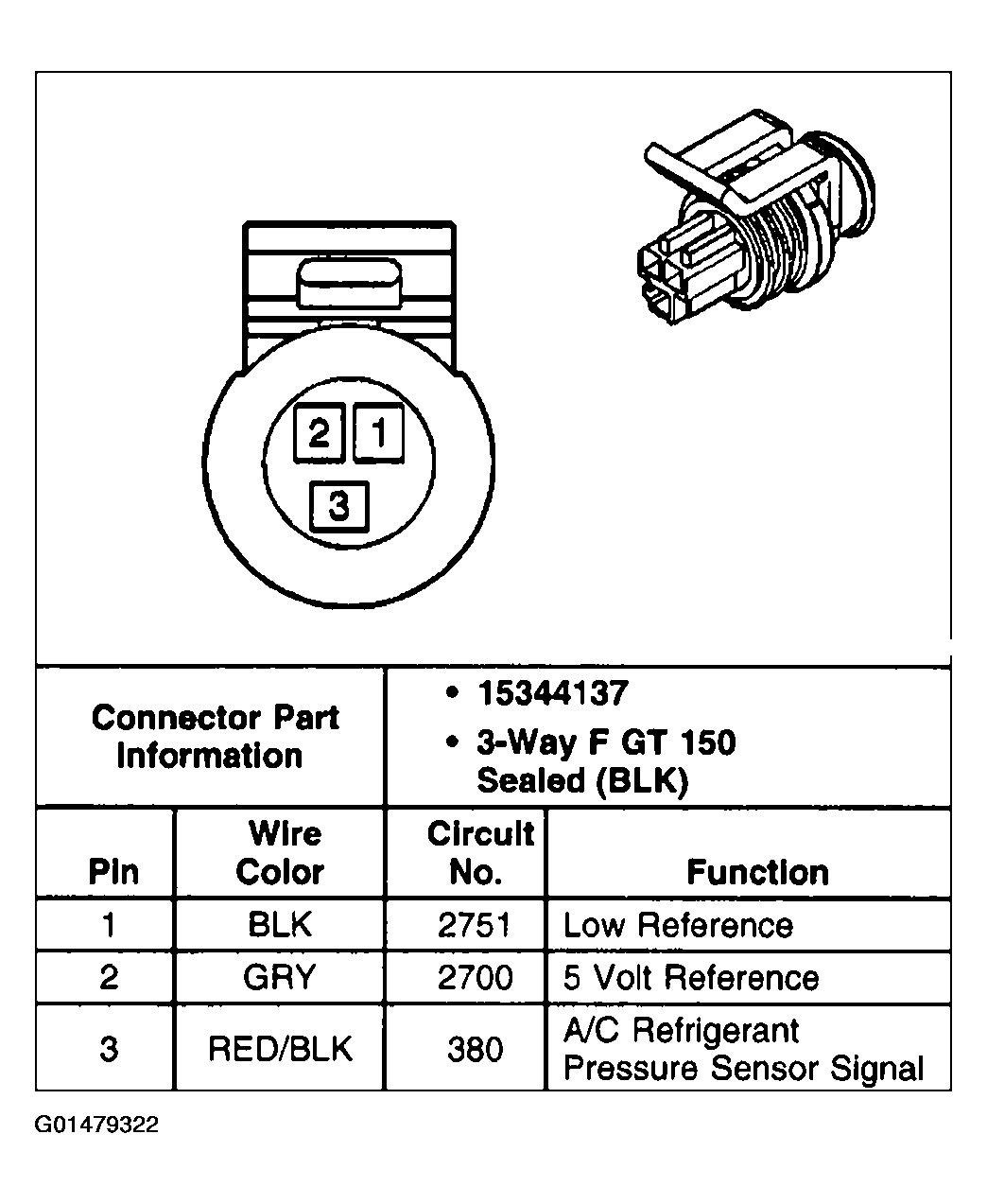

Fig 3: Refrigerant Pressure Sensor

G01479322

Courtesy of GENERAL MOTORS CORP.

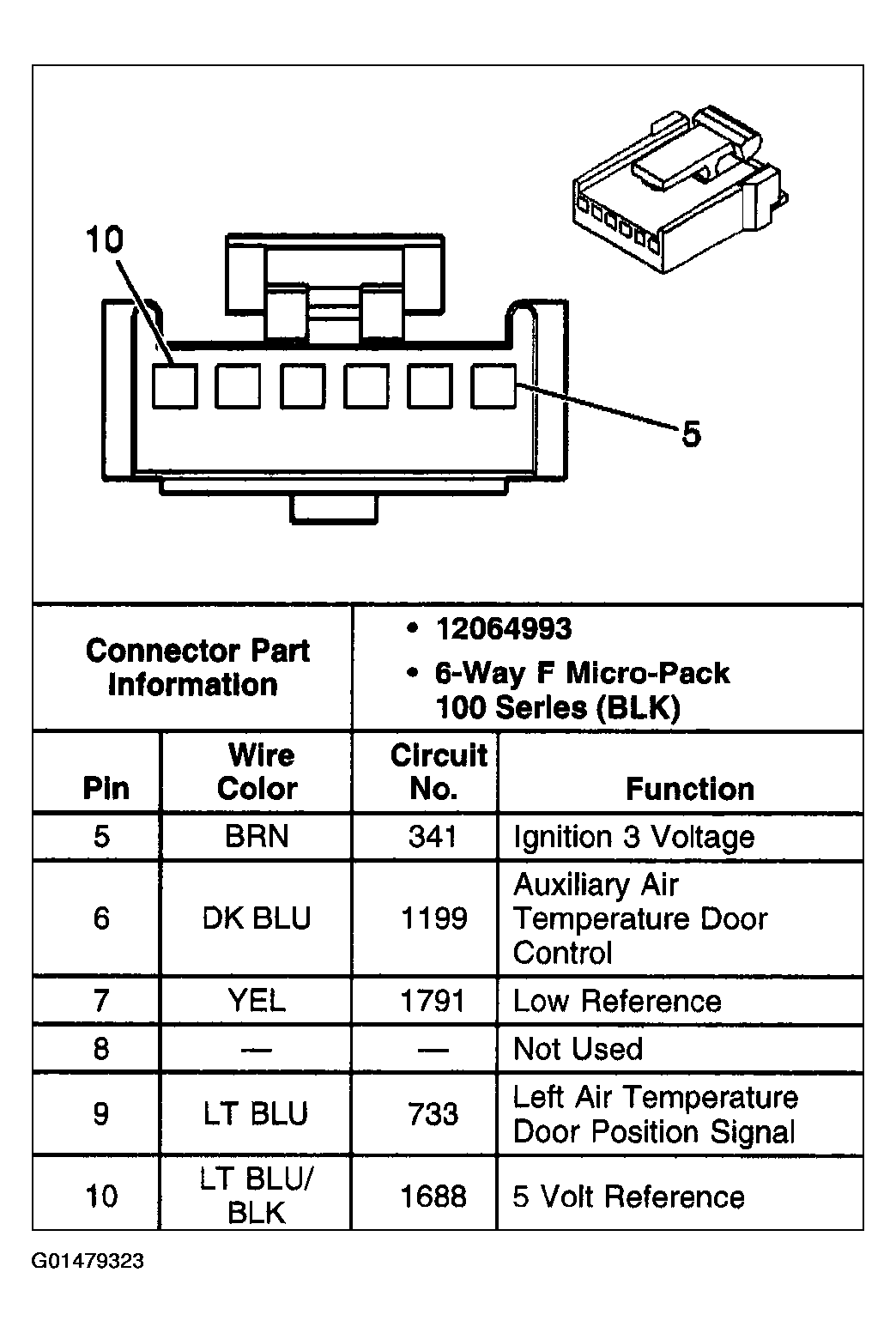

Fig 4: Air Temperature Actuator - Left

G01479323

Courtesy of GENERAL MOTORS CORP.

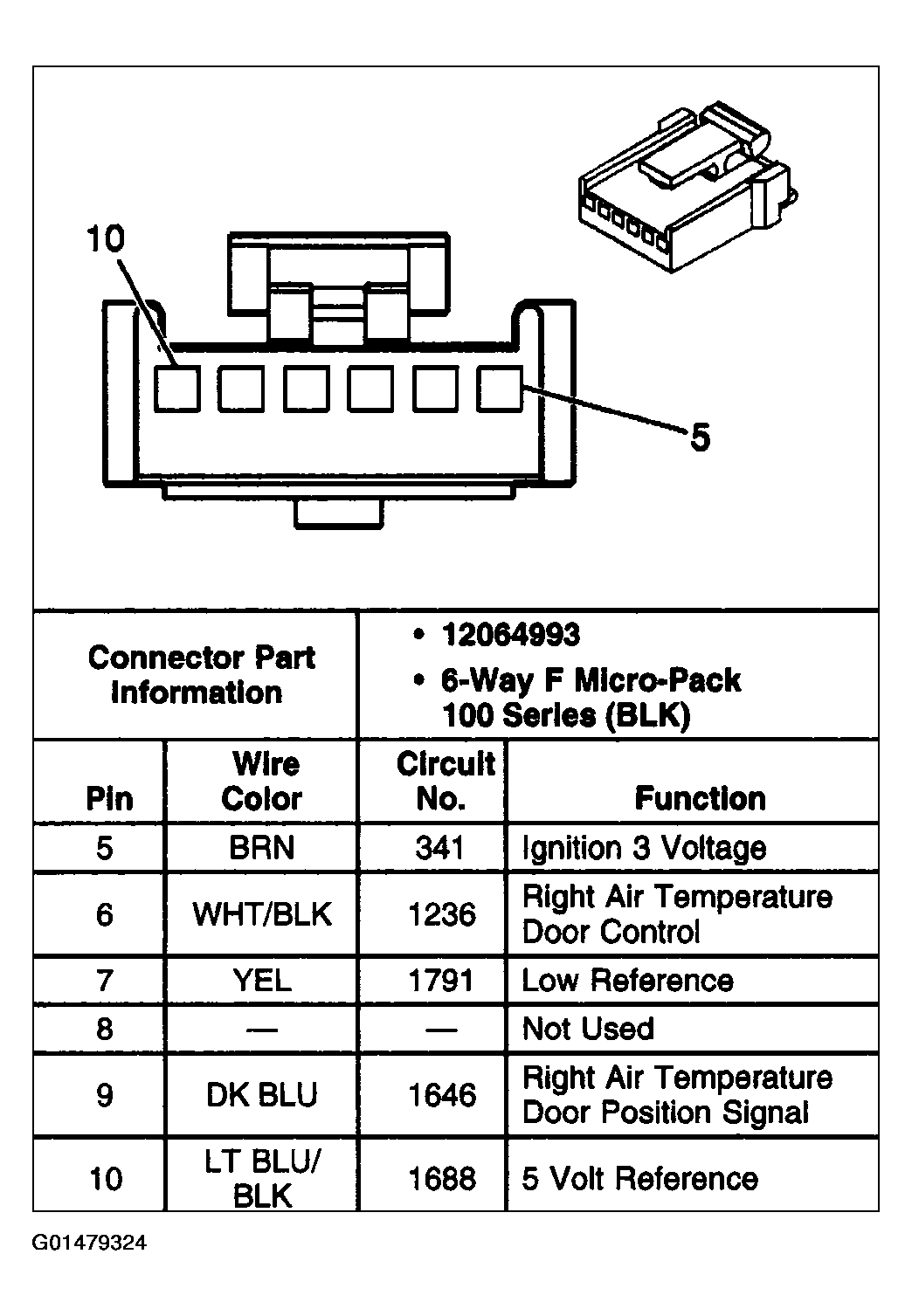

Fig 5: Air Temperature Actuator - Right

G01479324

Courtesy of GENERAL MOTORS CORP.

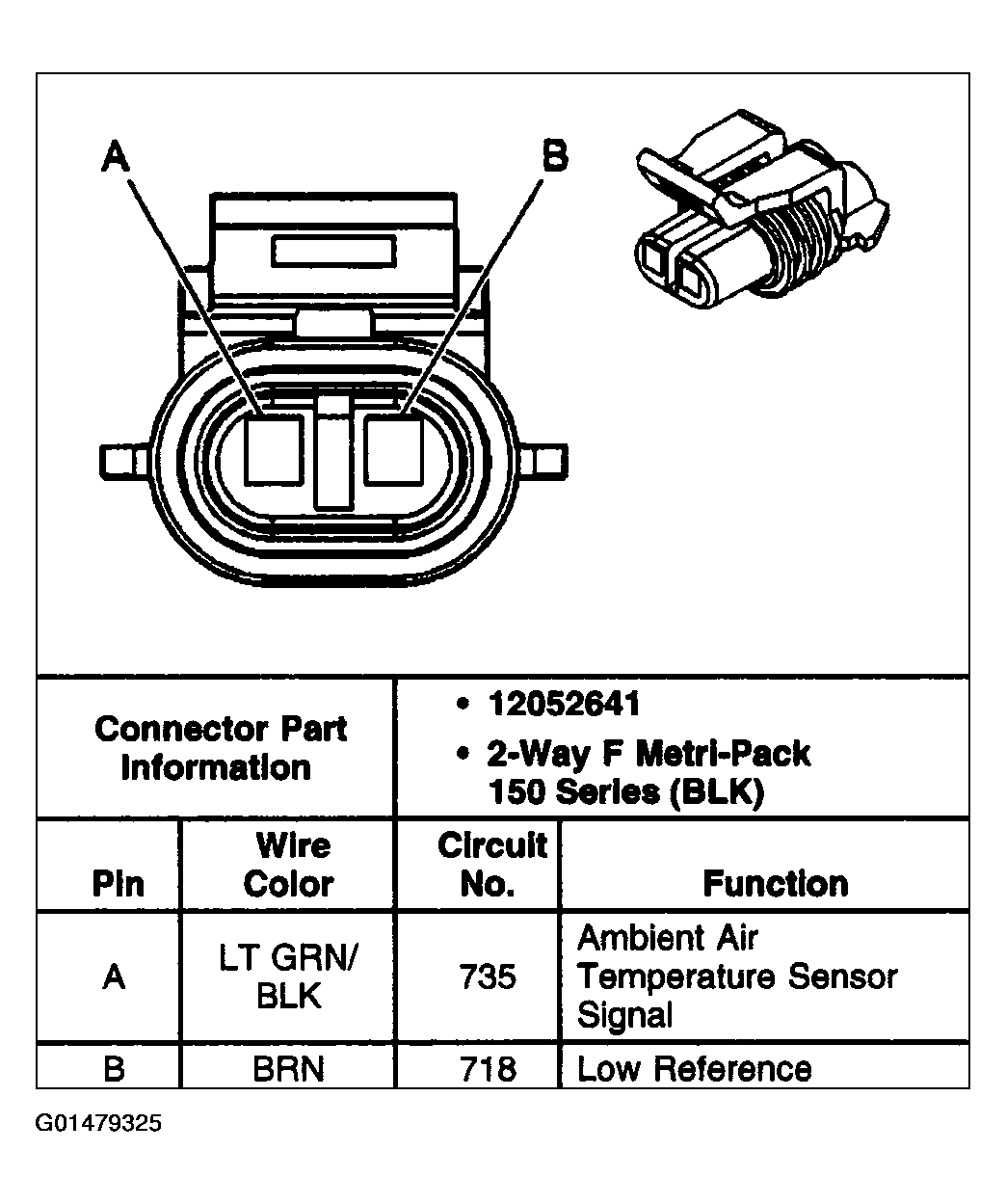

Fig 6: Ambient Air Temperature Sensor

G01479325

Courtesy of GENERAL MOTORS CORP.

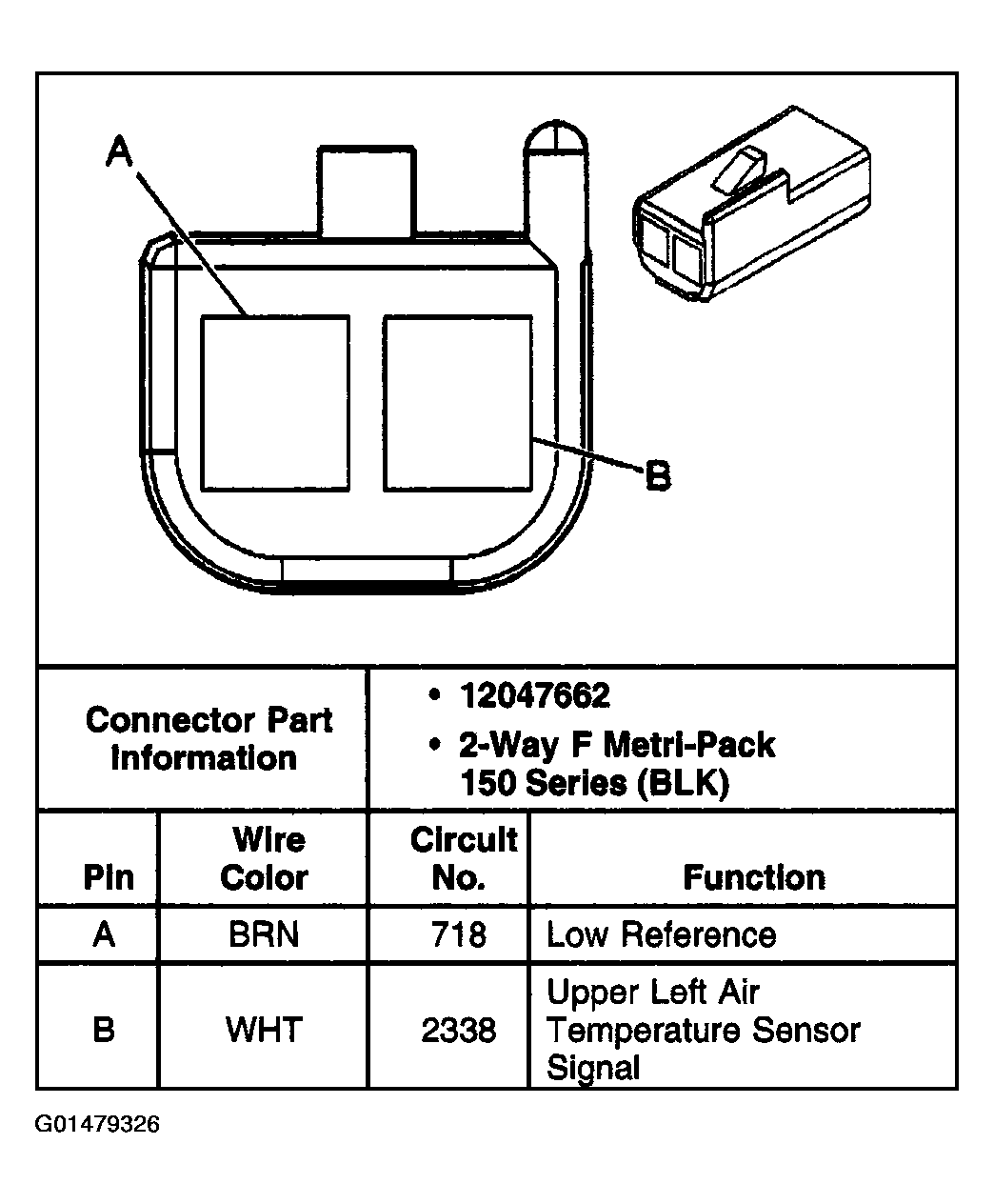

Fig 7: Air Temperature Sensor - Upper Left

G01479326

Courtesy of GENERAL MOTORS CORP.

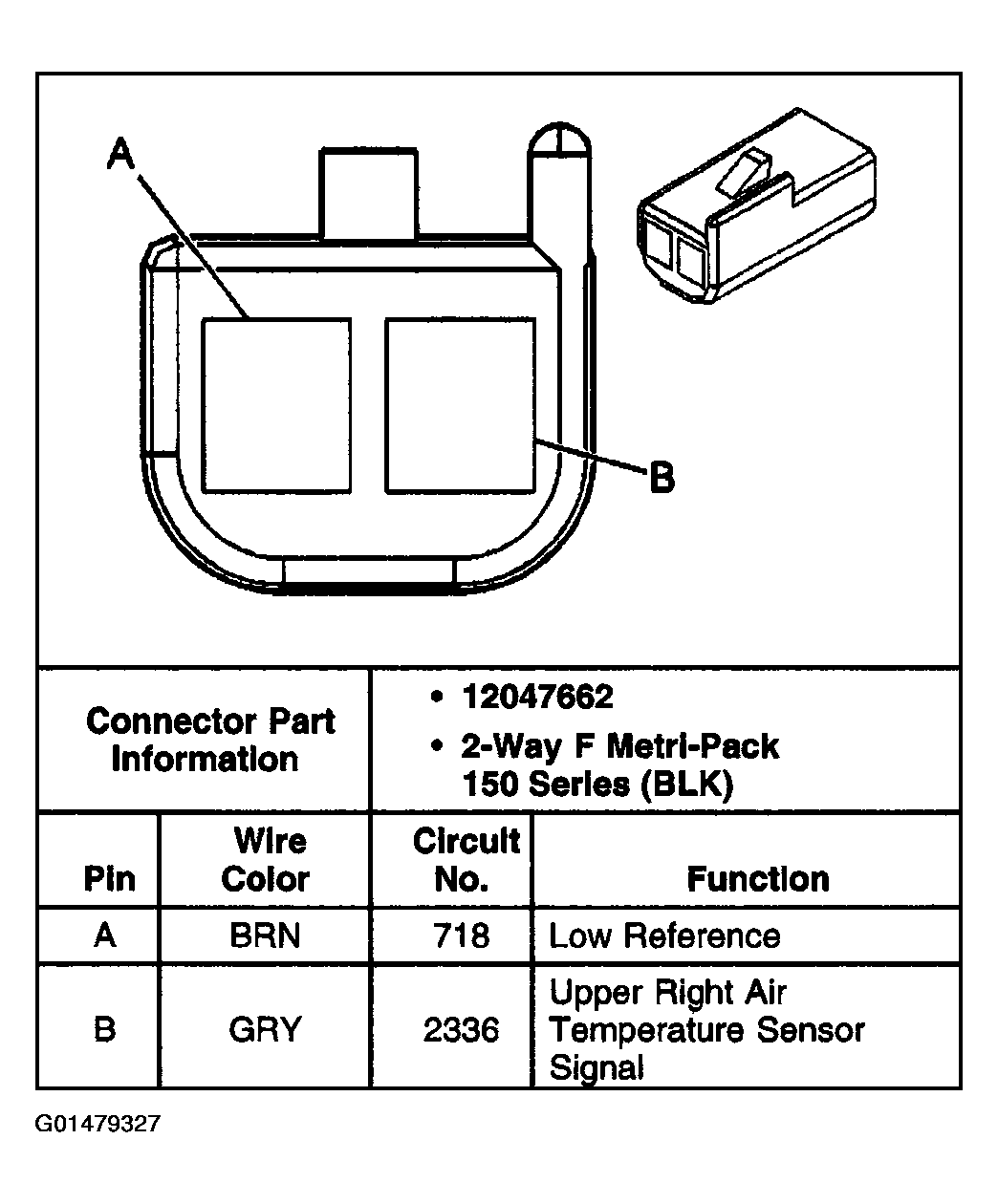

Fig 8: Air Temperature Sensor - Upper Right

G01479327

Courtesy of GENERAL MOTORS CORP.

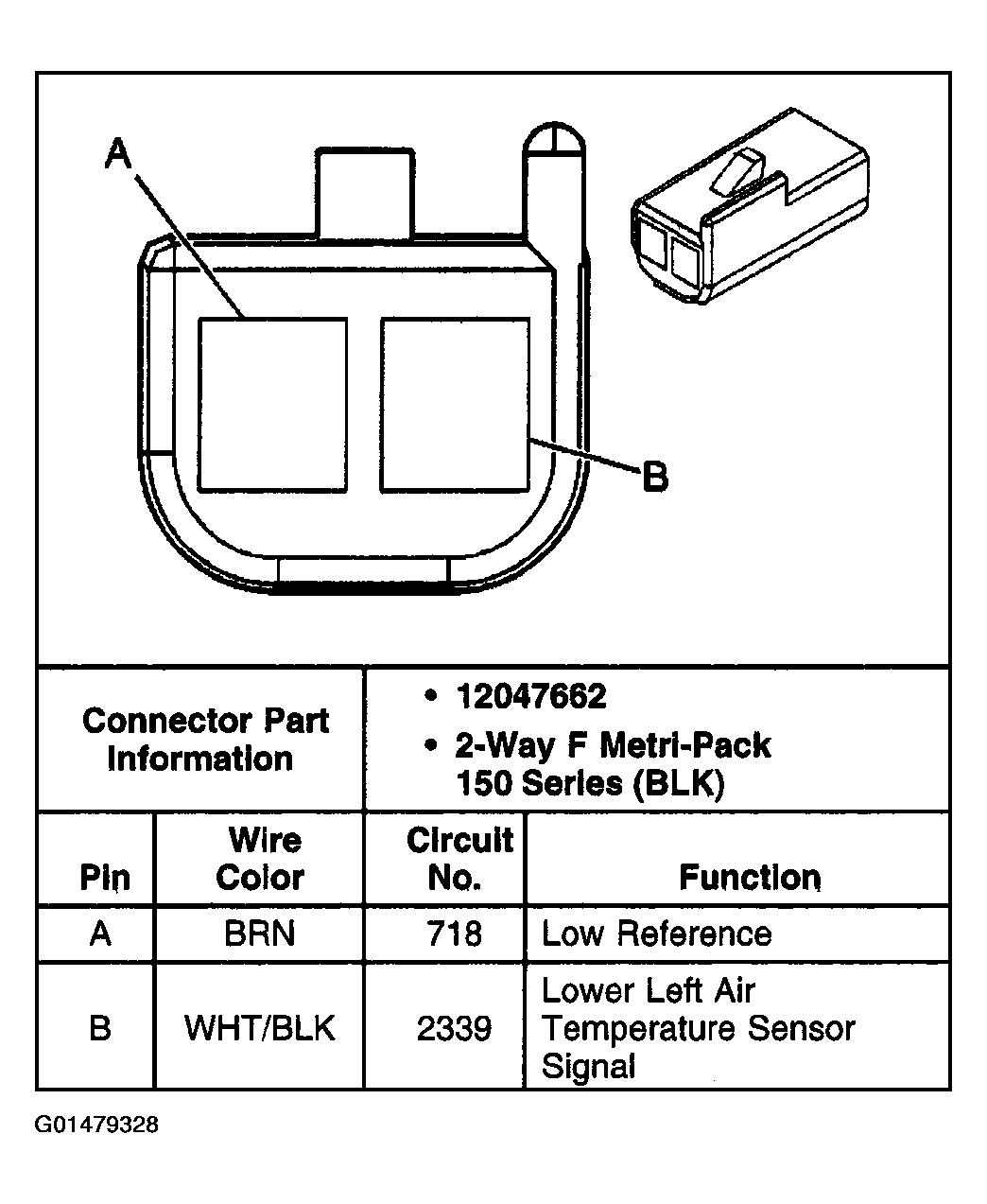

Fig 9: Air Temperature Sensor - Lower Left

G01479328

Courtesy of GENERAL MOTORS CORP.

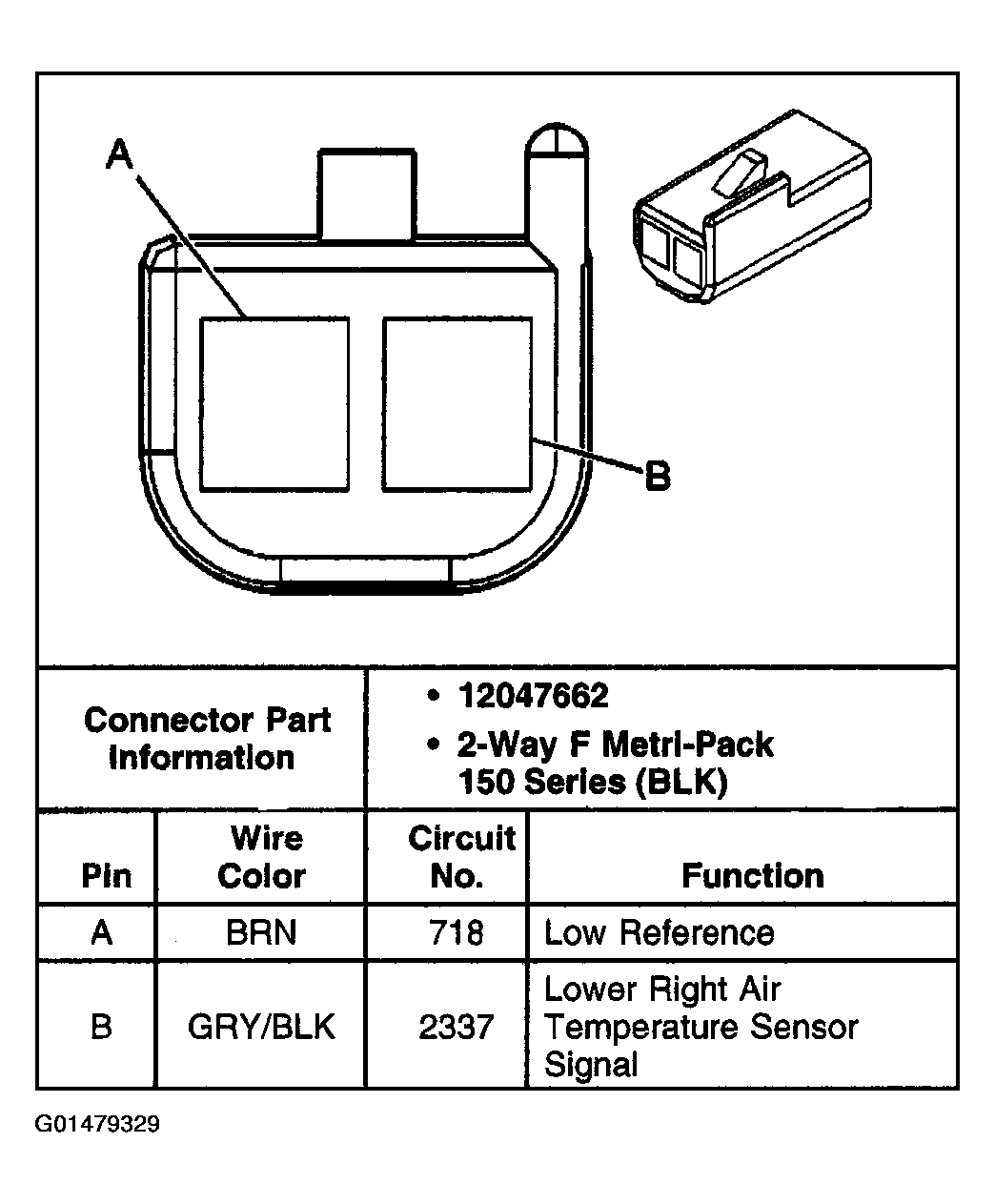

Fig 10: Air Temperature Sensor - Lower Right

G01479329

Courtesy of GENERAL MOTORS CORP.

Fig 11: Blower Motor Control Processor

G01479330

Courtesy of GENERAL MOTORS CORP.

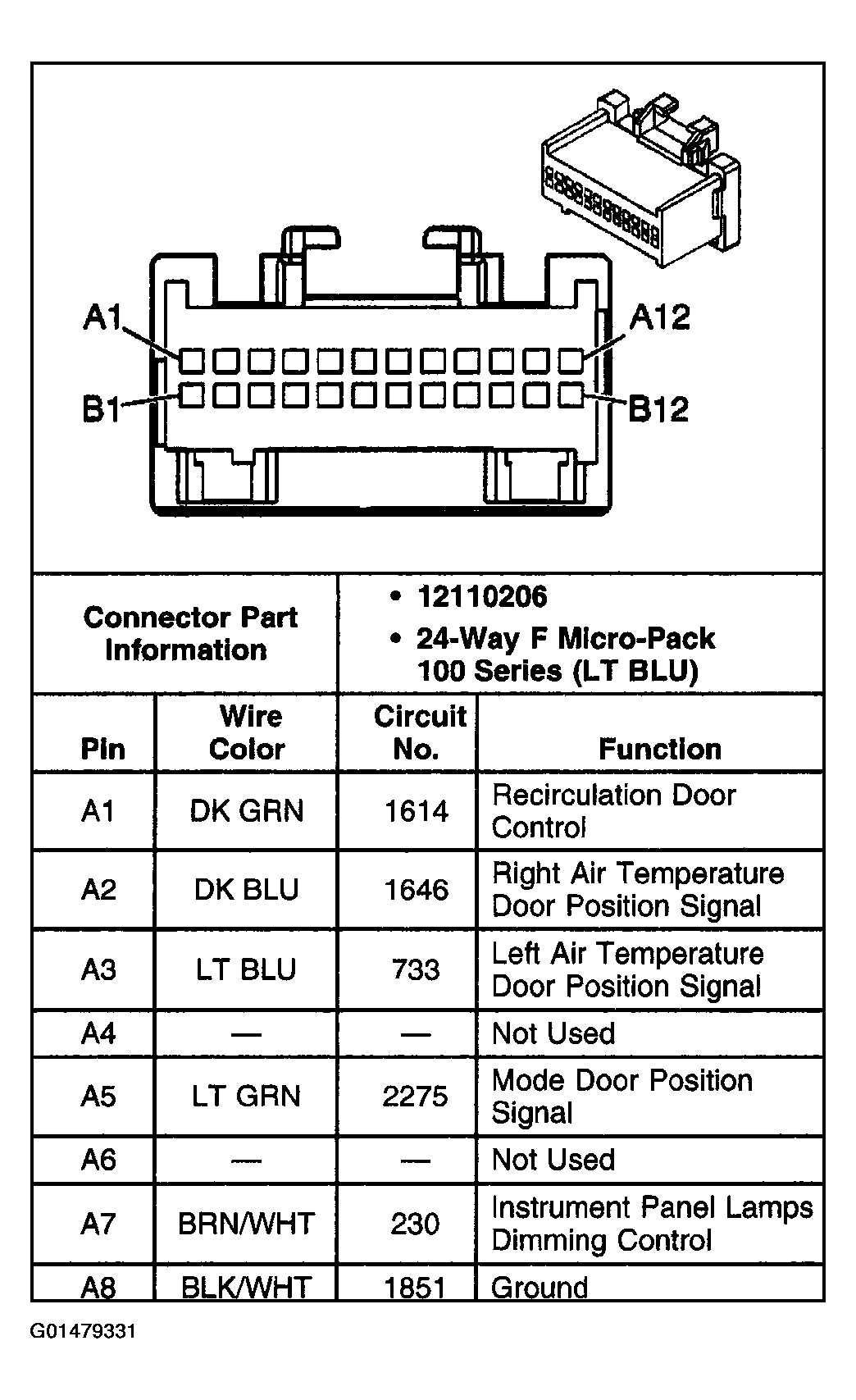

Fig 12: HVAC Control Module - C1 (1 Of 2)

G01479331

Courtesy of GENERAL MOTORS CORP.

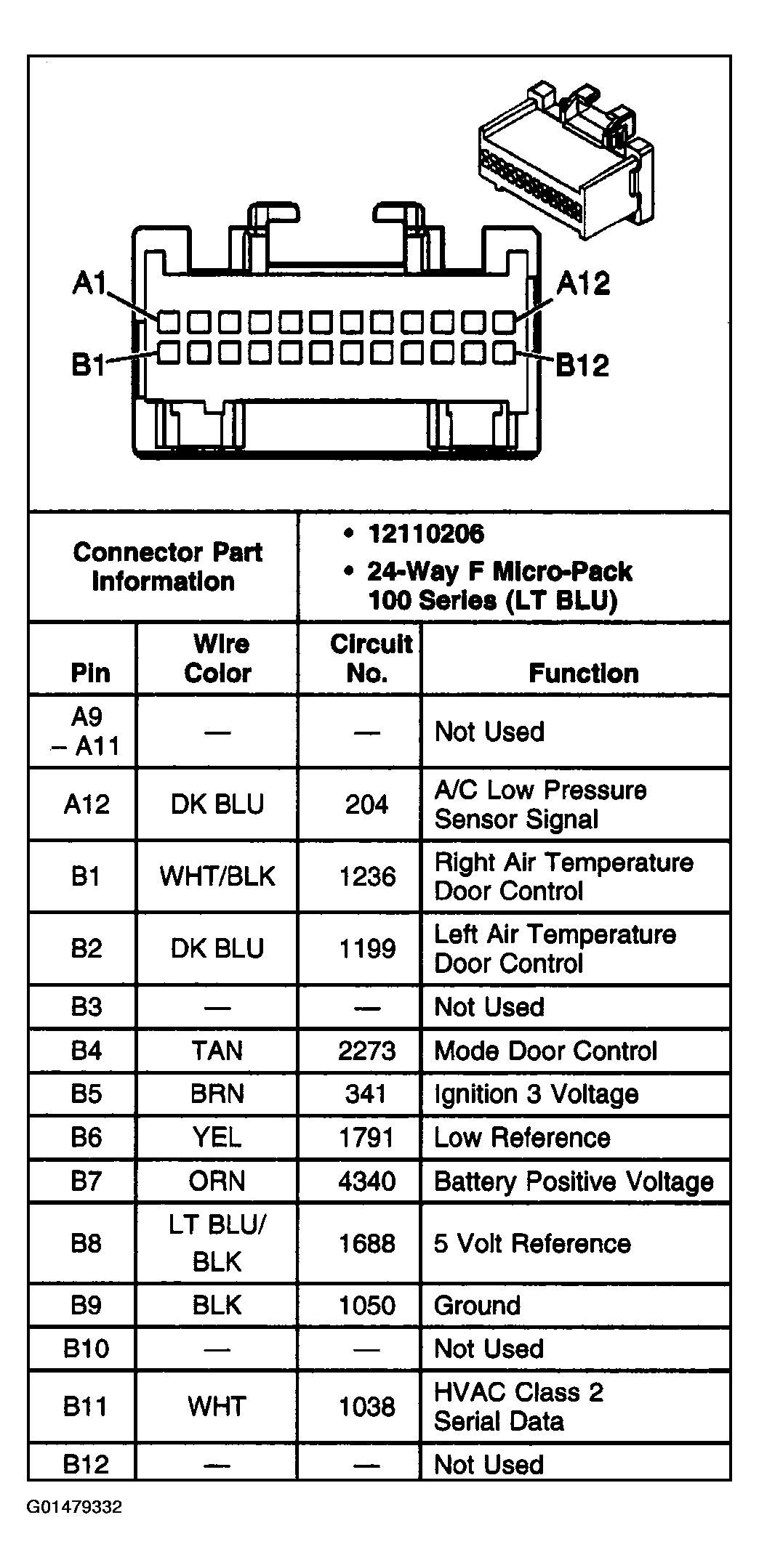

Fig 13: HVAC Control Module - C1 (2 Of 2)

G01479332

Courtesy of GENERAL MOTORS CORP.

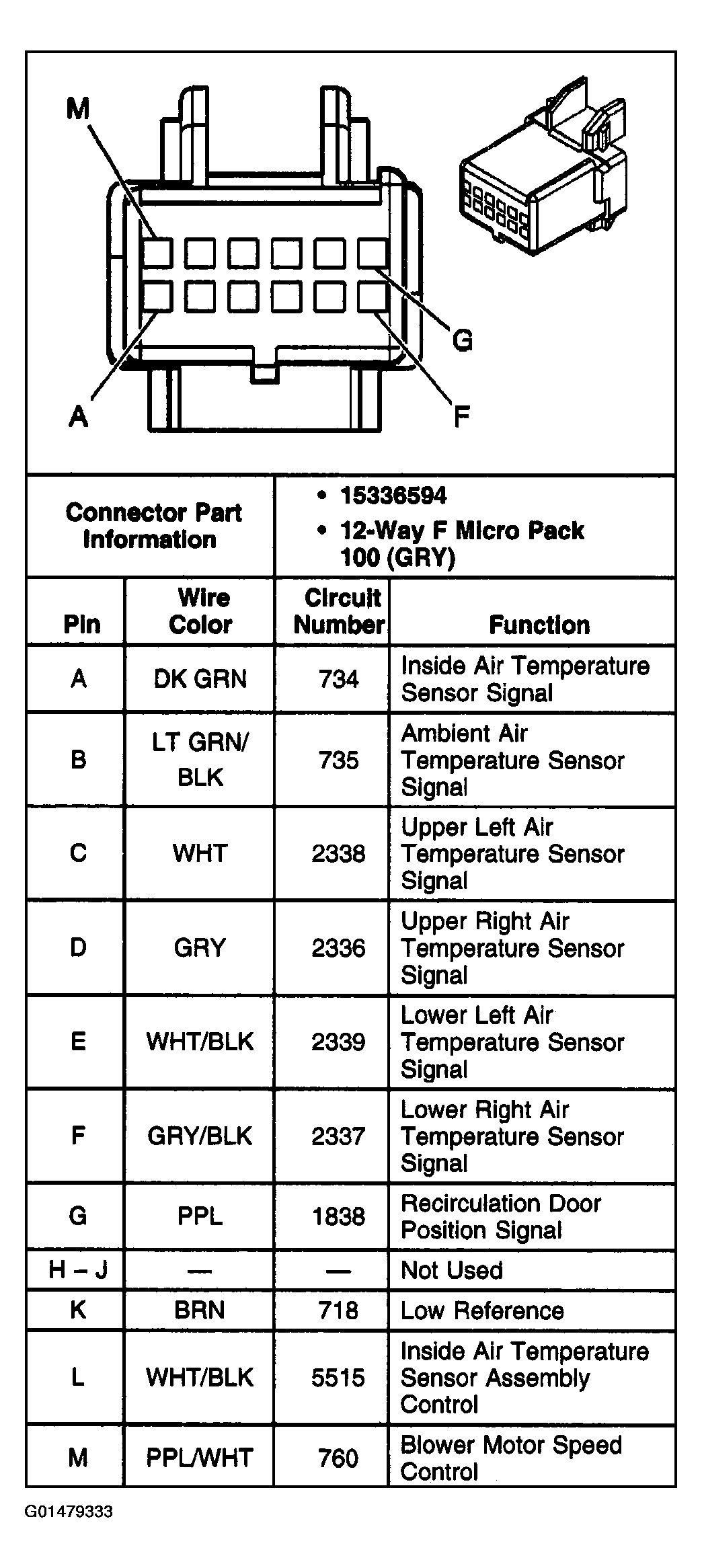

Fig 14: HVAC Control Module - C2

G01479333

Courtesy of GENERAL MOTORS CORP.

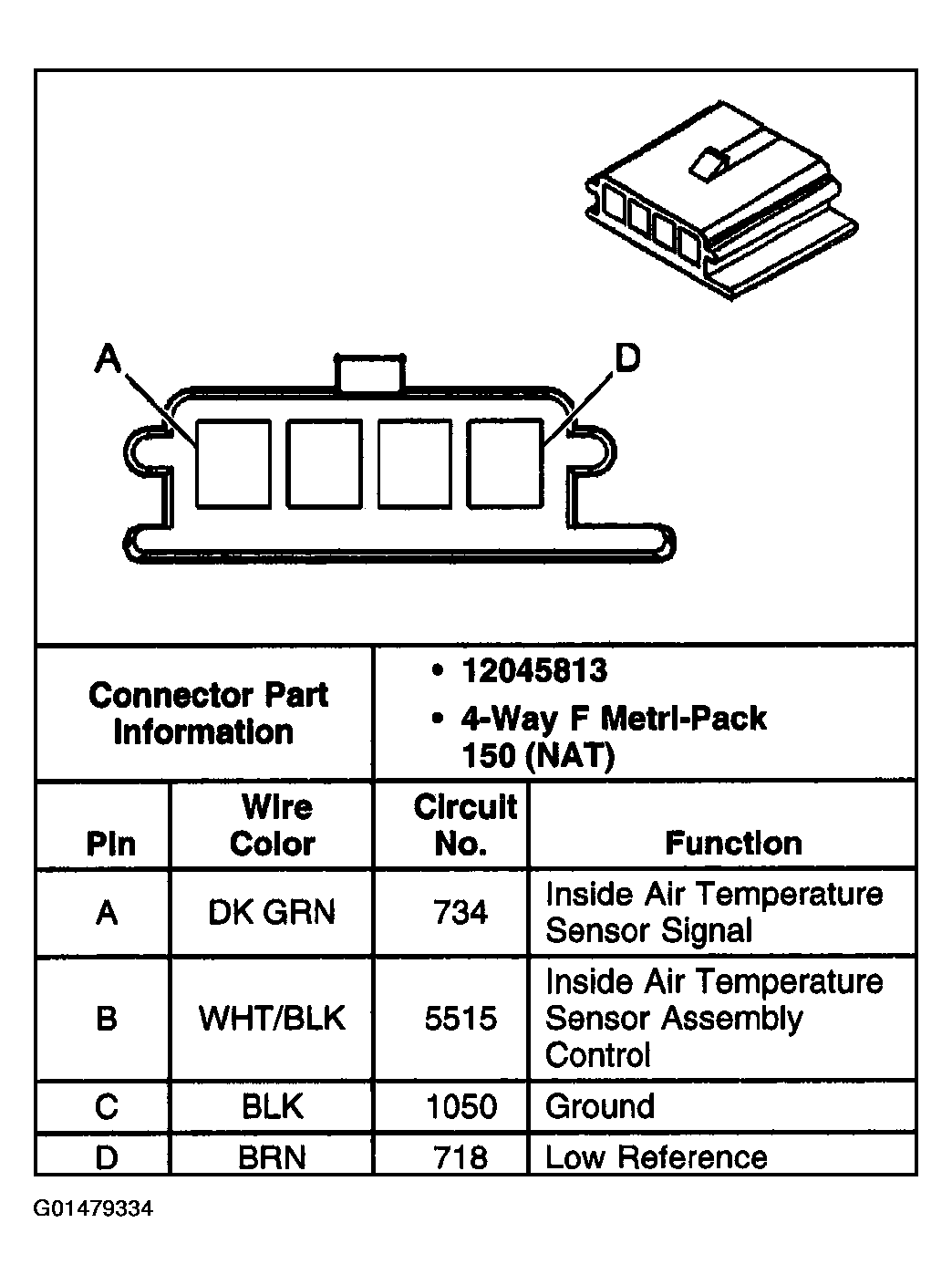

Fig 15: Inside Air Temperature Sensor Assembly

G01479334

Courtesy of GENERAL MOTORS CORP.

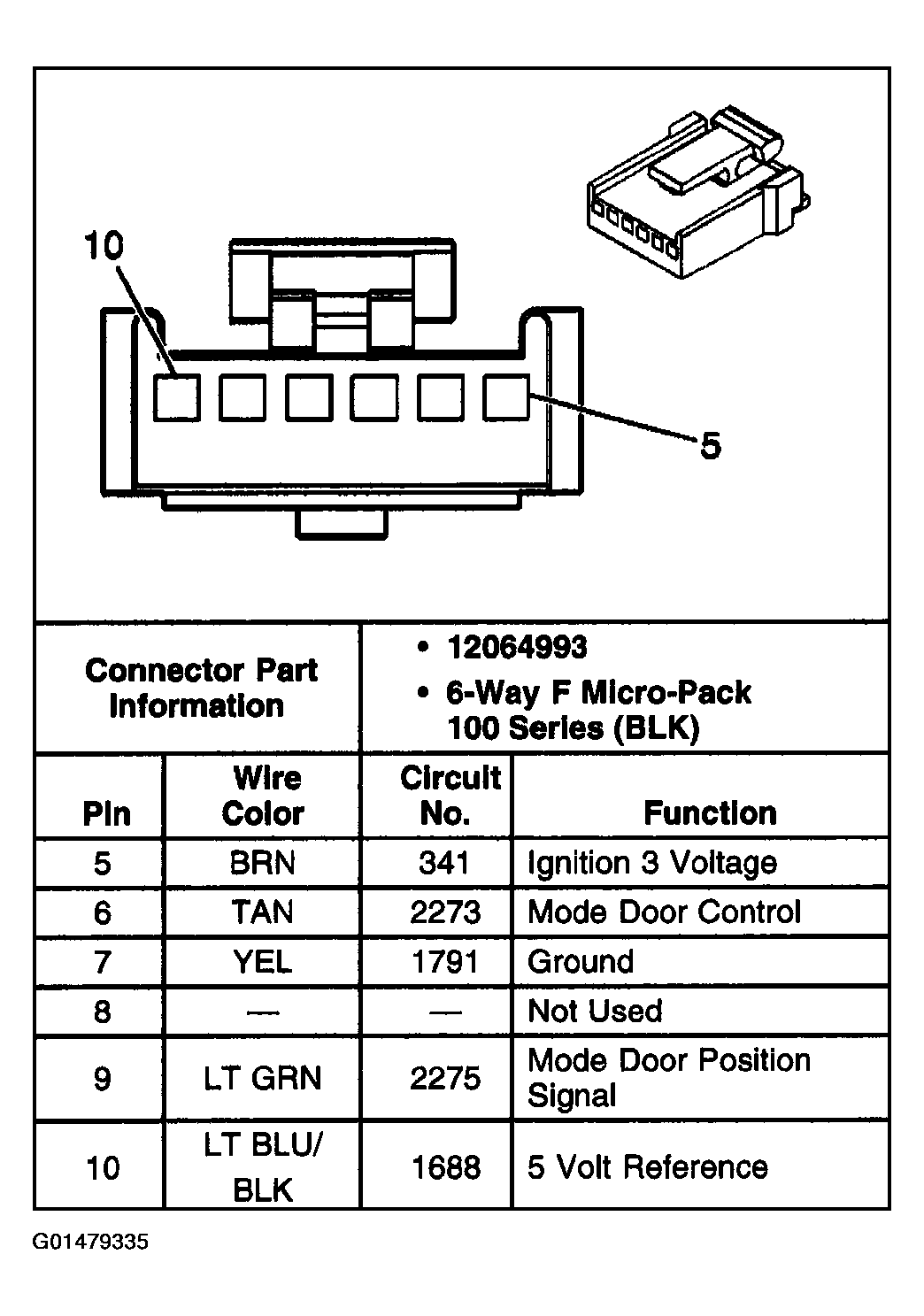

Fig 16: Mode Actuator

G01479335

Courtesy of GENERAL MOTORS CORP.

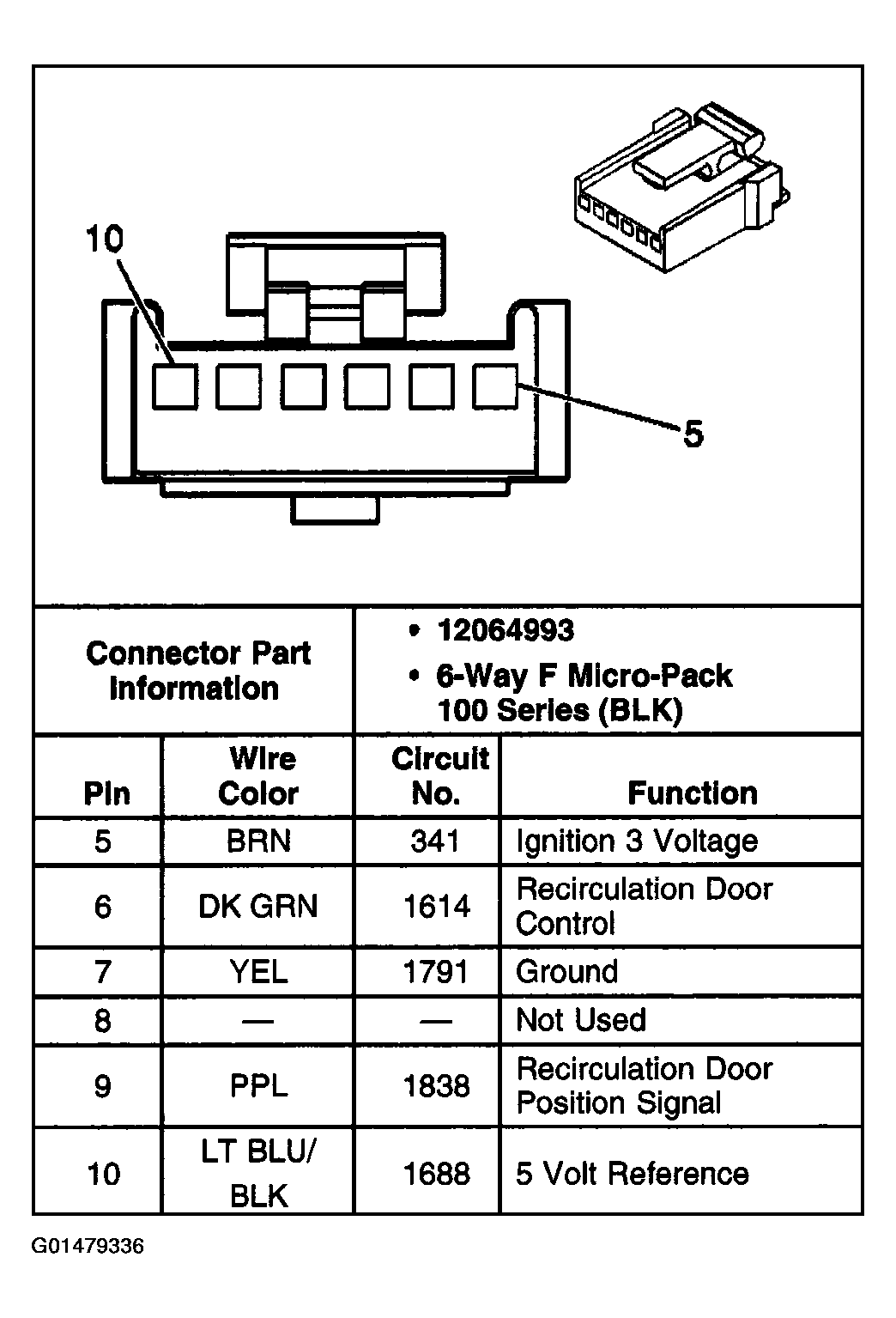

Fig 17: Recirculation Actuator

G01479336

Courtesy of GENERAL MOTORS CORP.

Fig 18: Sunload Sensor

G01479337

Courtesy of GENERAL MOTORS CORP.
