Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Turn the socket.
Lock the socket in place.
Install the tail/turn signal lamp assembly to the vehicle with the 2 screws.

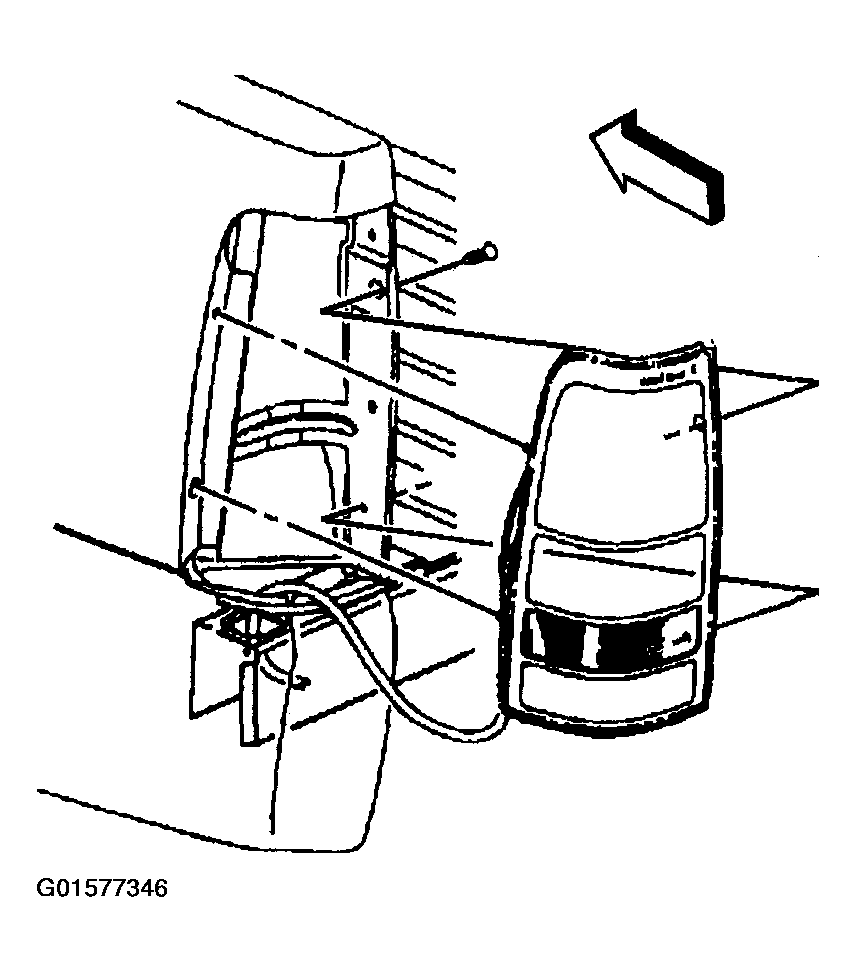

Fig 1: Installing Tail/Turn Signal Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
Close the endgate.
Inspect the operation.

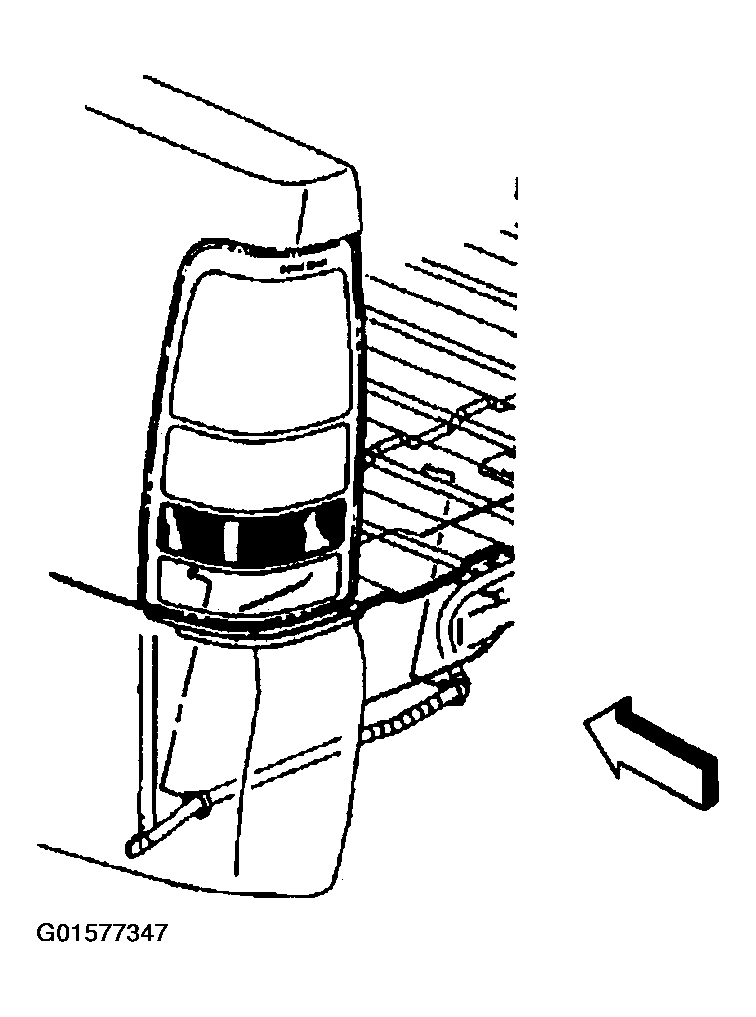

Fig 2: View Of Tail/Turn Signal Lamp Assembly
Courtesy of GENERAL MOTORS CORP.
