Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the position of the wiper blade on the windshield with a suitable marker or a piece of masking tape.
  2. Disconnect the washer hose.
  3. Remove the cover from the nut on the wiper arm.
  4. Remove the nut from the wiper arm.
    IMPORTANT: Use a battery terminal puller to remove the wiper arm from the drive shaft.
  5. Remove the wiper arm from the drive shaft.
  6. Clean the knurls of the drive shaft with a wire brush.

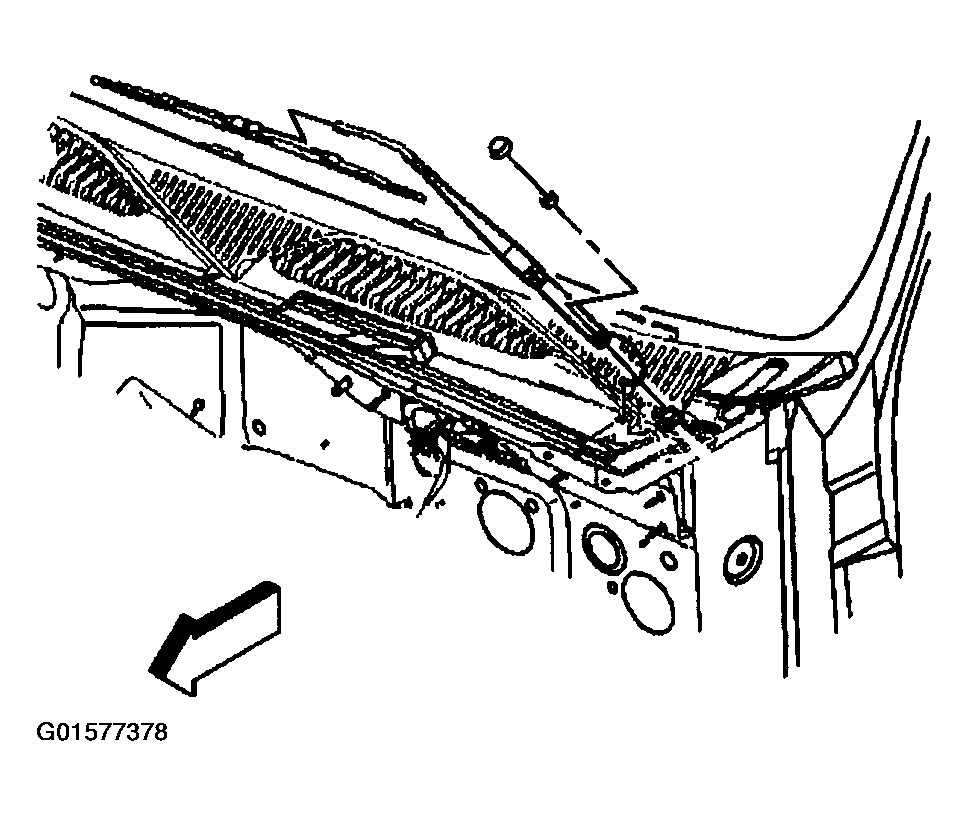

    Fig 1: Removing Wiper Arm
    G01577378Courtesy of GENERAL MOTORS CORP.
