Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the overhead console. Refer to CONSOLE REPLACEMENT-OVERHEAD .

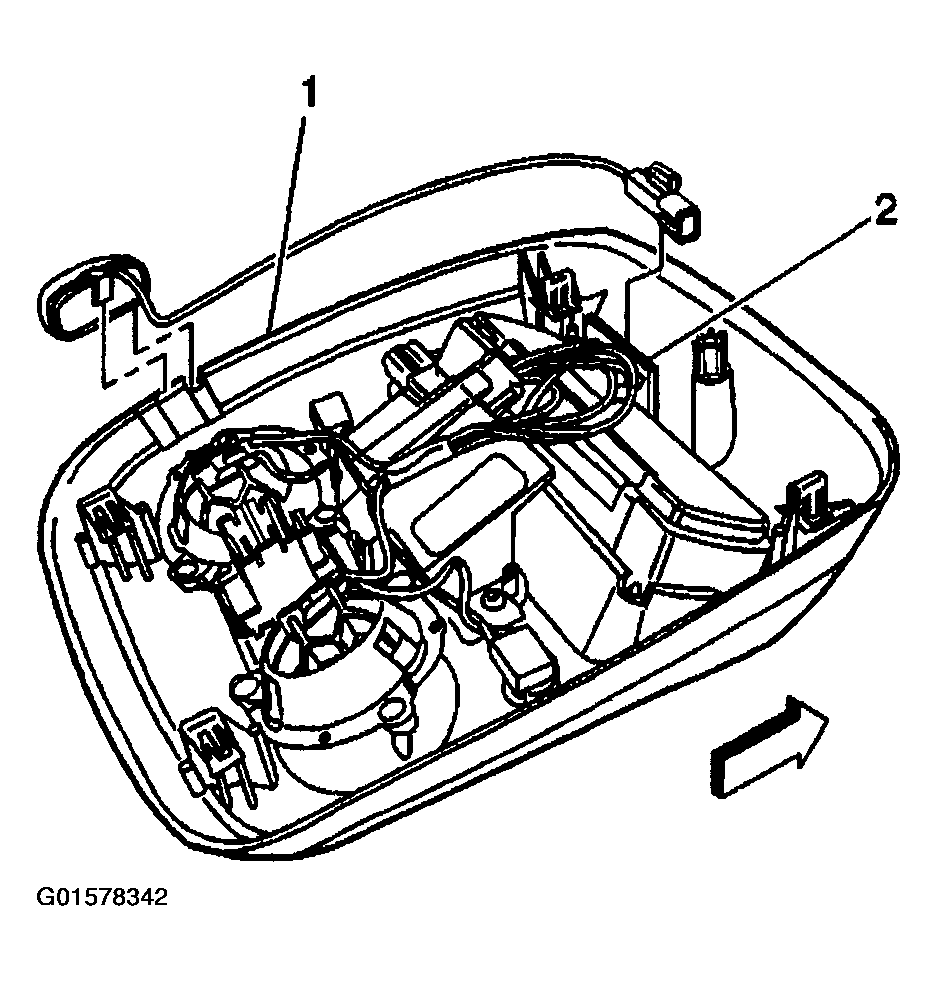

- Disconnect the microphone (2) connector from the jumper harness.
- Unclip the microphone bracket (1) from the overhead console.
- Disconnect the microphone 2-way connector (2) from the mating 2-way connector.
