Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Insert and pull the cable toward the front of the vehicle through the hole in the cowl.
Ensure that the grommet is seated.

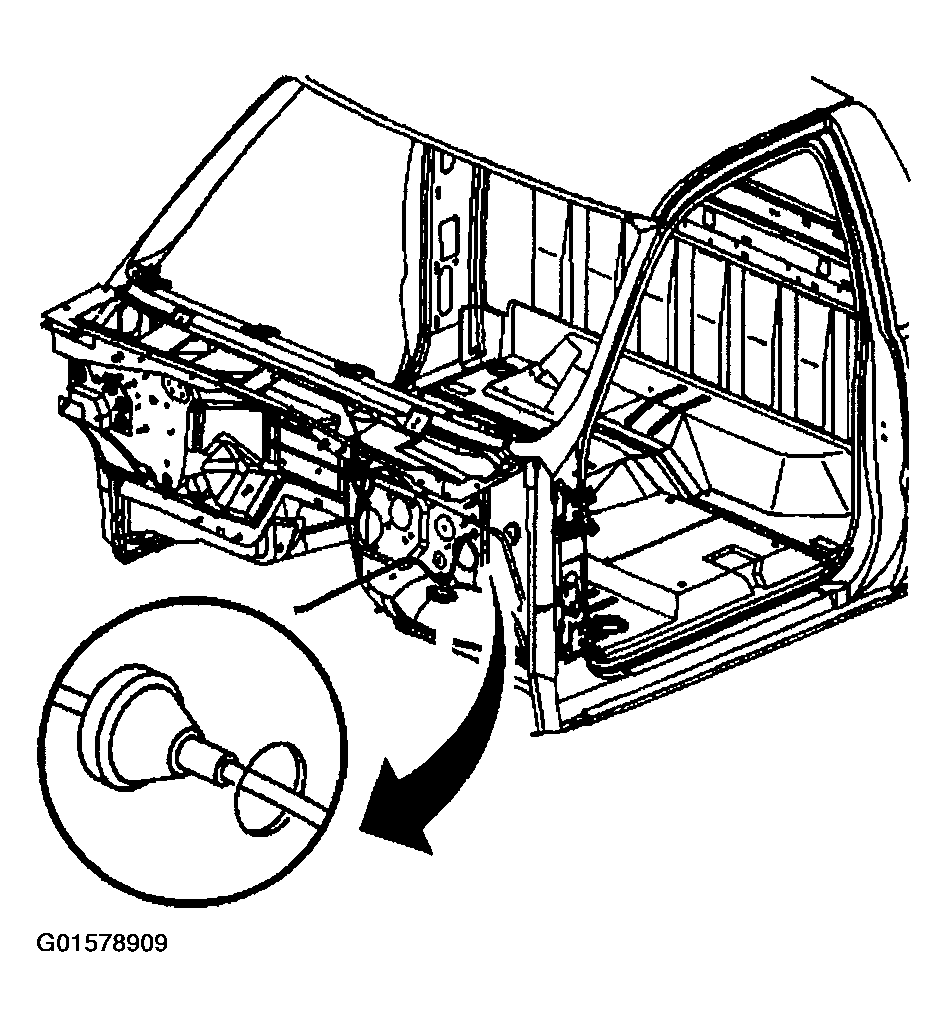

Fig 1: Installing Cable
Courtesy of GENERAL MOTORS CORP.
Attach the cable end to the latch assembly.

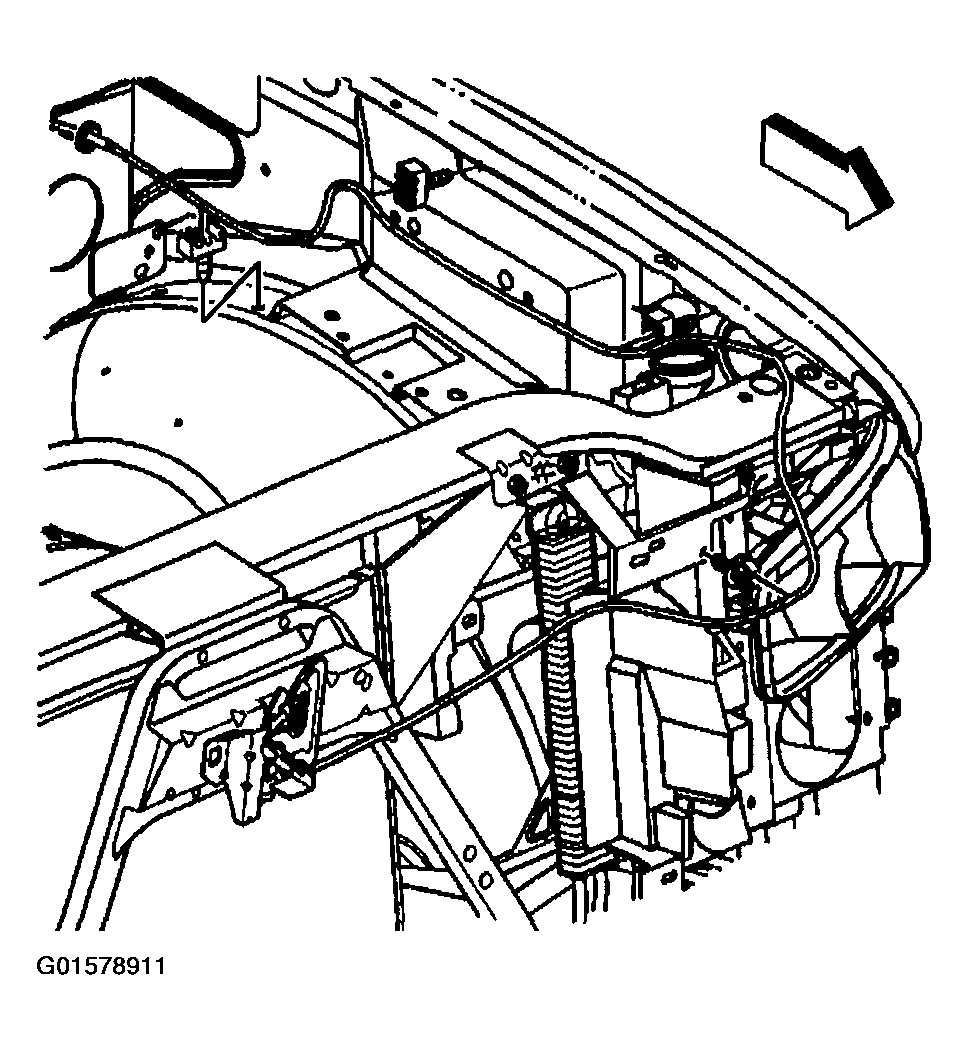

Fig 2: Attaching Cable End To Latch Assembly
Courtesy of GENERAL MOTORS CORP.
Attach the cable to the retainer clips.
Attach the cable end to the cable handle.

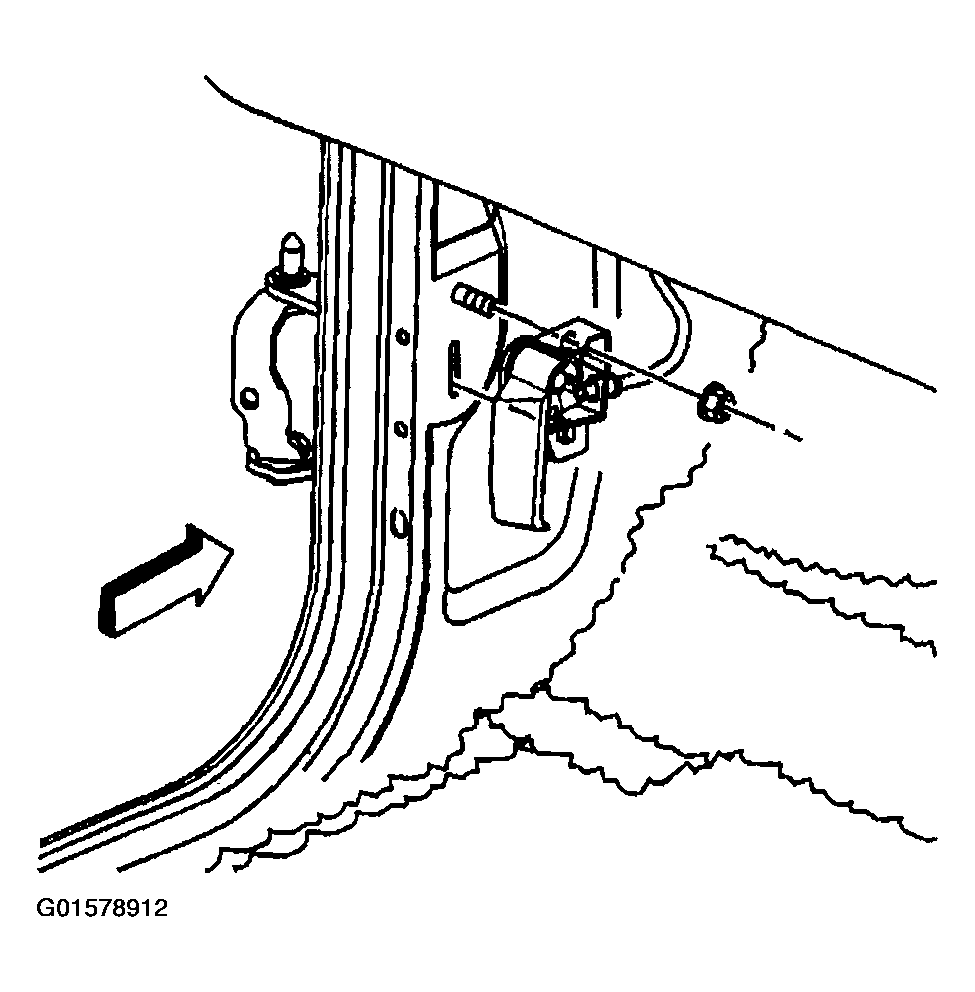

Fig 3: Attaching Cable End To Cable Handle
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE .
Attach the cable handle underneath the IP.
Tighten

Tighten the cable handle underneath the IP.
Install the left hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT-HINGE PILLAR .
Close the hood.

Fig 4: Attaching Cable Handle
Courtesy of GENERAL MOTORS CORP.
