Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Attach the foam pad to the frame.
Install the seat belt tower.
NOTE: Refer to FASTENER NOTICE .
Install the bolts which retain the seat belt tower cover.
Tighten

Tighten the bolts to 1.9 N.m (17 lb in).

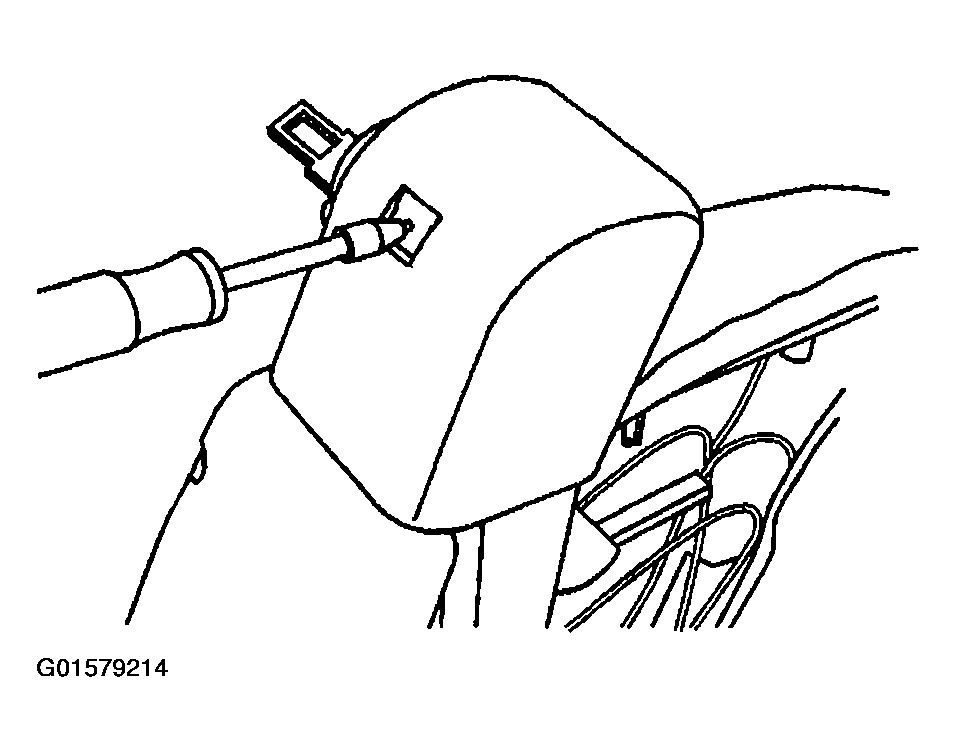

Fig 1: Installing Bolts Which Retain Seat Belt Tower Cover
Courtesy of GENERAL MOTORS CORP.
Install the rear cardboard panel. Engage the panel fasteners.
Install the seat back cover partially onto the top of the frame.
Feed the seat belt and the seat belt bezel through the tower opening.
Install the arm rest clip.

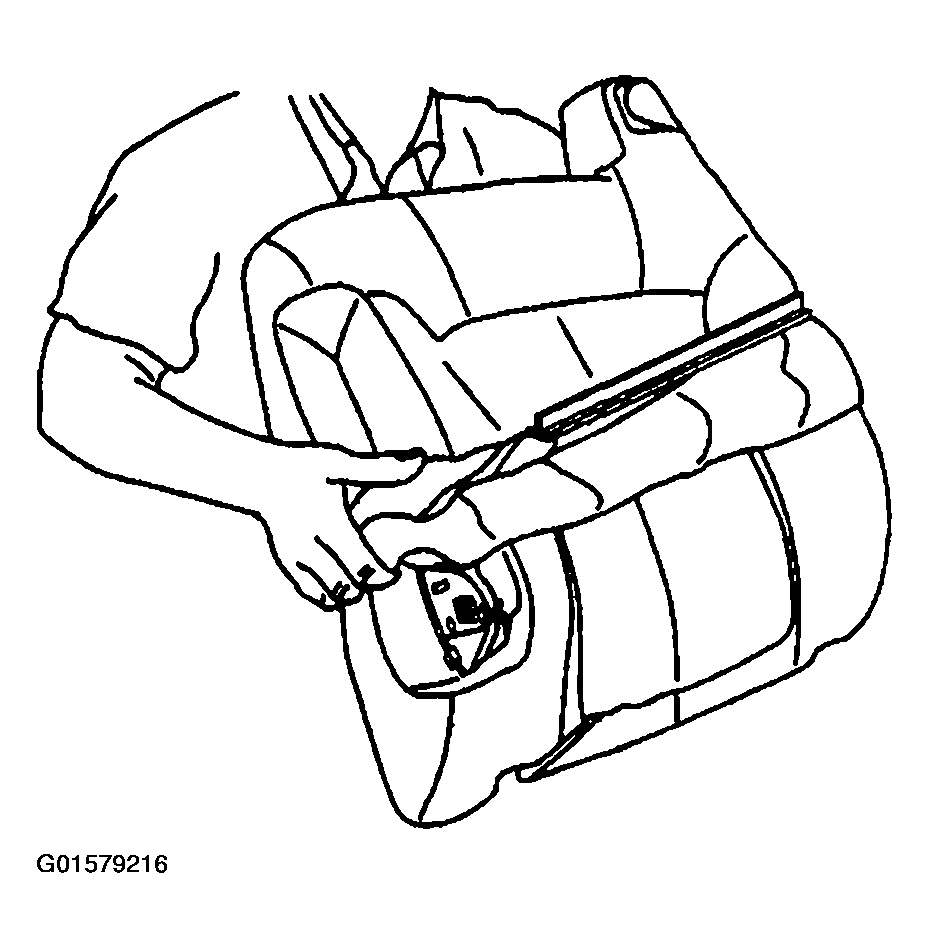

Fig 2: Seat Belt Tower Cover
Courtesy of GENERAL MOTORS CORP.
Pull the rest of the cover down using a side-to-side motion.
Install the armrests, if equipped. Refer to Armrest Replacement-Front Seat .
Install the head restraint retainers. Refer to Head Restraint Retainer Replacement-Front Seat .
Fit the seat cover around the air bag cover.

Fig 3: Fitting Seat Cover Around Air Bag Cover
Courtesy of GENERAL MOTORS CORP.
Install the nut to the lower seat belt anchor.
Tighten

Tighten the nut to 53 N.m (39 lb ft).
Install the seat trim panel. Refer to Trim Panel Replacement-Front Seat .
Install the head restraints. Refer to Head Restraint Replacement .
Push on the seat cover. Ensure that the cover is retained by the velcro in the seat cushion.
Connect the J-strip at the bottom of the seat.

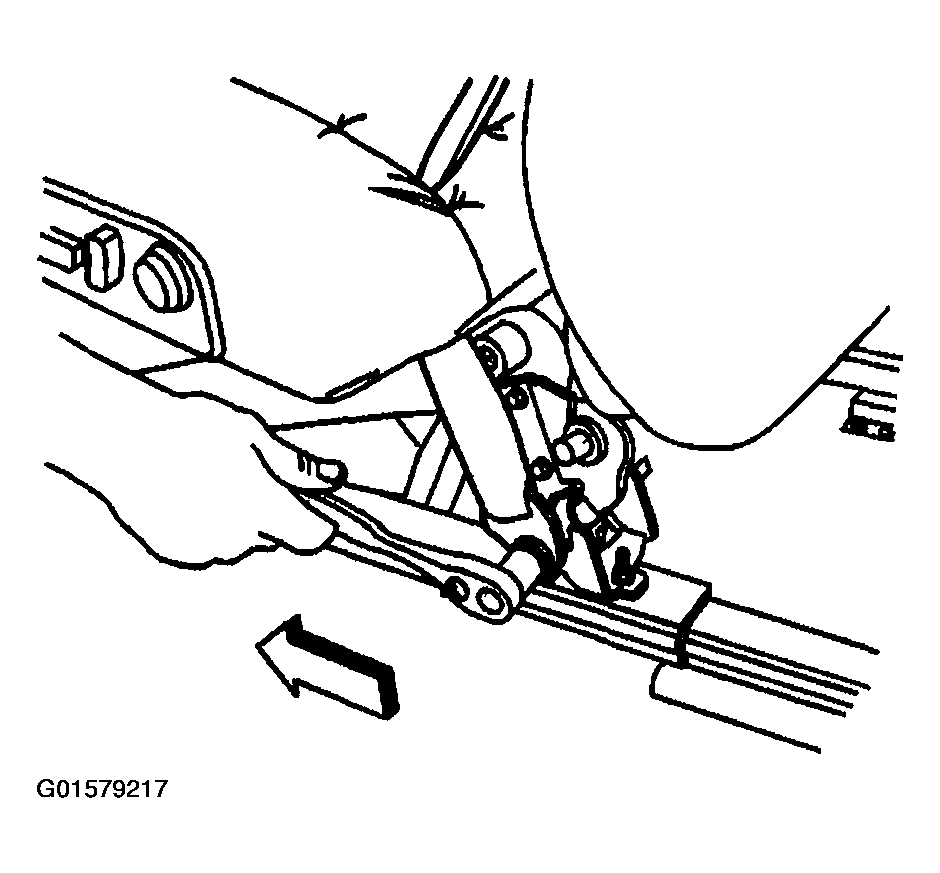

Fig 4: Installing Nut To Lower Seat Belt Anchor
Courtesy of GENERAL MOTORS CORP.
