Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front washer pump to the washer solvent container pressing in until fully seated.

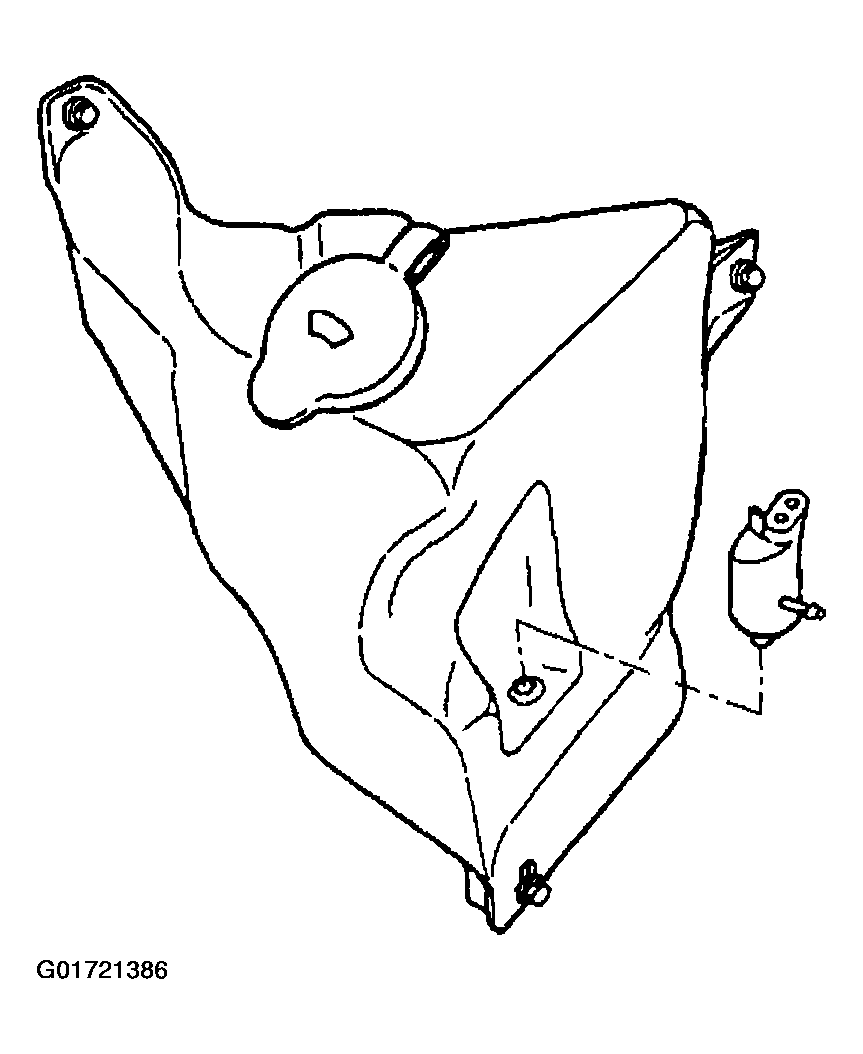

    Fig 1: Positioning Front Washer Pump
    G01721386Courtesy of GENERAL MOTORS CORP.
  2. Connect the front washer hose to the front washer pump.
  3. Connect the front washer pump electrical connector.
  4. Fill the washer solvent container with washer solvent.
  5. Close the hood.

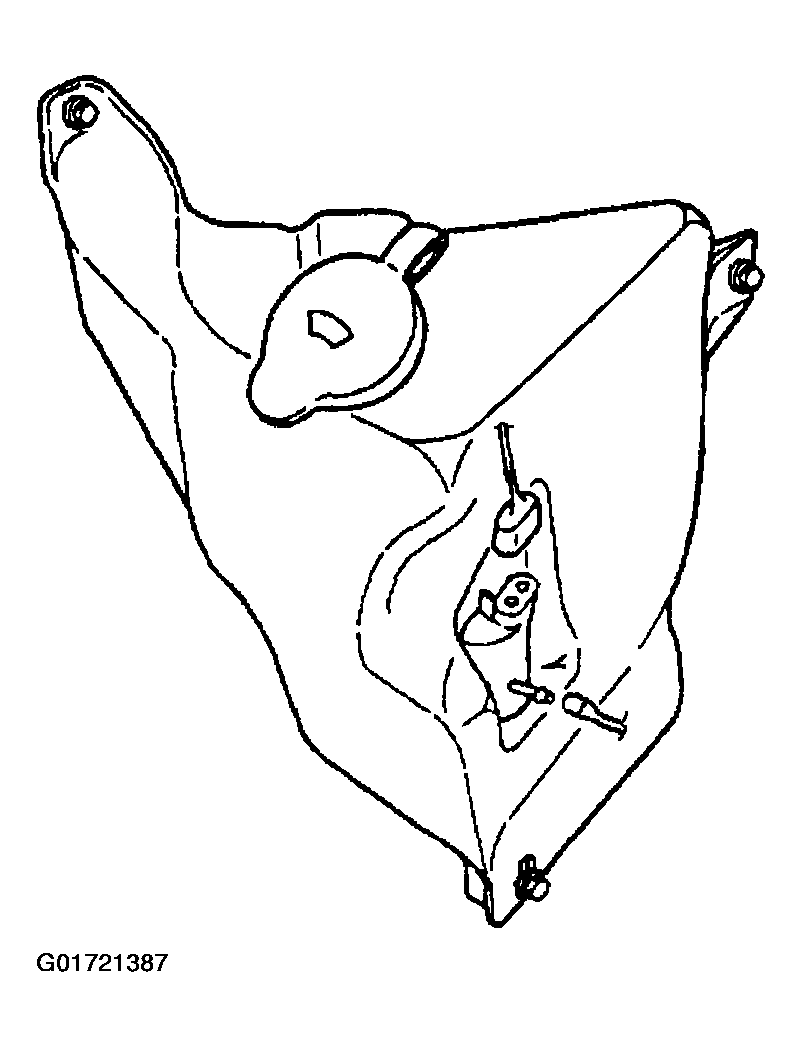

    Fig 2: Connecting Front Washer Pump Electrical Connector And Washer Hose
    G01721387Courtesy of GENERAL MOTORS CORP.
