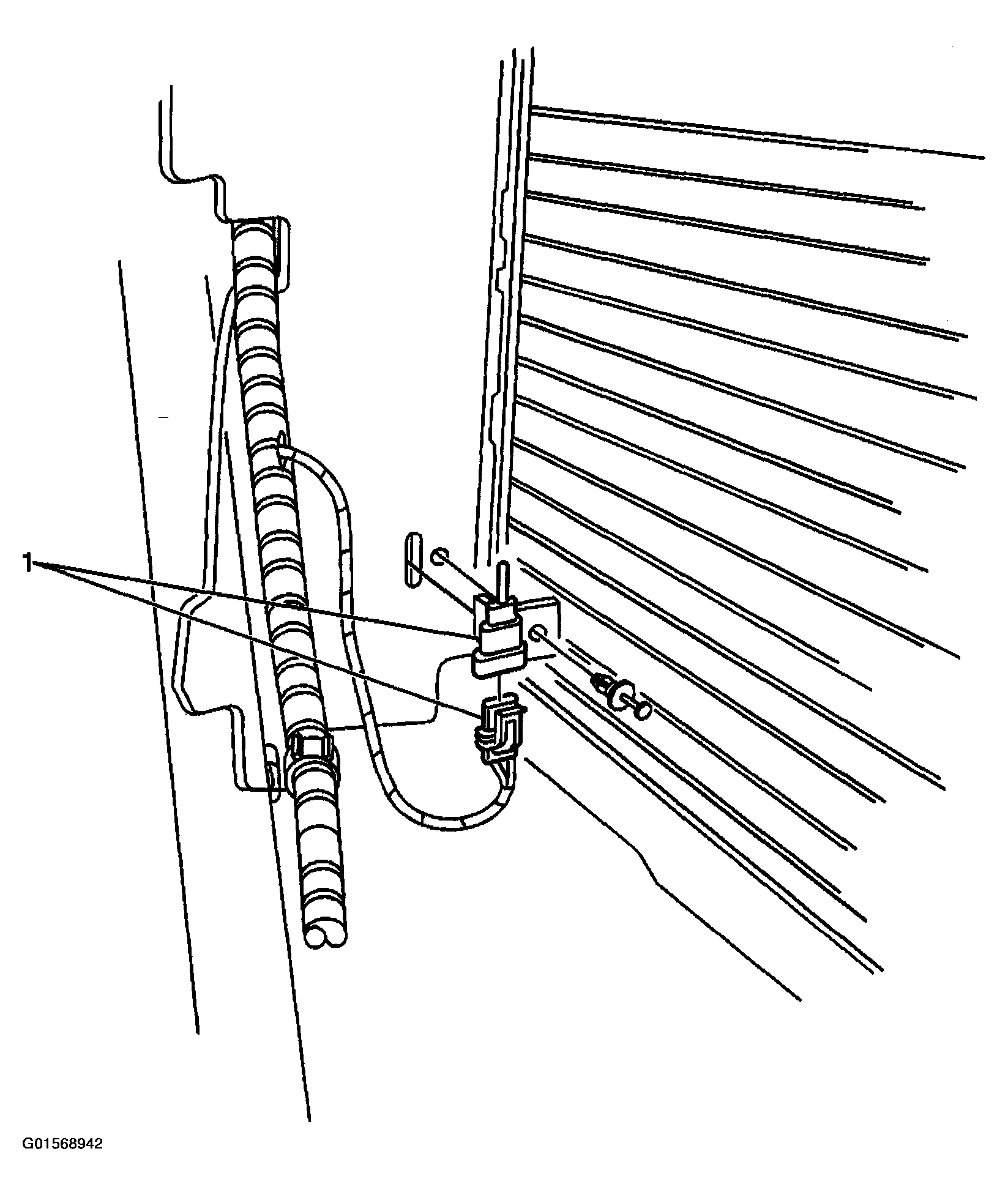

Fig 1: Between Engine Radiator and Forward Lamp Assembly Component View - Right Side (CJ2)
Courtesy of GENERAL MOTORS CORP.

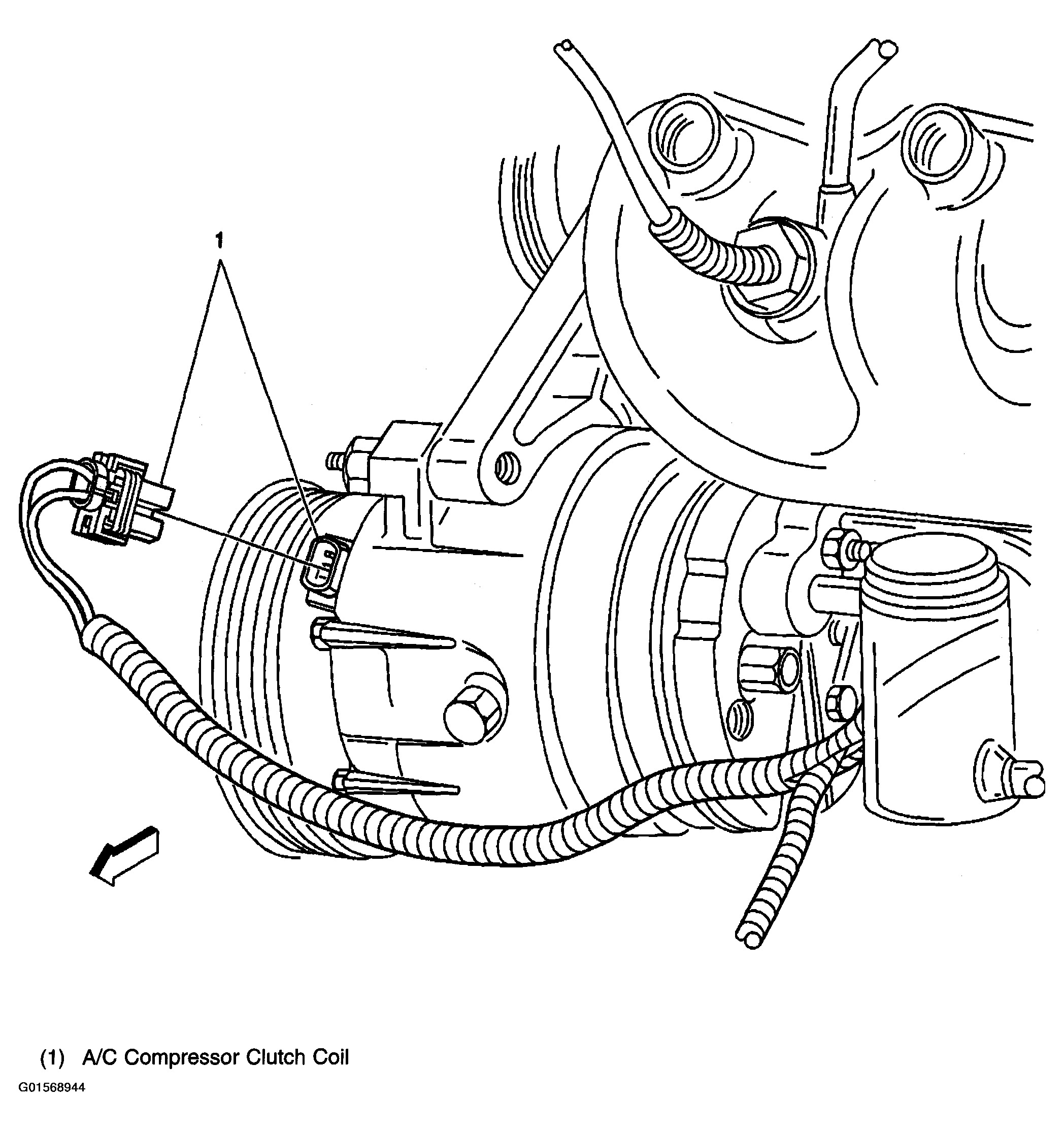

Fig 2: Lower Left Side Of Engine Component View (LG8)
Courtesy of GENERAL MOTORS CORP.

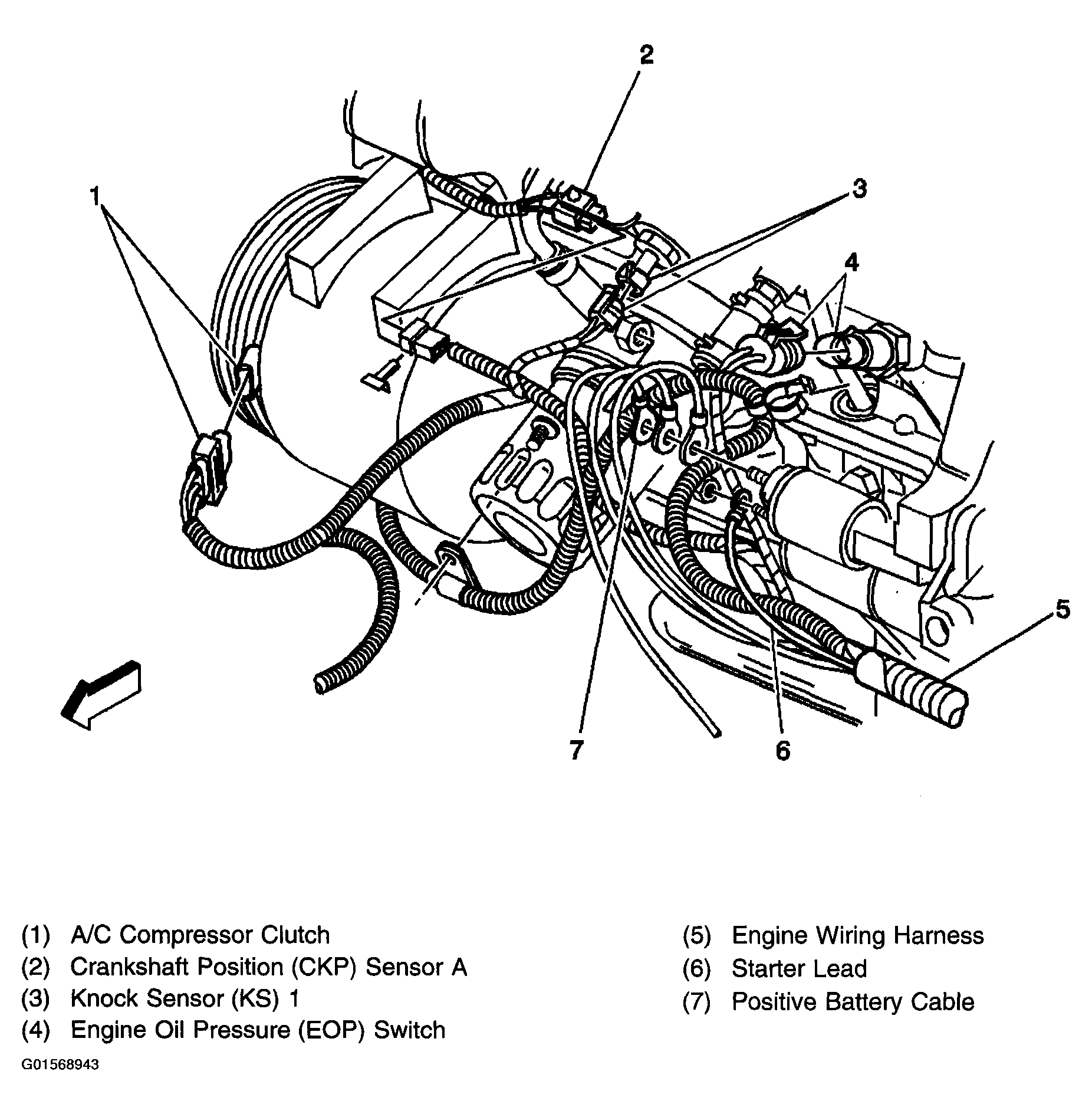

Fig 3: Lower Left Side Of Engine Component View (L36/L67)
Courtesy of GENERAL MOTORS CORP.

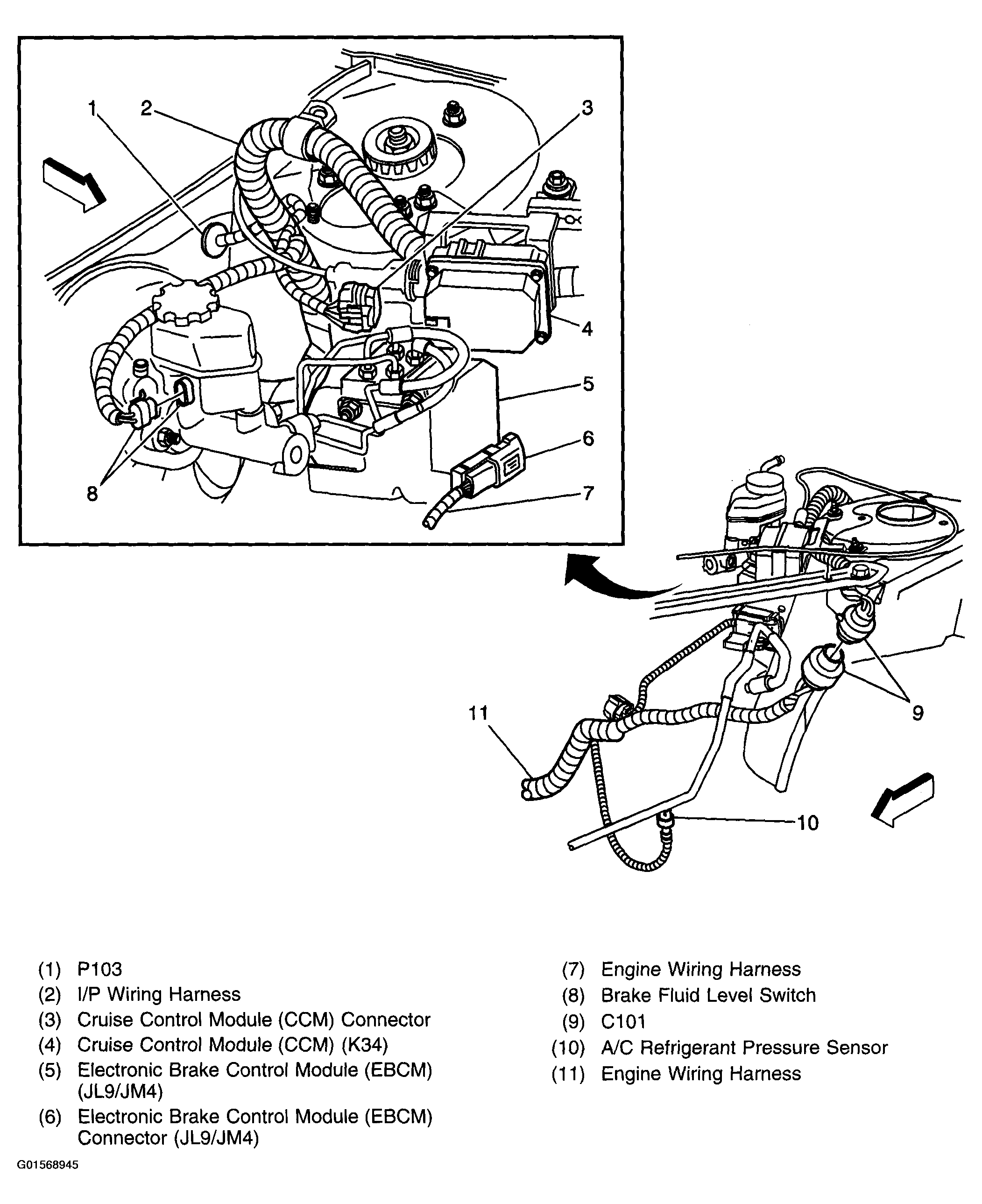

Fig 4: (LR Of Engine Compartment Component View)
Courtesy of GENERAL MOTORS CORP.

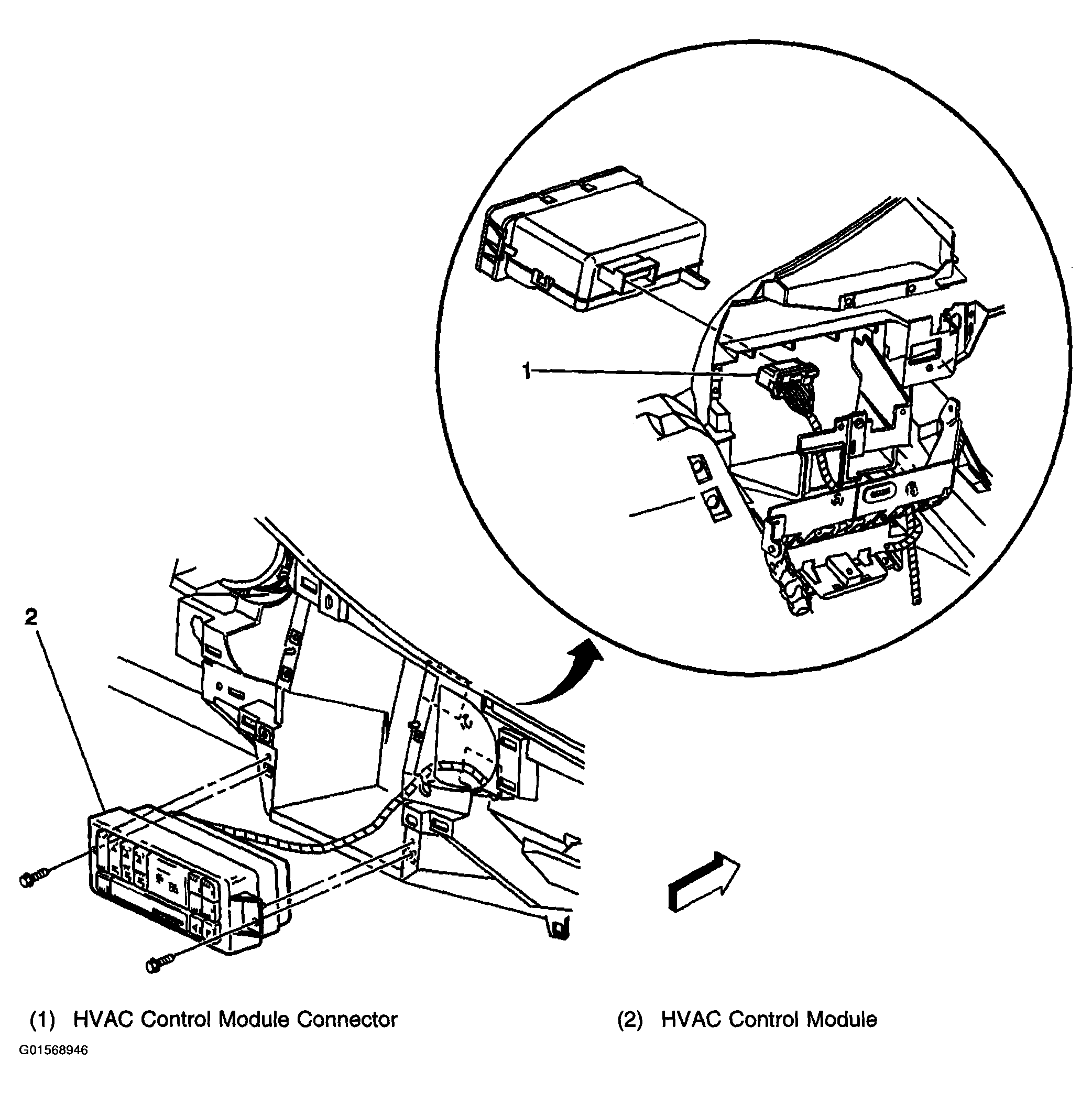

Fig 5: Lower Center Of Instrument Panel Component View (CJ2)
Courtesy of GENERAL MOTORS CORP.

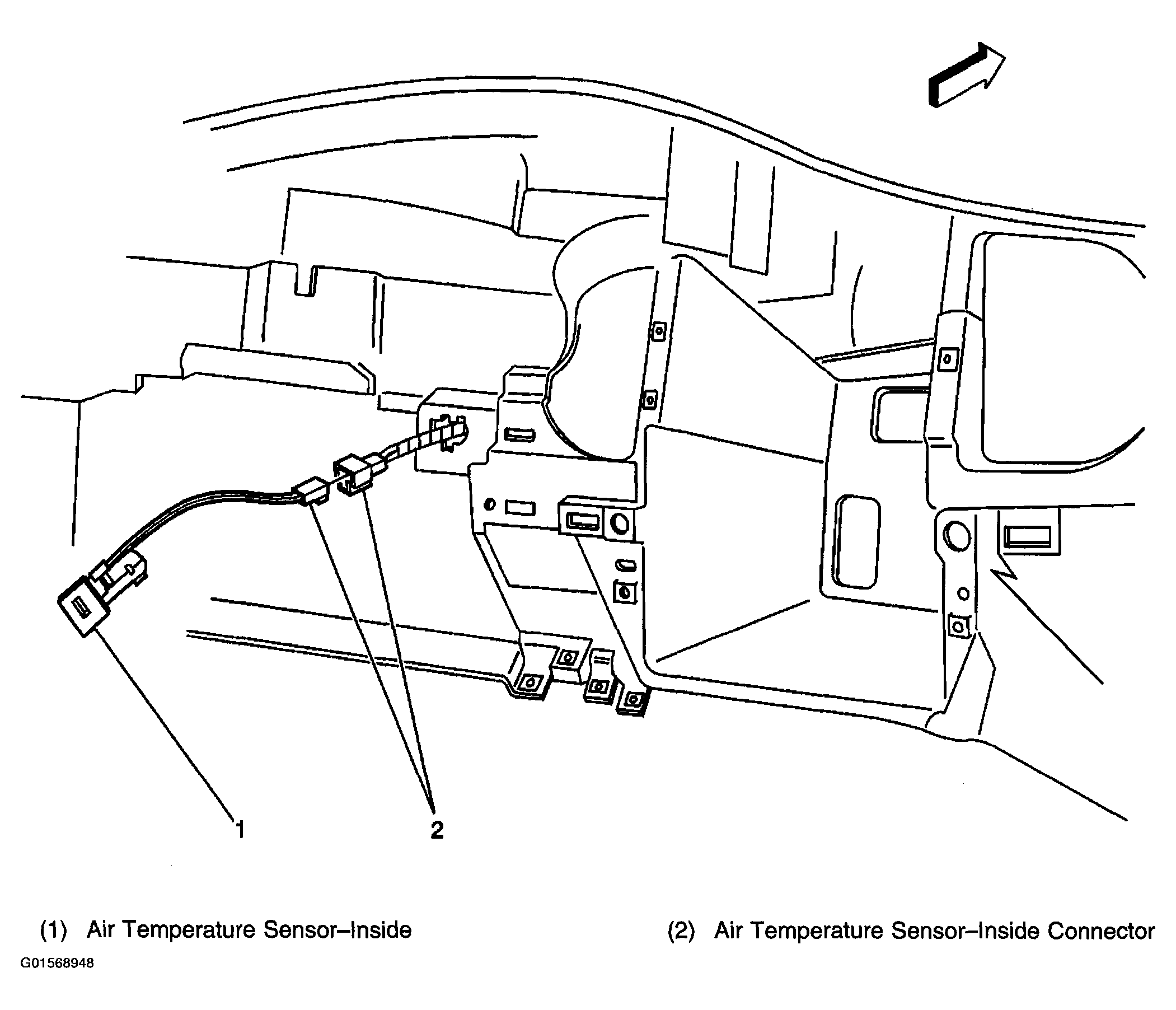

Fig 6: Behind Right Side Of I/P Component View
Courtesy of GENERAL MOTORS CORP.

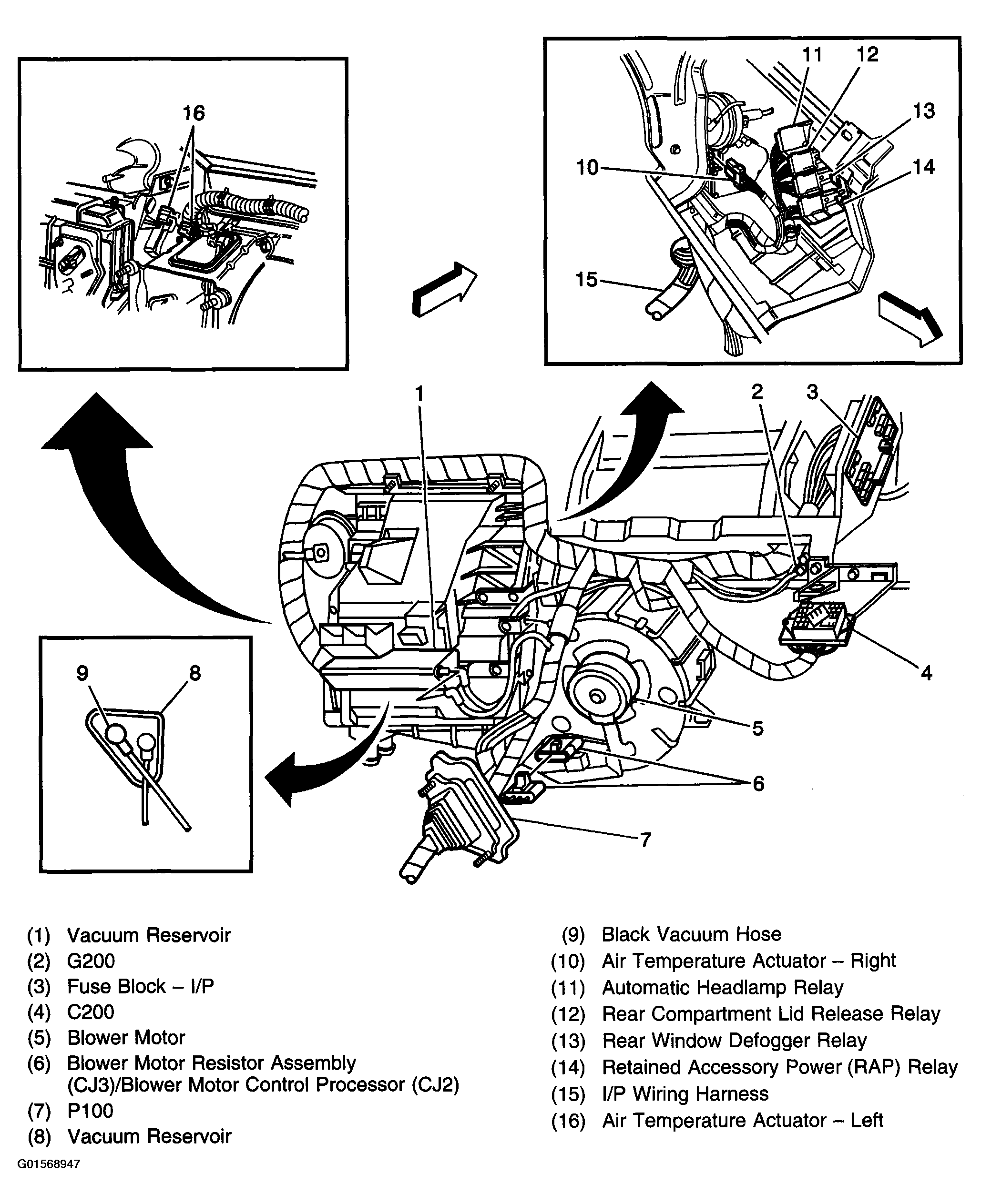

Fig 7: Behind Center Of Instrument Panel Component View (CJ2)
