Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

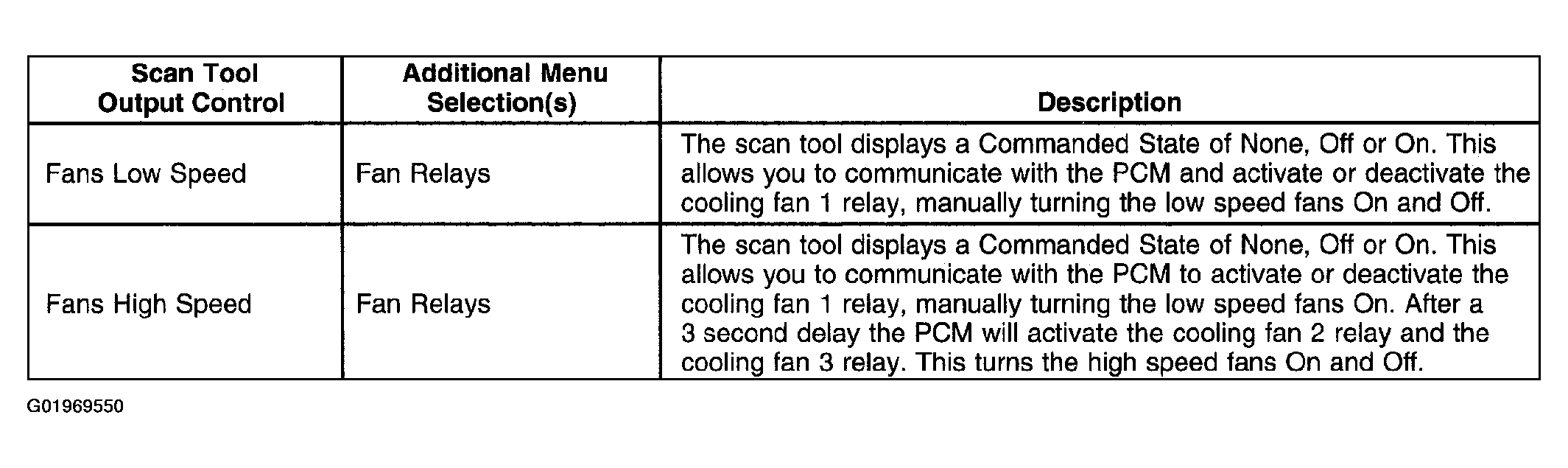

Fig 1: Powertrain Control Module (PCM) Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.
