Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

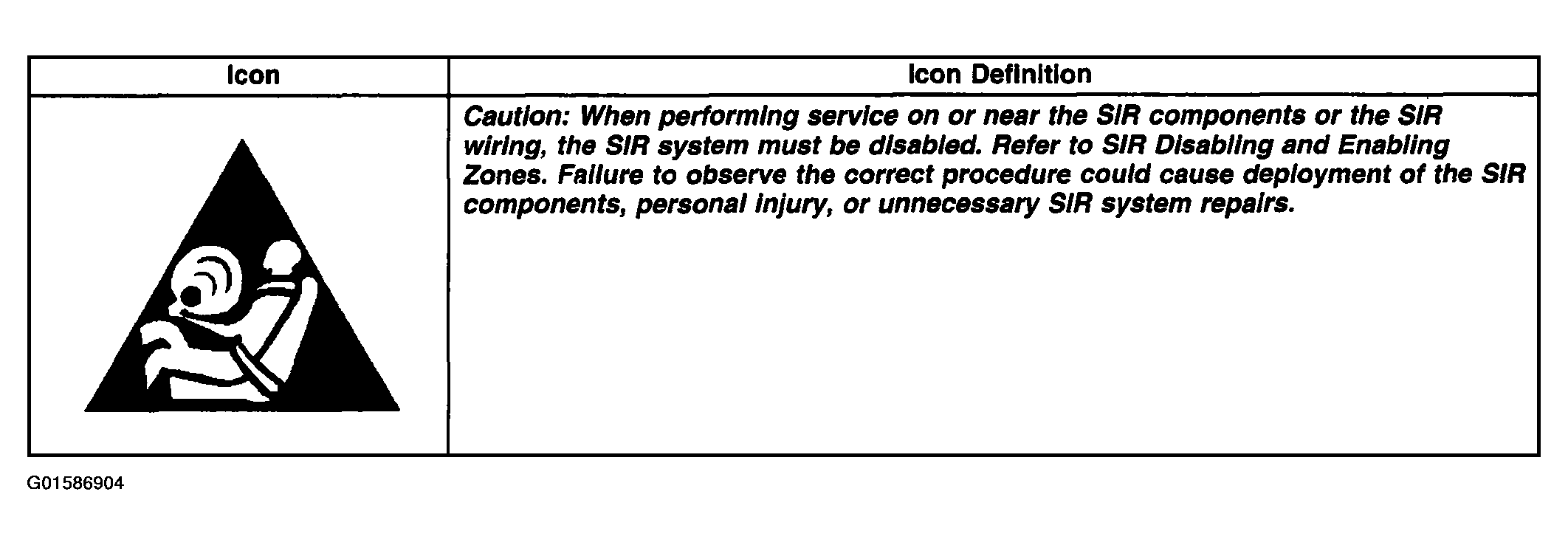

Fig 1: Lighting Systems Schematic Icons

G01586904

Courtesy of GENERAL MOTORS CORP.

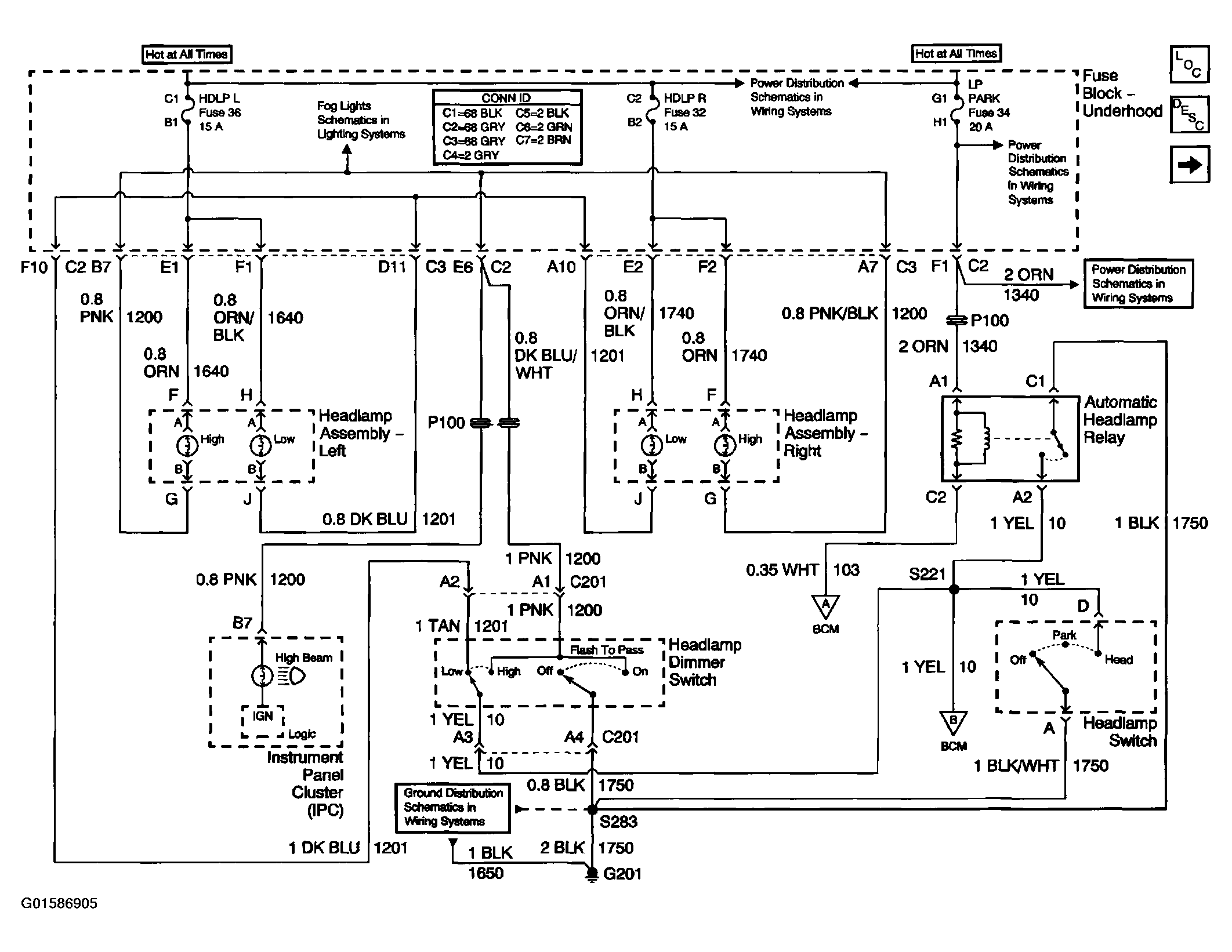

Fig 2: Headlights/Daytime Running Lights Schematics (Headlamps)

G01586905

Courtesy of GENERAL MOTORS CORP.

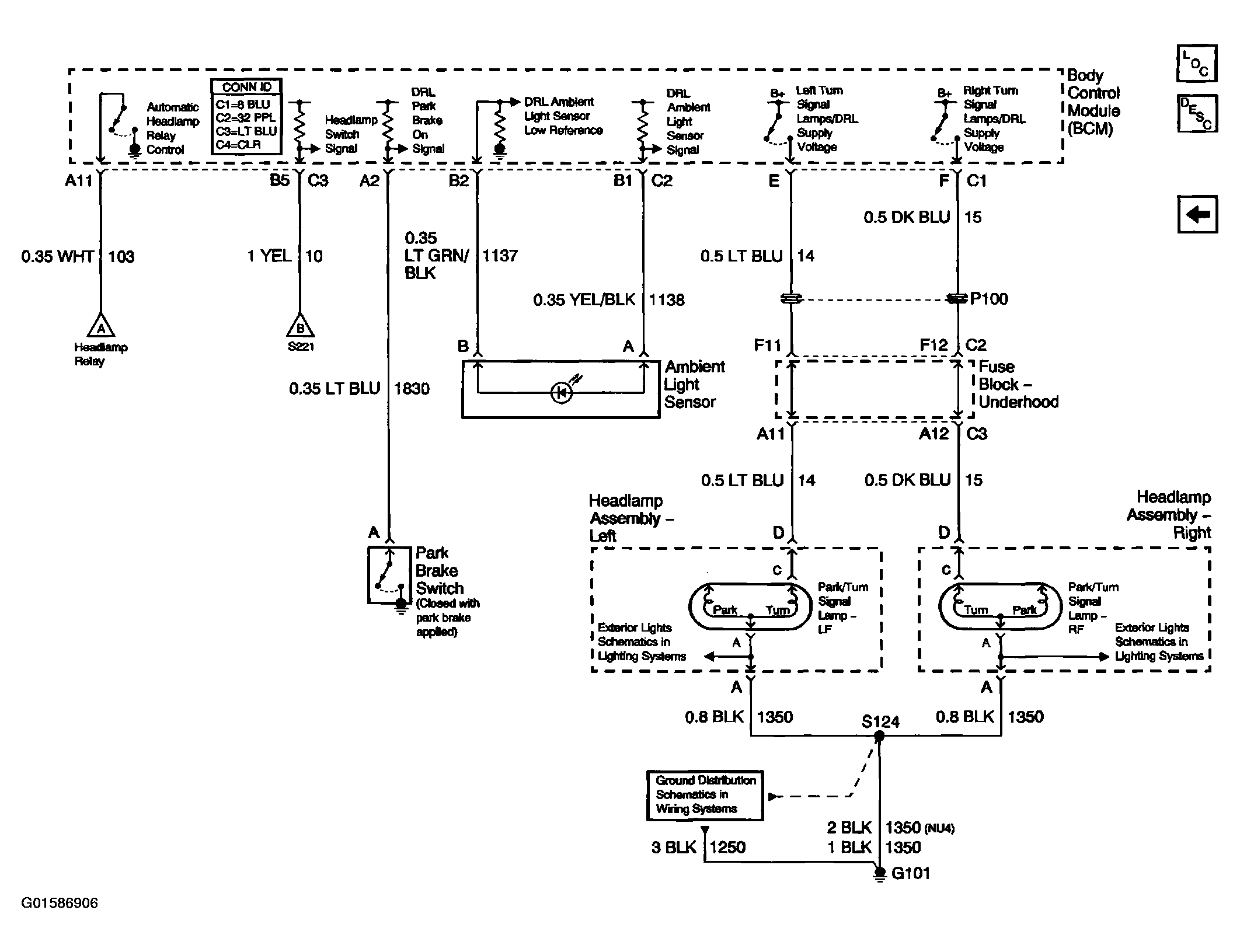

Fig 3: Headlights/Daytime Running Lights Schematics (Daytime Running Lamps)

G01586906

Courtesy of GENERAL MOTORS CORP.

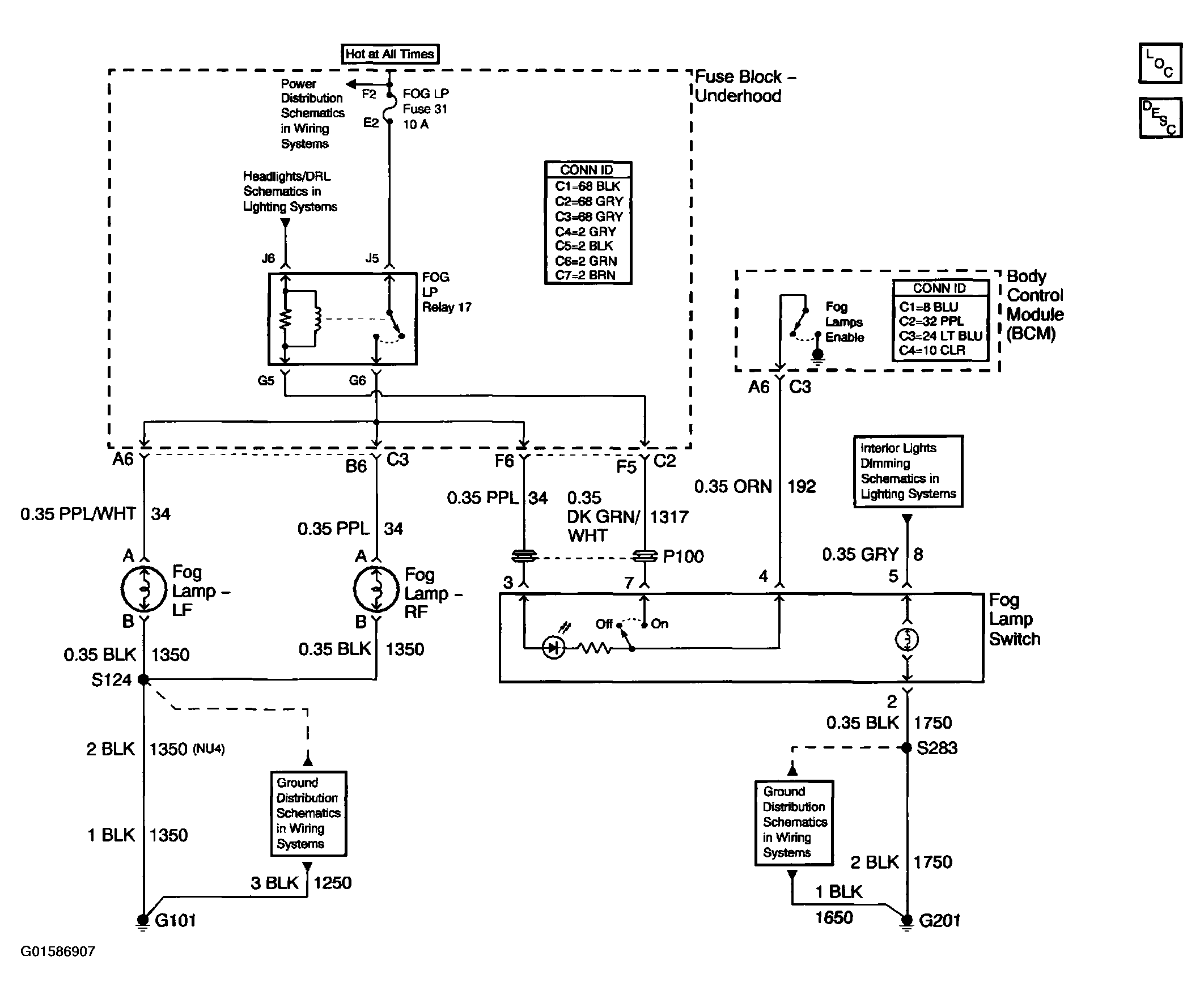

Fig 4: Fog Lights Schematics

G01586907

Courtesy of GENERAL MOTORS CORP.

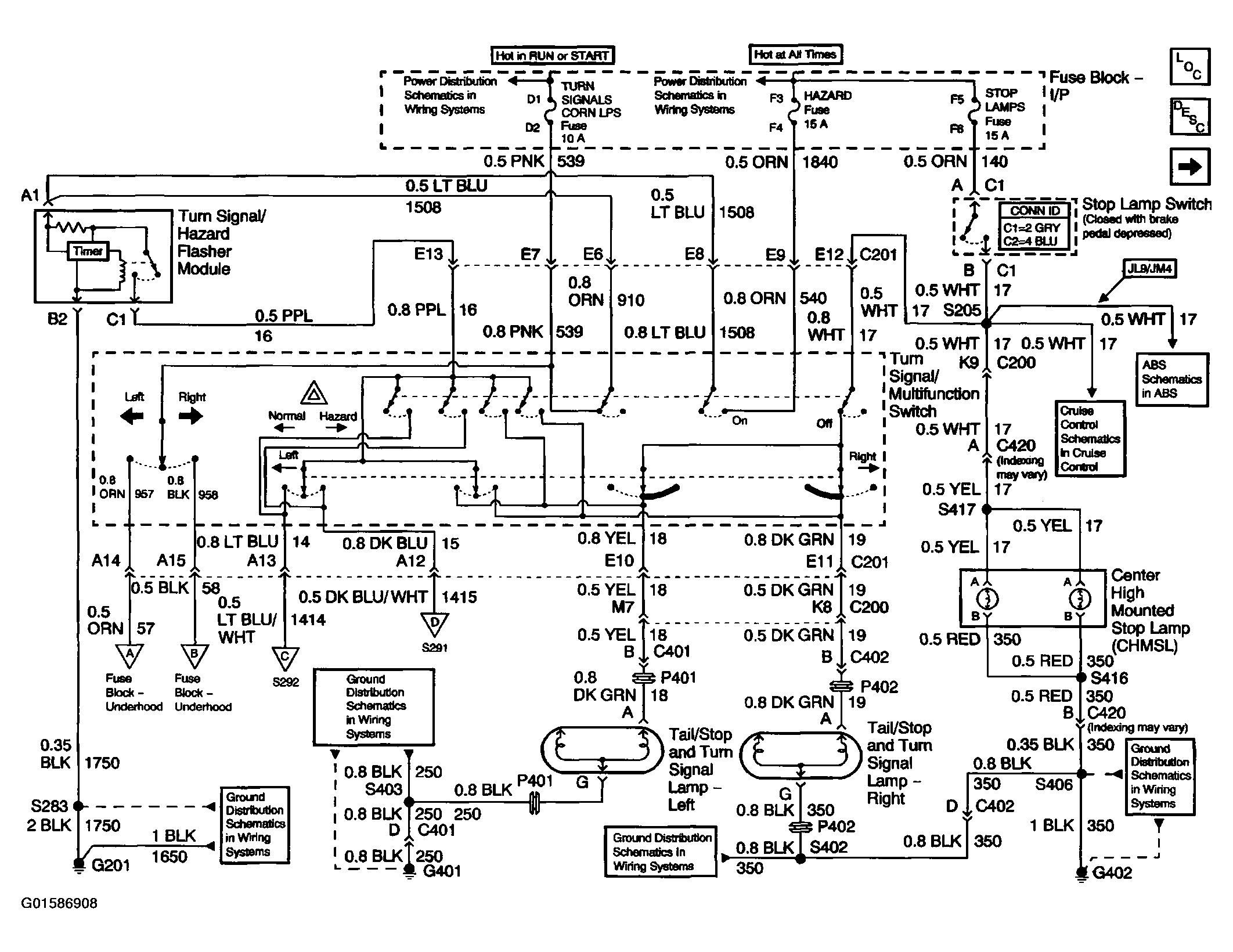

Fig 5: Exterior Lights Schematics (Stop Lamps And Rear Turn Lamps)

G01586908

Courtesy of GENERAL MOTORS CORP.

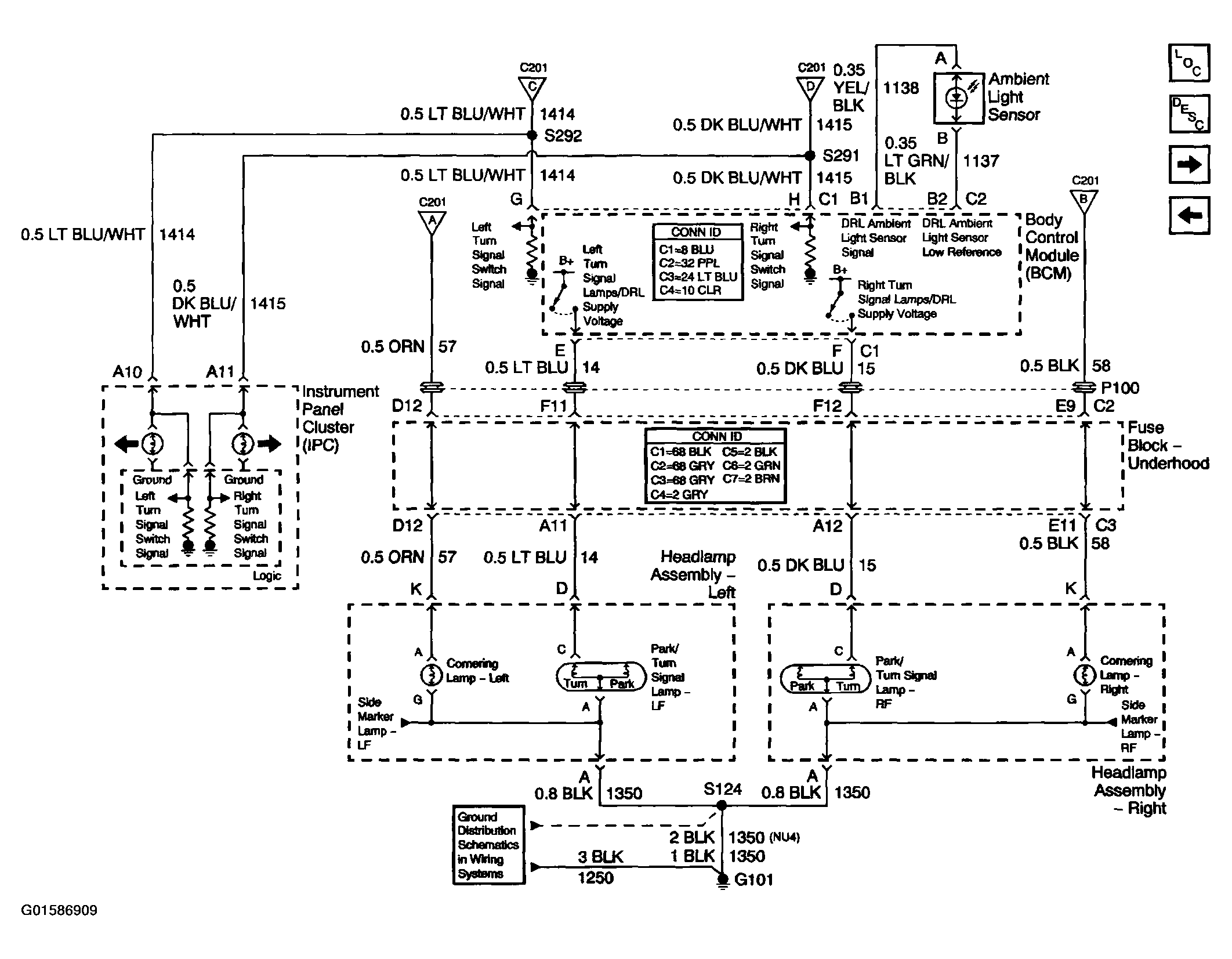

Fig 6: Exterior Lights Schematics (Front Turn Lamps, Cornering Lamps, And DRL)

G01586909

Courtesy of GENERAL MOTORS CORP.

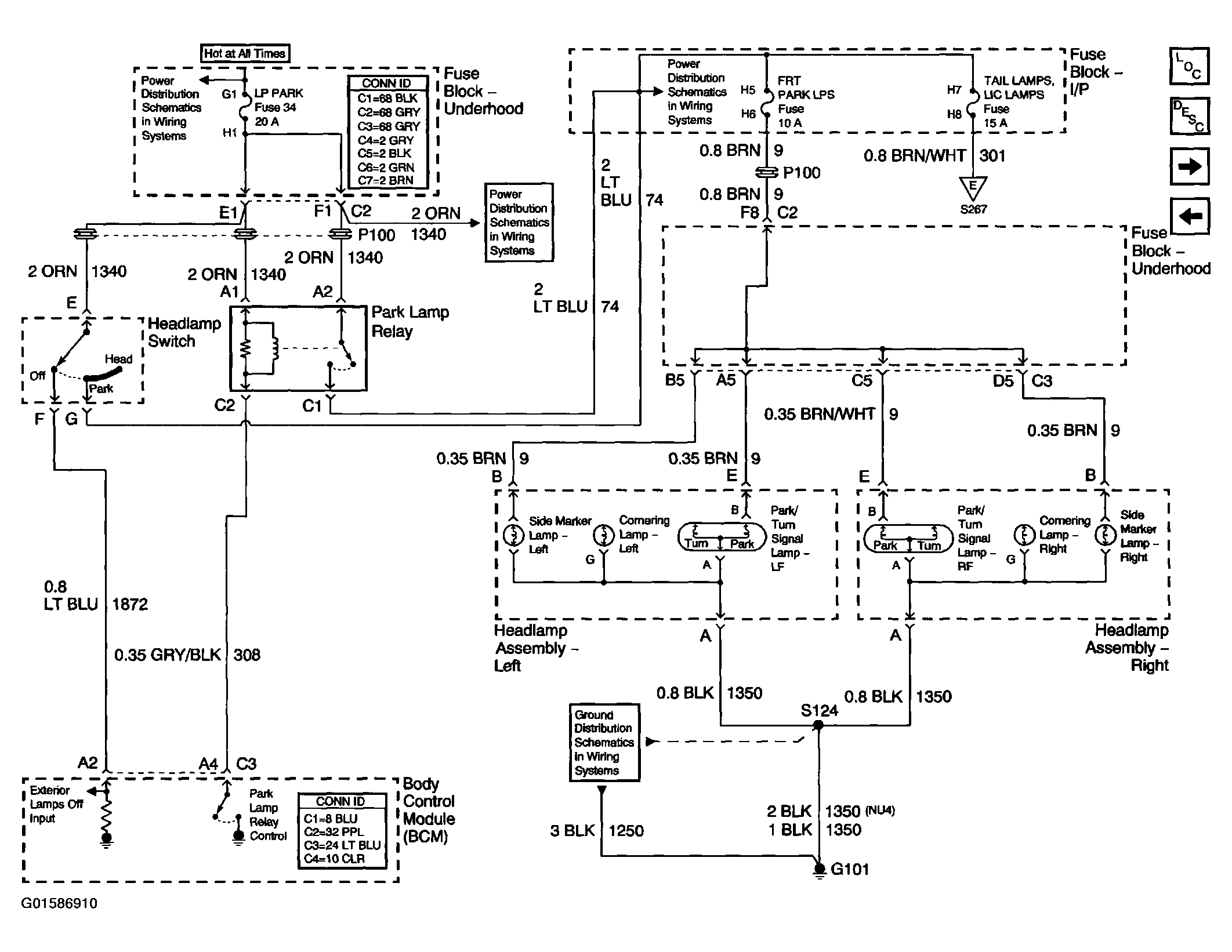

Fig 7: Exterior Lights Schematics (Front Park Lamps)

G01586910

Courtesy of GENERAL MOTORS CORP.

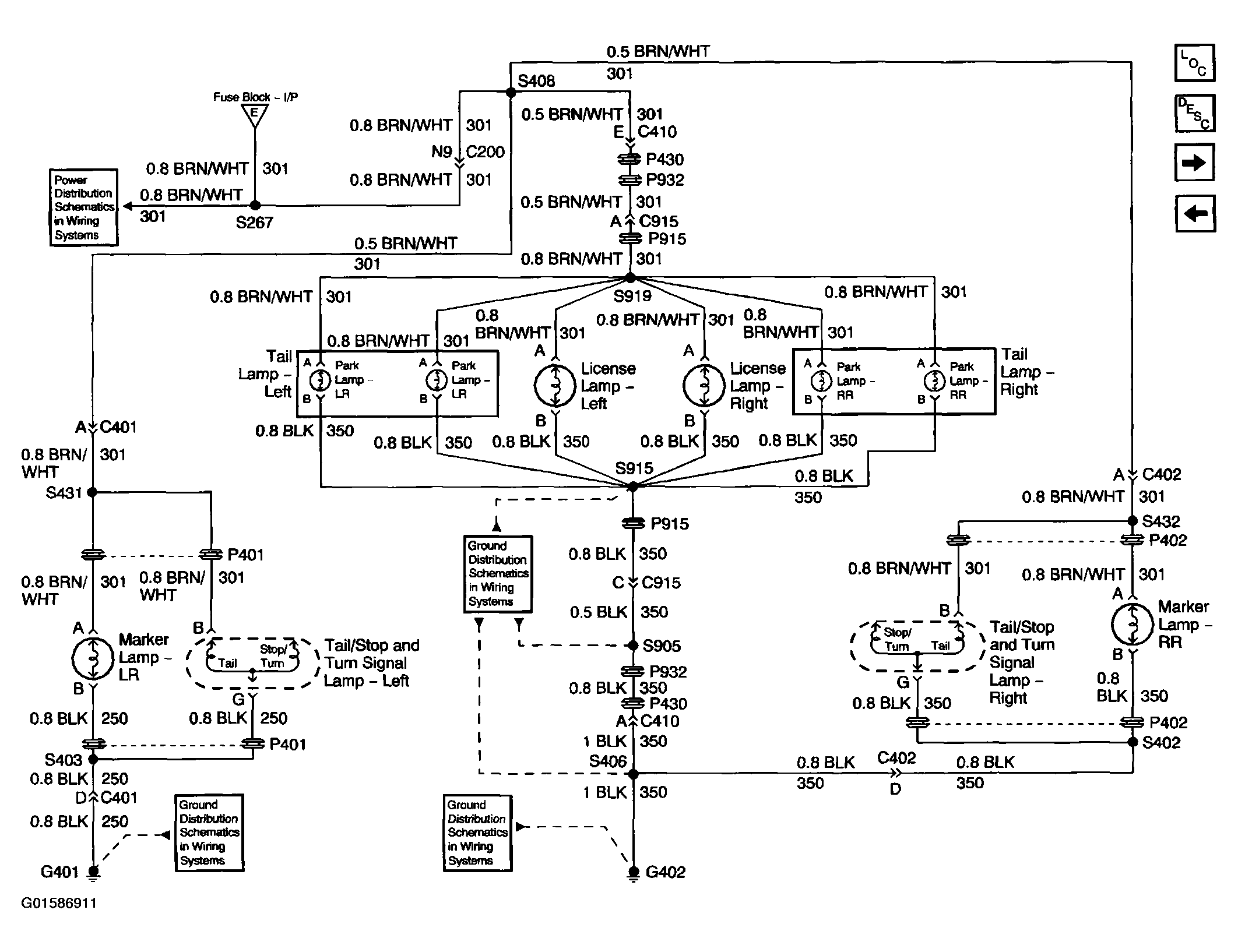

Fig 8: Exterior Lights Schematics (Rear Park Lamps And License Lamps)

G01586911

Courtesy of GENERAL MOTORS CORP.

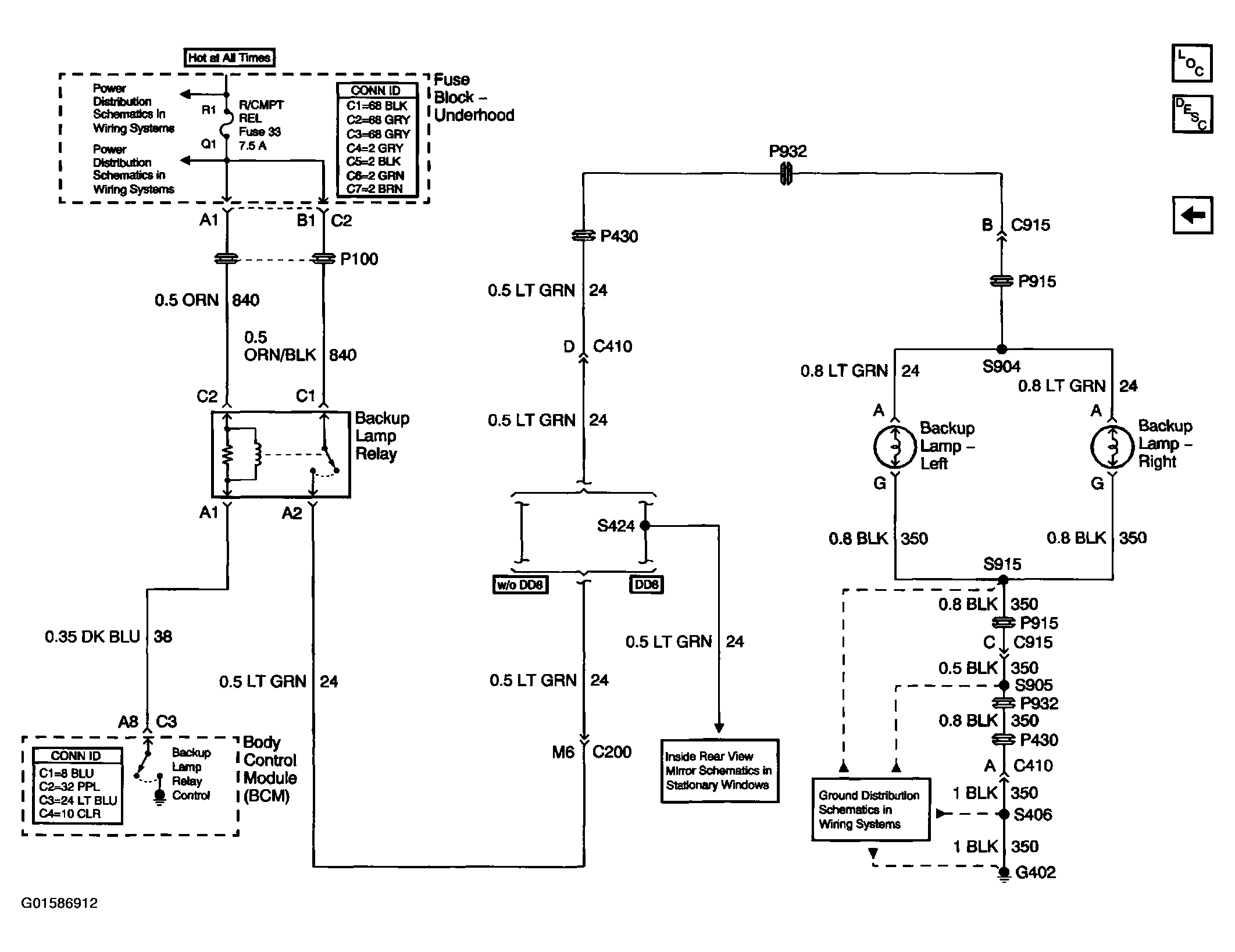

Fig 9: Exterior Lights Schematics (Back Up Lamps)

G01586912

Courtesy of GENERAL MOTORS CORP.

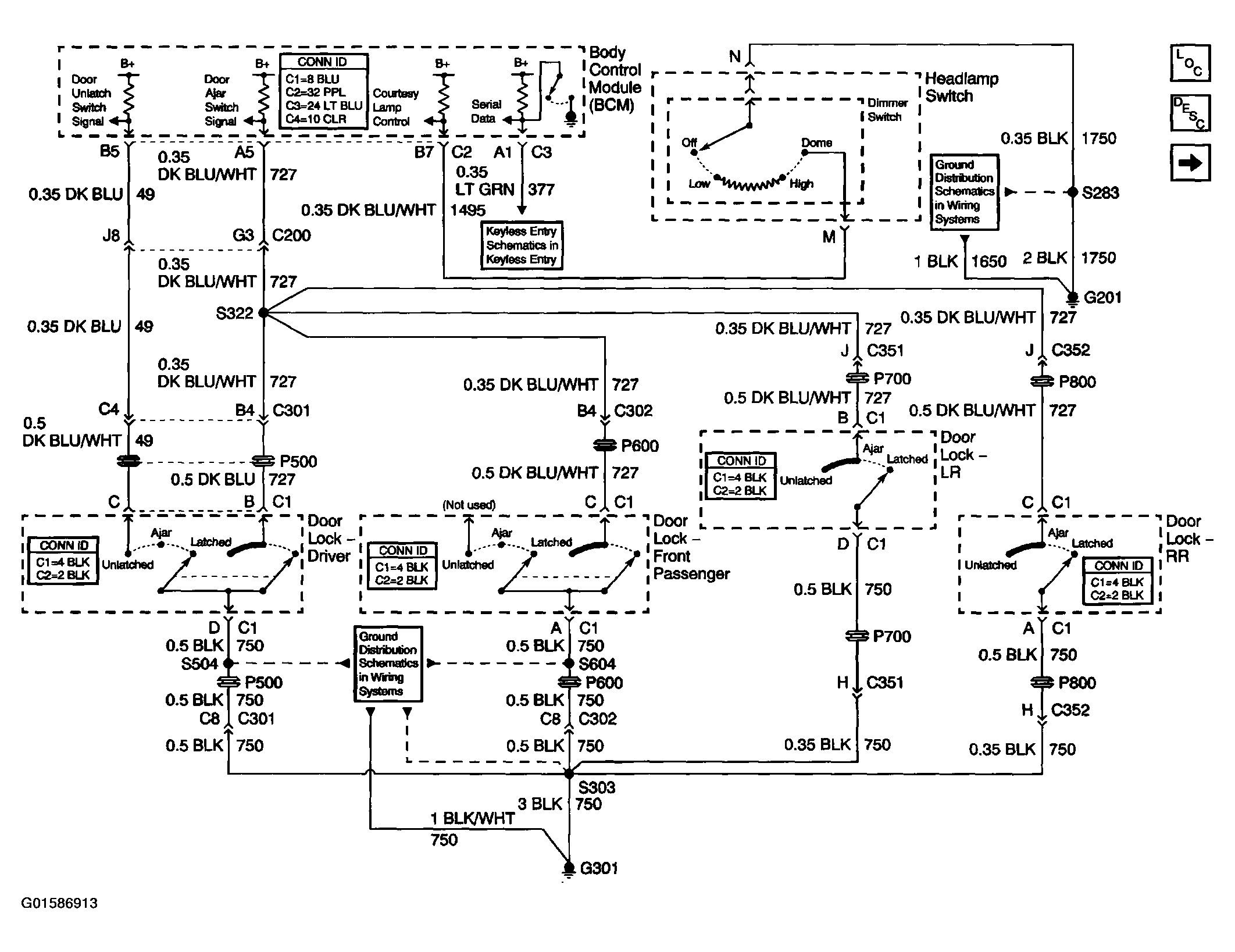

Fig 10: Interior Lights Schematics (Lamp Controls)

G01586913

Courtesy of GENERAL MOTORS CORP.

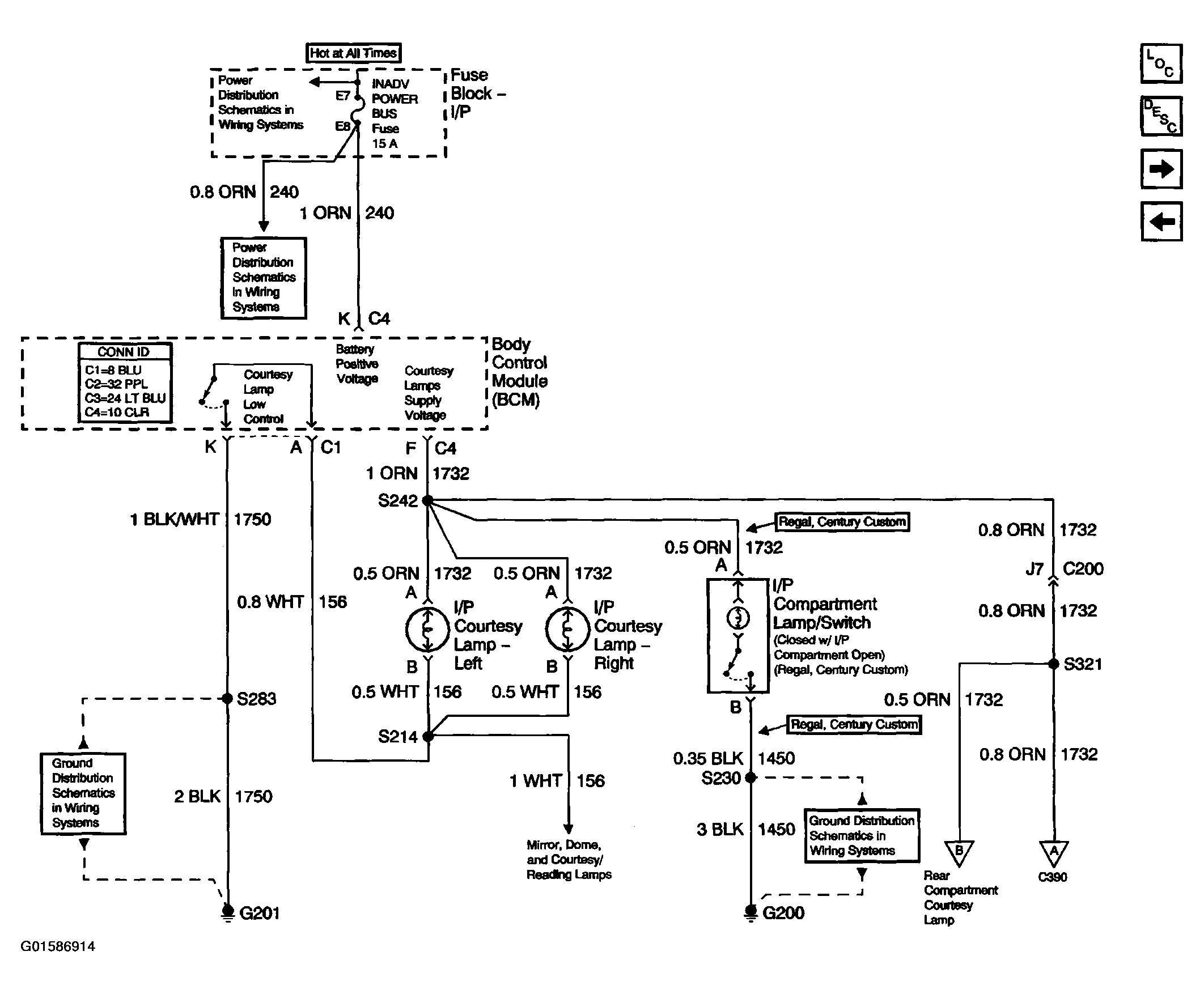

Fig 11: Interior Lights Schematics (I/P Courtesy Lamps)

G01586914

Courtesy of GENERAL MOTORS CORP.

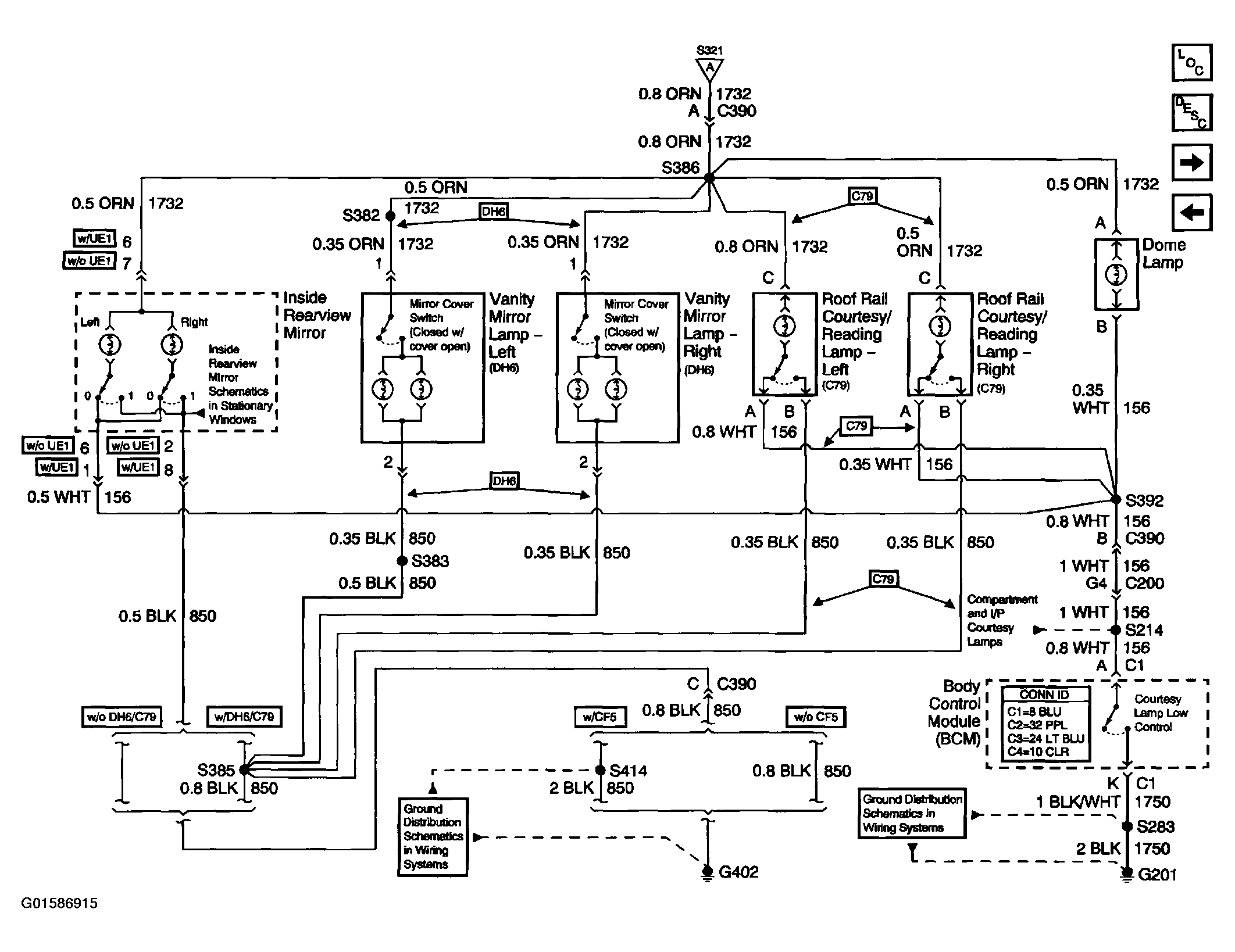

Fig 12: Interior Lights Schematics (Mirror, Dome And Courtesy/Reading Lamps)

G01586915

Courtesy of GENERAL MOTORS CORP.

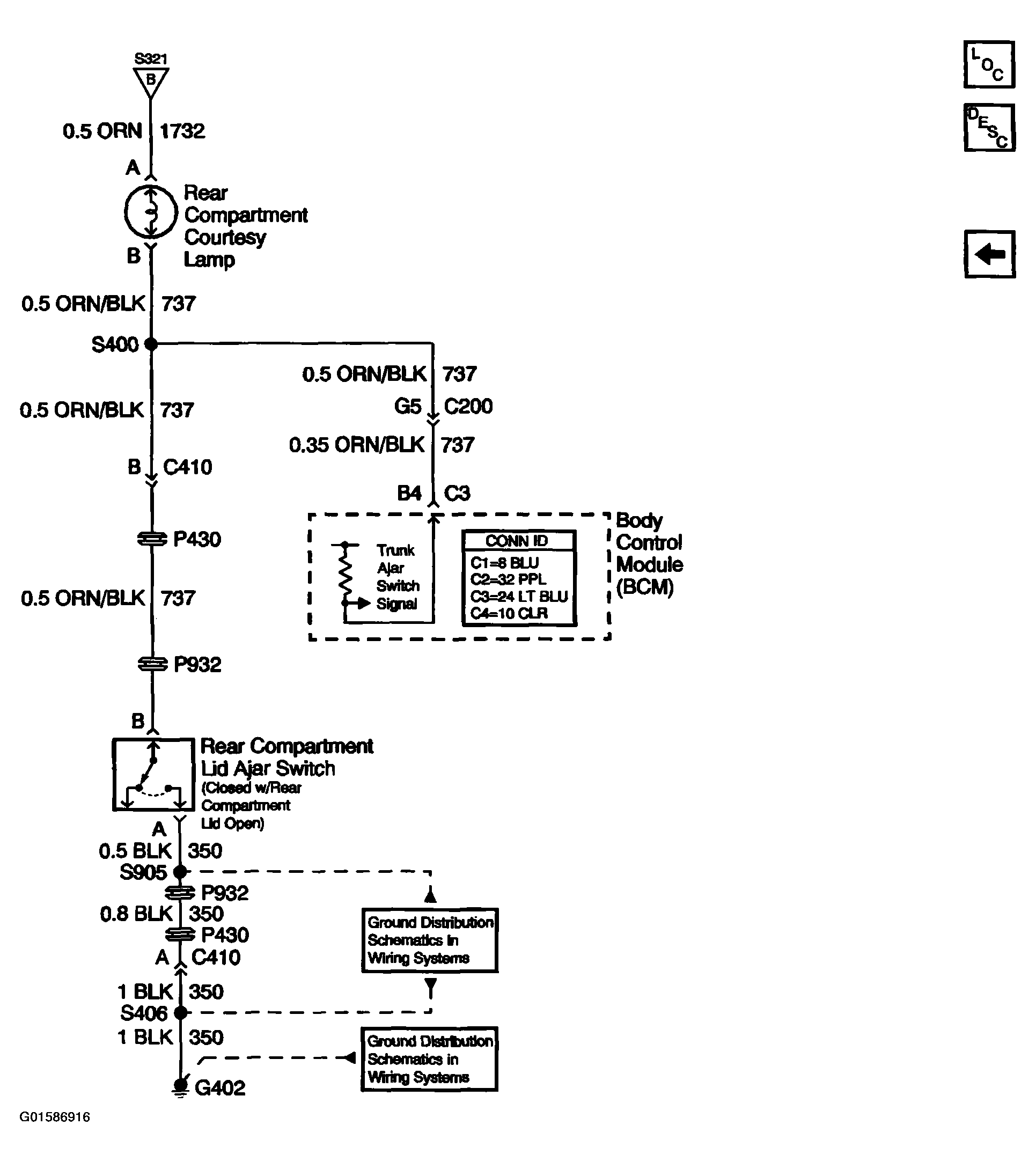

Fig 13: Interior Lights Schematics (Rear Compartment Courtesy Lamp)

G01586916

Courtesy of GENERAL MOTORS CORP.

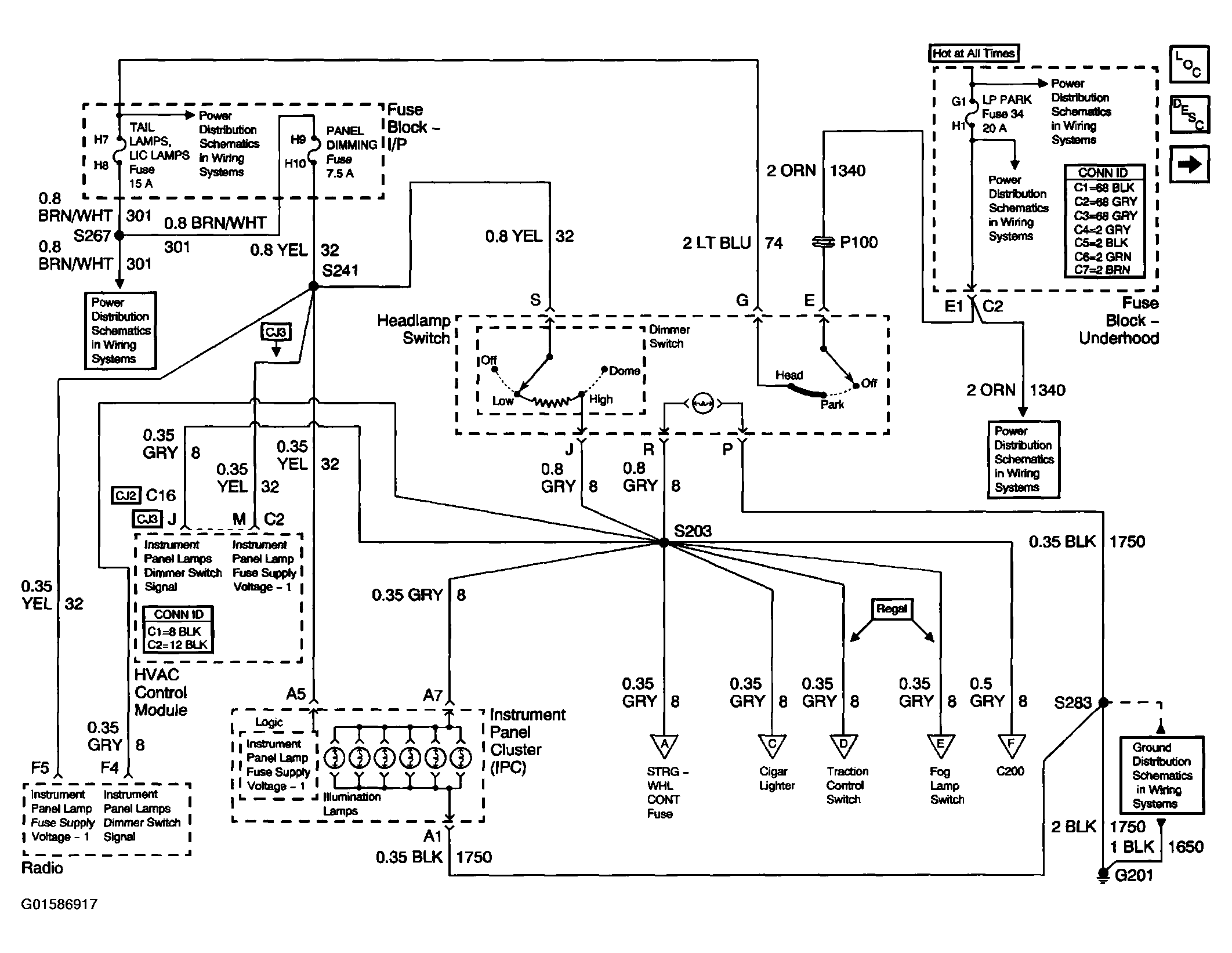

Fig 14: Interior Lights Dimming Schematics (I/P Dimmer Switch, HVAC, And IPC)

G01586917

Courtesy of GENERAL MOTORS CORP.

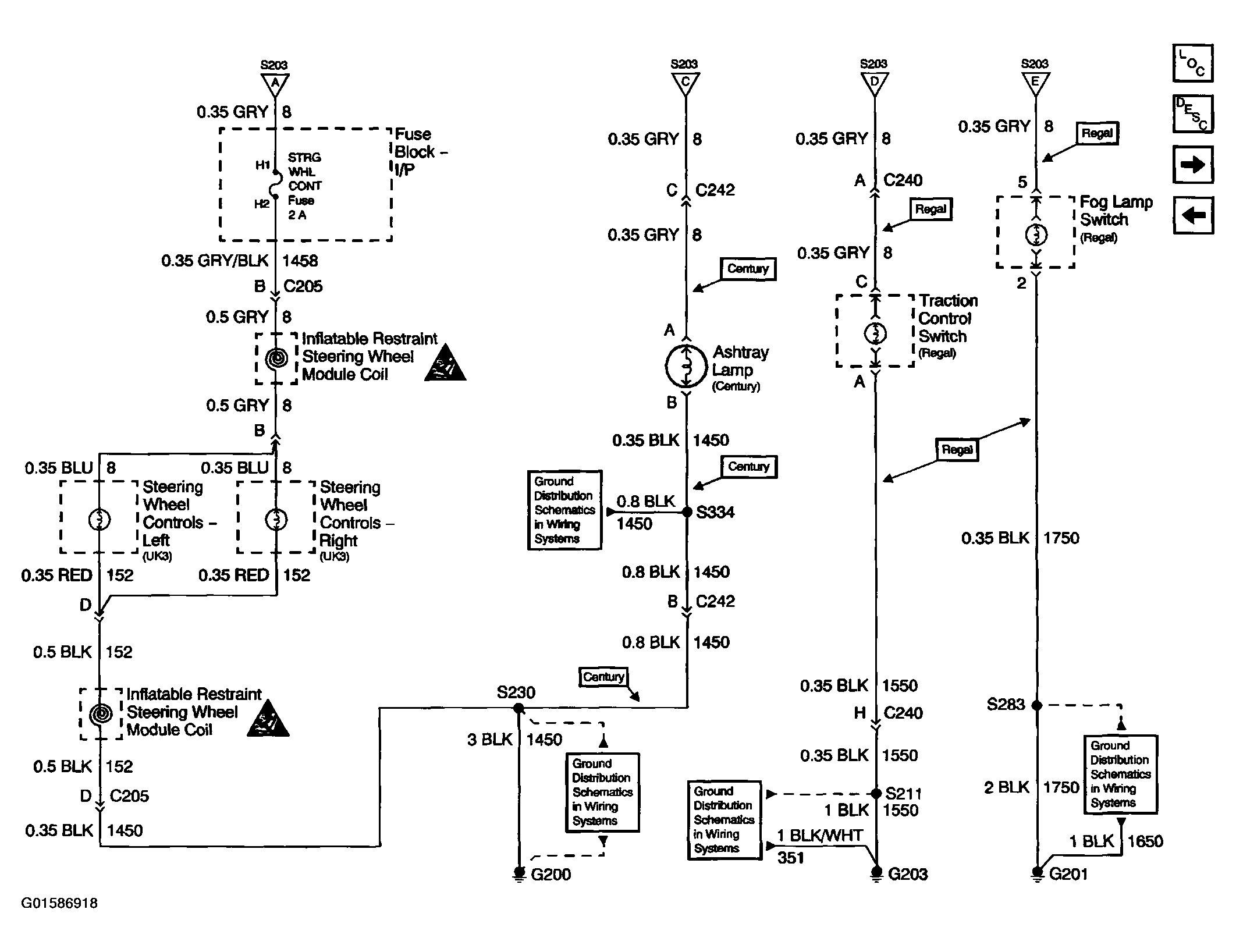

Fig 15: Interior Lights Dimming Schematics (Passenger Compartment Lamps)

G01586918

Courtesy of GENERAL MOTORS CORP.

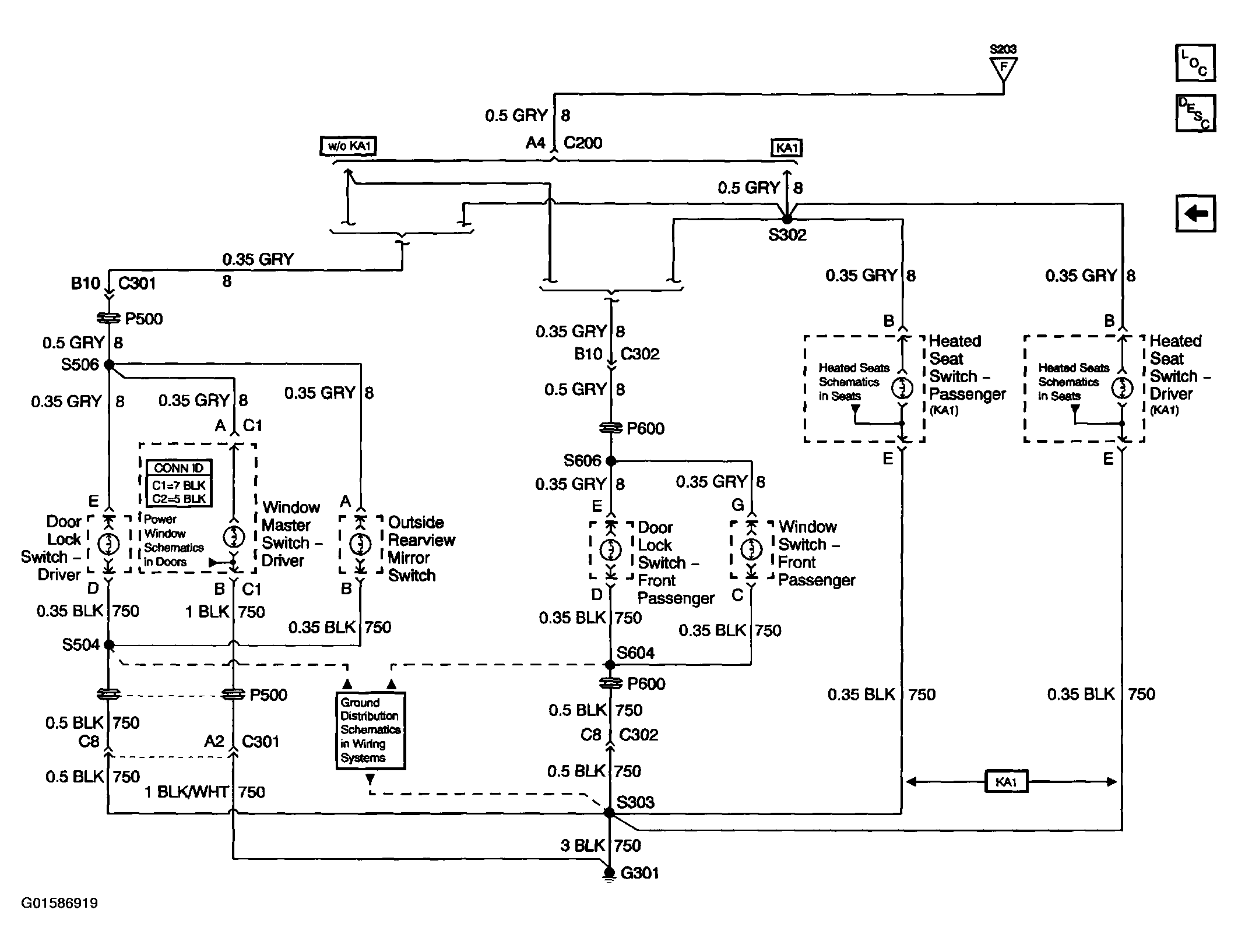

Fig 16: Interior Lights Dimming Schematics (Door And Seat Switches)

G01586919

Courtesy of GENERAL MOTORS CORP.
