Installation Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

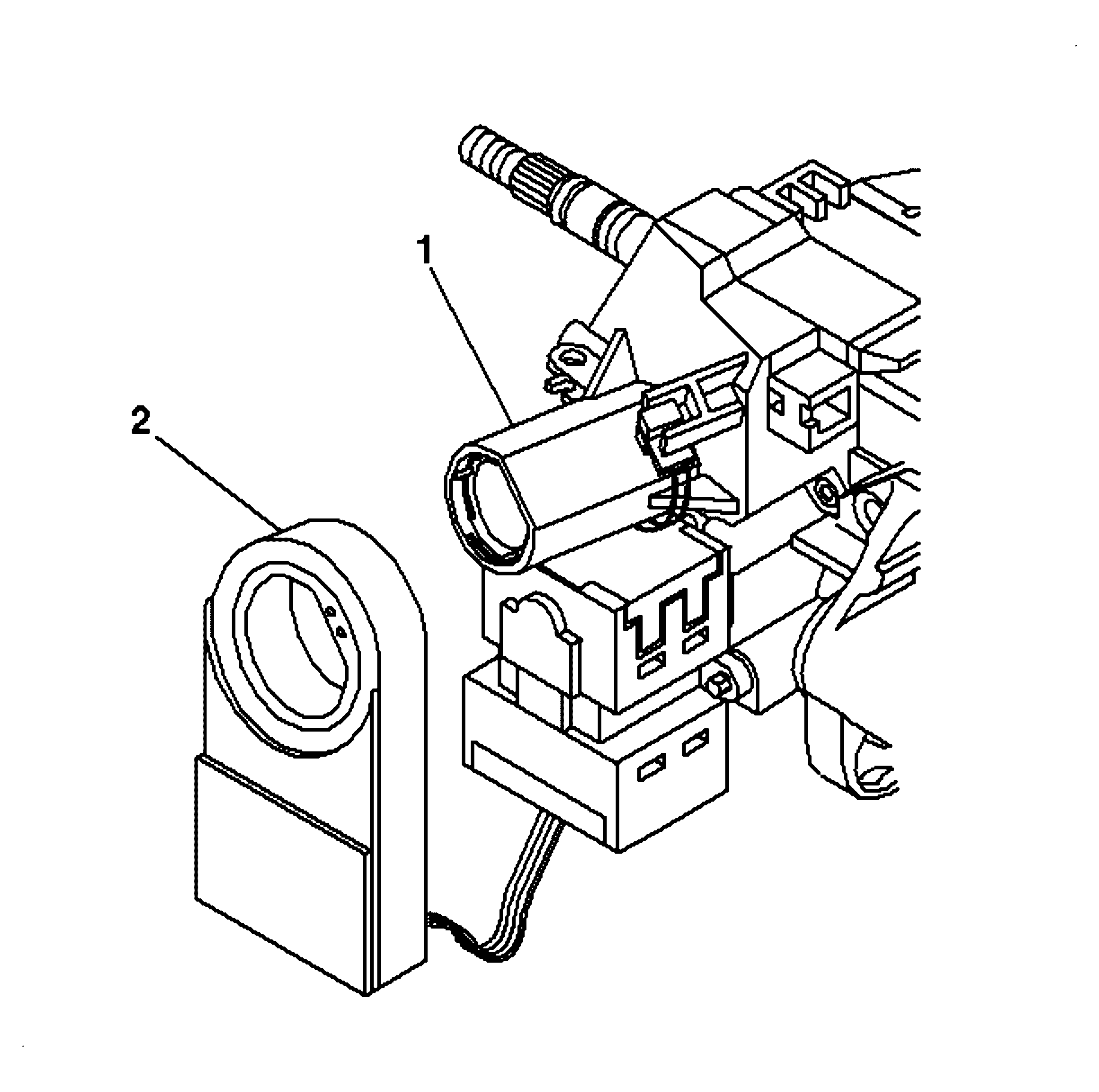

    Fig 1: Theft Deterrent Control Module & Lock Cylinder Housing
    GM324877Courtesy of GENERAL MOTORS CORP.
  1. Install the theft deterrent control module (2), onto the lock cylinder housing (1).
  2. Install the theft deterrent control module wiring harness to the steering column harness.
  3. If, necessary, disconnect the electrical connector from the ignition lock cylinder case.
  4. Connect the electrical connector.
  5. Install the ignition lock cylinder. Refer to IGNITION LOCK CYLINDER REPLACEMENT - ON VEHICLE .
  6. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - ON VEHICLE .
  7. Enable the SIR system. Refer to ACTIVATING SYSTEM .
  8. Program the new theft deterrent control module. Refer to Programming Theft Deterrent System Components .
