Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Position the bolt into the mounting point of the armrest.

Fig 1: Positioning Bolt Into Armrest Mounting Point
Courtesy of GENERAL MOTORS CORP.
Position the armrest to the front bucker seat.
NOTE: Refer to FASTENER NOTICE .
Tighten the armrest mounting bolt.
Tighten

Tighten the armrest mounting bolt to 4.5 N.m (40 lb in).

Fig 2: Tightening Armrest Mounting Bolt
Courtesy of GENERAL MOTORS CORP.

Important: Rotate the armrest bolt trim cap to a new position to allow the retainer on the cap to seat properly.
Install the armrest bolt trim cap pressing into place until fully seated.
Inspect the armrest for proper movement.

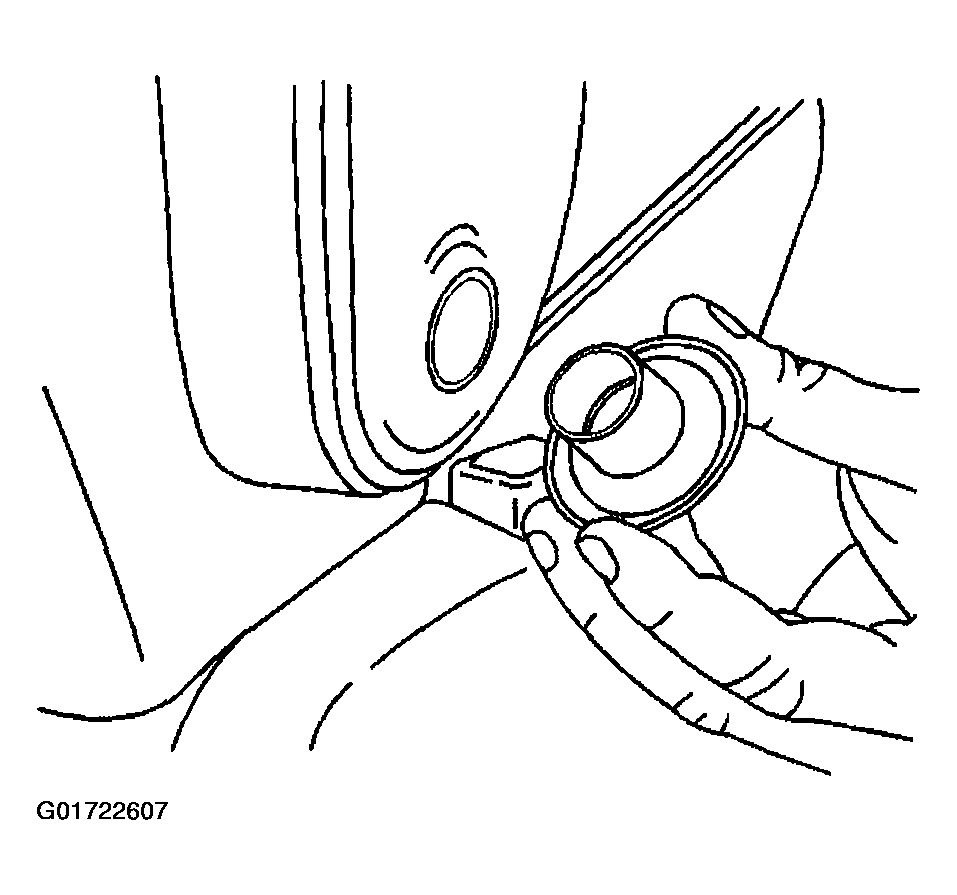

Fig 3: Installing Armrest Bolt Trim Cap
Courtesy of GENERAL MOTORS CORP.
