Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect all required wiring harnesses to the front seat cushion frame.
  2. Install the front seat cushion to the front seat cushion frame. Refer to Seat Cushion Replacement - Front .
  3. Install the front seat cushion cover to the front seat cushion. Refer to Seat Cushion Cover Replacement - Front .
  4. Install the front seat adjuster. Refer to Seat Adjuster Replacement - Front .
  5. Install the front seat back to the front seat. Refer to Seat Back Replacement - Front .
  6. Install the front bucket seat to the vehicle. Refer to Seat Replacement - Bucket .

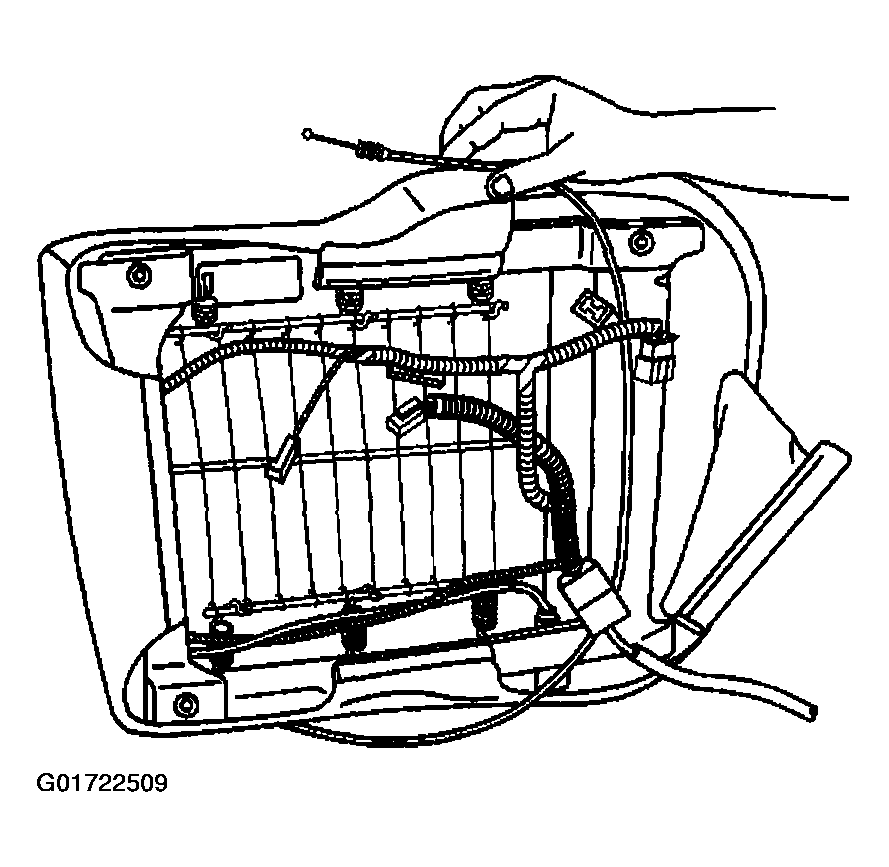

    Fig 1: Connecting All Required Front Seat Cushion Frame Wiring Harnesses
    G01722509Courtesy of GENERAL MOTORS CORP.
