Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Install the front seat to the studs on the floor pan.
Connect the seat electrical connectors.
NOTE: Refer to FASTENER NOTICE .
Install the nuts to the seat floor pan studs.
Tighten

Tighten the front bucket seat adjuster-to-floor pan nuts to 50 N.m (37 lb ft).

Inspect the front bucket seat for proper operation and adjustment.
Enable the SIR system. Refer to ACTIVATING SYSTEM .

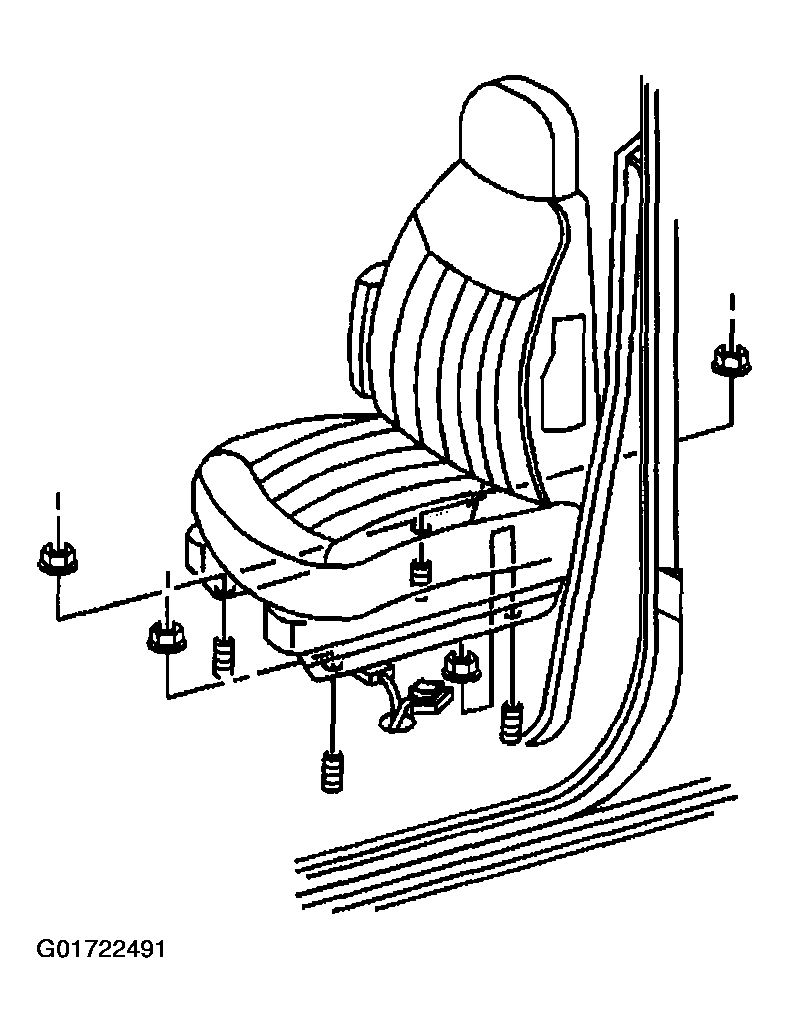

Fig 1: Installing Front Seat Adjuster Nuts And Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
