Test Description
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

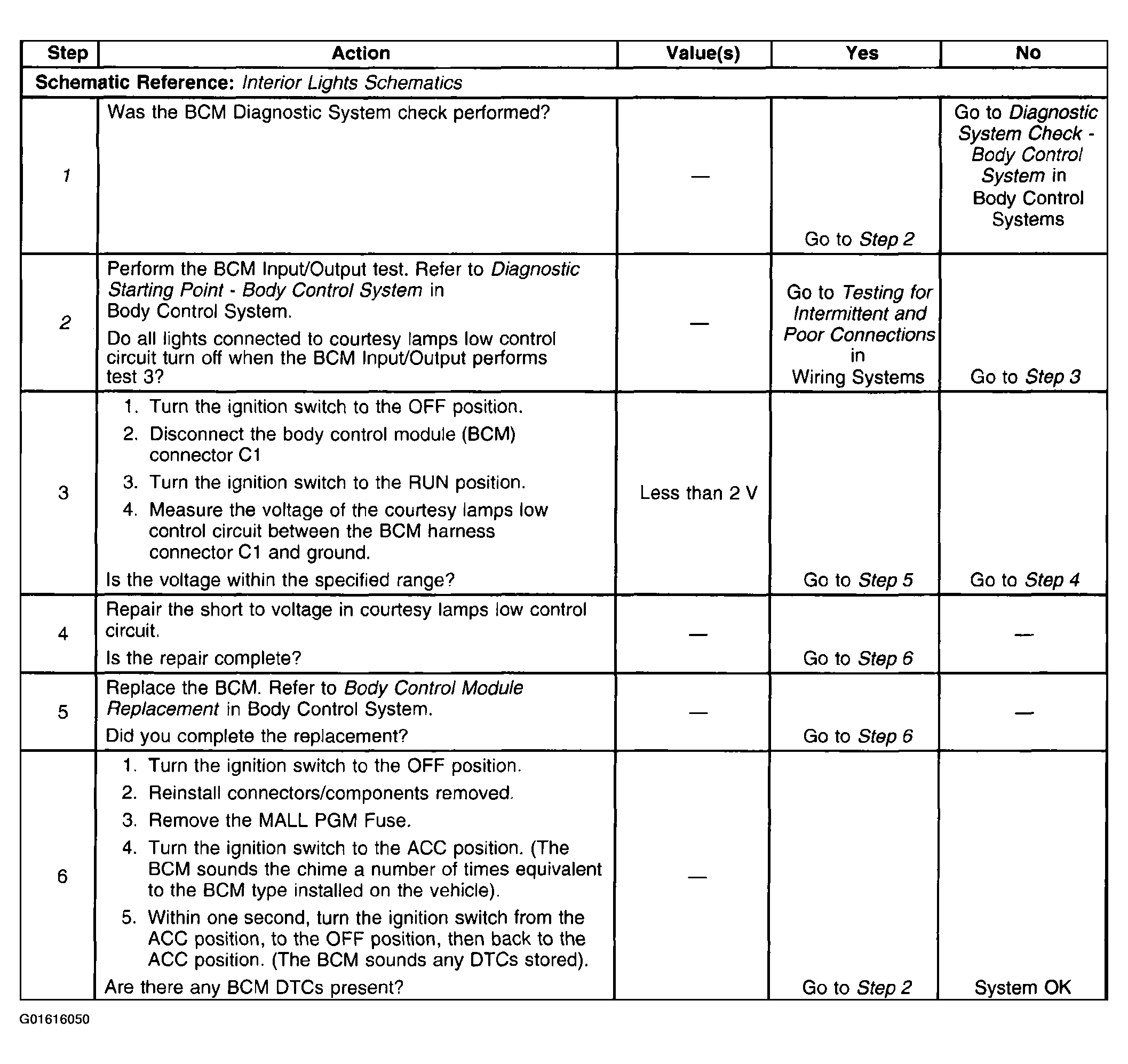

The numbers below refer to the step numbers on the diagnostic table.
- Always perform the lighting diagnostic system check before attempting to diagnose DTC 3.
- Tests for a short to voltage in the courtesy lamps low control circuit.
Courtesy of GENERAL MOTORS CORP.
